Overview
Machine location:
United States
Stock number:
PF 41136
Categories:
Rotary Bored Piling Rigs
Manufacturer:
Delmag
Model:
RH 27
Year of manufacture:
2023

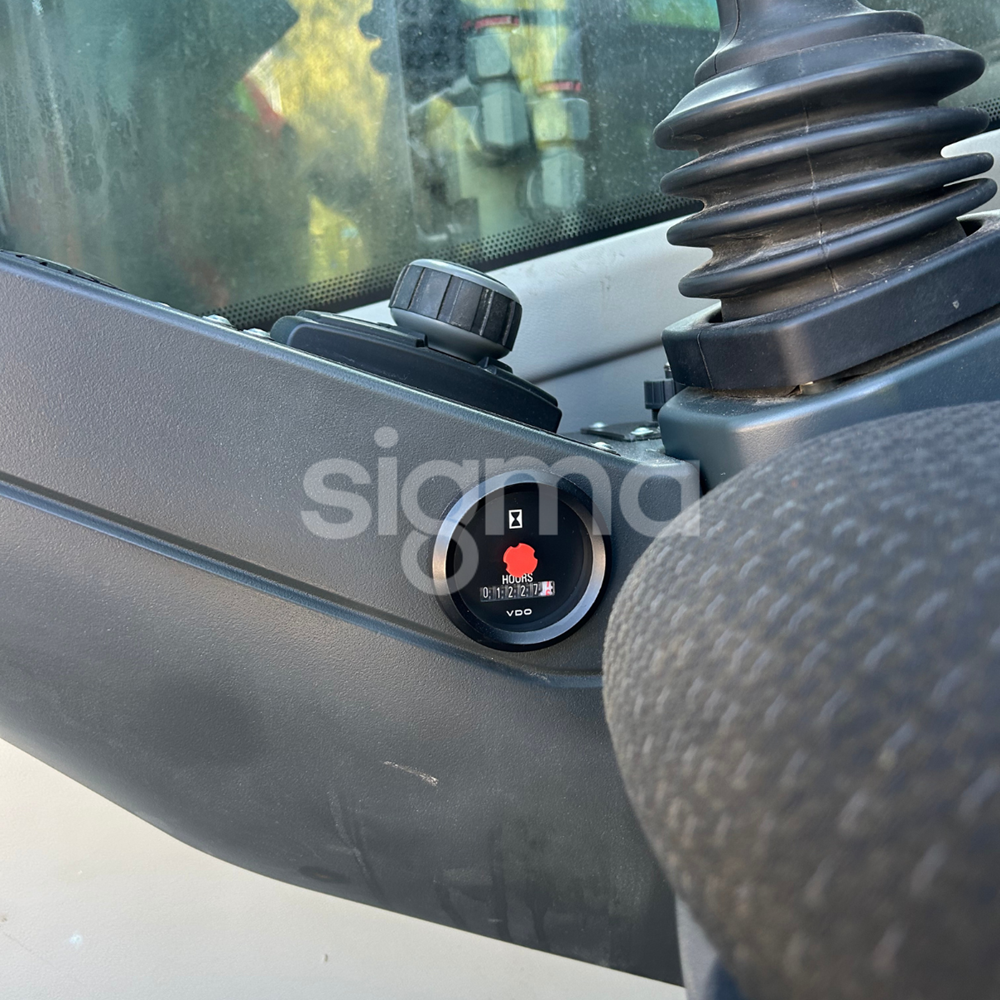

Working hours:
1227
Key features

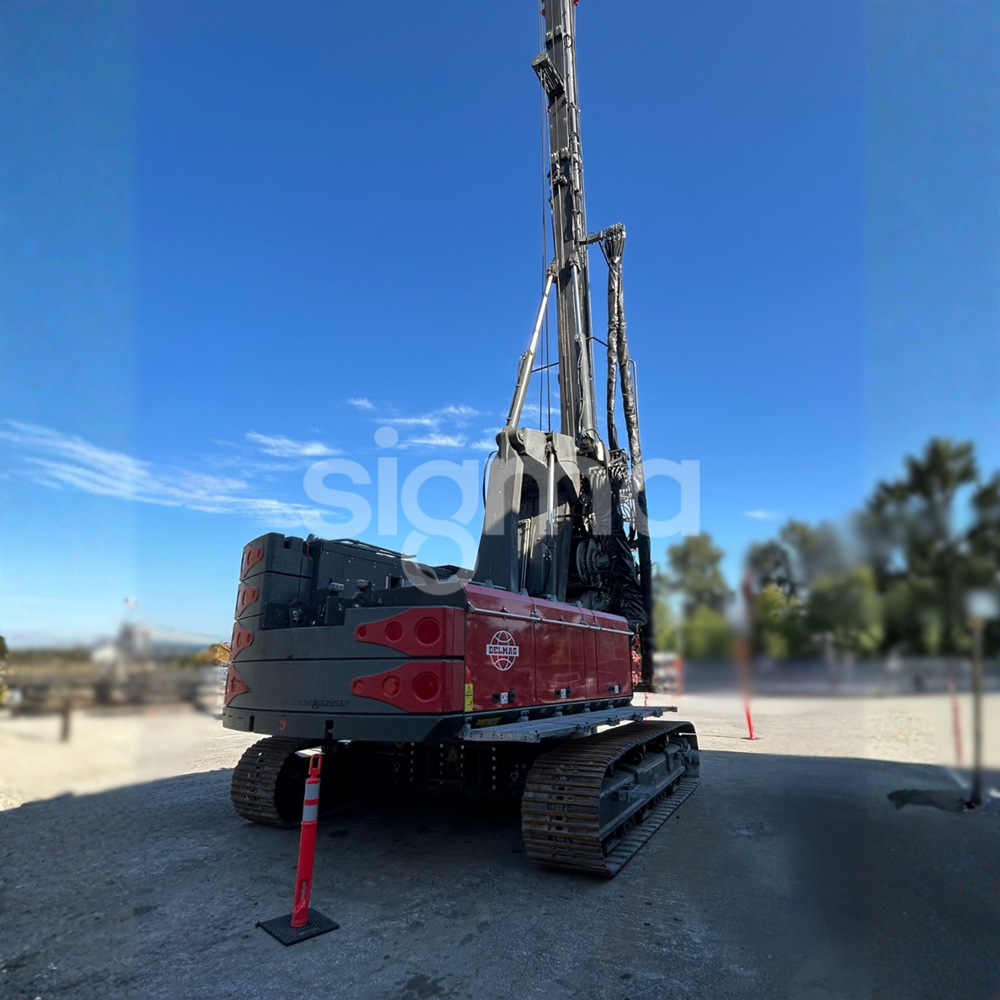

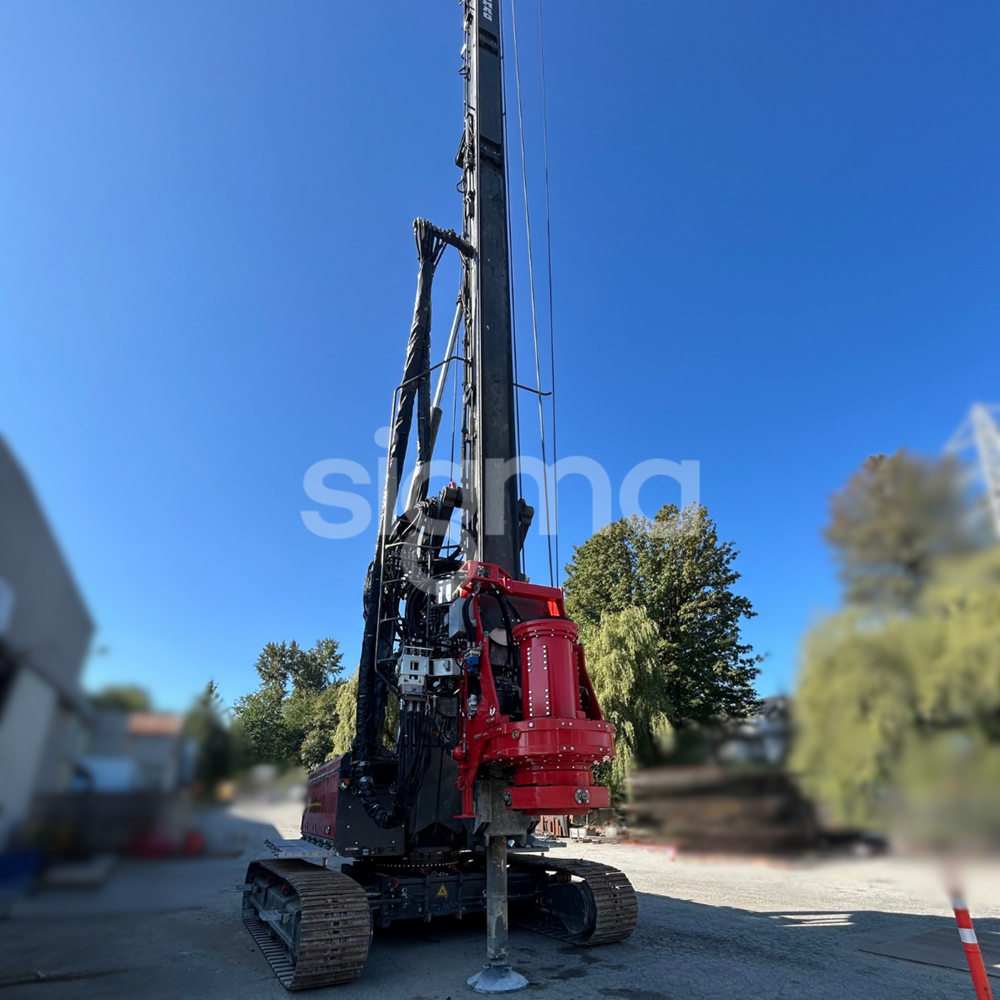

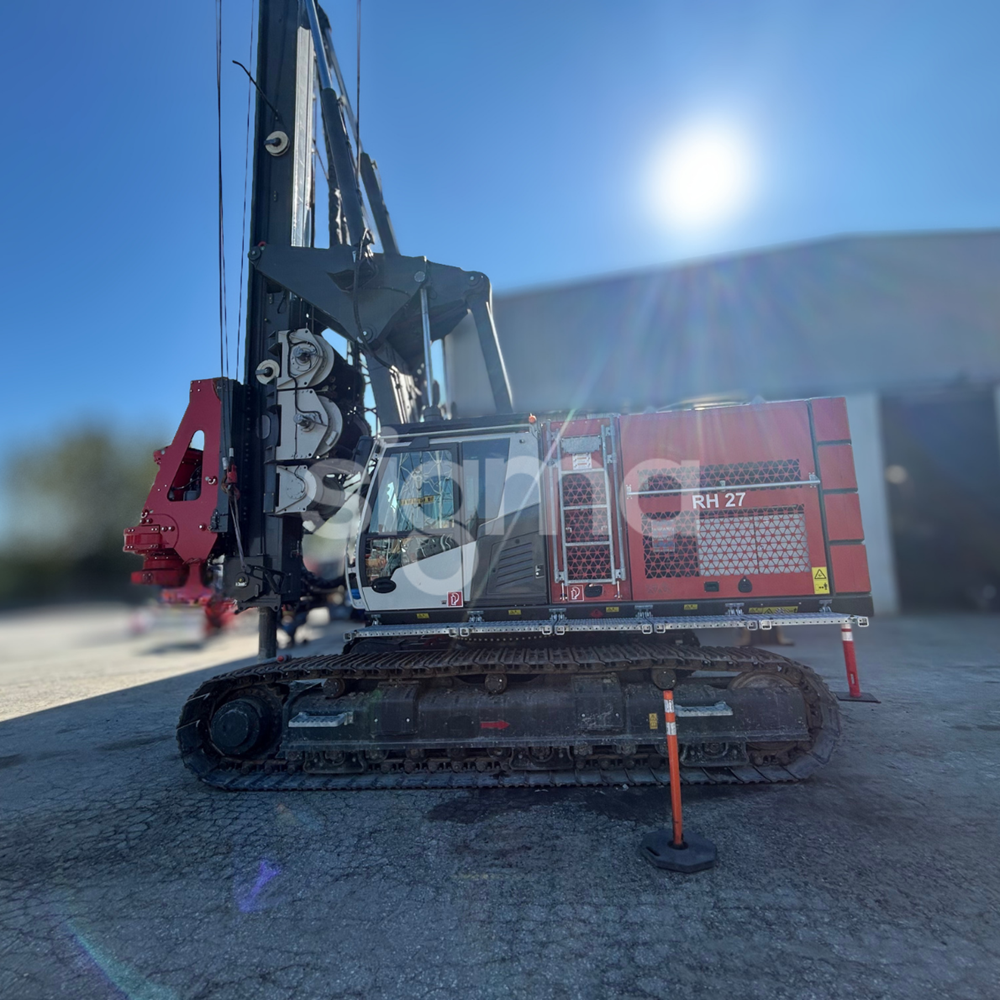

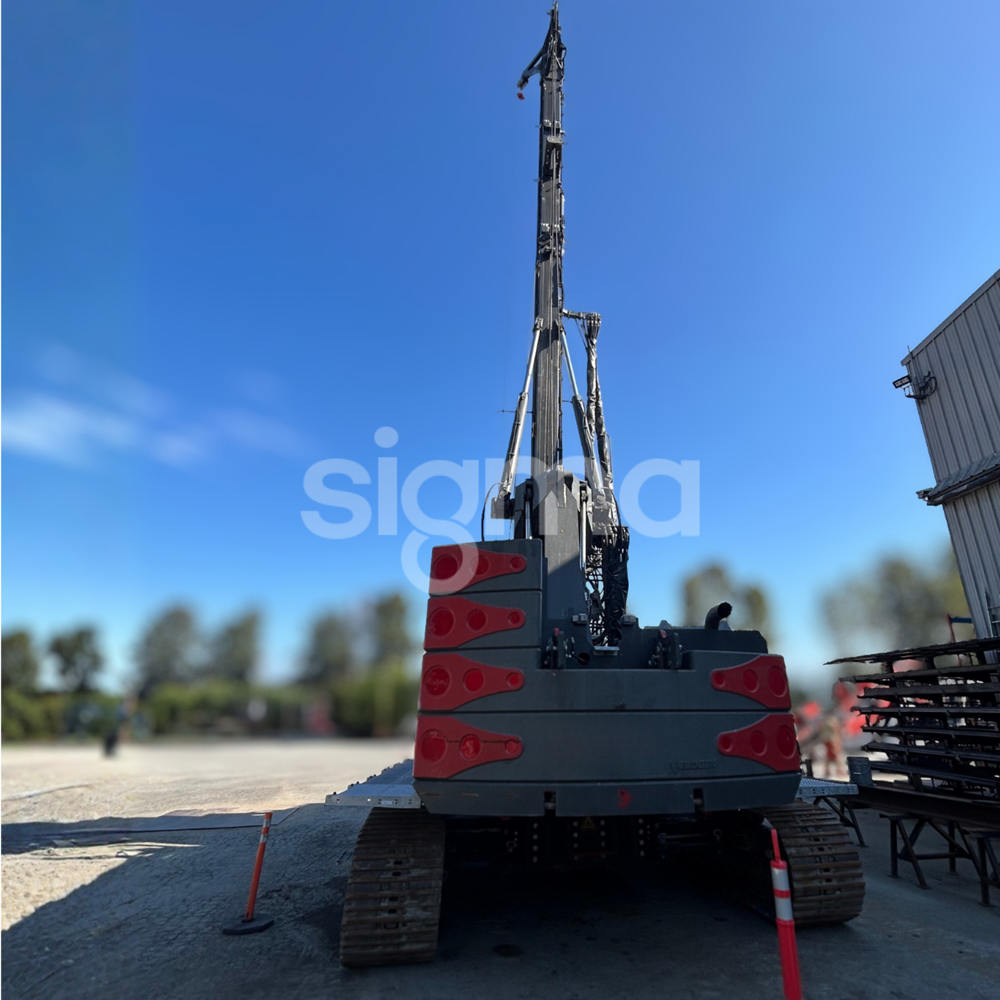

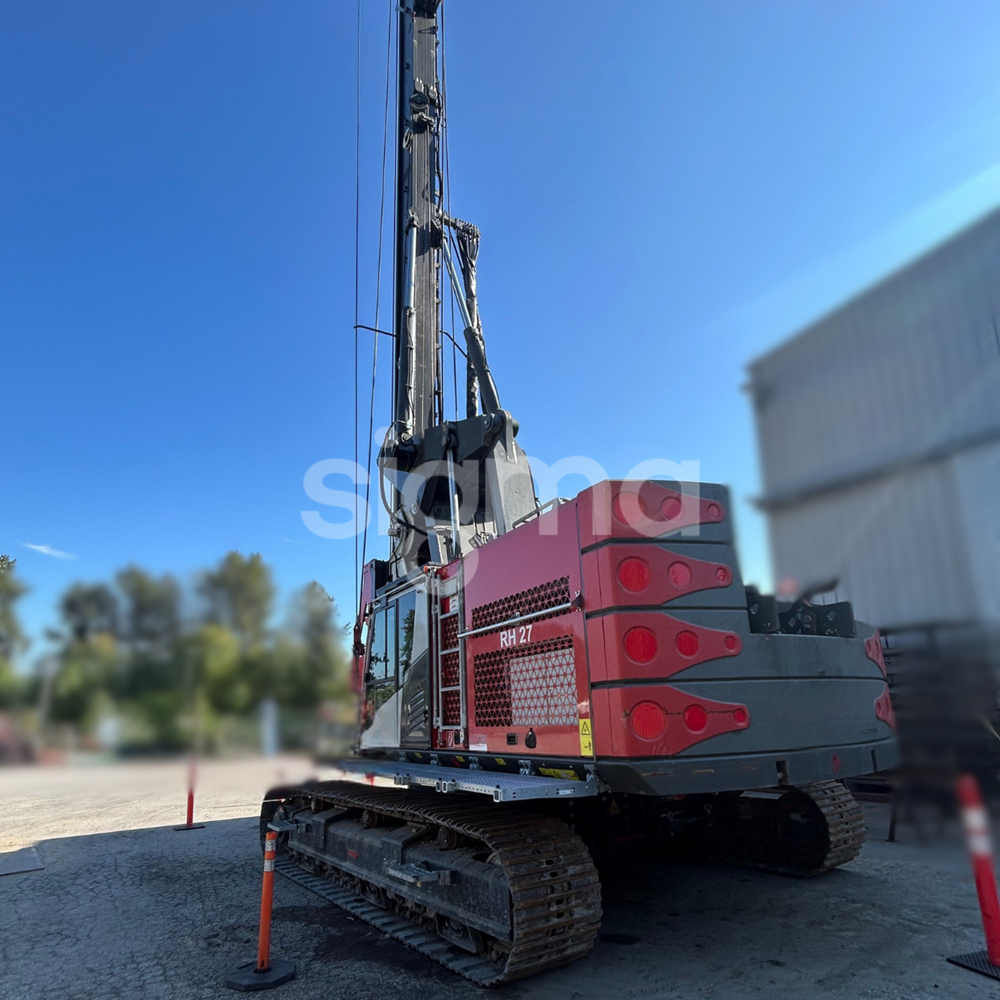

2023 DELMAG RH 27 rotary piling rig in Platinum condition with 1,227 working hours. Mounted on a SENNEBOGEN SR 30 crawler base and powered by a 310 kW CAT C9.3B engine. Equipped with a DELMAG BT 270 rotary head delivering 270 kNm of torque, with a maximum drilling depth of 41.1 m in Kelly configuration
Machine specs
Drilling performance
- Max drilling diameter: 3,500 mm
- Max drilling depth: 41m
- Max torque: 270 kNm
- Max crowd force: 290 kN
- Max pull (upward) force: 430 kN
- Mast inclination: 9° left / 9° right; 4° forward / 14° backward
Rotary Head
- Rotary head model: BT 270
- Max torque: 270 kNm
- Max rotation speed: 40 rpm
- Max spin off speed: 58
Winches & Handling
- Main winch capacity: 265 kN
- Auxiliary winch capacity: 100 kN
Power Unit

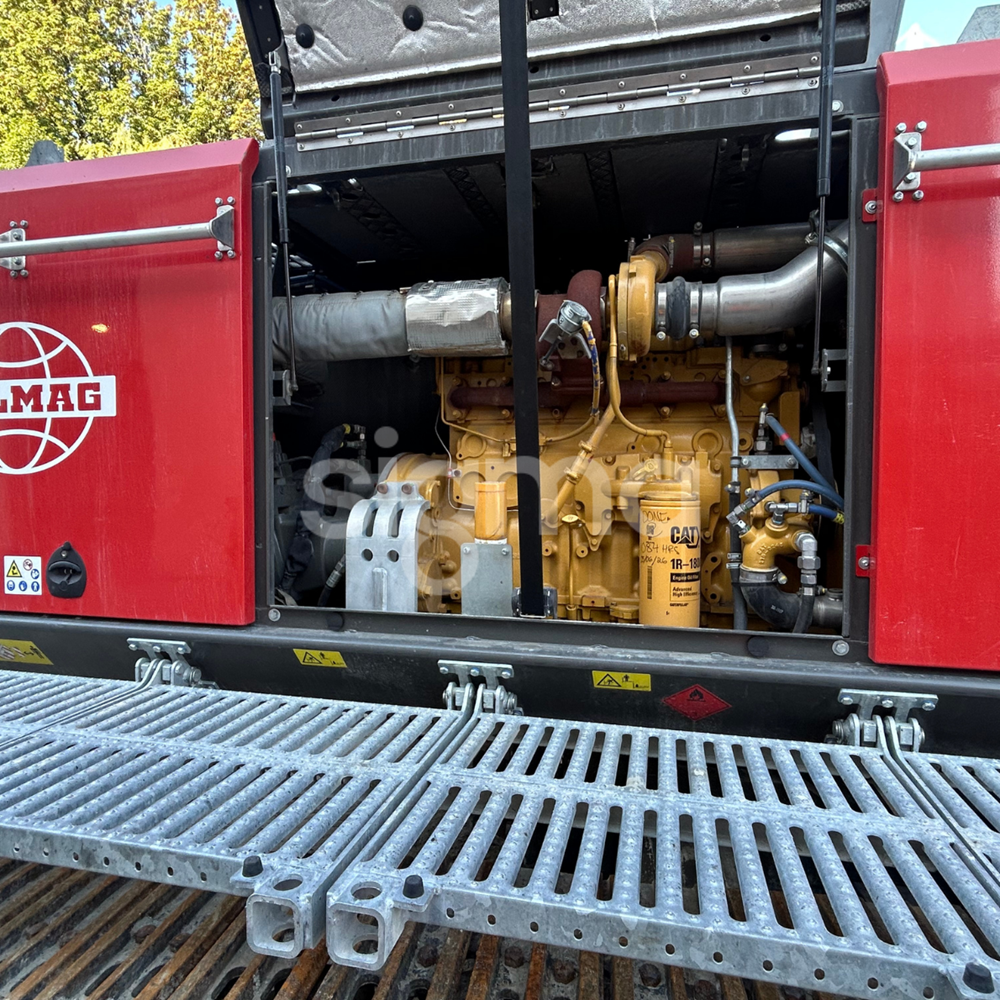

- Engine make & model: Caterpillar CAT C9.3B
- Engine power: 310 kW (416 hp) @ 2,200 rpm
- Emission standard: EU Stage V / US EPA Tier 4 Final
- Fuel tank capacity: 590l
Undercarriage & Mobility
- Undercarriage type: S50/44CVT
- Track shoe width: 700 mm
- Tramming speed: 1.4 – 3.2 kph
Dimensions & Weight
- Working height: 22,450 mm
- Transport width: 3,000 mm
- Transport height: 3,400 mm
- Transport length: 22,100 mm
