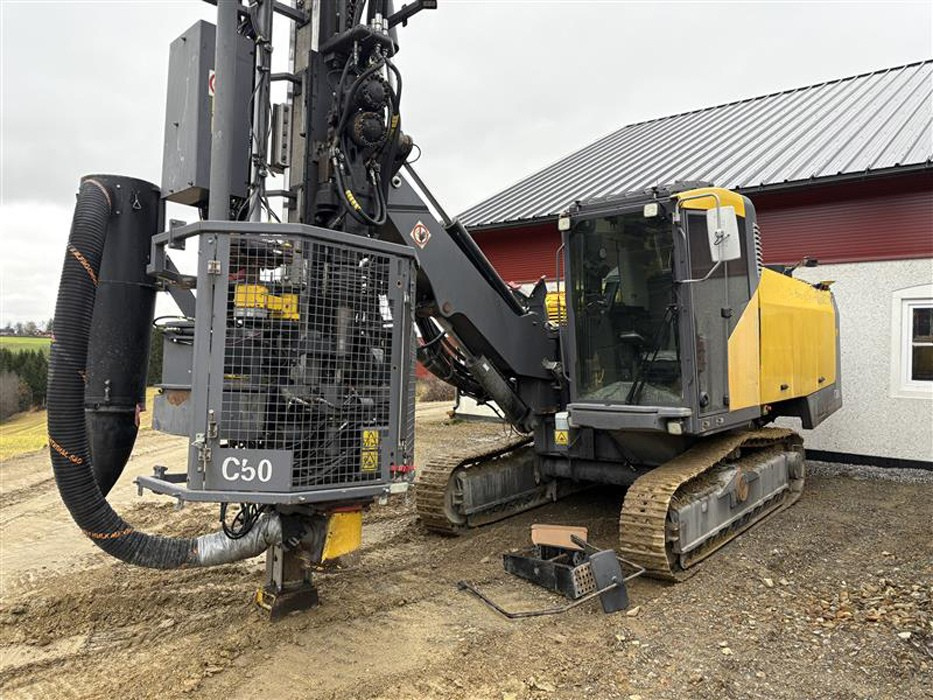

Overview
Machine location:
Europe
Stock number:
PF 40955
Manufacturer:
Epiroc
Model:
C50
Year of manufacture:
2020
Working hours:
13364
Key features
- Rock drill rig with 13,364 hours
- Rock Drill
- Model: COP 3060CR
- Impact power: 30 kW
- Max percussion rate: 3,000 bpm
- Rotation torque: 2,450 Nm
- Feed / Boom
- Feed length: 9,500 mm
- Feed force: 40 kN
- Compressor / Flushing
- Air flow: 13.4 m³/min
- Max pressure: 12 bar
- Engine
- Make & model: CAT C9.3B
- Power output: 250 kW @ 1,900 rpm
- Hydraulics
- Max flow:
- Axial piston pump (1) 160 l/min
- Axial piston pump (2) 120 l/min
- Axial piston pump (3) 40 l/min
- Gear pump (4) 40 l/min
- Gear pump (5) 40 l/min
- Max pressure: 240 bar
- Drilling Capacity
- Hole diameter: Ø 90–152 mm
- Max drilling depth: 36 m
- Dimensions and Weight
- Length: 10,600 mm
- Width: 2,500 mm
- Height: 3,500 mm
- Weight: 22,300 kg
