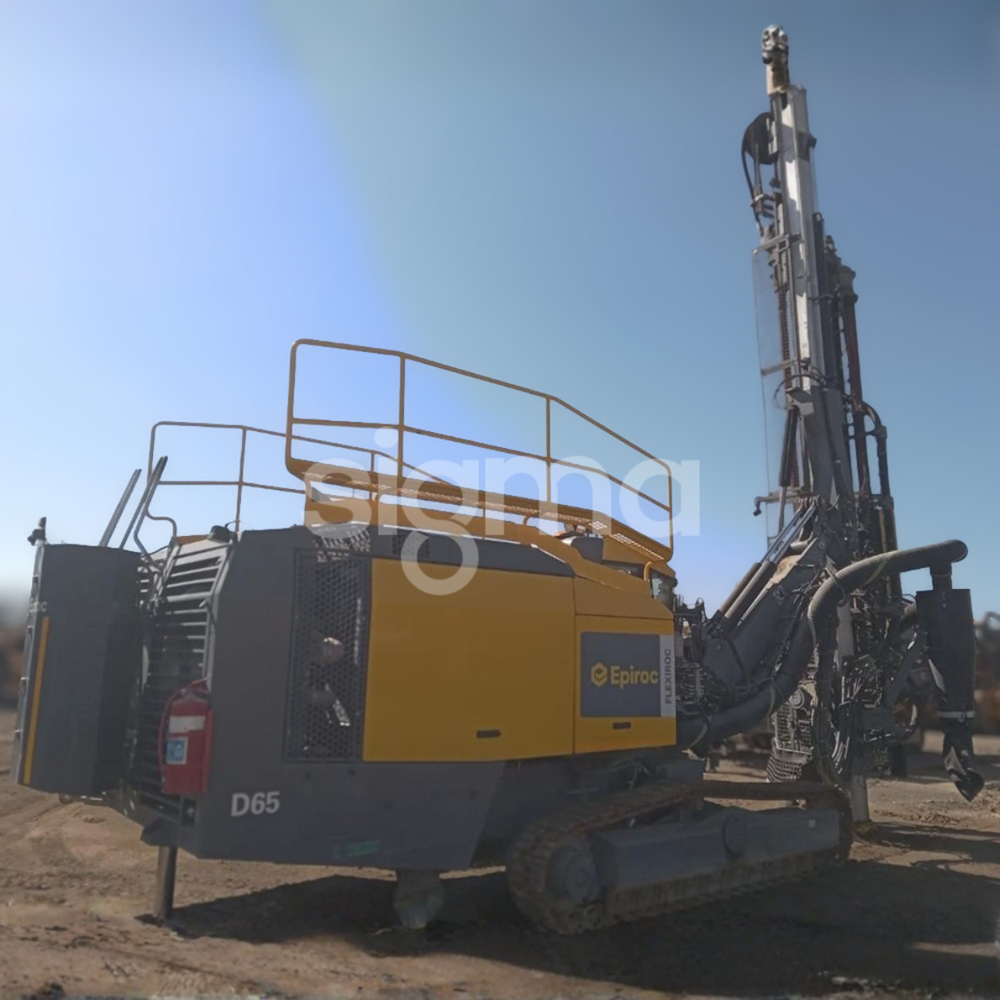

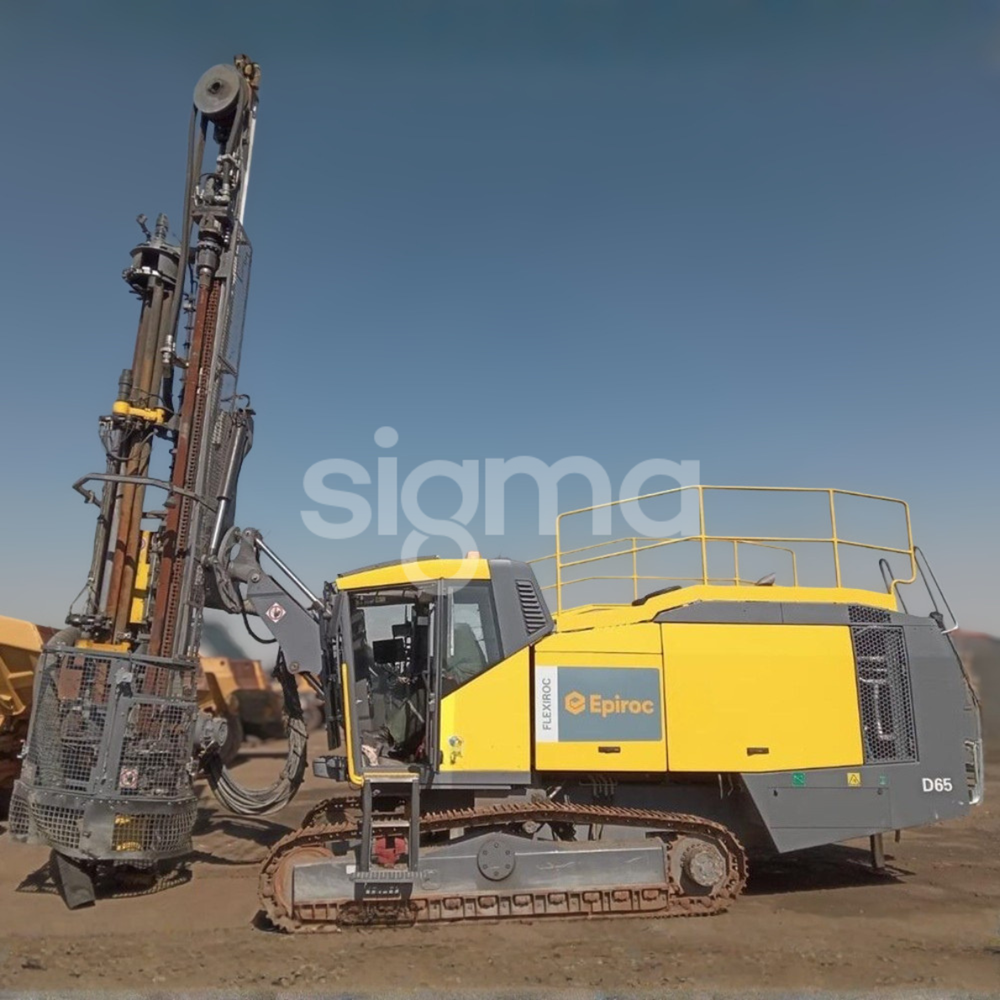

Overview
Stock number:
PF 40999
Categories:
Rock Drilling Rigs
Manufacturer:
Epiroc
Model:
D65
Year of manufacture:
2023
Working hours:
2454
Key features

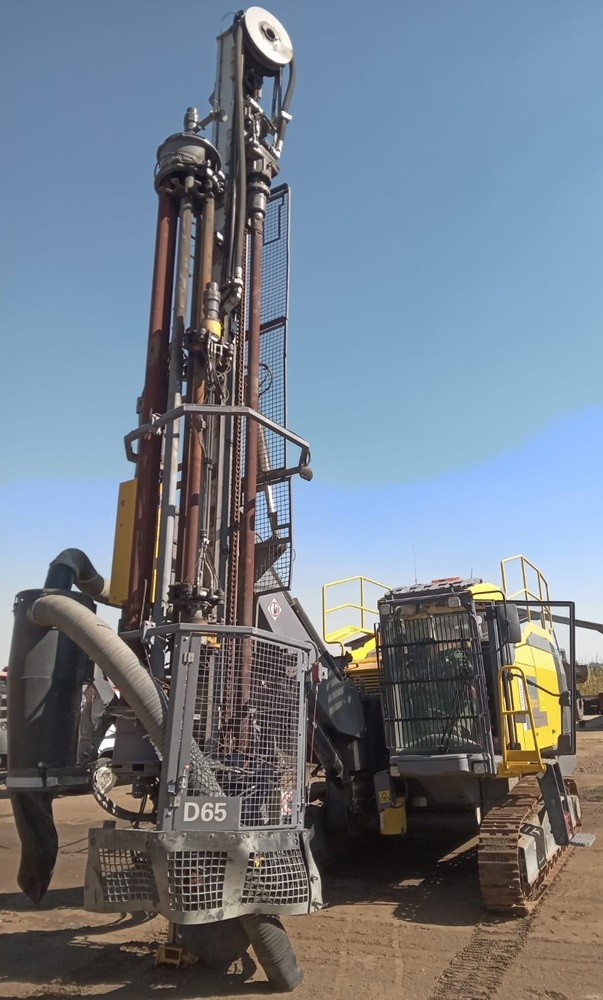

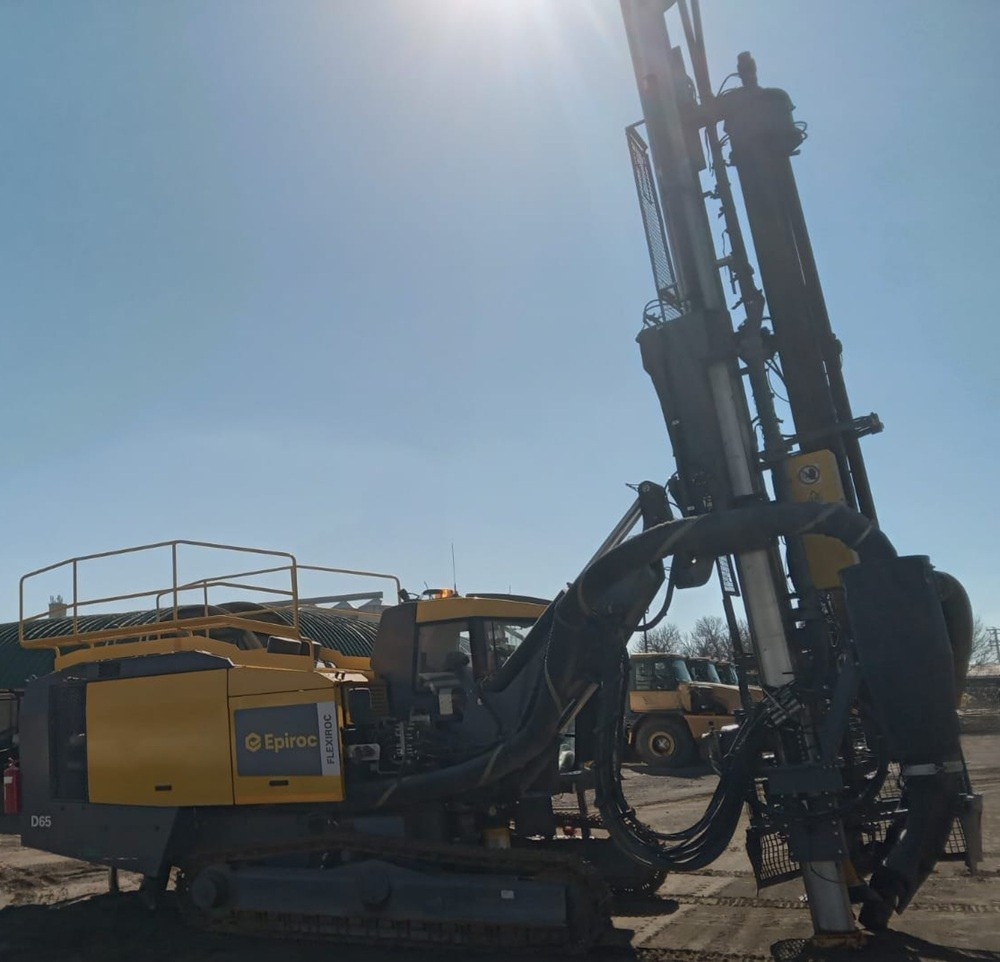

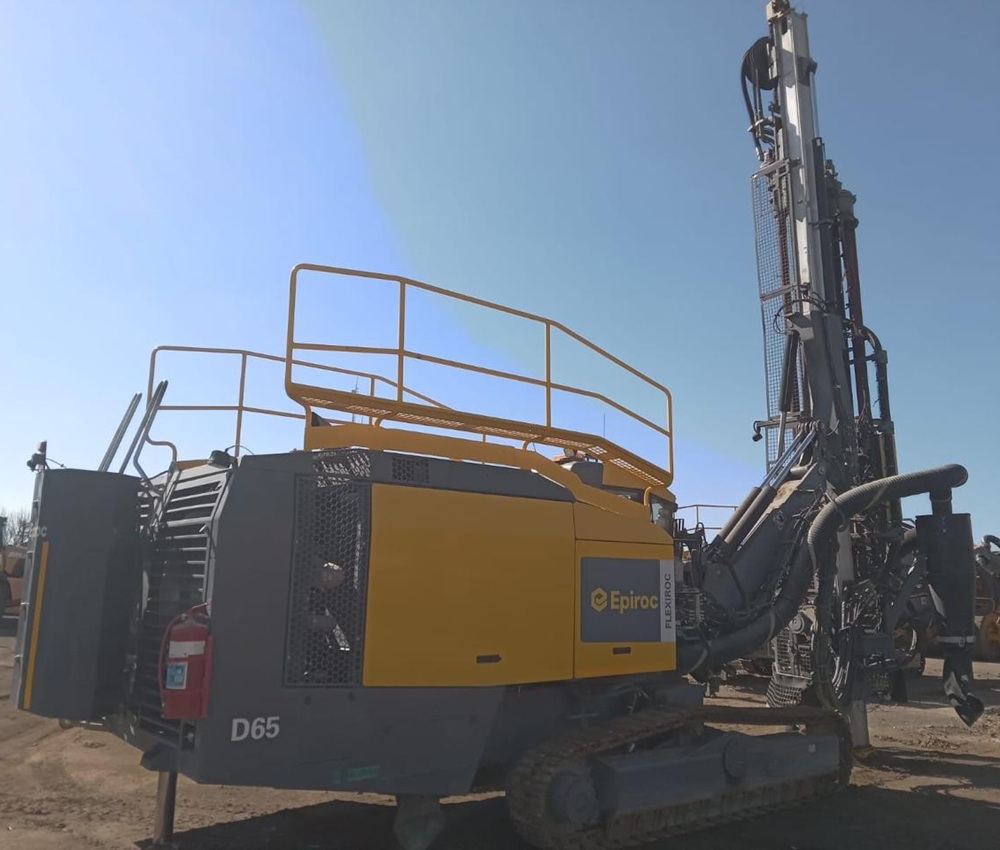

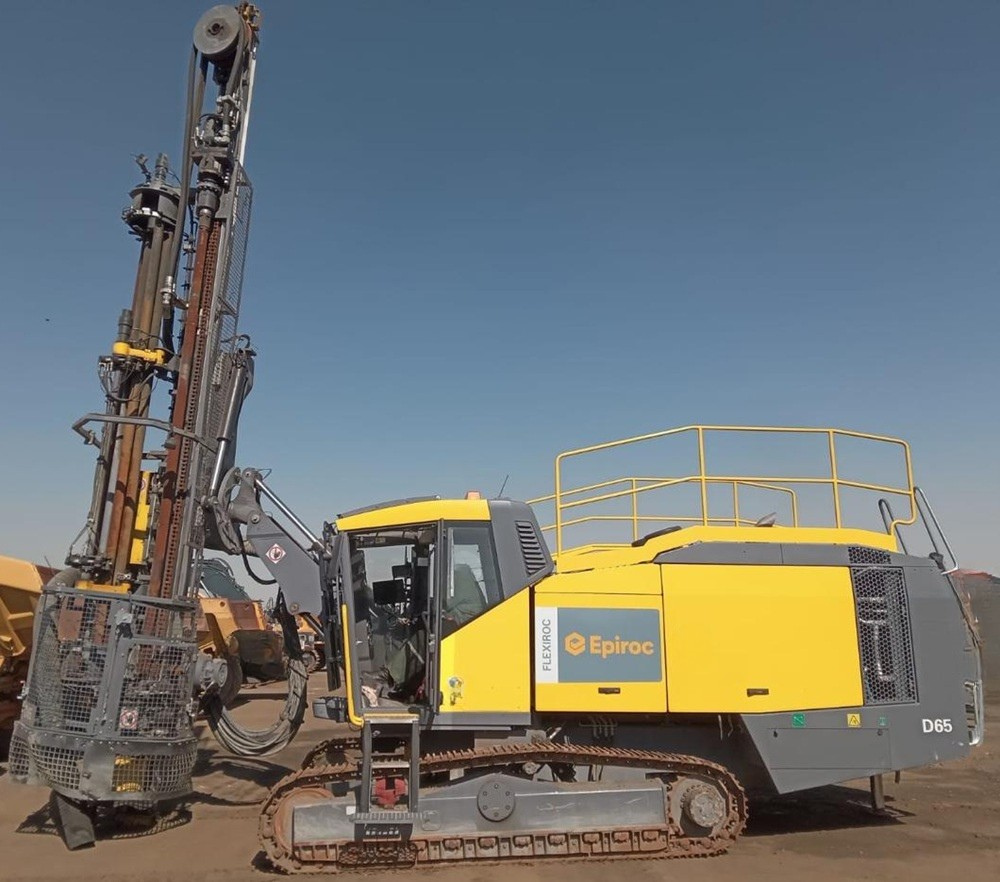

- Rock drilling rig with 2,454 hours
- Rock Drill / DTH

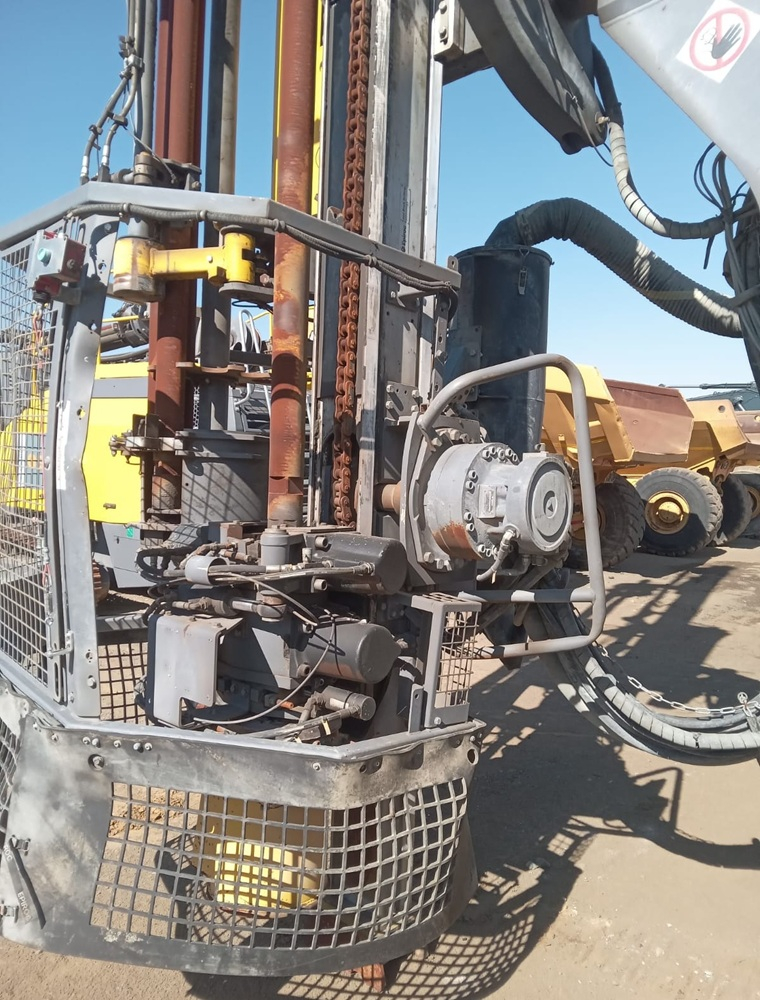

- Rotary head: DHR6 H 45
- Feed / Boom
- Feed height: 11,600 mm
- Single pass drilling depth: 7.5 m
- Max hole depth: 56 m
- Compressor / Flushing
- Air capacity: 470 l/s
- Max pressure: 30 bar
- Engine
- Make & model: CAT C15
- Power output: 403 kW @ 1,800 rpm
- Emissions standard: Tier 4 Final
- Hydraulics
- Max flow:
- Axial piston pump (1) 240 l/min
- Gear pump (2) 111 l/min 29
- Gear pump (3) 63 l/min
- Gear pump (4) 39 l/min
- Gear pump (5) 31 l/min
- Gear pump (6) 31 l/min
- Max flow:
- Drilling Capacity
- Hole diameter: Ø 110–229 mm
- Max drilling depth: 56 m
- Dimensions and Weight
- Length: 11,600 mm
- Width: 2,500 mm
- Height: 3,500 mm
- Weight: 24,100 kg
