Overview
Stock number:
PF 40793
Manufacturer:
Epiroc
Model:
Diamec PHC4
Year of manufacture:
2018
Working hours:
1800
Key features

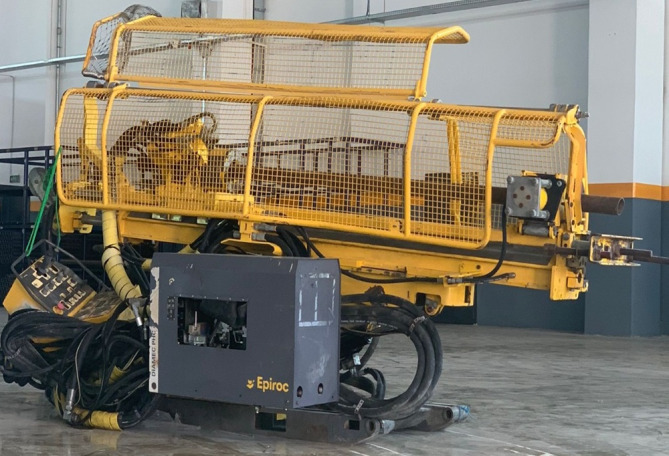

- Skid mounted exploration core drilling rig
- 1800 working hours
- Max drilling depth capacity:
- Vertical down:
- AO/AT: 1125m
- BO/BT: 815m
- NO/NT: 515m
- Vertical up:
- AO/AT: 750m
- BO/BT: 425m
- NO/NT: 215m
- Wireline winch capacity is 500 m with 5 mm wire
- Rod sizes: A-N
- Max torque: 744Nm
- Max rotation speed: 1,870 rpm
- Spindle (inner diameter): 78mm
- Chuck axial holding force: 100kN
- Weight: 160kg
