Overview
Machine location:
United States
Stock number:
PF 41229
Categories:
Rock Drilling Rigs
Manufacturer:
Epiroc
Model:
SmartROC D65-10SF
Year of manufacture:
2018
Working hours:
12008
Key features

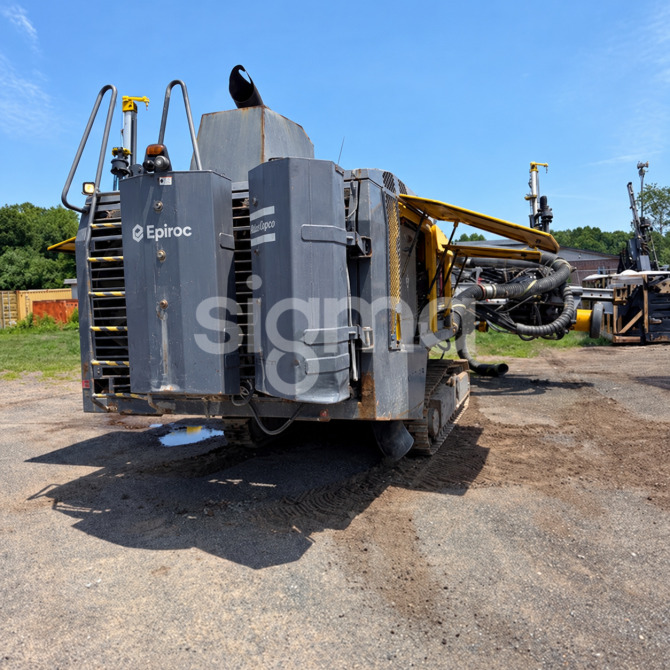

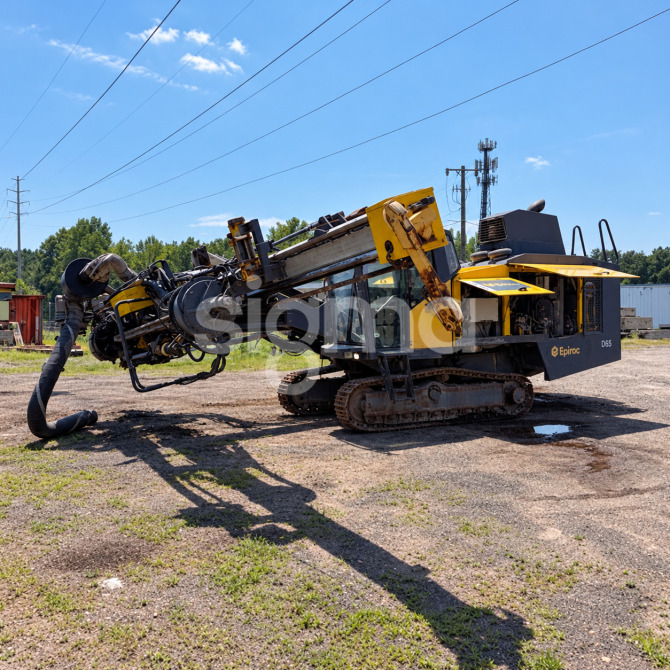

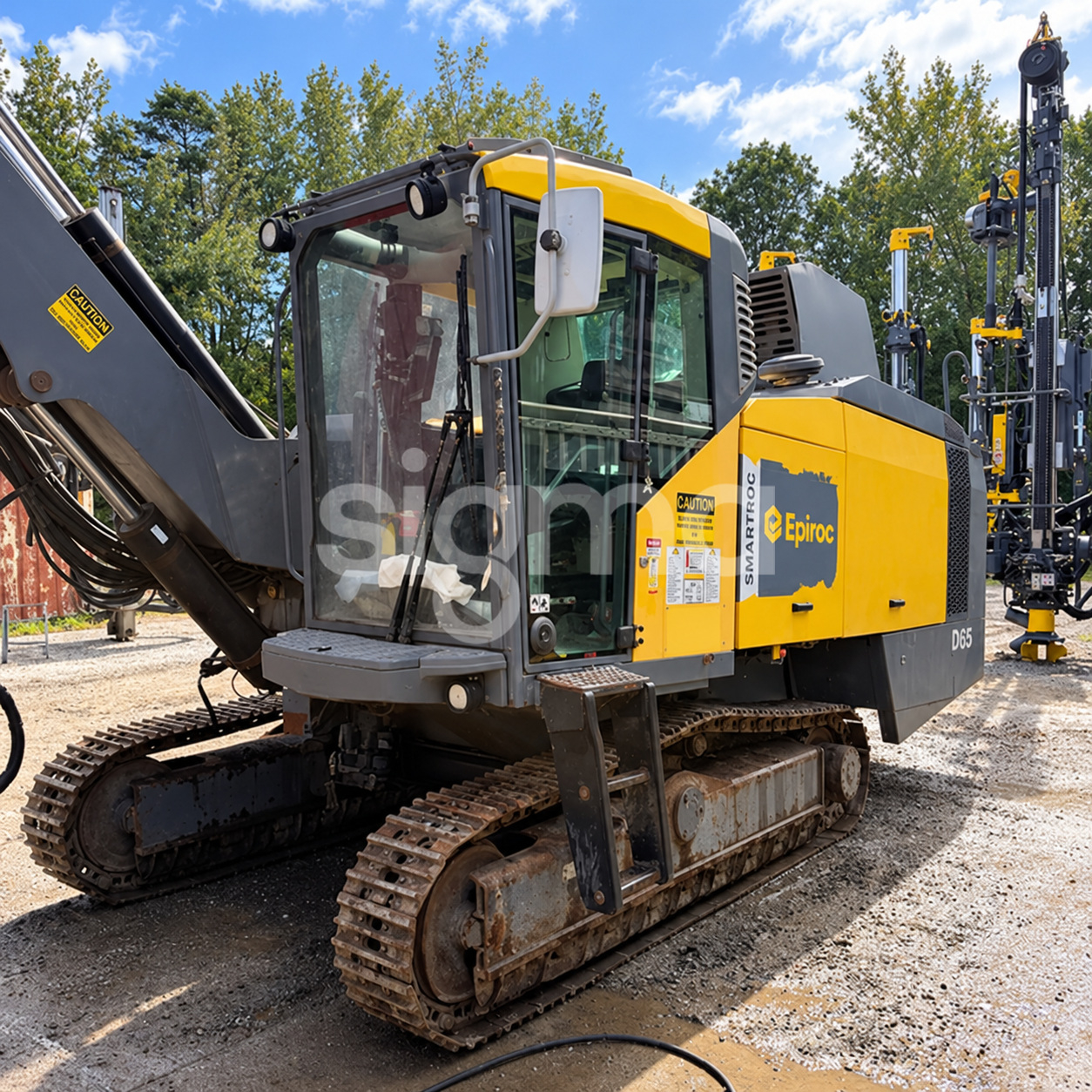

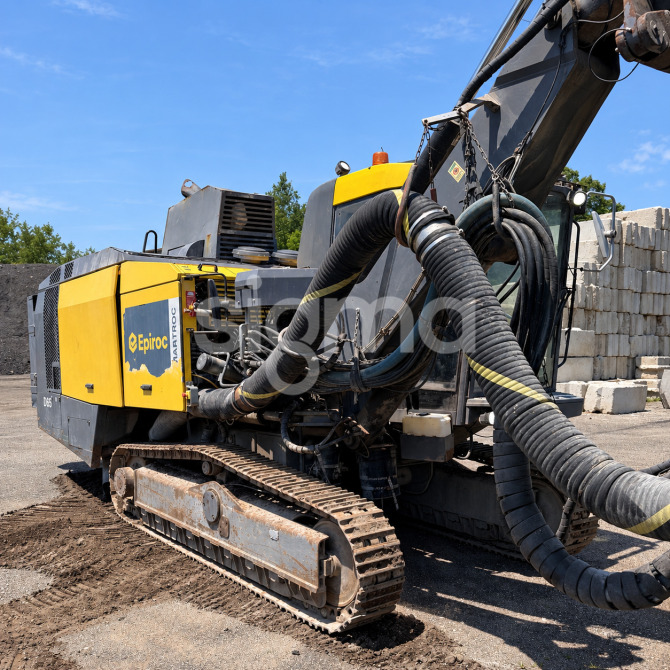

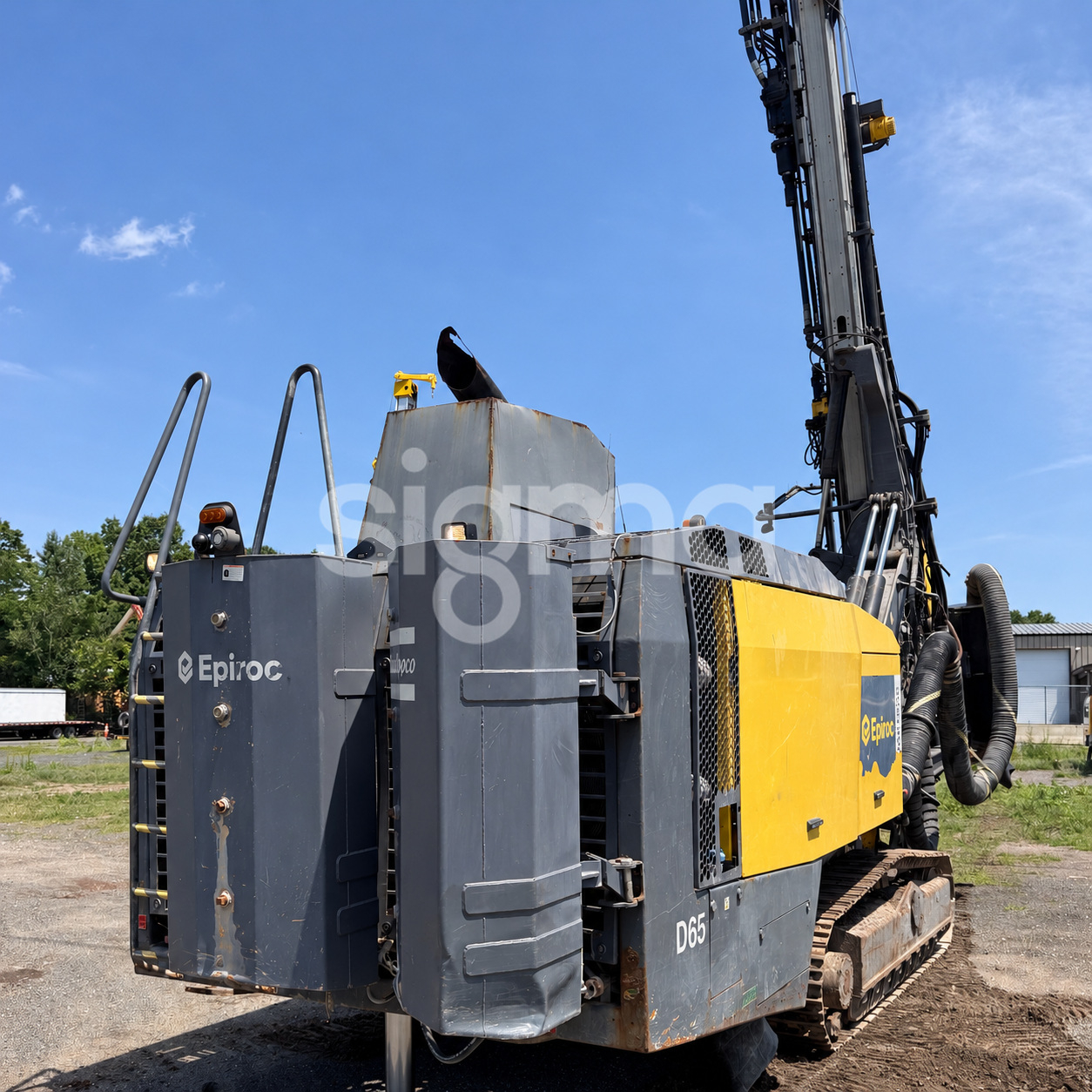

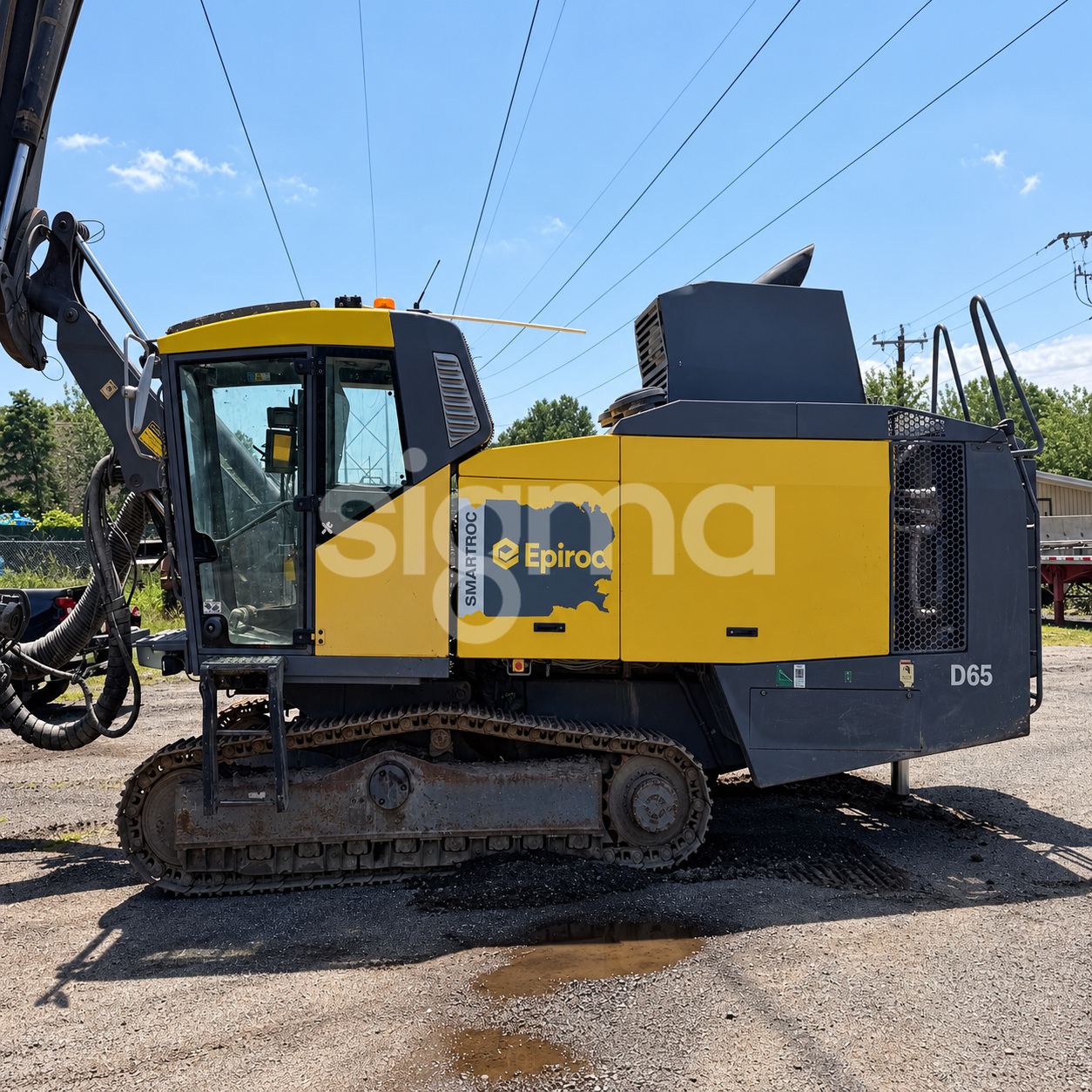

2018 Epiroc SmartROC D65-10SF down-the-hole surface drilling rig with 12,008 current working hours, standard feed and a 995 cfm compressor.

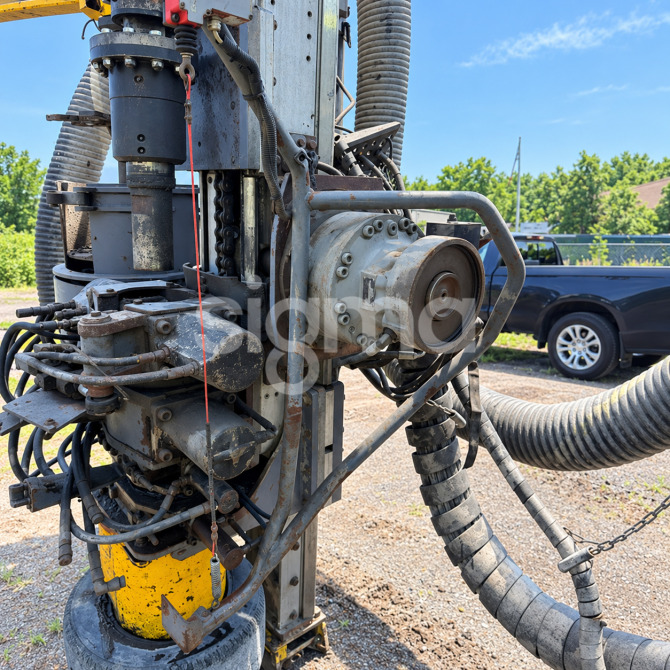

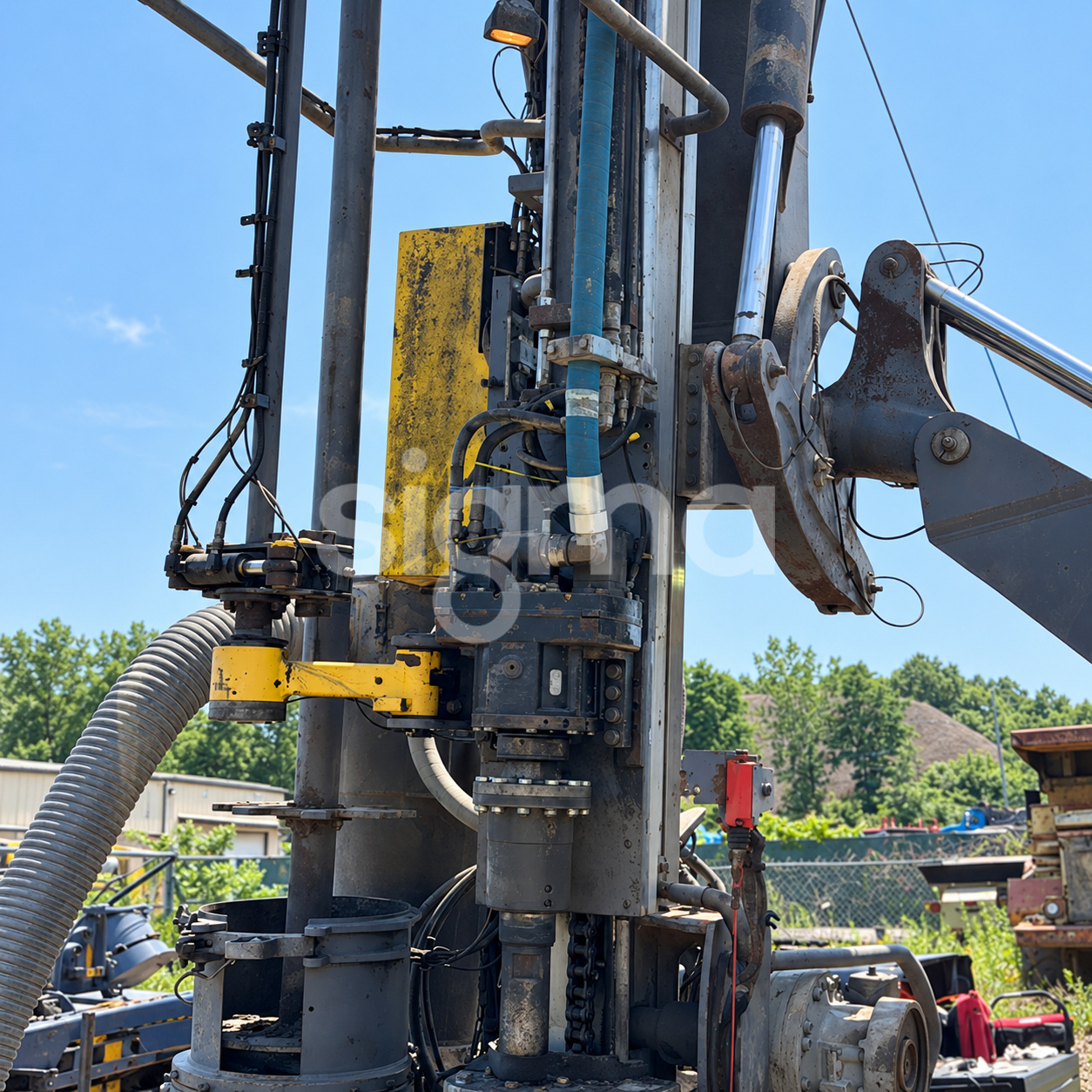

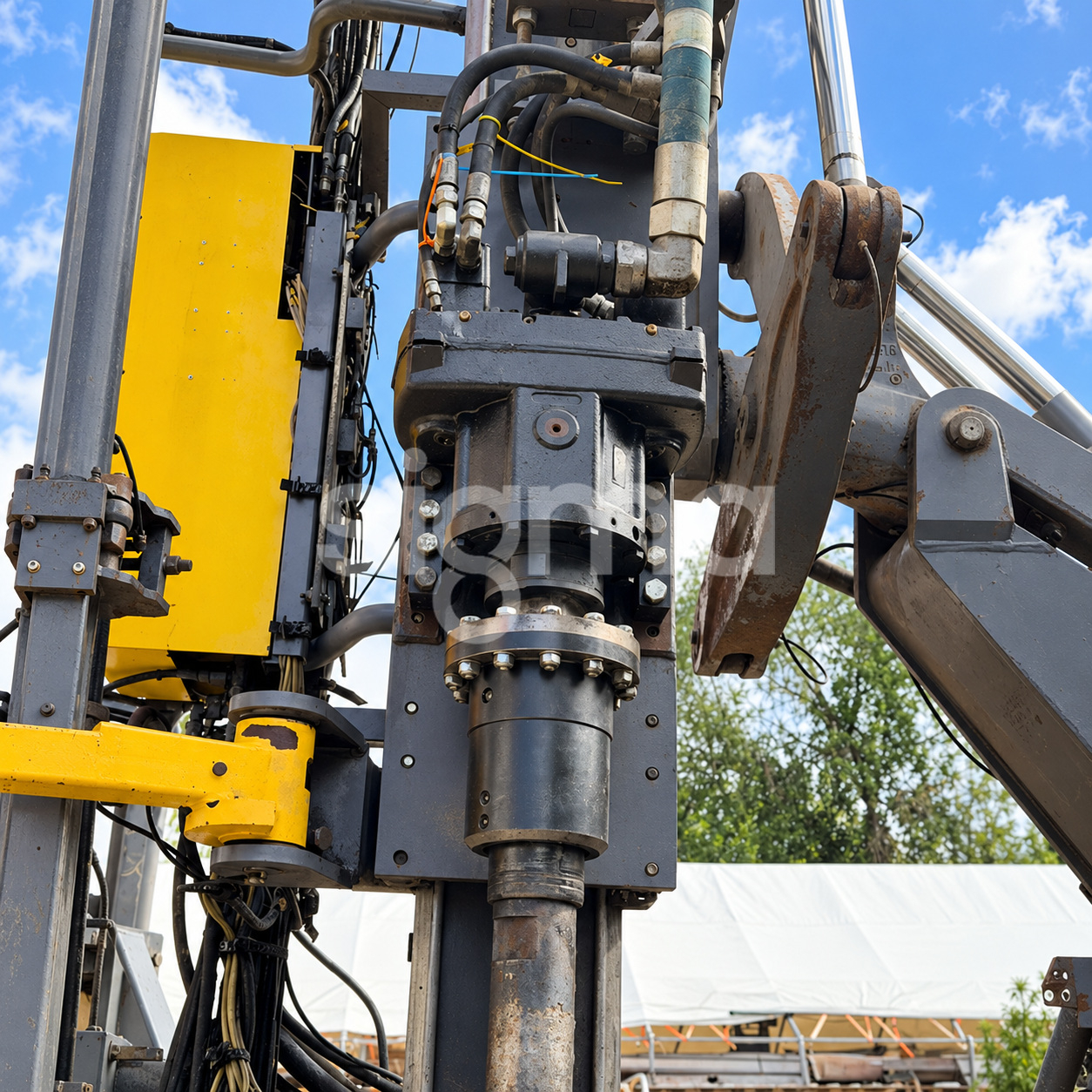

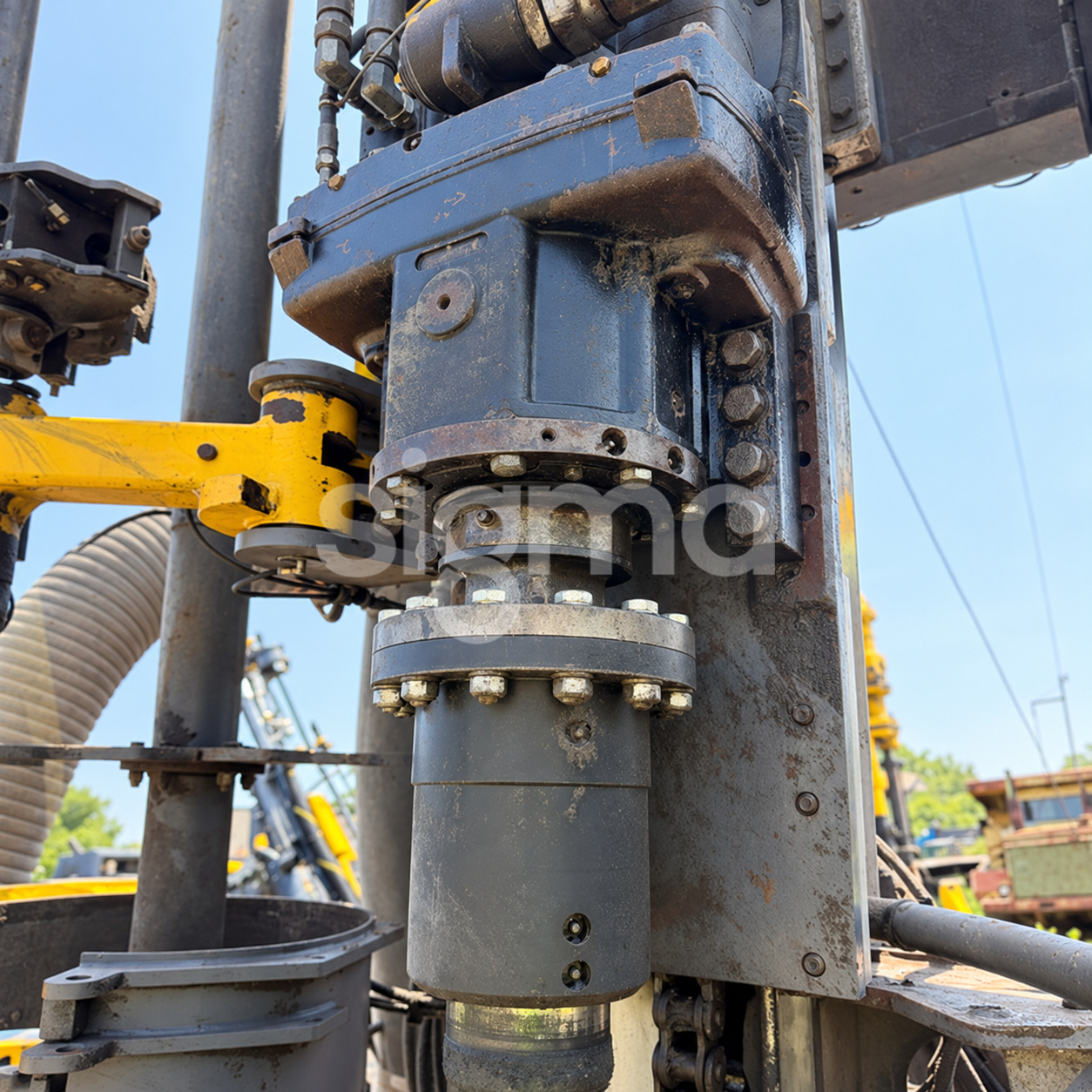

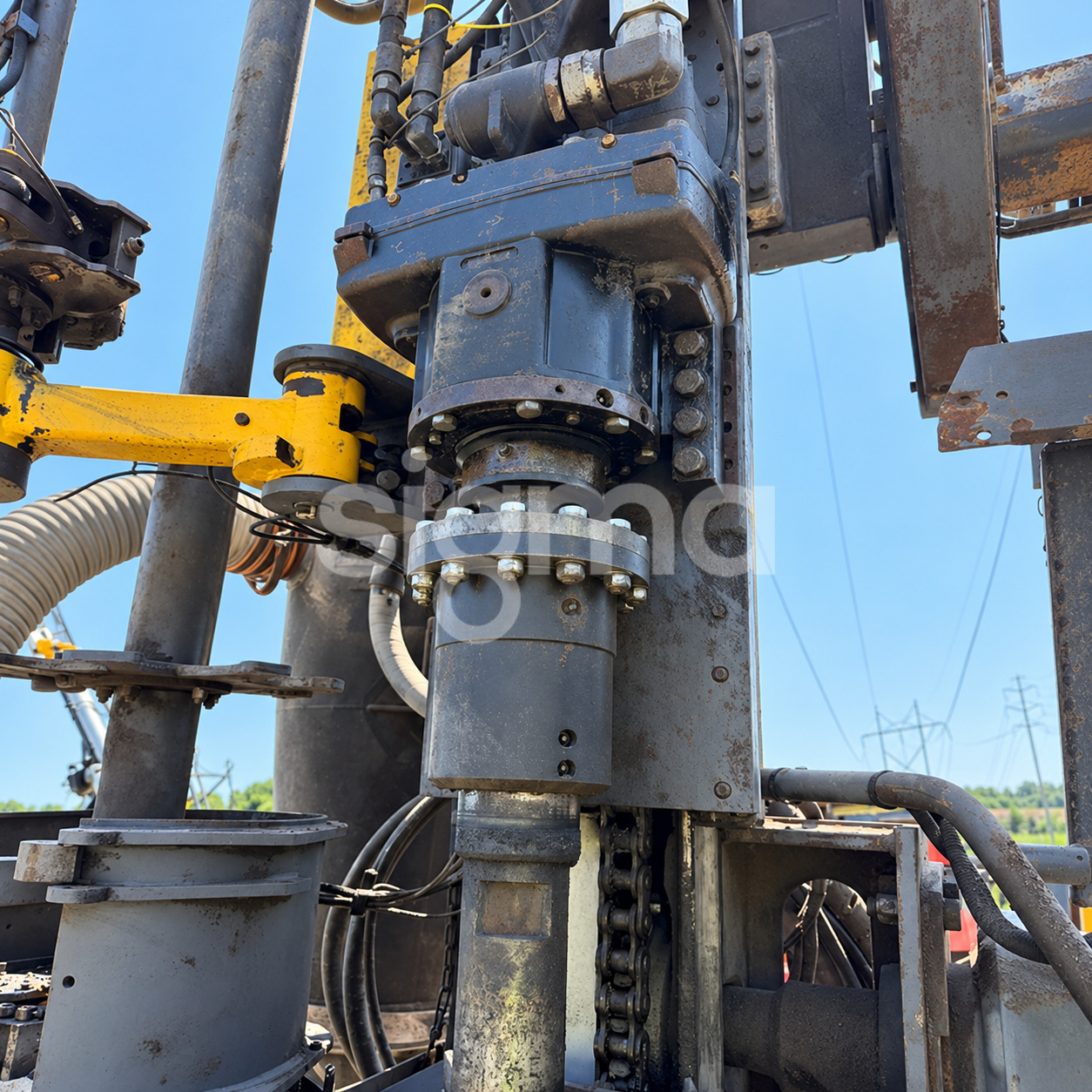

Rebuilt rotary head

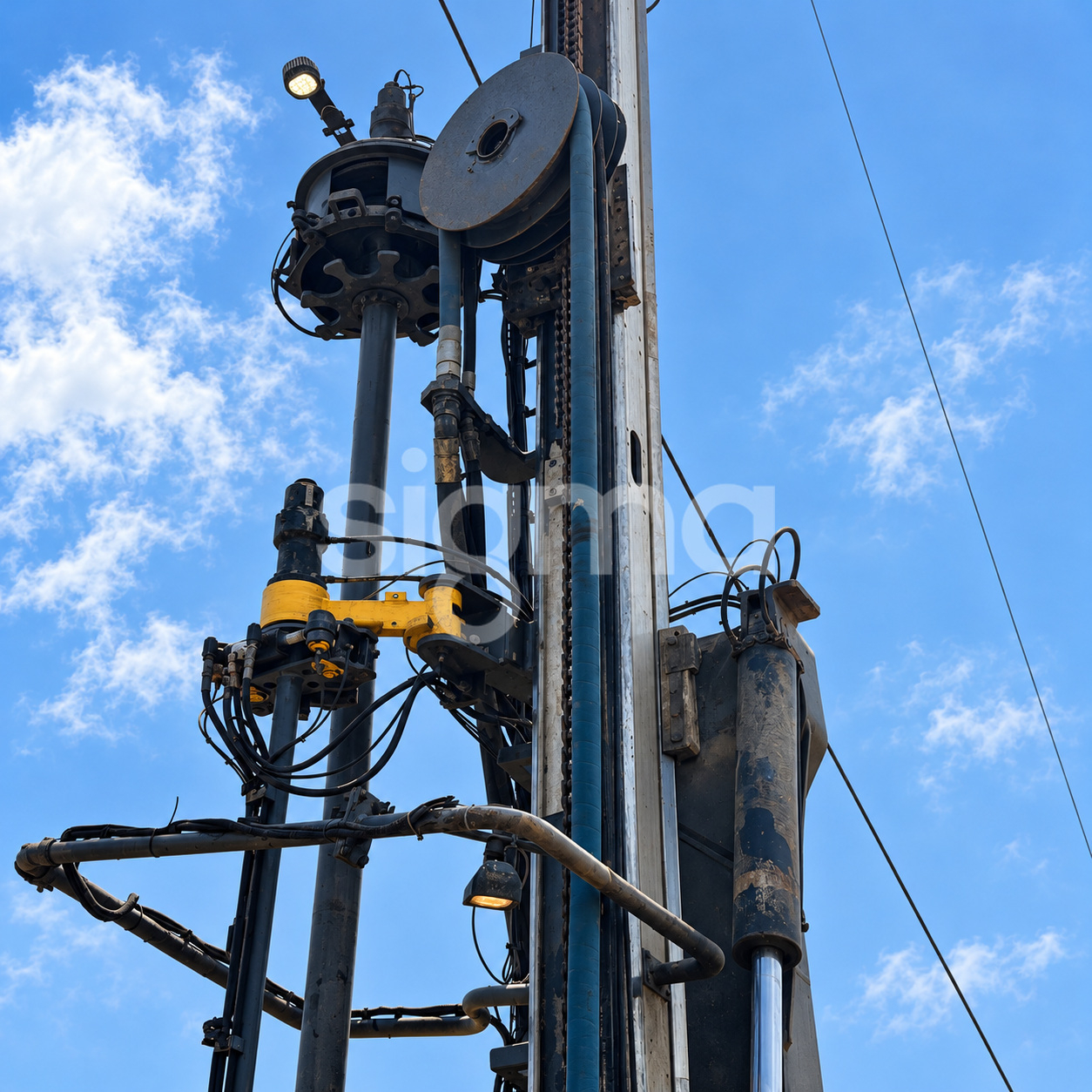

Replacement pipe-lifting winch and hoses

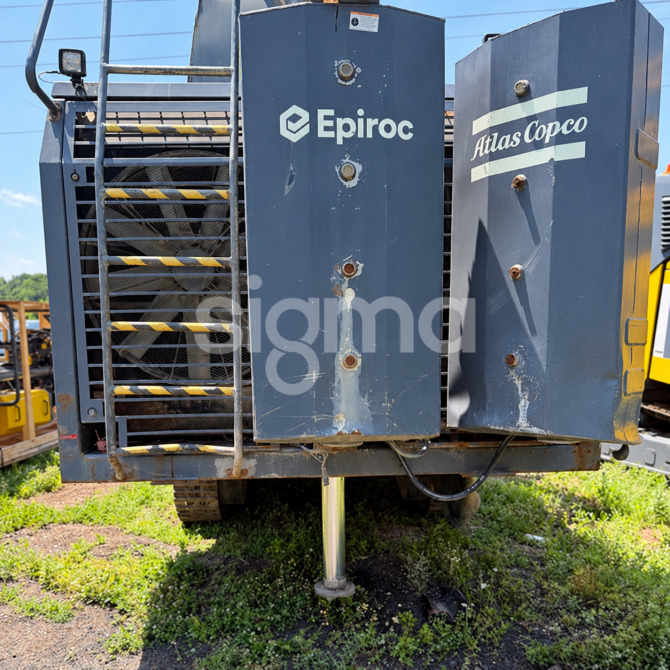

Rear hydraulic support jack
Automatic lubrication

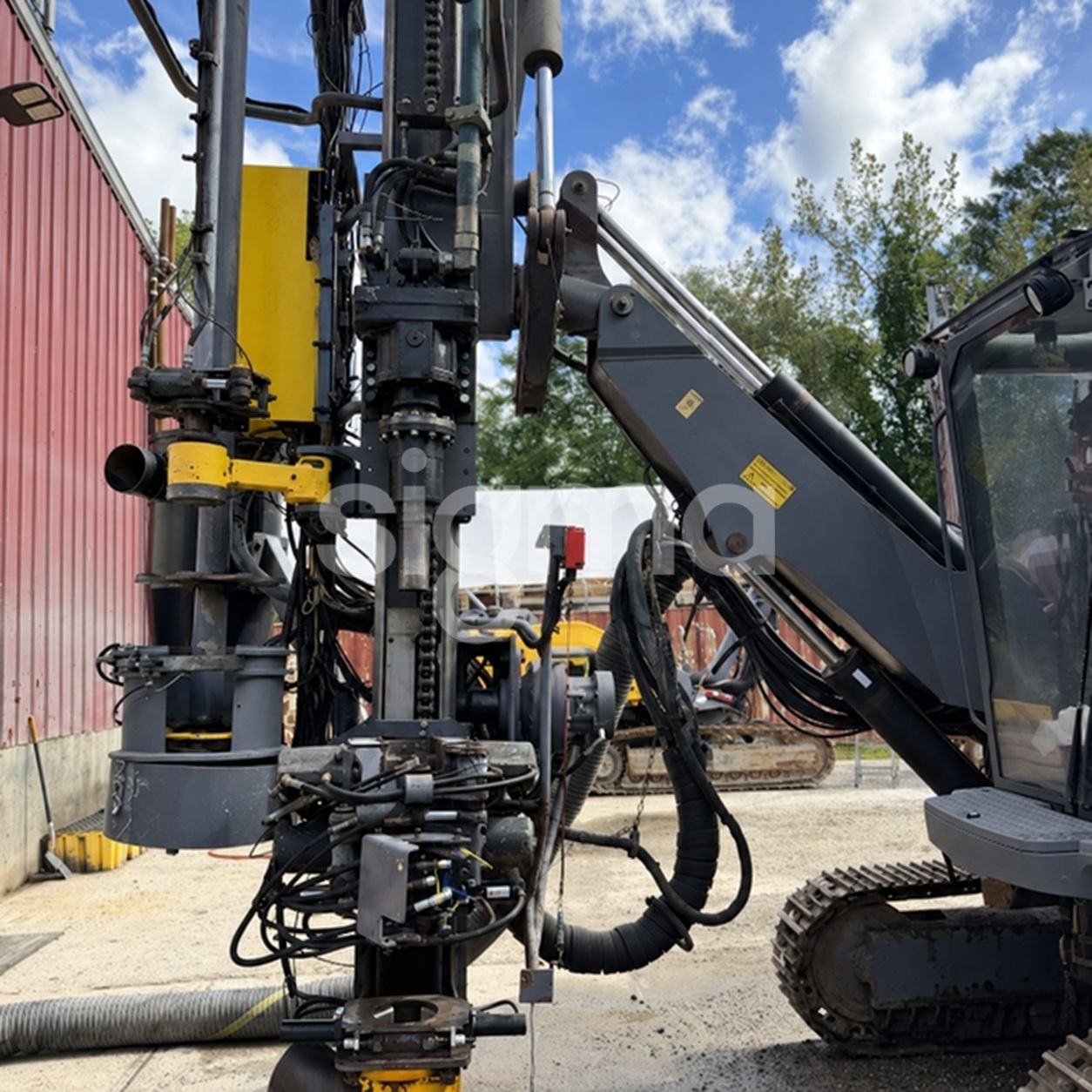

Pressure-regulated breakout table
Fitted work lights
Machine specs
Working hours: 12,008
Drilling Configuration
Drill type: Down-the-hole surface drilling
Application: Quarrying and mining
Hole diameter range (mm): 110–203
Max drilling depth: 45 m with 89–114 mm diameter, 5 m rods
Rod diameter & length: Set up for 4-inch diameter x 16 ft 6 in drill tubes

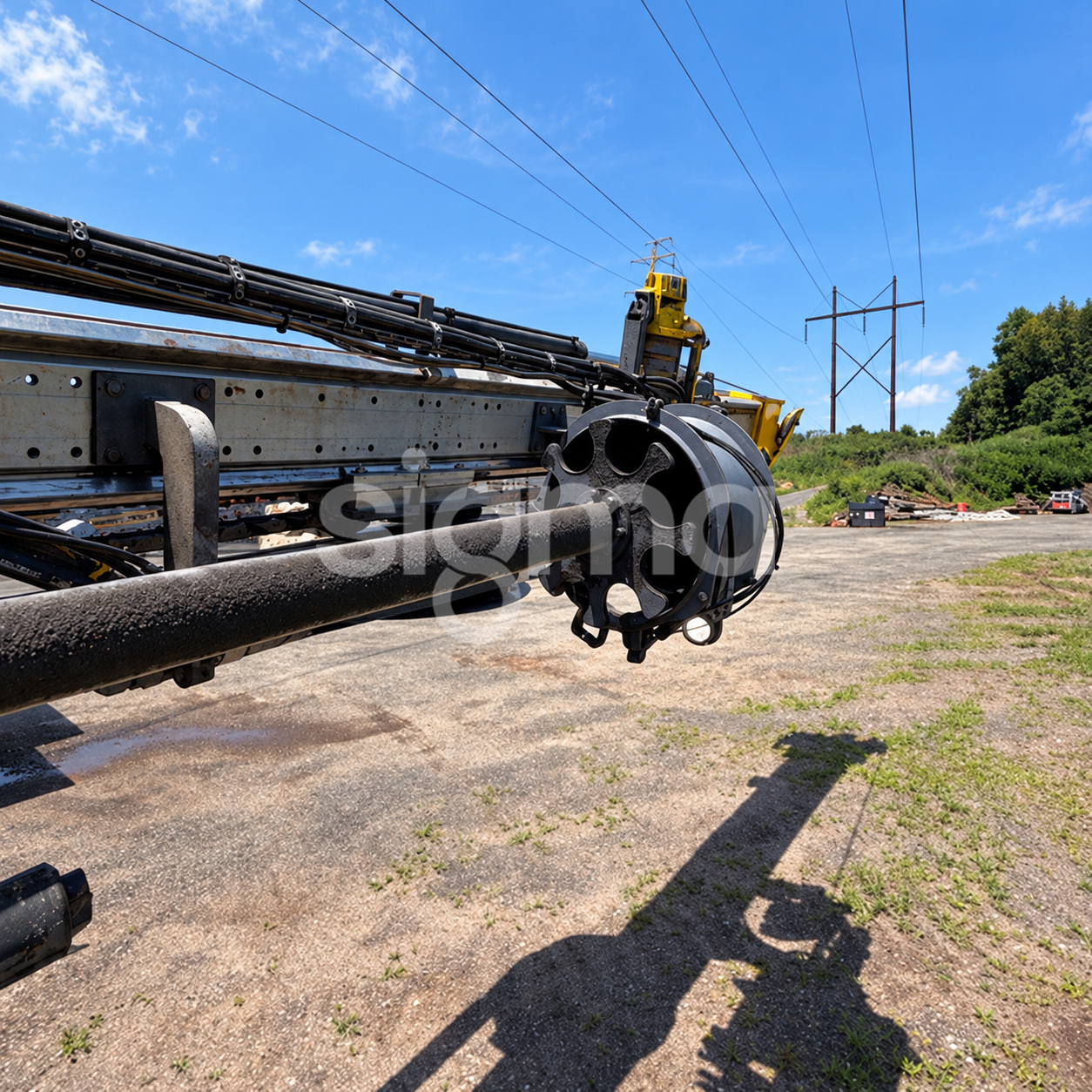

Feed beam length: 9,400 mm overall standard feed
Feed force: 40 kN maximum

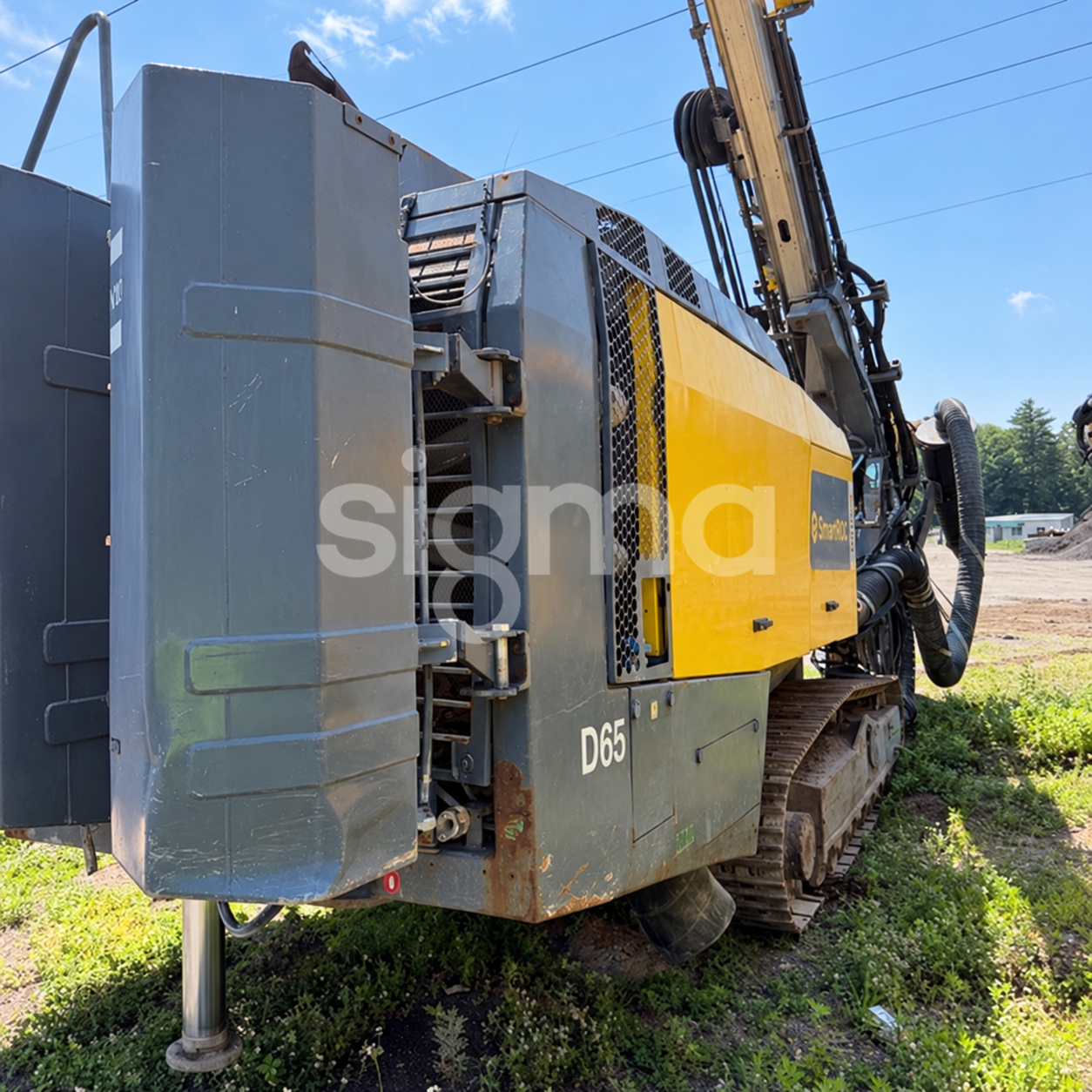

Compressor
Compressor make & model: Atlas Copco XRX 10
Compressor type: Two-stage screw
Max air pressure (bar): 30
Air flow (m³/min or cfm): 995 cfm
Power Unit
Engine make & model: Caterpillar C15
Engine power (HP / kW): 540 HP / 403 kW
Control & Operator Environment

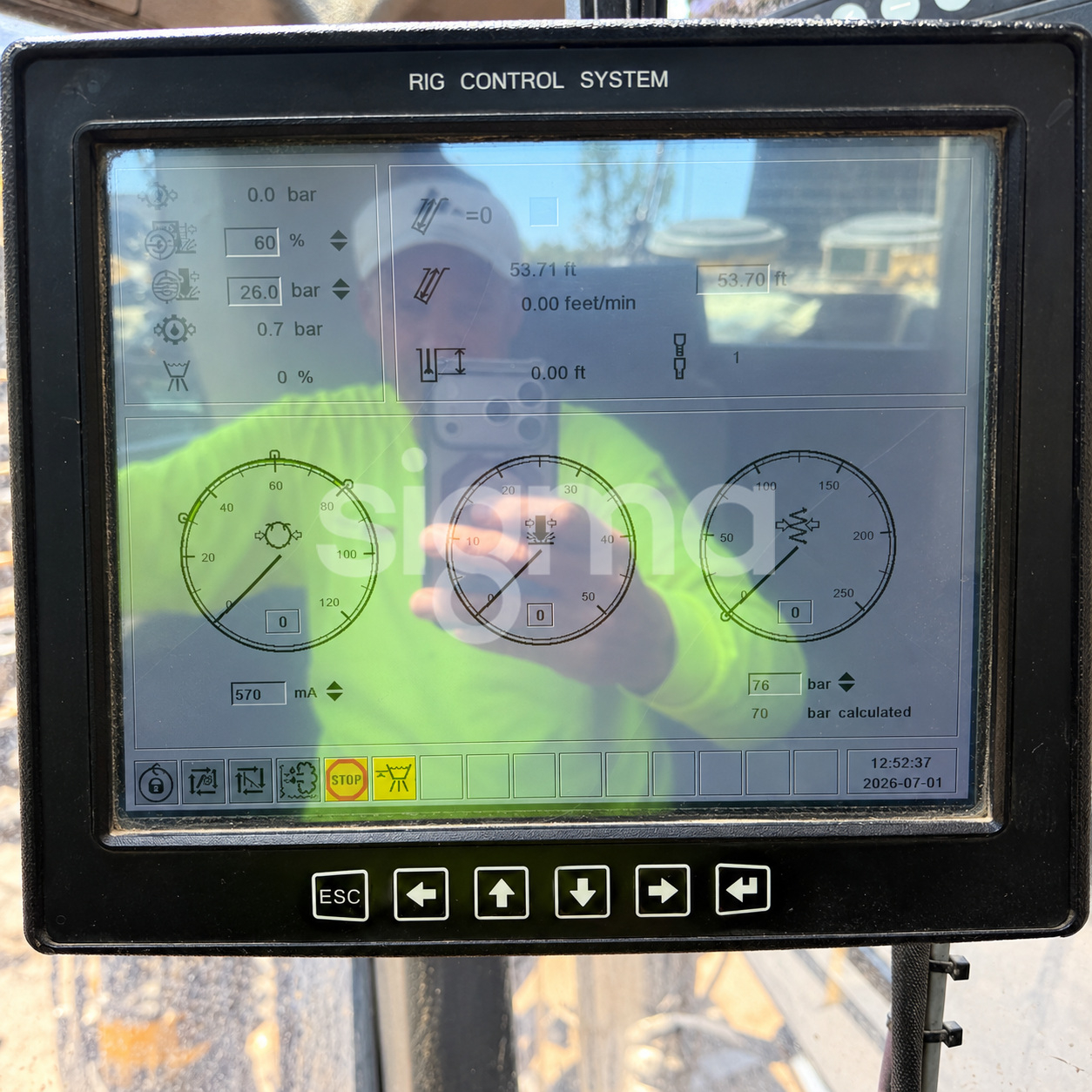

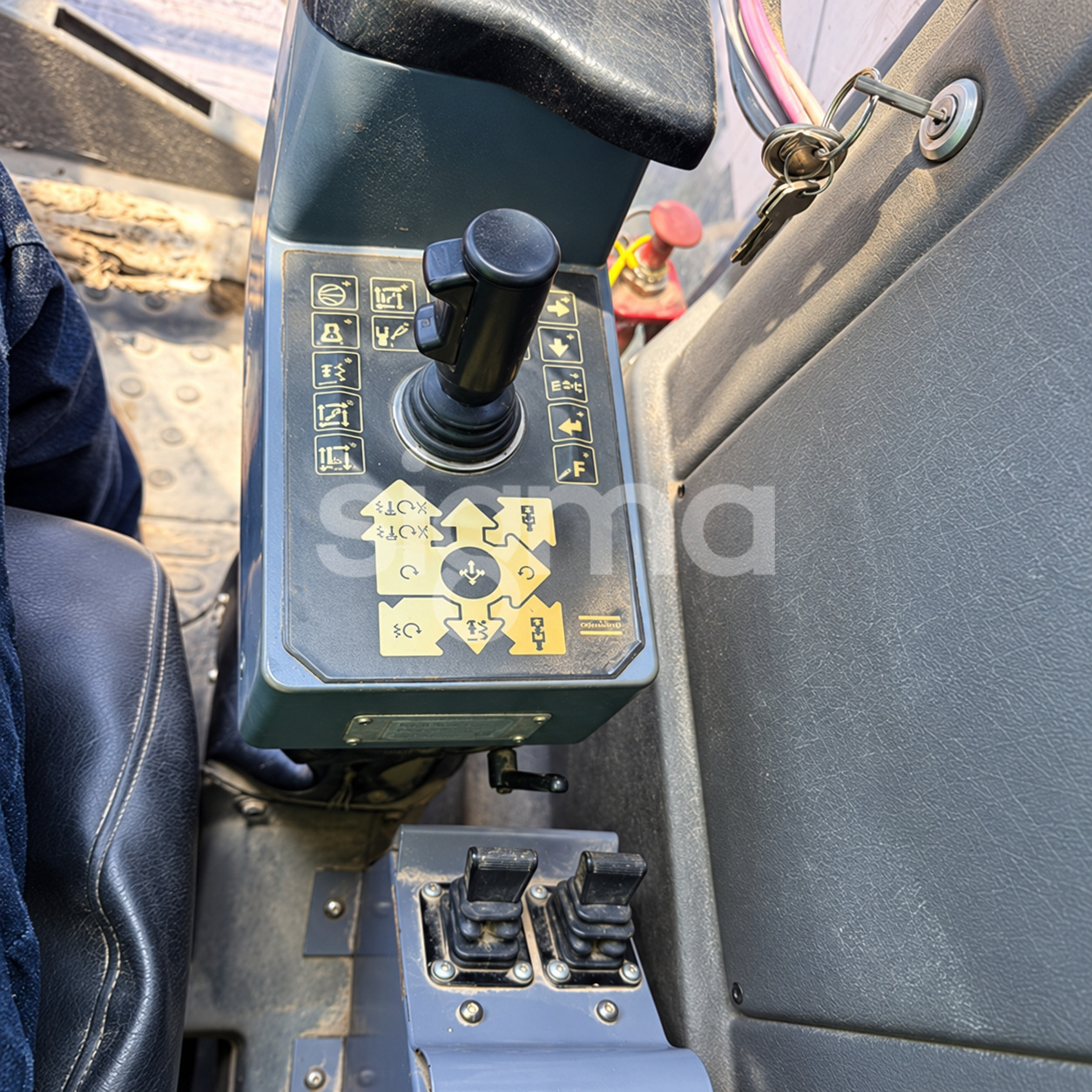

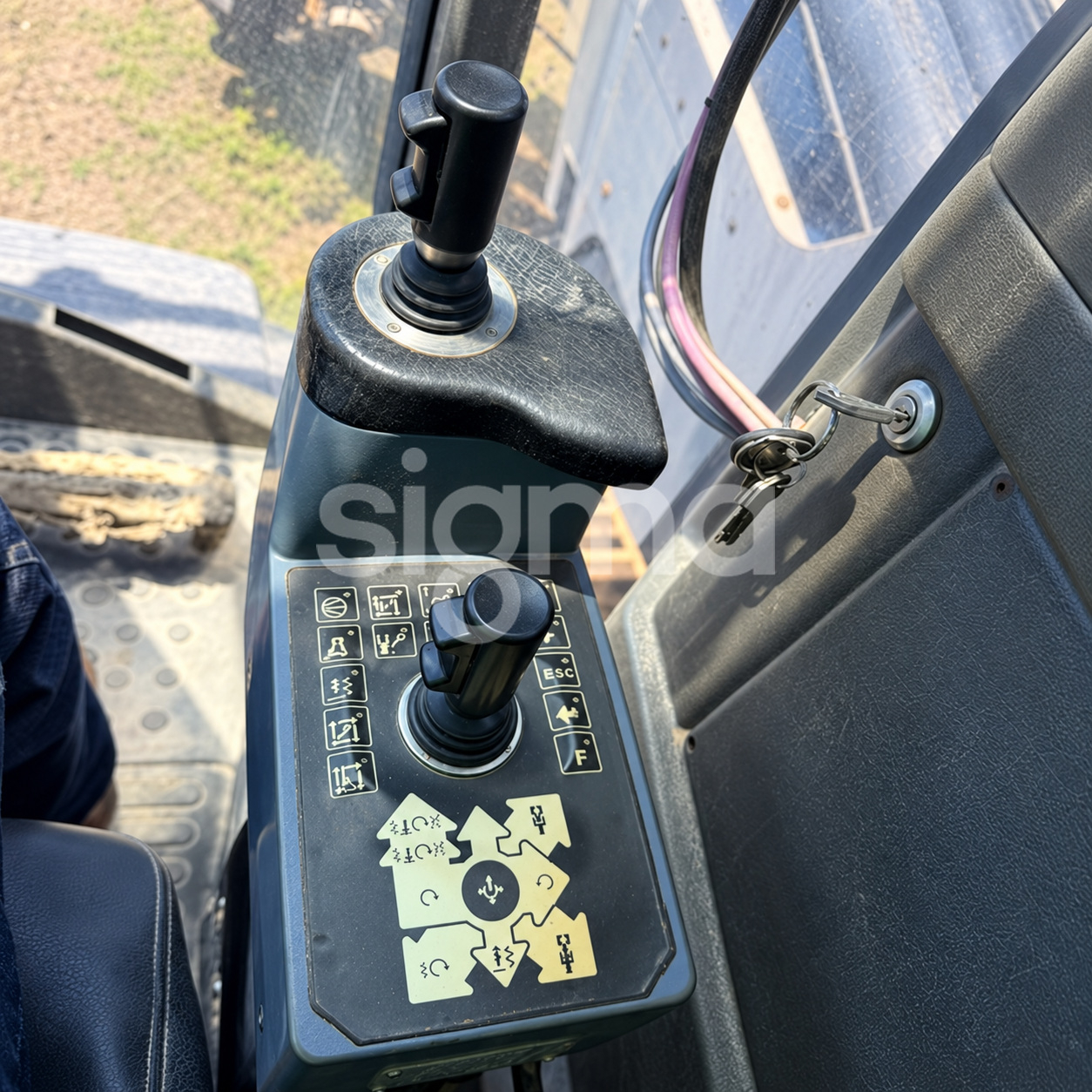

Control system: Epiroc Rig Control System
Drilling modes: Automated drill cycle with rod handling

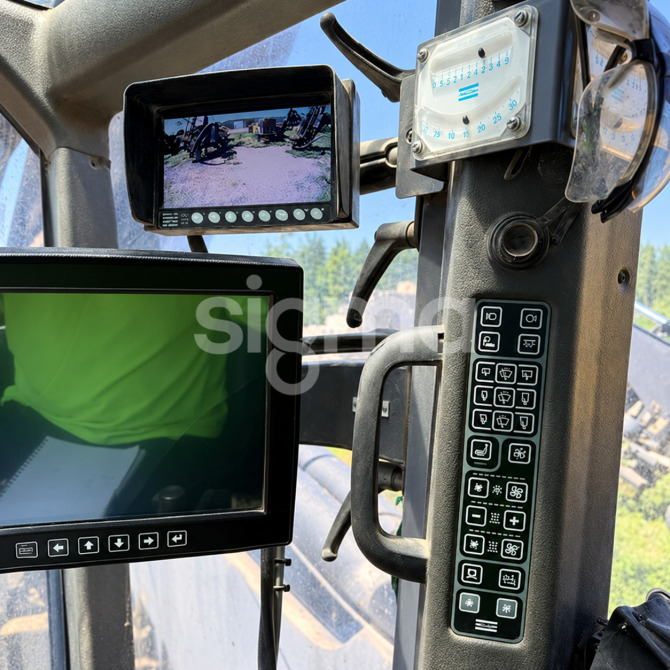

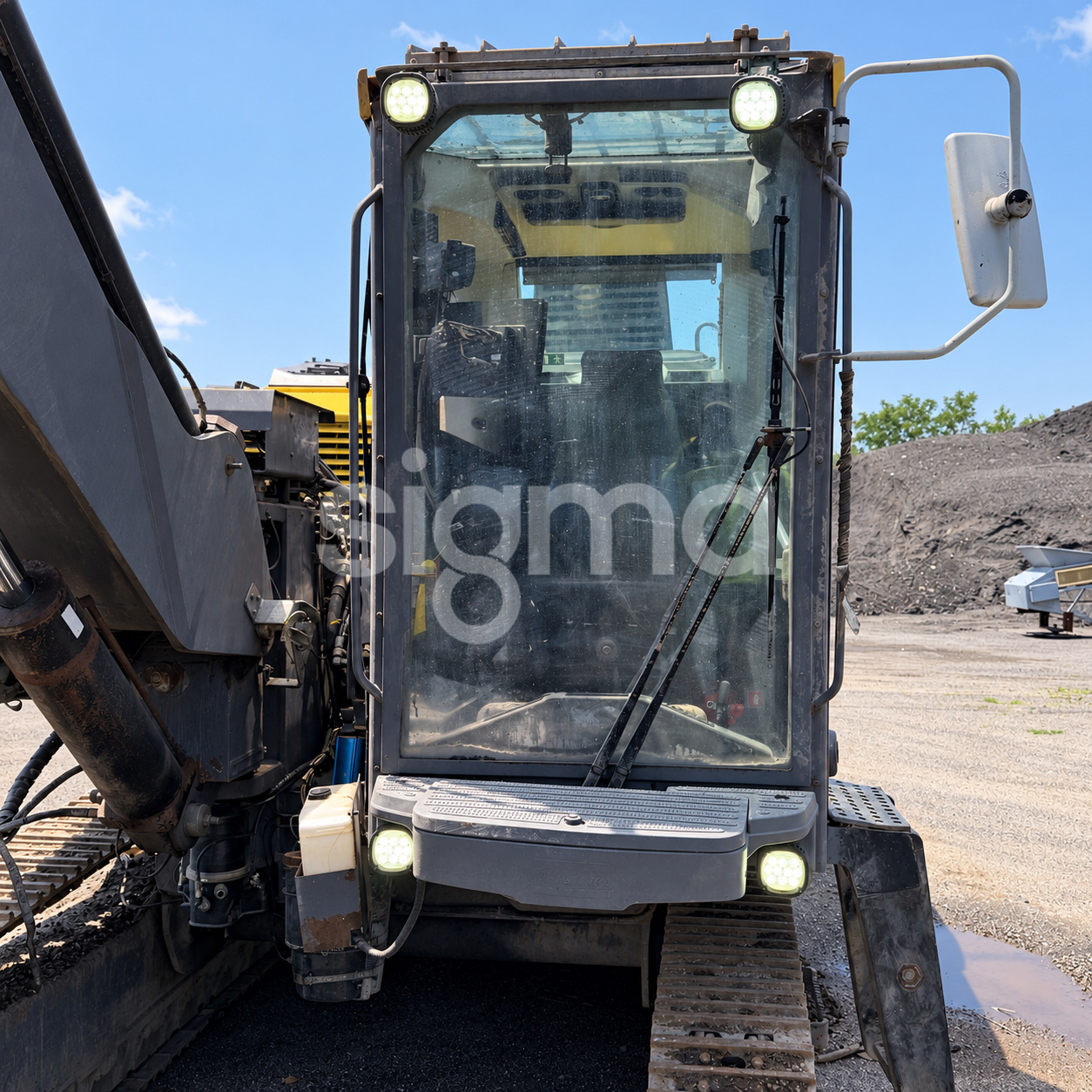

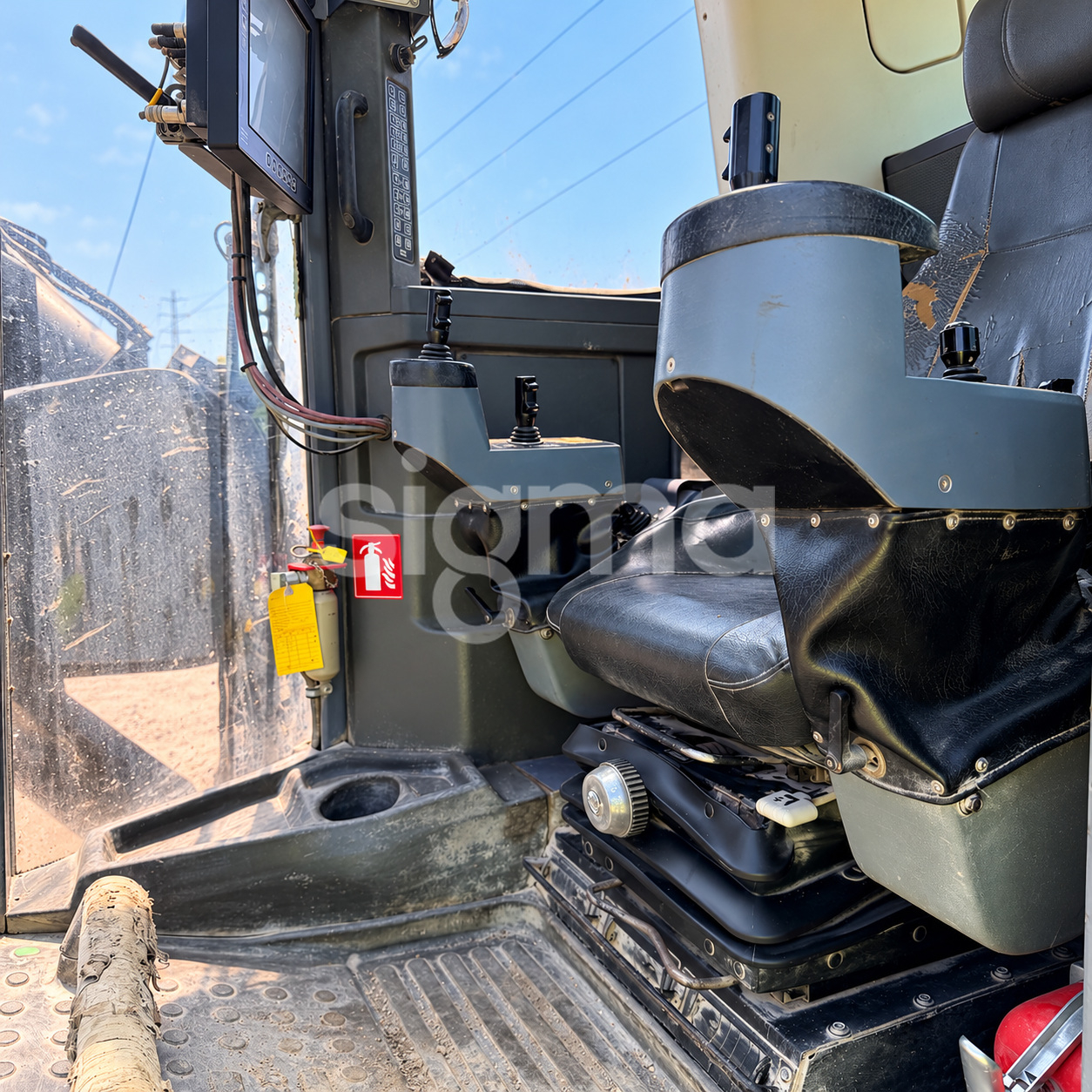

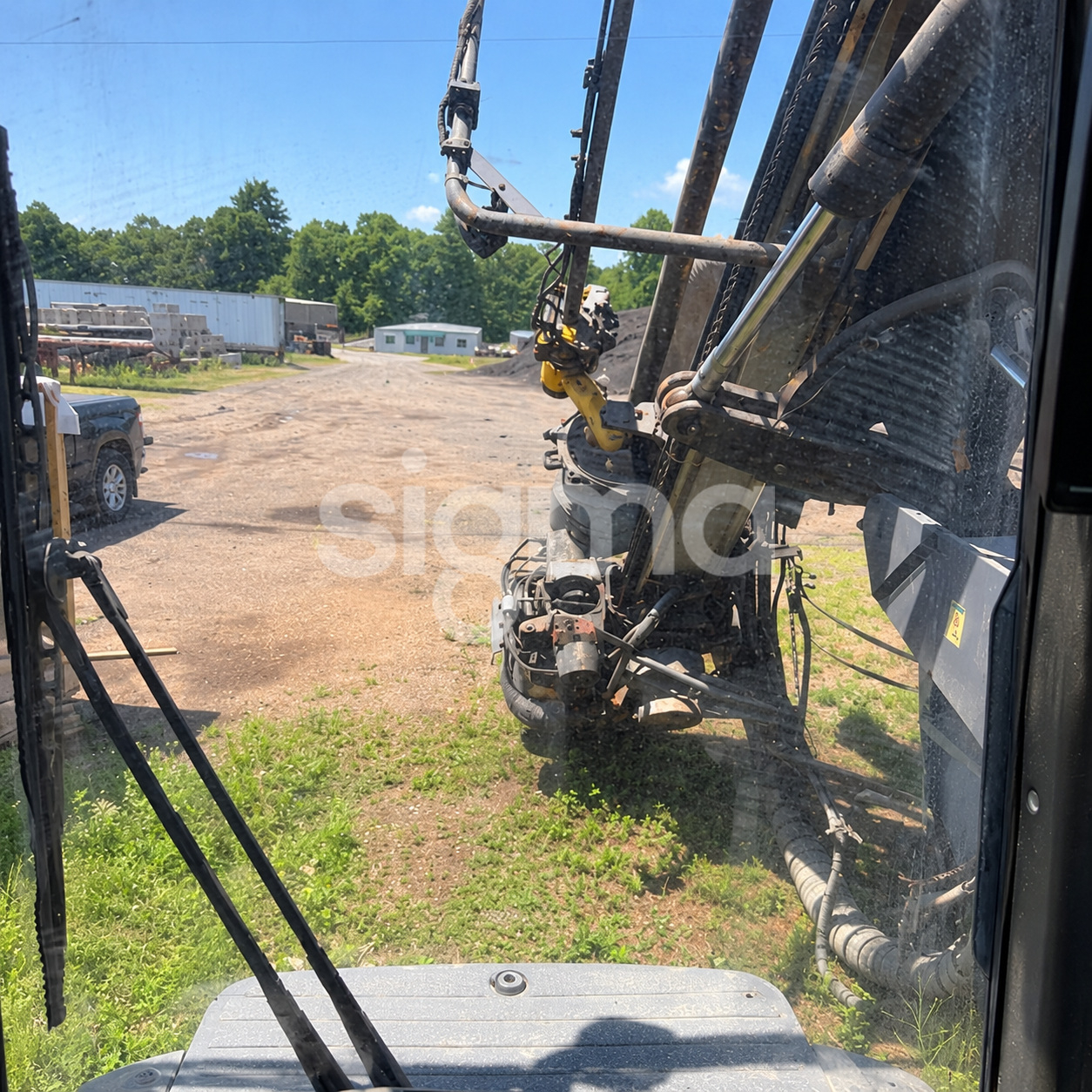

Cab type: Enclosed operator cab
Cab features: Air conditioning
Undercarriage & Mobility

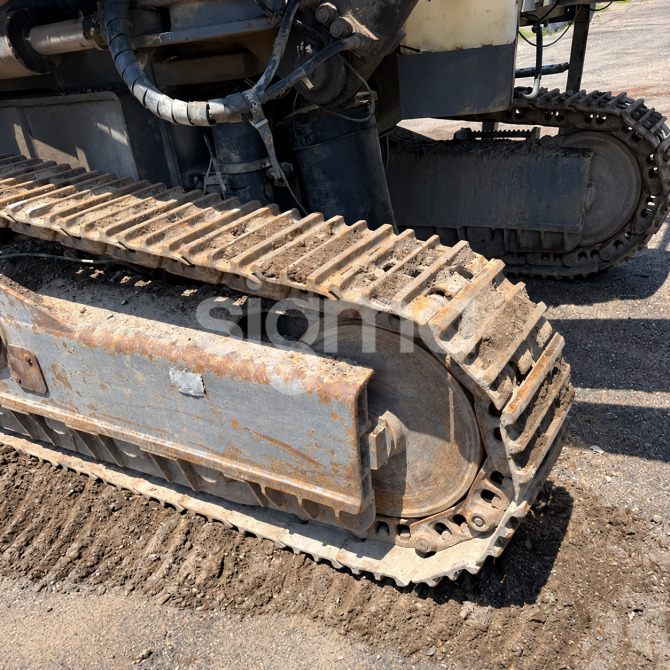

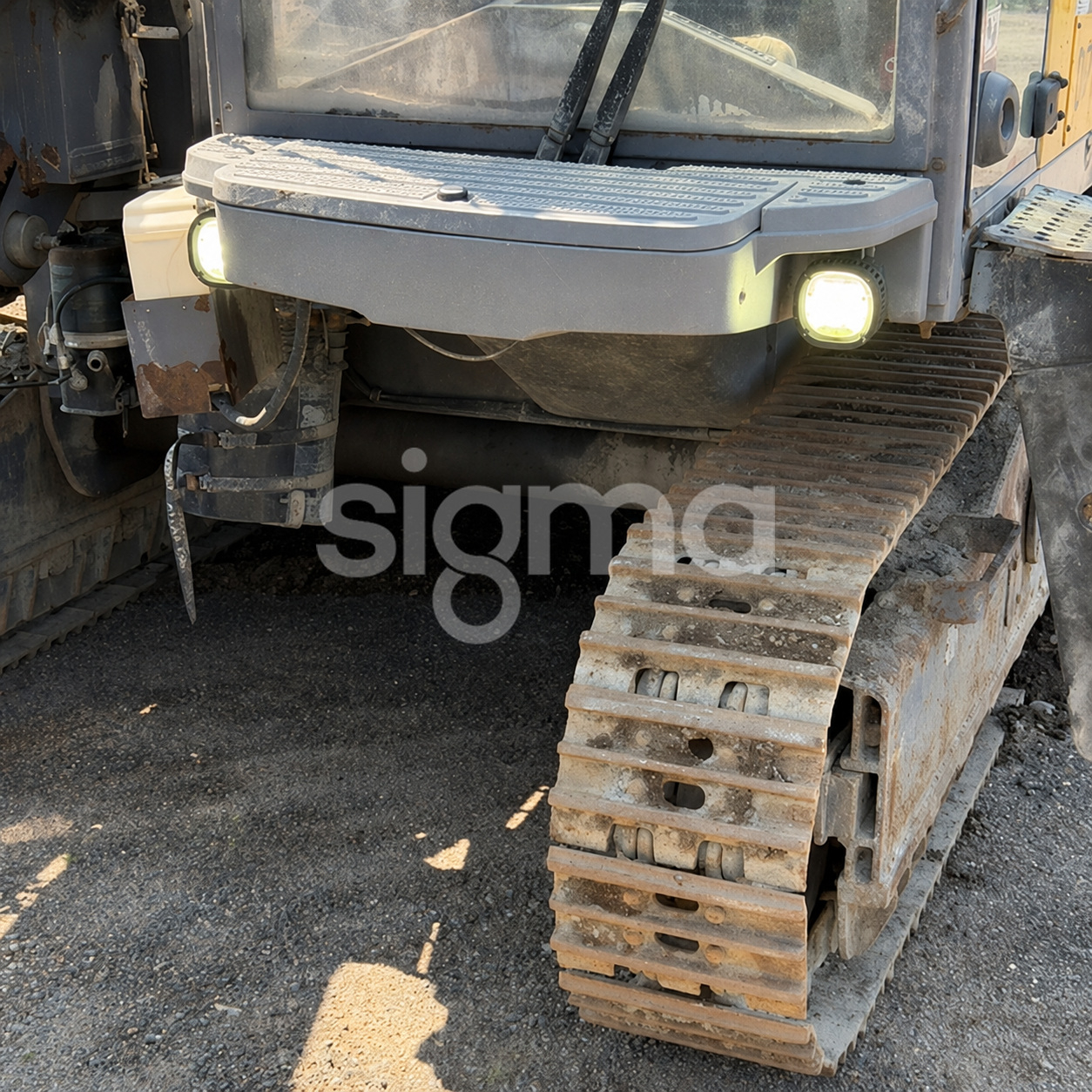

Undercarriage type: Crawler tracks
Dust Suppression

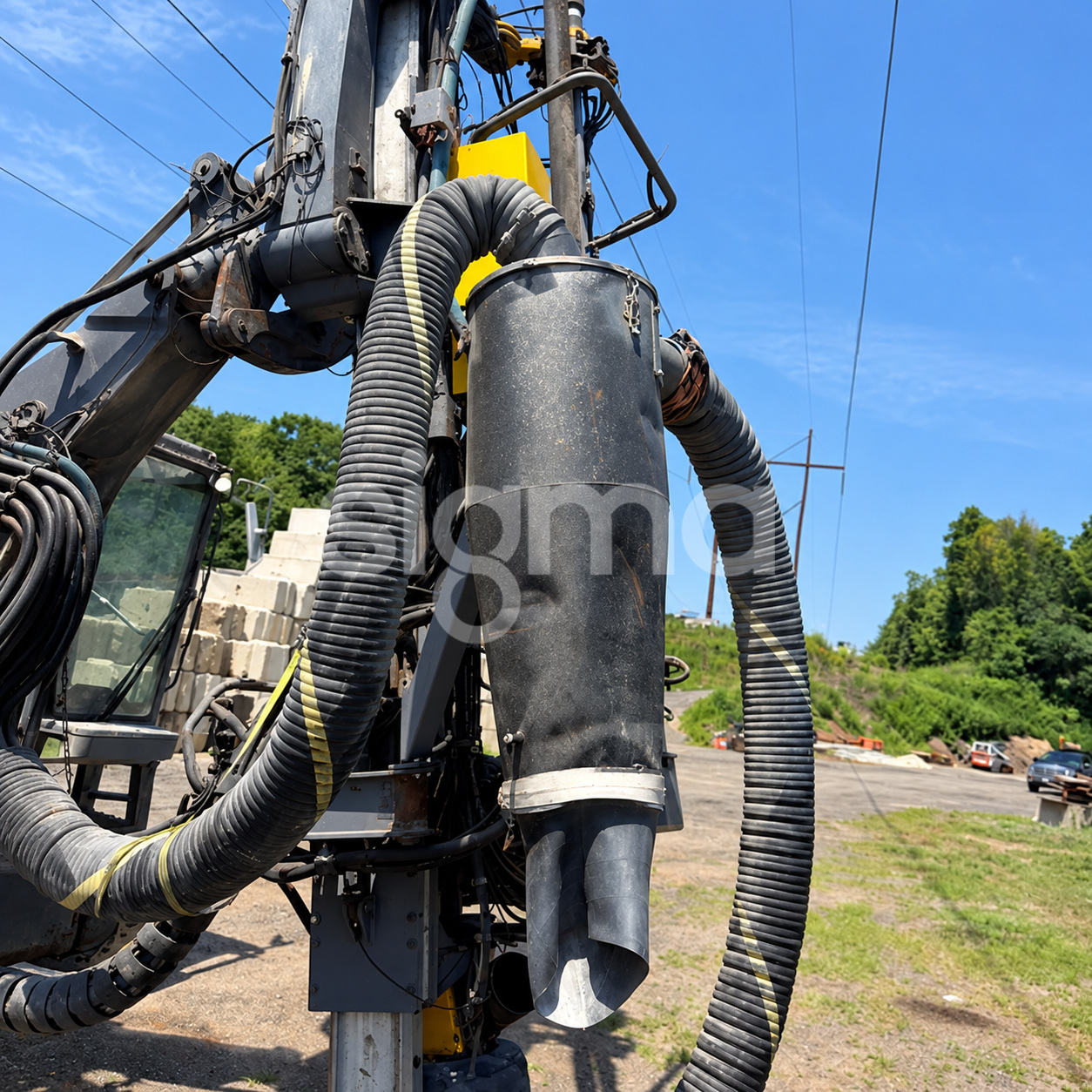

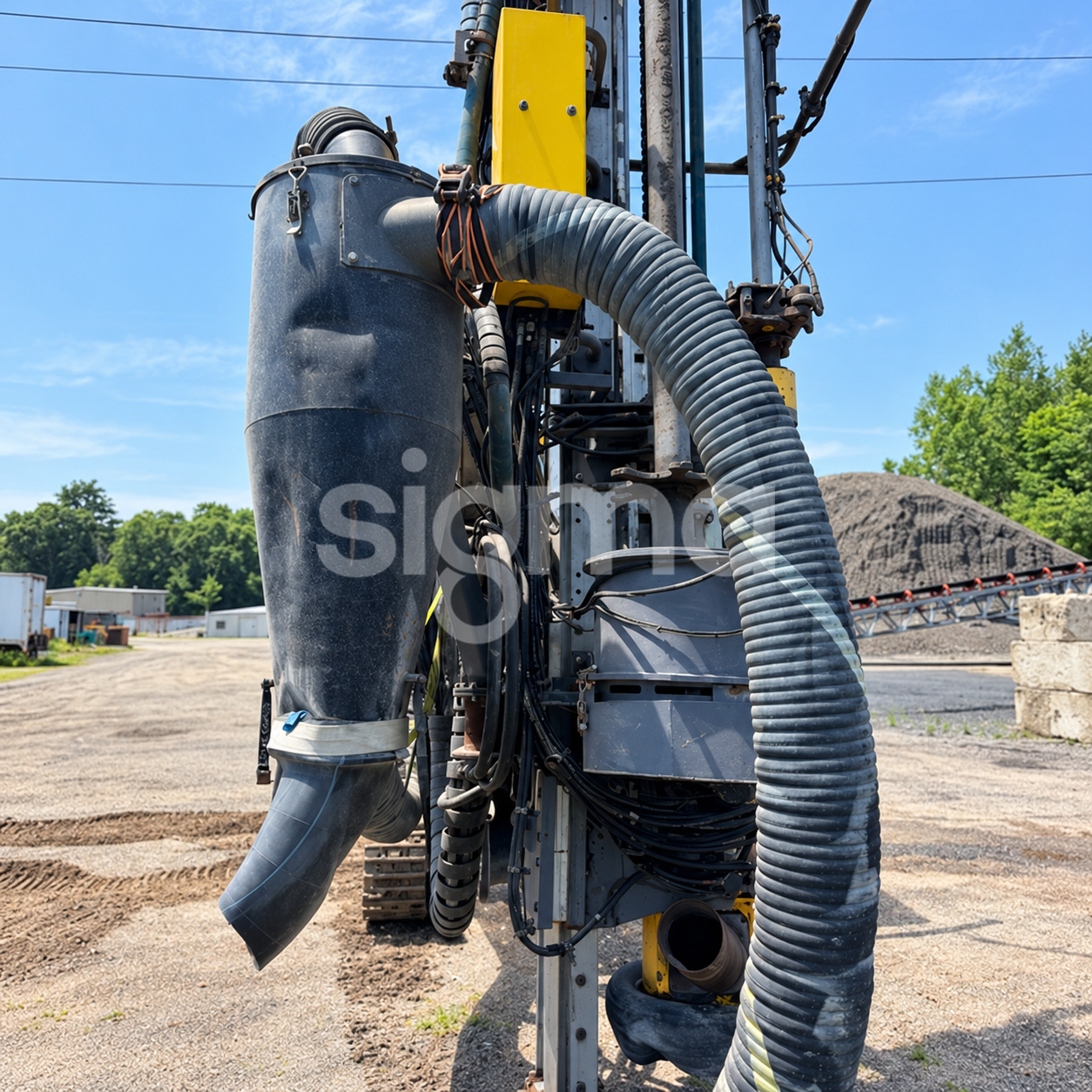

Dust suppression system: Dust collection and water mist
Dimensions & Weight
Transport width: 2,500 mm
Transport height: 3,500 mm
Transport length: 11,350 mm
Operating weight: 25,700 kg
