Overview
Machine location:
Europe
Stock number:
PF 40956
Manufacturer:
Epiroc
Model:

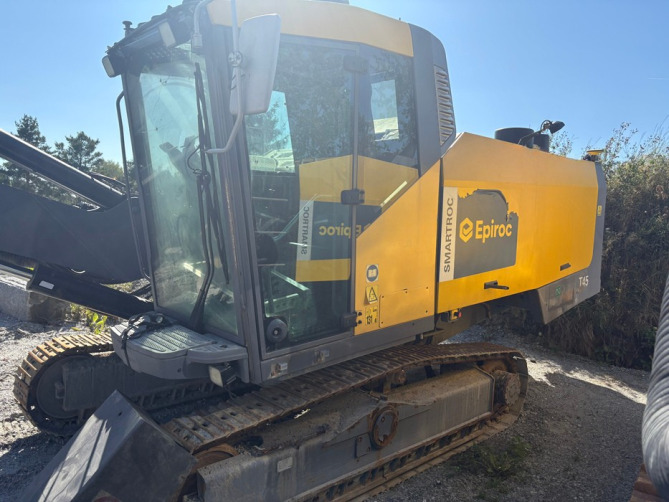

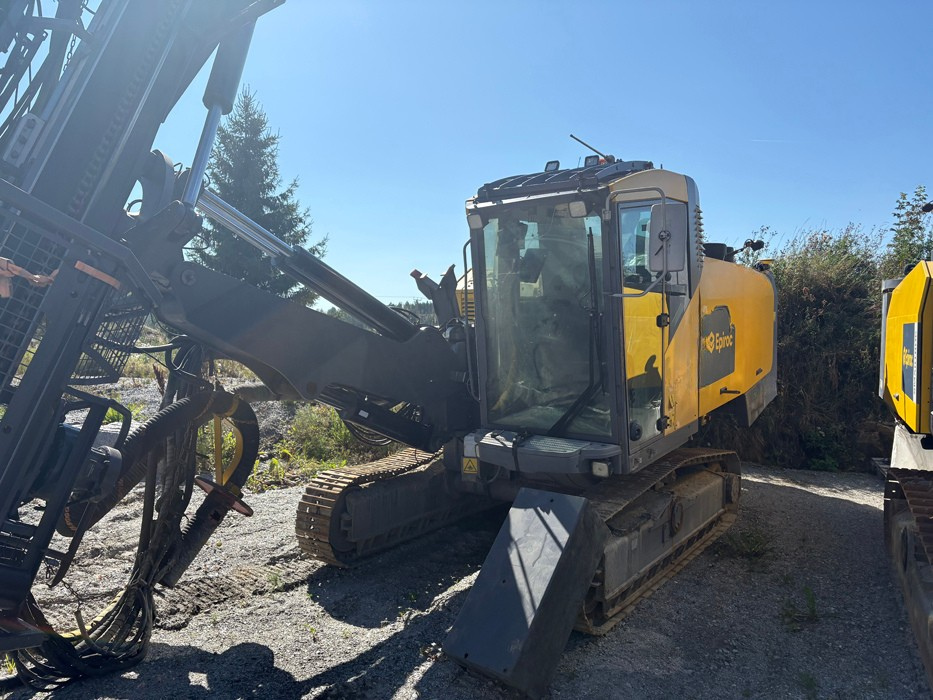

SmartRoc T45
Year of manufacture:
2020
Working hours:
13277
Key features
- Rock drill rig with 13,277 hours
- Rock Drill
- Impact power: 25 kW
- Hole diameter range: 89–152 mm
- Max percussion rate: 44–55 Hz
- Rotation torque: 1,550 Nm

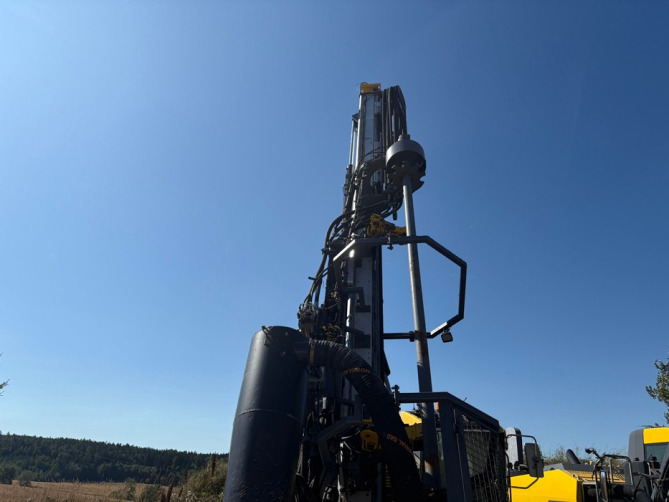

- Feed / Boom
- Feed length: 7,700 mm
- Feed force: 20 kN
- Boom type: Single boom
- Compressor / Flushing
- Air flow: 223 l/s
- Max pressure: 12 bar
- Engine
- Make & model: Caterpillar C9.3B
- Power output: 250 kW @ 1,900 rpm
- Emissions standard: Tier 3
- Hydraulics
- Max flow: 160 + 120 + 40 + 40 + 40 l/min
- Max pressure: 240 bar
- Drilling Capacity
- Hole diameter: 89–152 mm
- Max drilling depth: up to 36 m
- Dimensions and Weight
- Length: 13,300 mm
- Width: 3,000 mm
- Height: 3,300 mm mm
- Weight: 17,700 kg
- CE marked
