Overview
Machine location:
Europe
Stock number:
PF 40961
Manufacturer:
Epiroc
Model:
T40
Year of manufacture:
2018
Working hours:

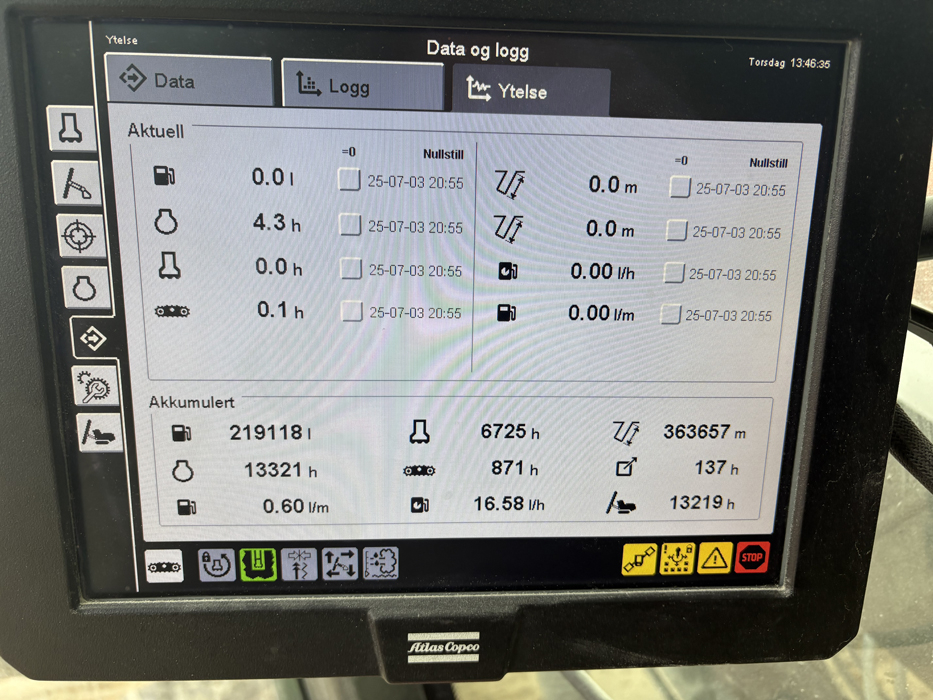

13321
Key features

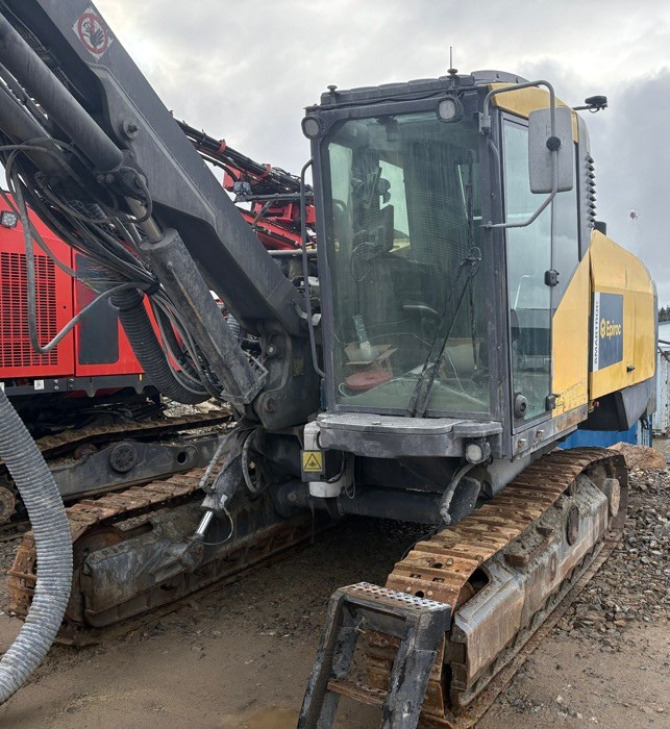

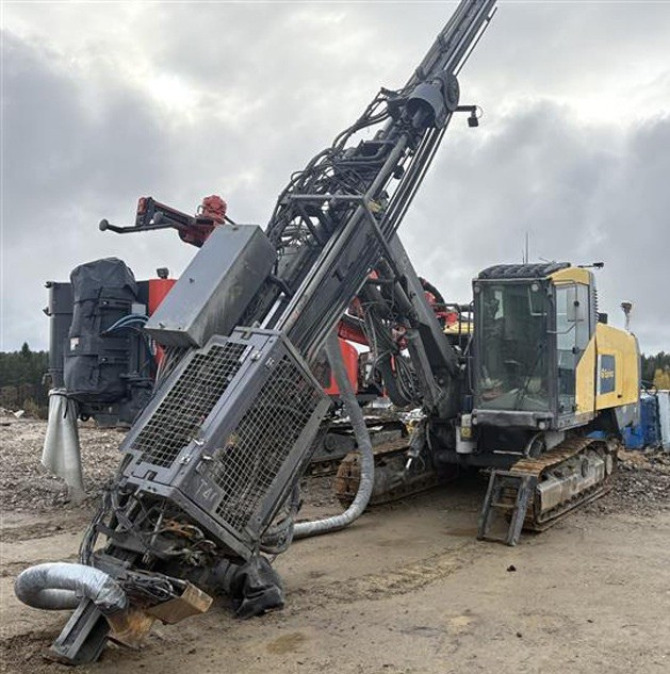

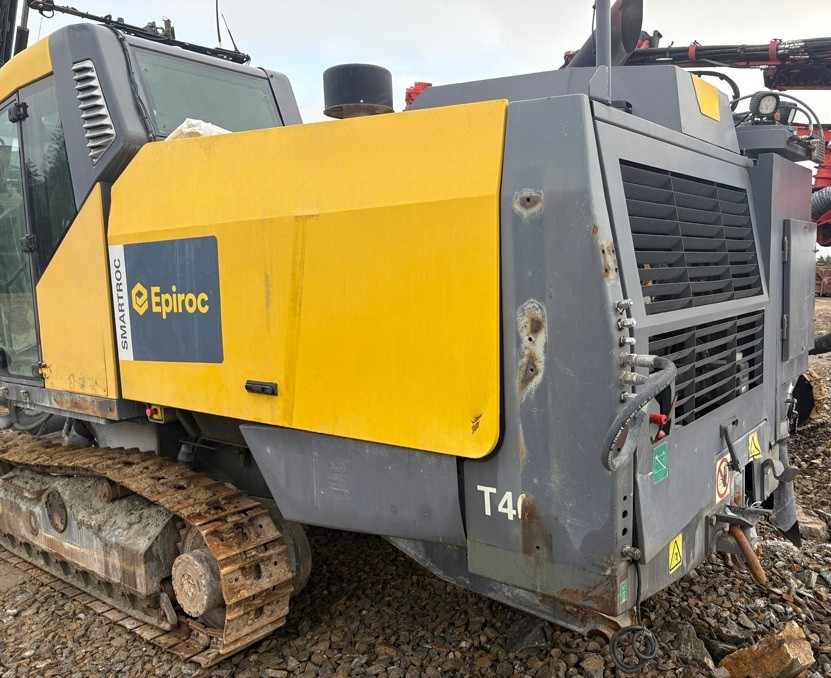

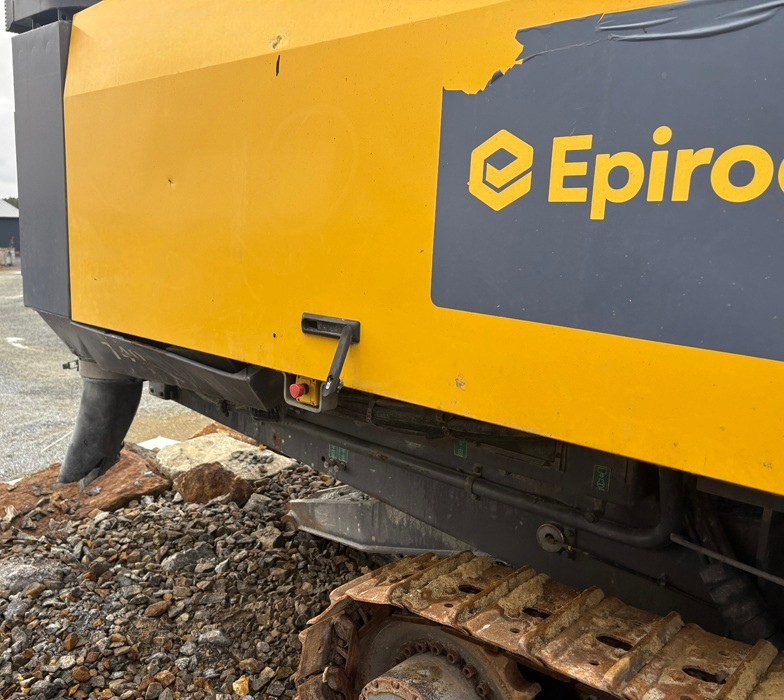

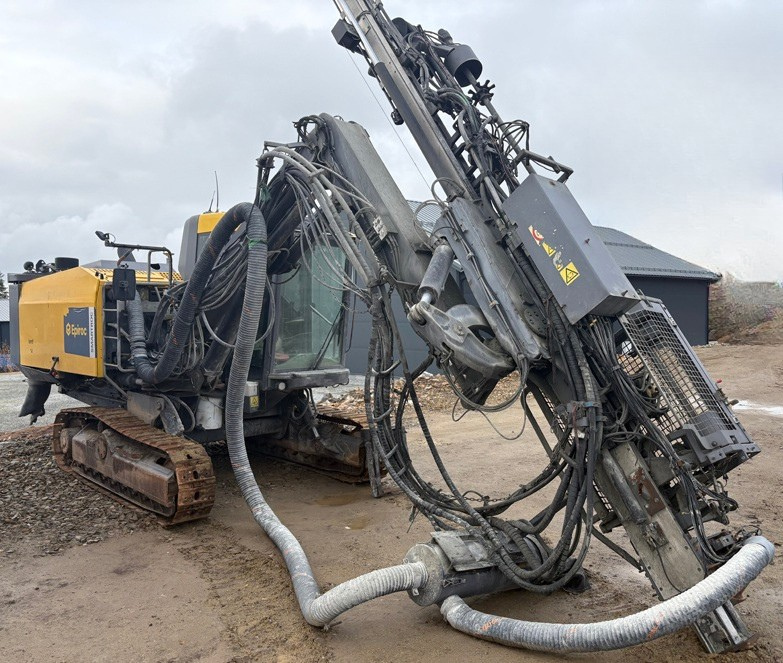

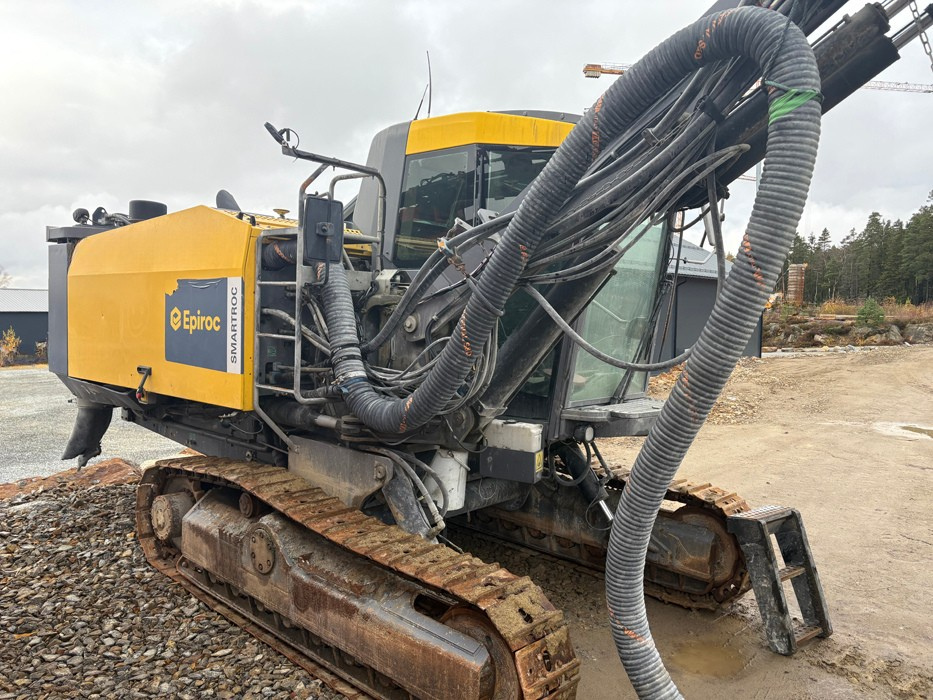

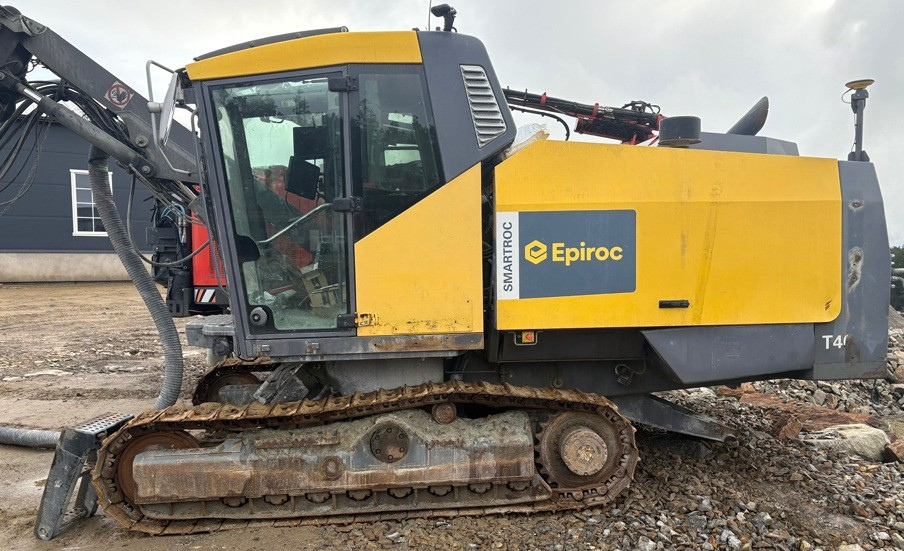

- Rock drill rig with 13,321 hours
- Impact power: 25 kW
- Hole diameter range: 63.5 – 88.9 mm
- Max percussion rate: 3,300 – 4,260 bpm
- Rotation torque: 1, 550 Nm
- Feed / Boom
- Feed length: 8,230 mm
- Feed force: 20 kN
- Compressor / Flushing
- Air flow: 9.18 m³/min
- Max pressure: 10.5 bar
- Engine
- Make & model: CAT C7.1
- Power output: 168 kW @ 2,200 rpm
- Emissions standard: Tier III
- Hydraulics
- Max flow:
- Axial piston pump (1) 171 l/min
- Axial piston pump (2) 75 l/min
- Axial piston pump (3) 50 l/min
- Gear pump (4) 30 l/min
- Gear pump (5) 40 l/min
- Max pressure: 240 bar
- Max flow:
- Drilling Capacity
- Hole diameter: 115 mm
- Max drilling depth: 37 m
- Dimensions and Weight
- Length: 12,500 mm
- Width: 2,490 mm
- Height: 3,030 mm
- Weight: 17,800 kg
- CE marked
