Overview
Machine location:
United States
Stock number:
PF 41201
Manufacturer:
Fundex
Model:
F3500
Year of manufacture:
2008
Working hours:
1594
Key features

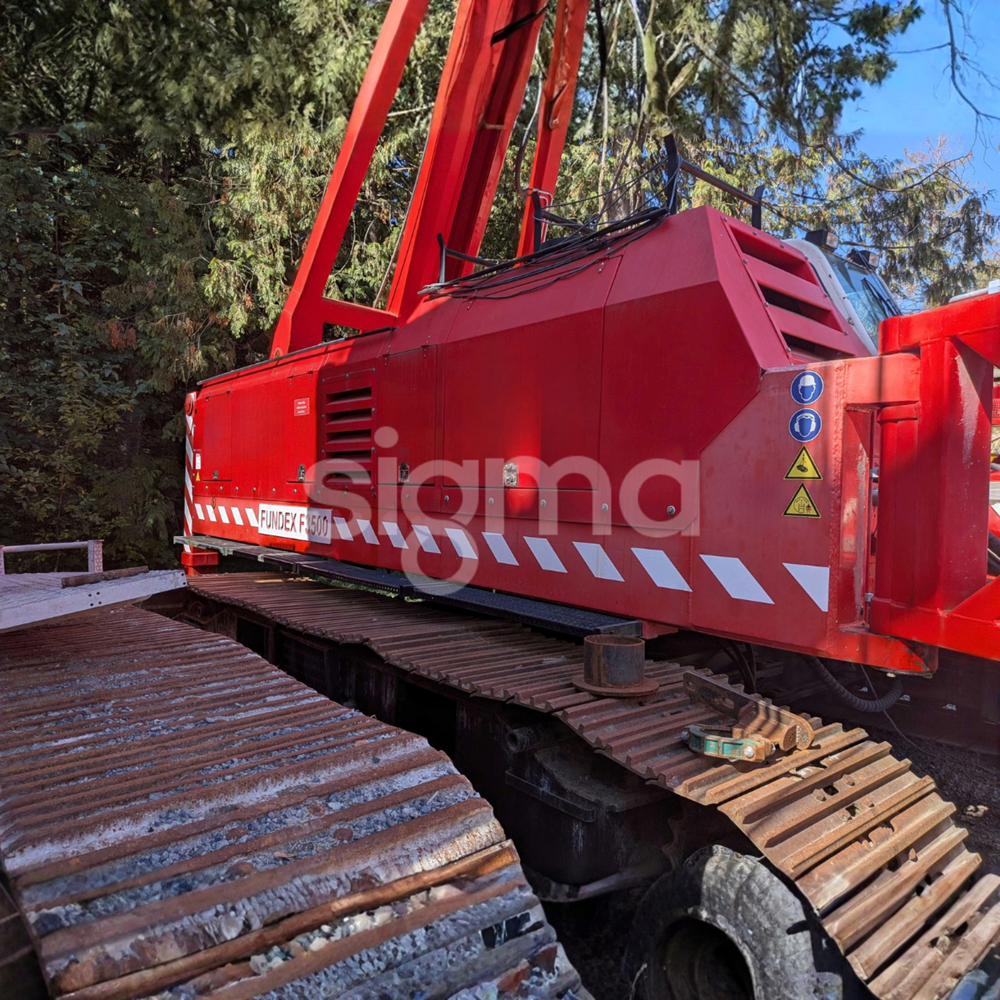

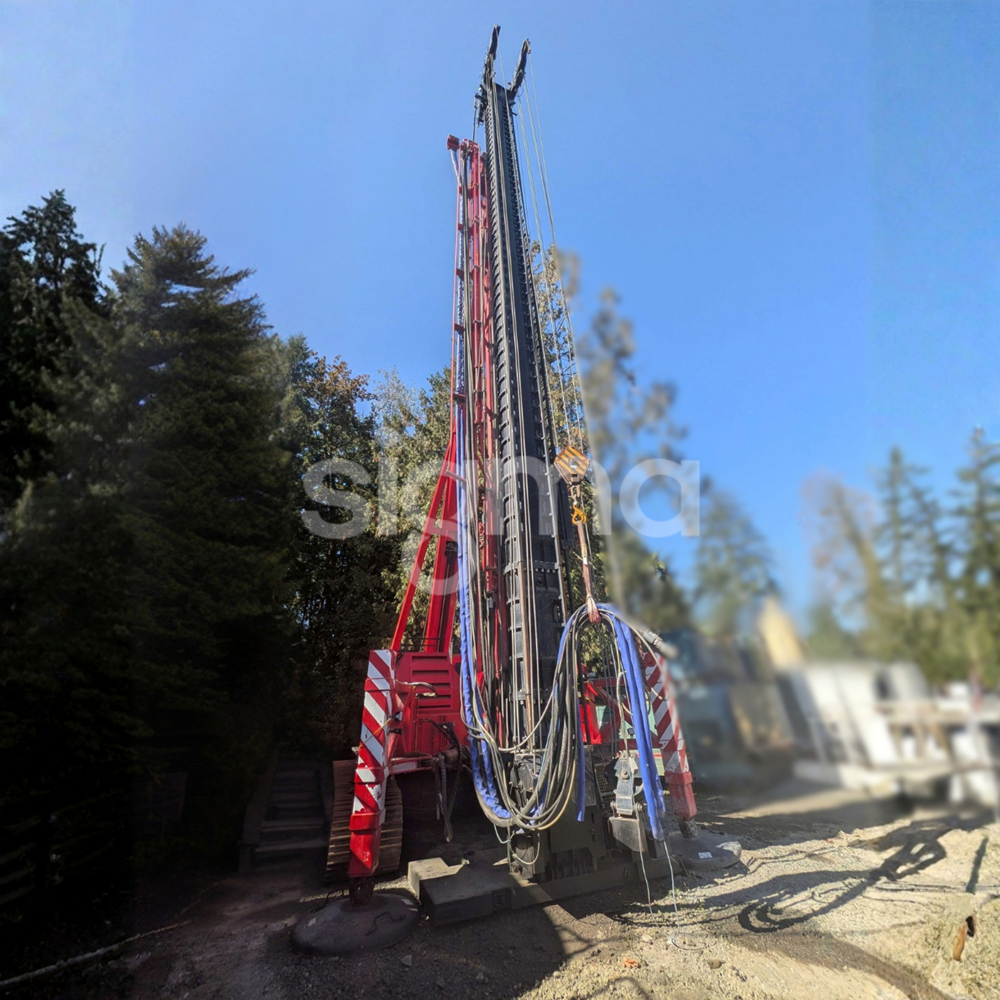

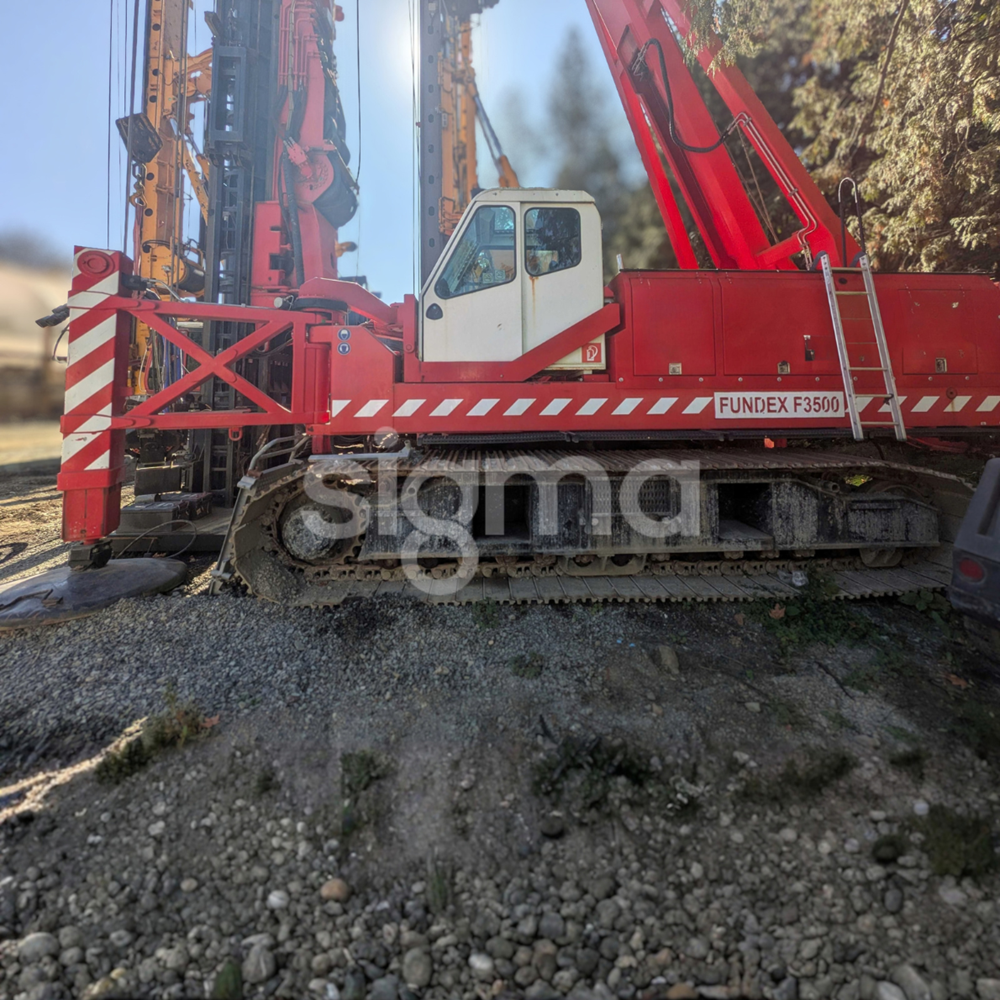

Fully rebuilt 2008 Fundex F3500 heavy-duty foundation drilling rig, equipped with an FDE50HS rotary head delivering up to 500 kNm of torque.
The rig is configured for large-diameter piling and deep foundation works, with up to 35 m drilling depth, 1,200 mm drilling diameter, 50 t crowd force and 100 t pullback.

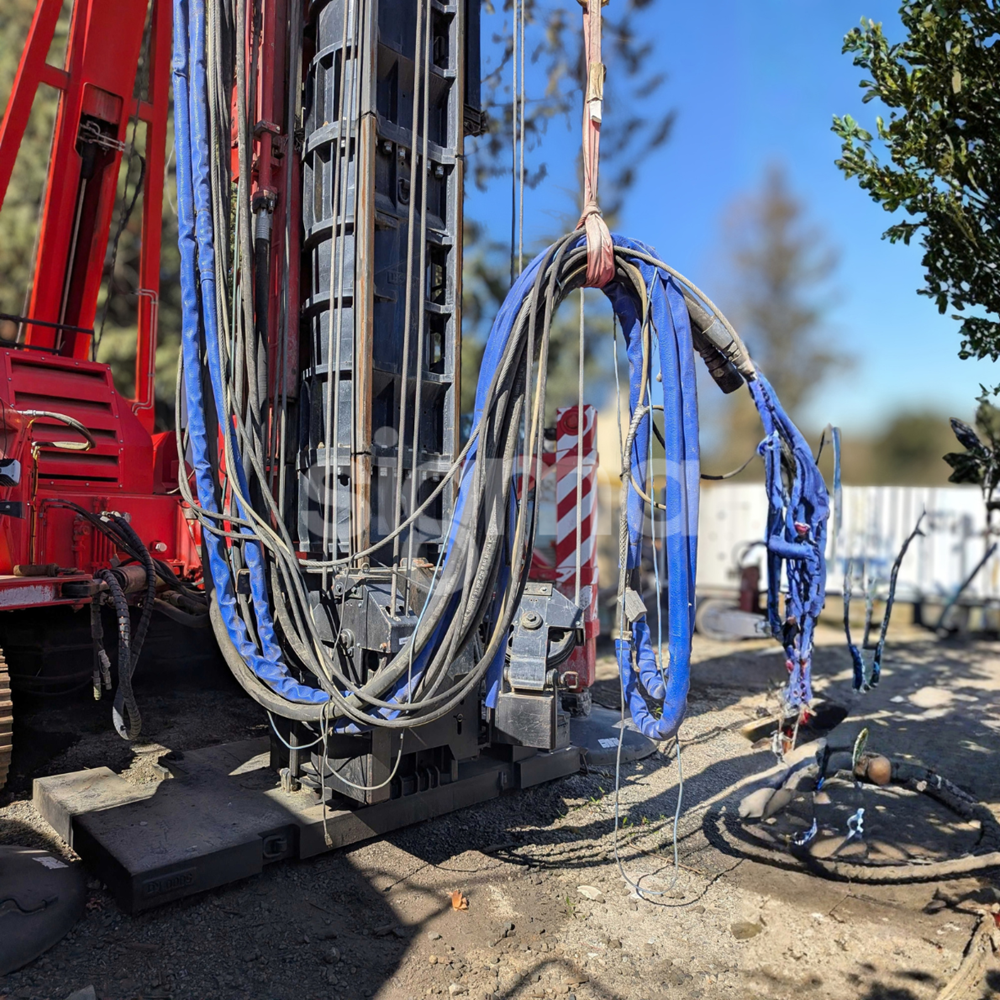

Also included is an FDE7TR triple rotary head for DSM applications, providing 3 x 73 kNm torque.
Powered by a Deutz TCD 7.8 L6 engine producing 227 kW, with Bosch-Rexroth hydraulics.
The machine has approximately 1,594 hours since overhaul and presents in very good overall condition.
Machine specs
Hours since overhaul: 1,594
Main rotary head: Fundex FDE50HS
Main rotary torque: 500 kNm
Main rotary speed: 27 rpm
DSM rotary head: Fundex FDE7TR triple rotary head
DSM rotary torque: 3 x 73 kNm
DSM rotary speed: 27 rpm
Maximum drilling diameter: 1,200 mm
Maximum drilling depth: 35 m
Maximum crowd force: 50 tonnes
Maximum pullback force: 100 tonnes
Engine: Deutz TCD 7.8 L6
Engine power: 227 kW / 310 hp
Emission standard: Tier 3

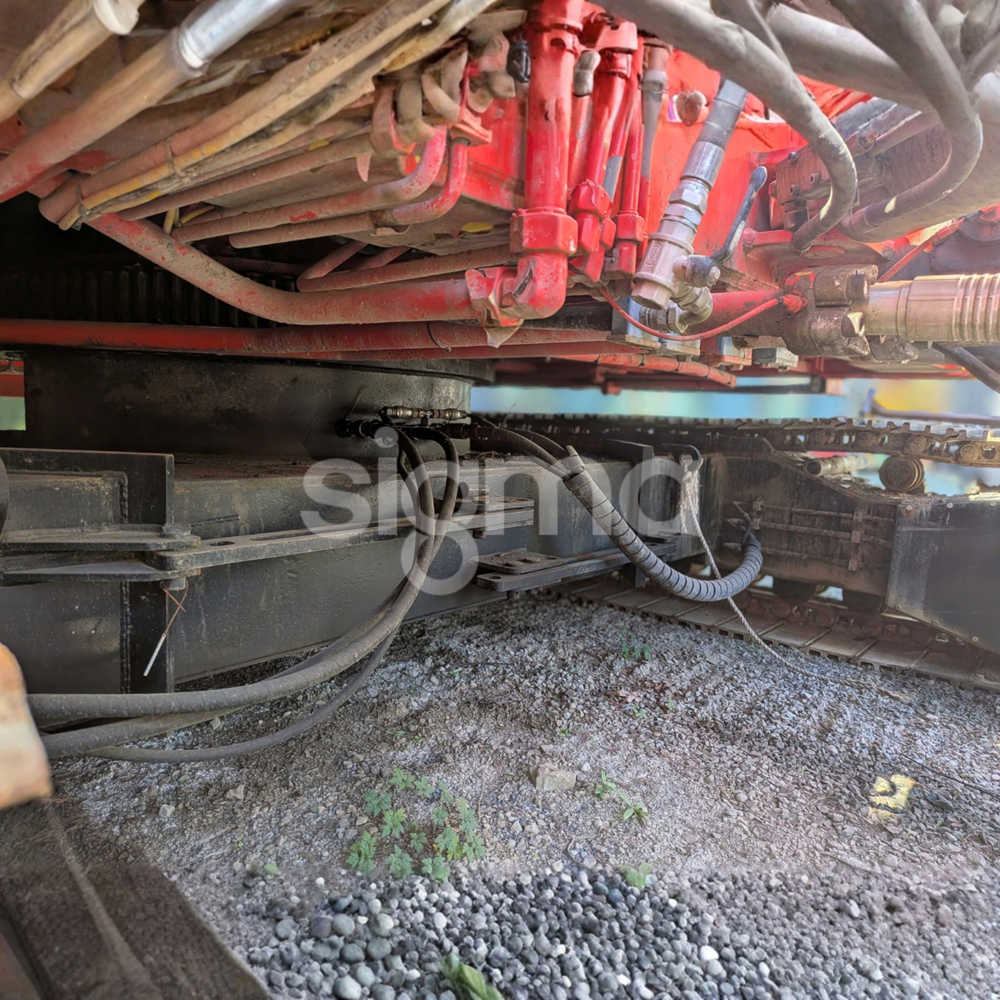

Hydraulic system: Bosch-Rexroth
Hydraulic flow: 300 L/min
Maximum hydraulic pressure: 320 bar
Working height: 40 m
Transport length: 20,400 mm
Transport width: 3,500 mm
Transport height: 3,500 mm
Operating weight: 120,000 kg

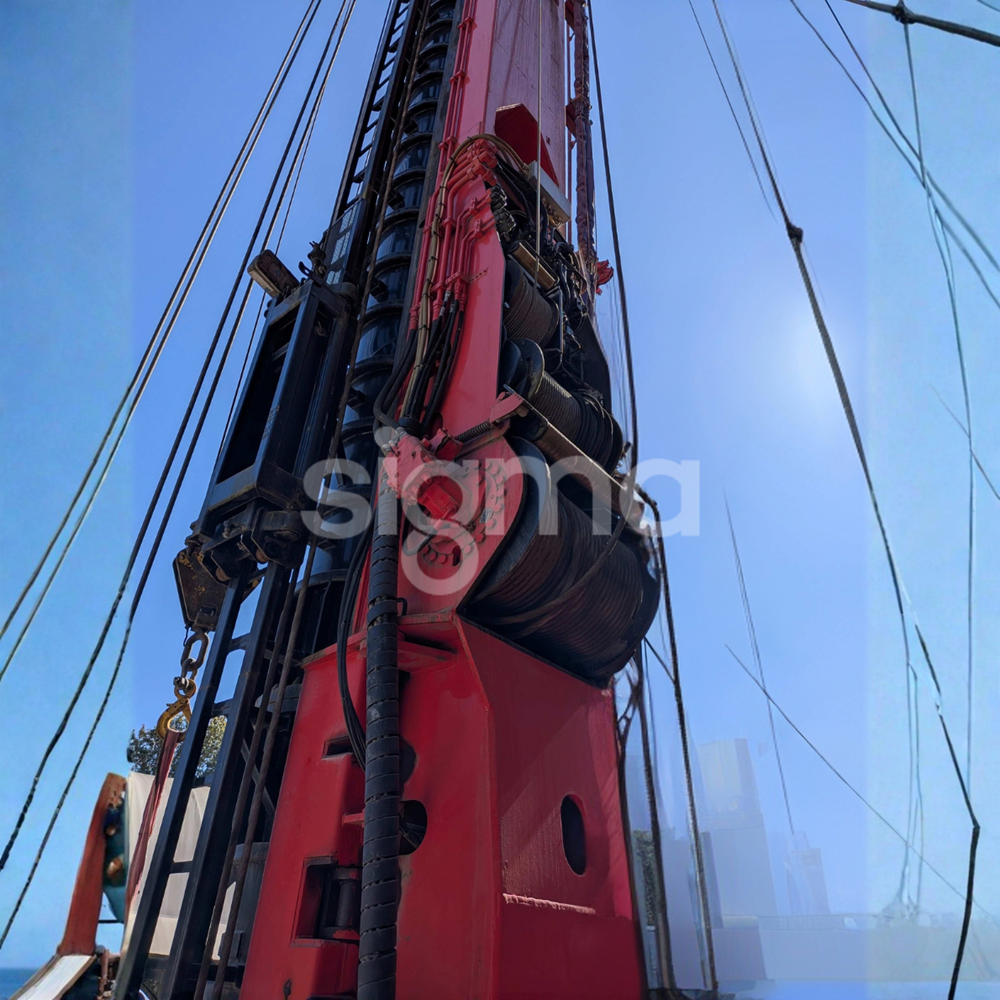

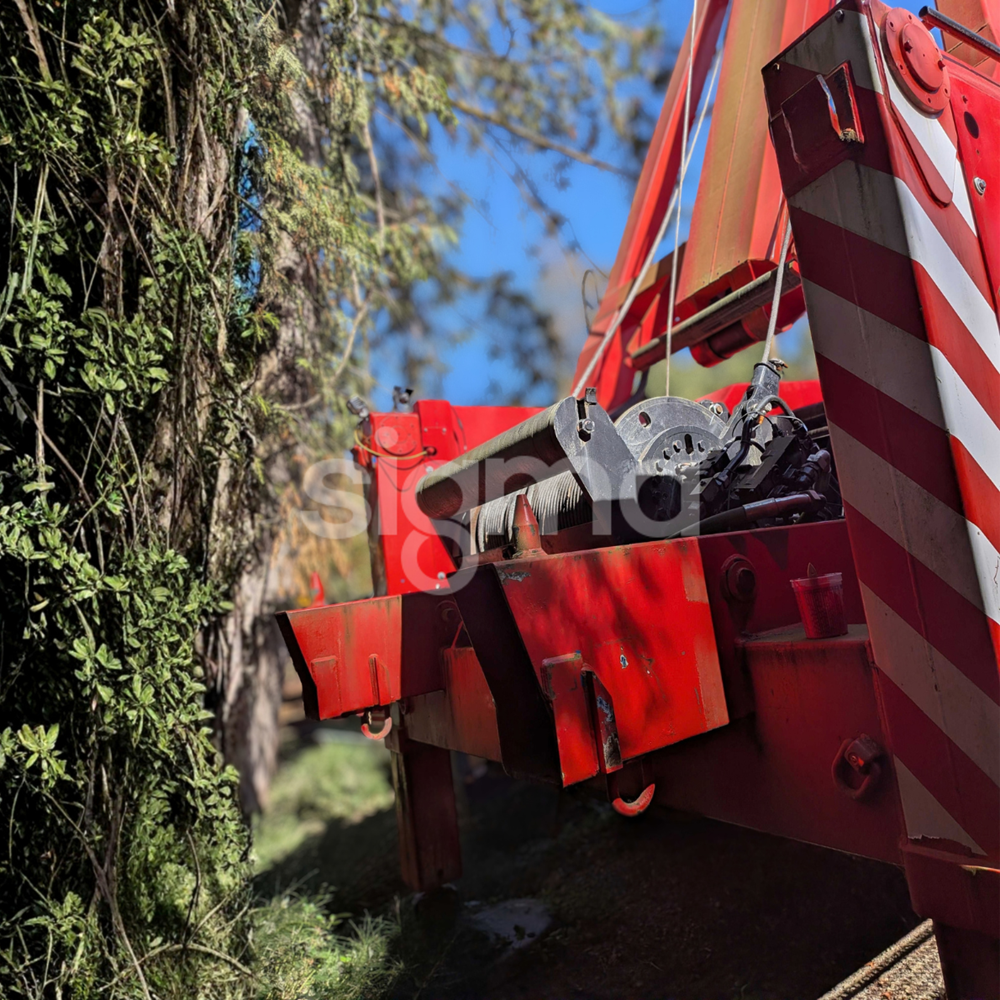

Leader vertical-movement winch: 15 tonnes
Pull-up winch: 12.5 tonnes
Pull-down or piling winch: 12.5 tonnes
Rotating-jib auxiliary winch: 5 tonnes
Piling winch: 5 tonnes
Auxiliary winch: 1.5 tonnes
Man-lift winch: 0.9 tonnes
Scope of supply: FDE50HS rotary head
Scope of supply: FDE7TR triple rotary head
Scope of supply: Reconditioned Deutz engine
Scope of supply: Bosch-Rexroth hydraulic pump

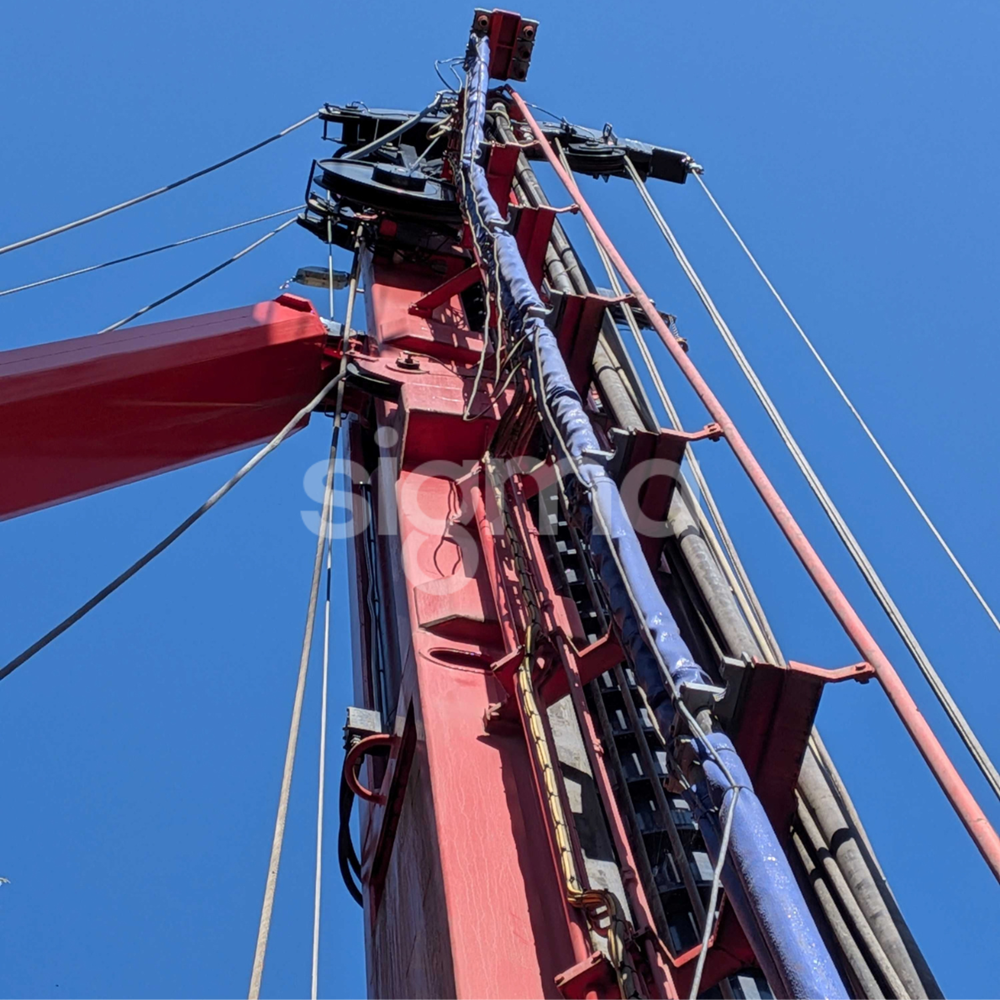

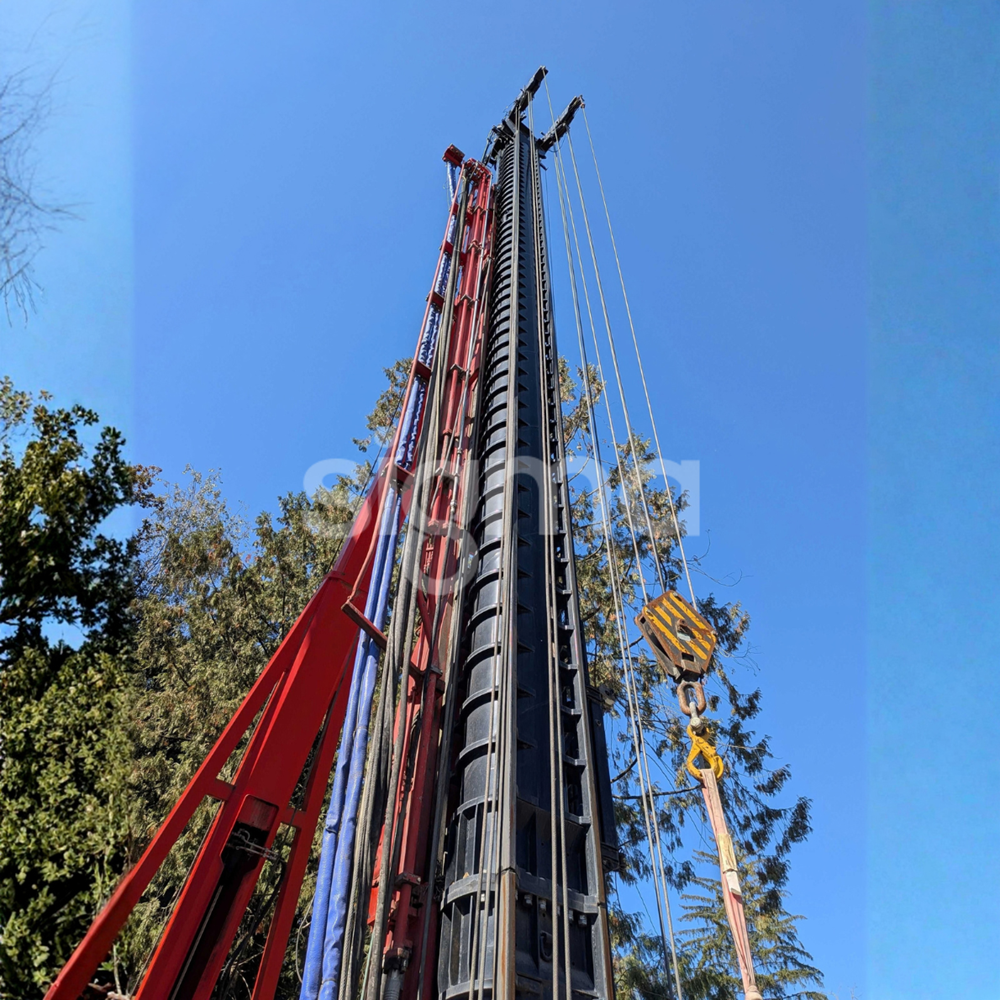

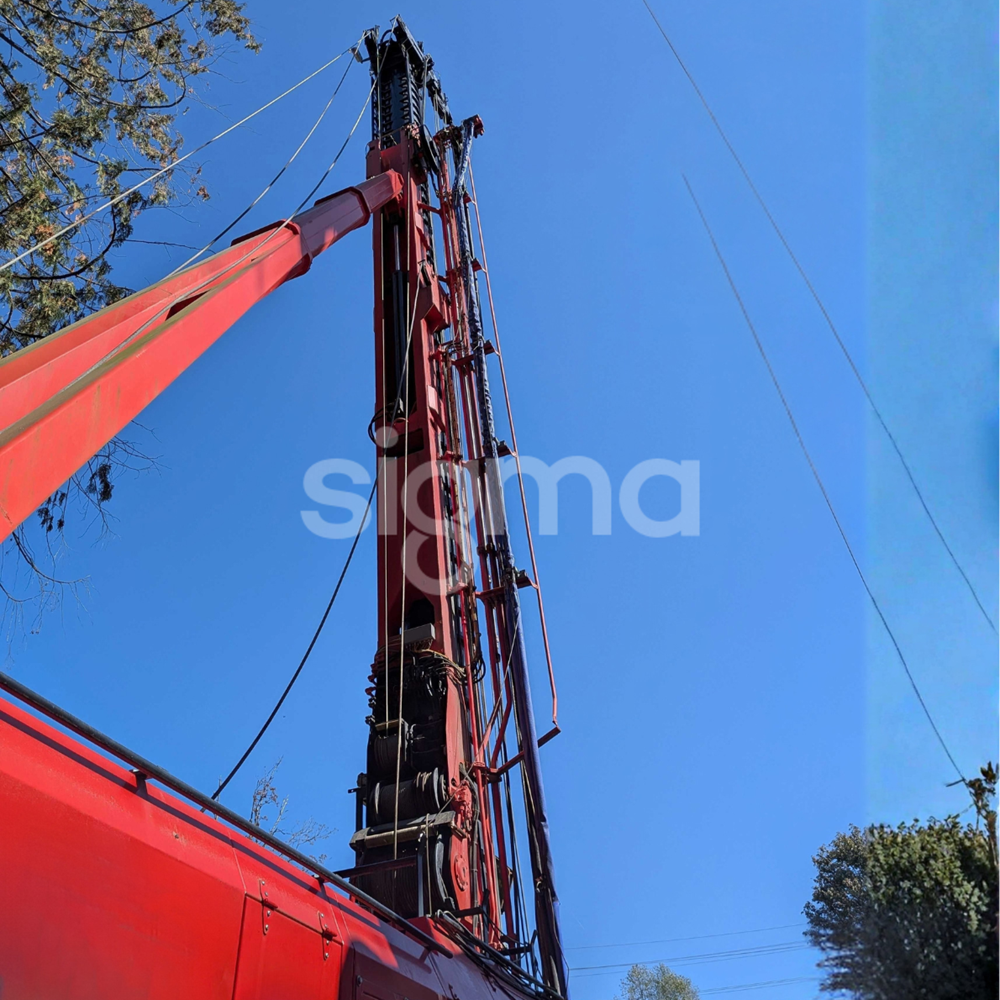

Scope of supply: 25 m, 35 m and 40 m leader options
