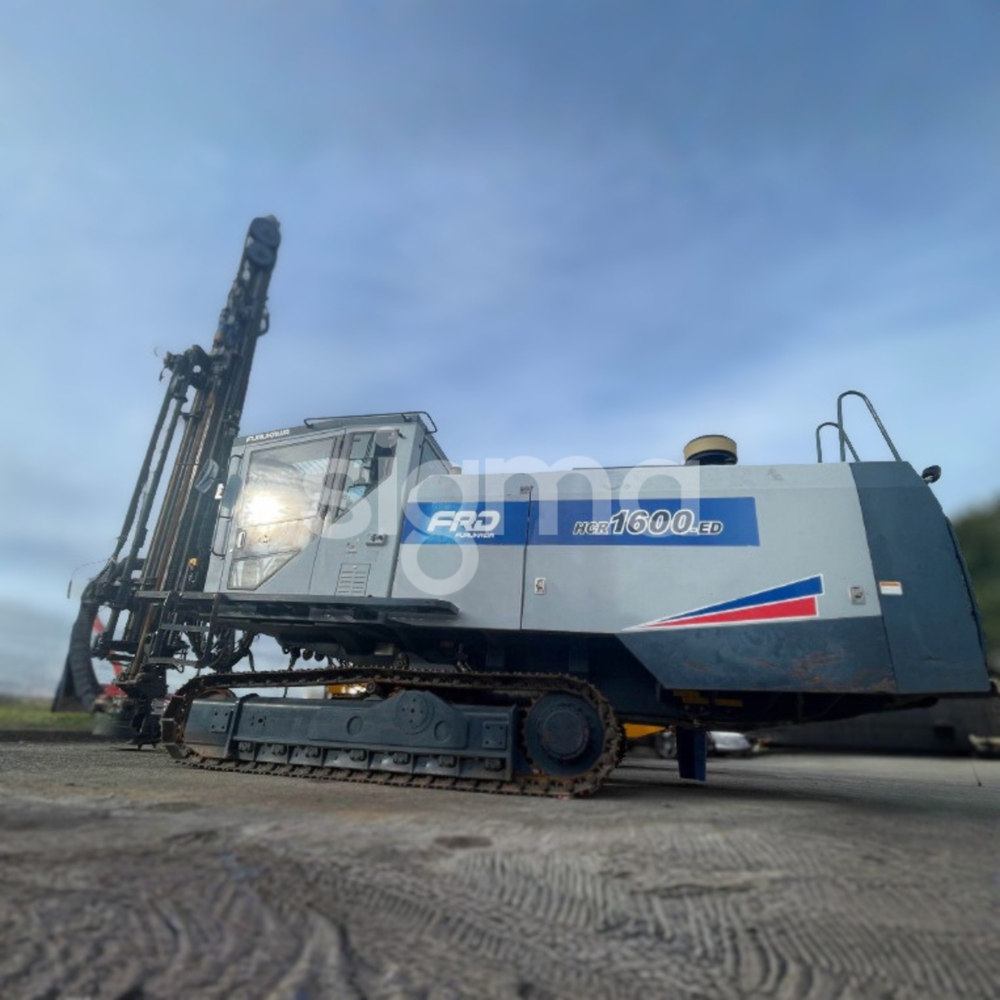

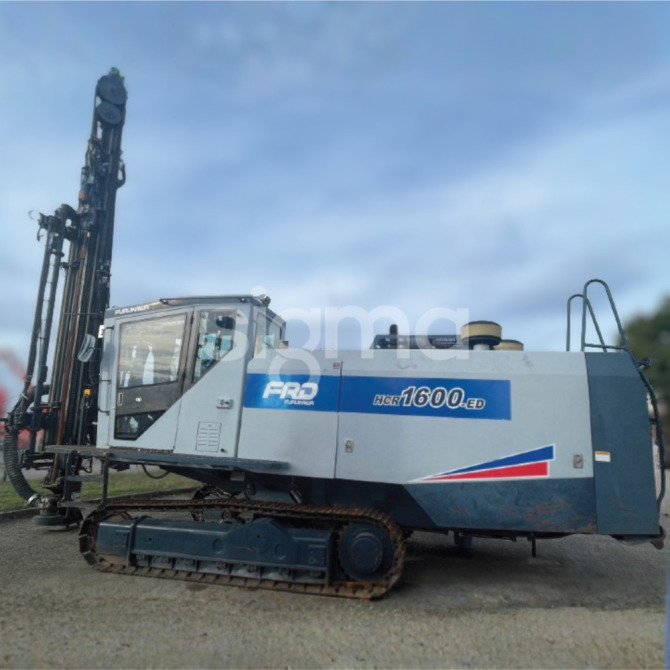

Overview
Machine location:
Europe
Stock number:
PF 41023
Categories:
Rock Drilling Rigs
Manufacturer:
Furukawa
Model:
HCR 1600
Year of manufacture:
2014
Working hours:
7045
Key features
- Rock drill with 7045 engine hours (2700 percussion hours)
- Weight and dimensions
- Weigth: 17 620 kg
- Length: 10 211 mm
- Width: 3 720 mm
- Height: 2 995 mm

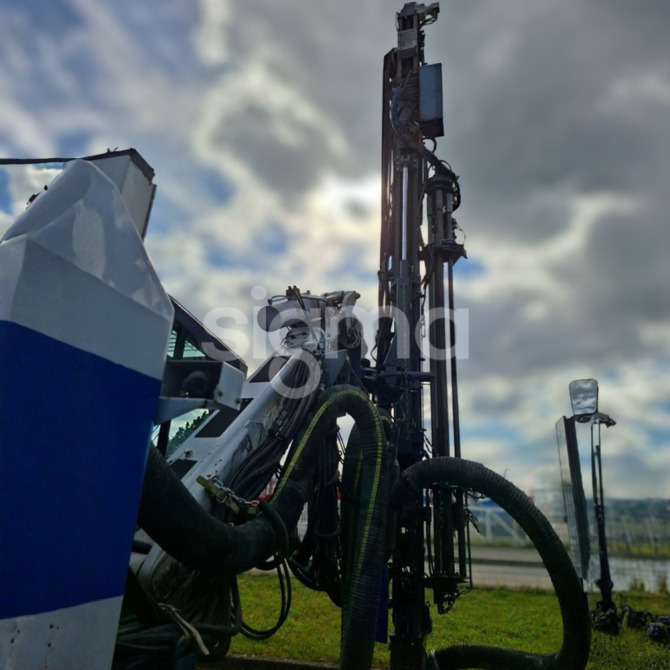

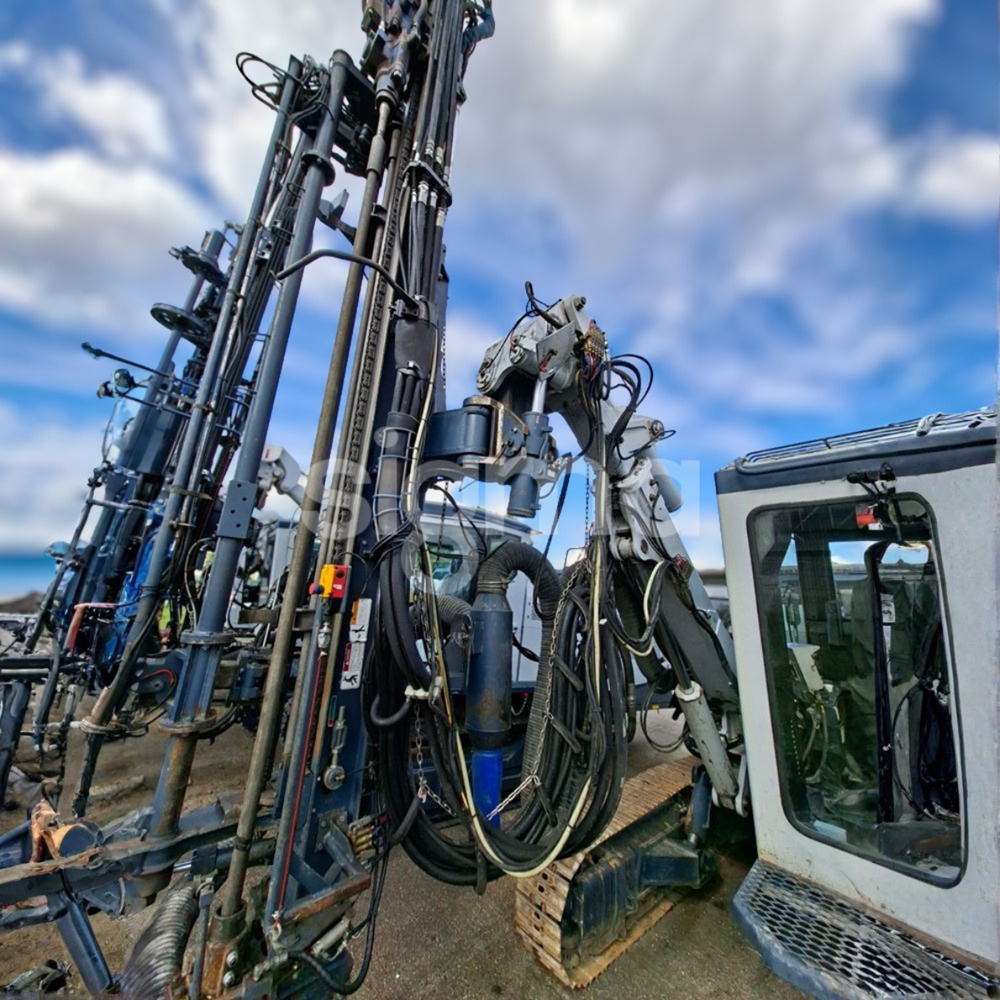

- Drifter
- HD828 reverse percussion
- Max torque: 1417Nm
- Max drill speed: 190rpm
- Hole diameter: 89-127mm
- Rod size: T45, T51
- Crawler
- Ground clearance: 542 mm
- Oscillation angle: ±7.5°
- Speed: 0 - 4,2 km/h
- Maximum gradient: 57,7%
- Engine
- Caterpillar C9.3 - Tier 4i (EU stage 3b)
- Power and speed: 261 / 2 200 kW/rpm
- Tank capacity: 650 L
- Hydraulic pumps
- 2 variable displacement piston pumps for displacement and drilling.
- 3 gear pumps for dust collector, cooling motors and arms.
- Oil tank capacity: 240L
- Airman PDS290-S15B compressor – Single stage screw, 13.5 cubic metres per min
- Feed type – GH831-42 – overall length 8095mm, feed length/with reverse percussion – 4700/4520mm
- A A885-43 automatic air pulse dust collection system, suction capacity 40 cubic metres per min, 6 filters
