Overview
Stock number:
PF 41213
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Hutte
Model:
HBR 205-2
Year of manufacture:
2023
Working hours:
1247
Machine specs
Hours: 1,247

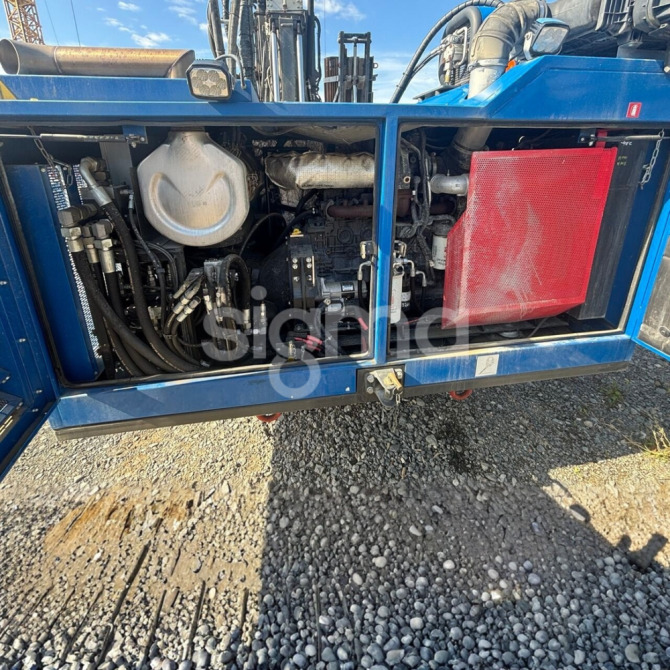

Engine: Cummins QSB 6.7 Stage V
Engine Power: 209 kW
Max. Hydraulic Pressure: 350 bar
Undercarriage Width: 2,500 mm
Undercarriage Length: 3,073 mm
Stabilisers: 4 hydraulic (2 front, 2 rear)

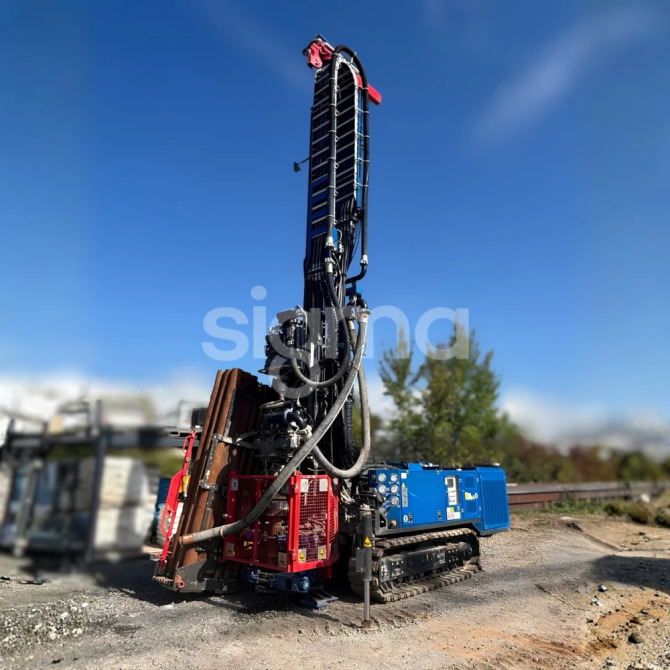

Drilling Mast: DM 300
Mast Length: 11,200 mm
Feed Force: 200 kN
Twin-Head Drilling Unit Tilt: 37°

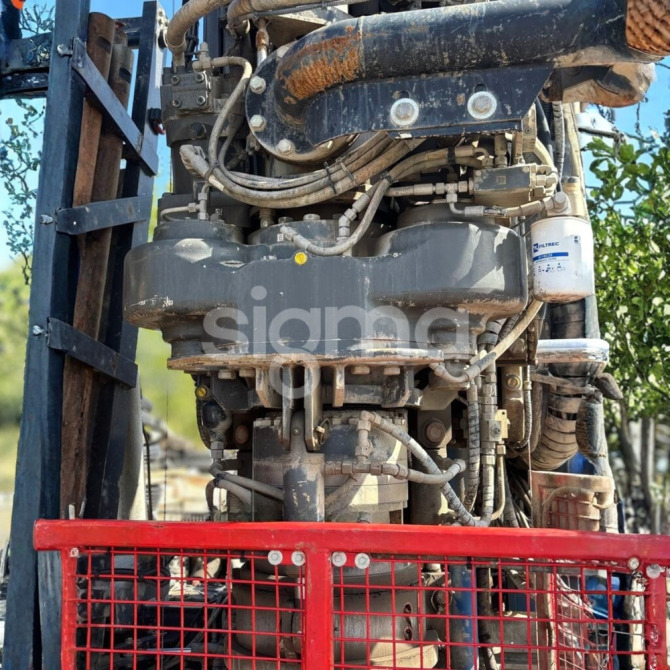

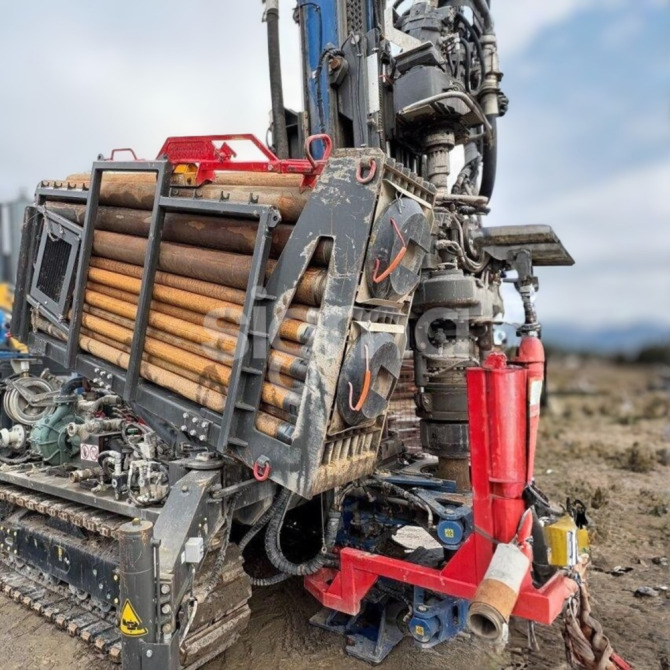

Drilling System: Twin-head
Clamping Head: P219

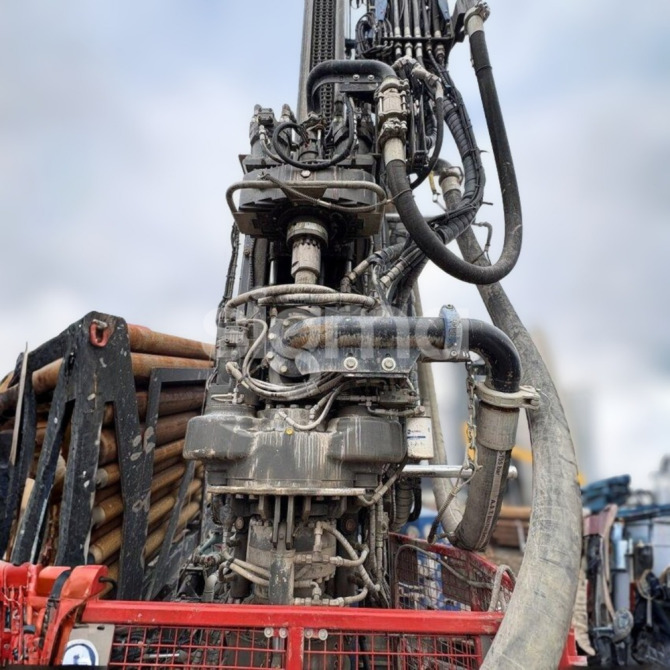

Rotary Head: RH40X
Power Rotary Head: T20EP
Clamping/Breaking System: Hütte C3-2
Additional Pump: Caprari / Gamma
High-Pressure Pump: Dynaset HPW 200-30-45
Flushing Pump: Caprari MEC MR 80-1/3 A
Hydraulic Winch: Type A2 – 20 kN

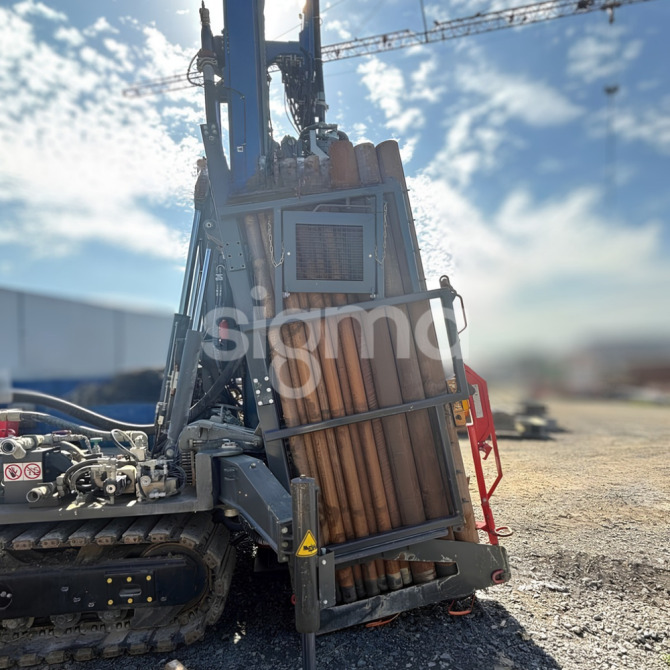

Rod Handling: Magnetic handling system with separate remote control

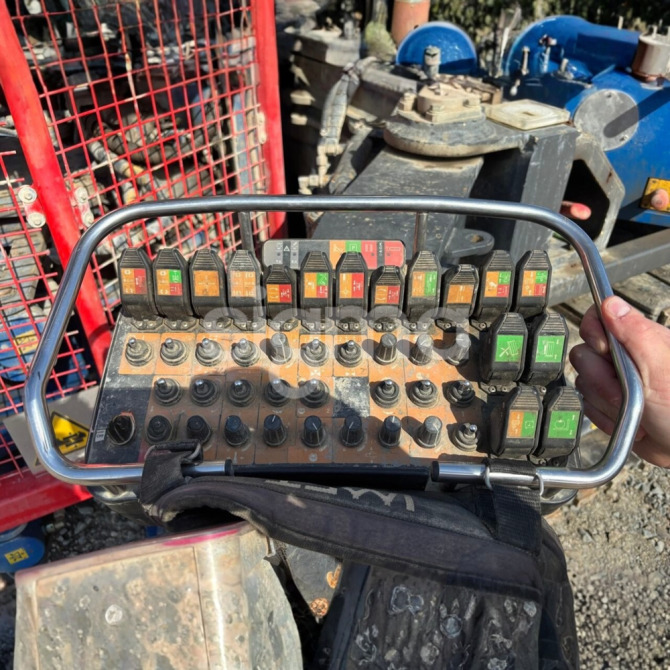

Tracking: Wireless remote with cable option
Tower Head: Telescopic and swivelling
Outrigger Pads: 4 standard + 2 raised rear pads
Additional Features: Pressure-limiting valves, feed pressure balance and towing coupling
Optional Pipe Crown Preventer: Additional €50,000 net
