Overview
Stock number:
PF 38762
Categories:
Geothermal Drilling Rigs and Equipment
Manufacturer:
Hutte
Model:
HBR 205 GT
Year of manufacture:
2011
Working hours:
5800
Key features

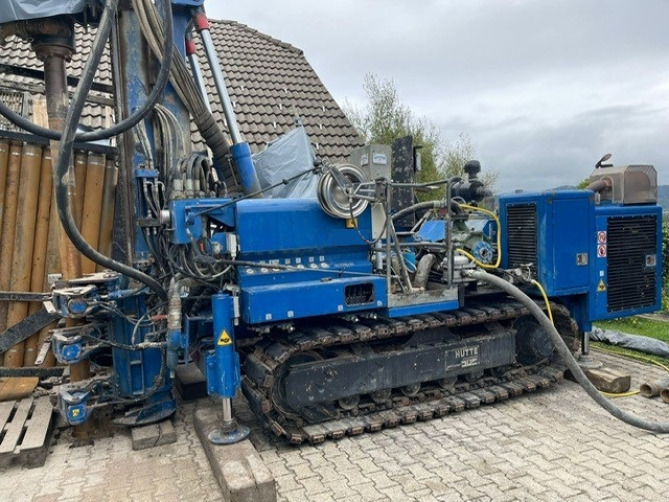

- Geothermal Tracked Drill rig
- 5800 Hours
- Radio remote control For all kinematic- and set-up functions and the drilling functions
- Drill mast type DM 300
- Feed length with double head: approx. 4200 mm
- Feed force: 100 kN (10 to)
- Retraction/force: 200 kN (20 to)
- Feed speed: 25 m/min
- Fast feed rate: 50 m/min
- Double head drilling device type HG24 / HG12
- Consisting of: Front Rotary Head type HG24
- Revolutions: max. = 58 rpm
- Torque: Max. 26,4 kNm
- Rear Rotary head type HG12
- Revolutions: max. = 102 rpm
- Torque: Max. 12.7 kNm
- Triple Hydraulic Clamping device type CB2-1 with r.2 CB2 locking clamps and nr.1 CB2 break out clamp: dia. 67-254 mm
- Clamping force: 196 kN Lateral magazine for rods and casings complete with lifting magnet
- Hydraulic service winch type A2
- Rope length: 50 m
- Nominal pull force: F=20 kN
- Cat-head with telescopic extension arm 1000 mm and 60° swinging to the right side in tramming direction
- Including optimized rope guide
- Water pump type Caprari MR80, Q= 900 I/min, p = 10 bar High pressure cleaner Dynaset 200 complete with hose reel and spry gun Oiler
- Q= 8,5 L (for DTH drilling)

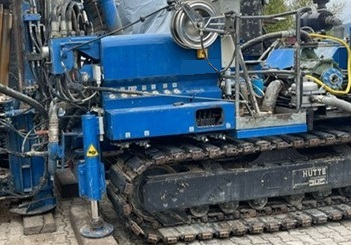

- Track Mounted Crawler chassis with steel plates covered with rubber shoes
- Track width: 2.500 mm
- Total length: 3.073 mm
- Ground clearance: 430 mm
- Travelling speed: 1,81 km/h
- Track shoes width: 500 mm
