Overview
Machine location:
United Kingdom
Stock number:
PF 41124
Manufacturer:
Hutte
Model:

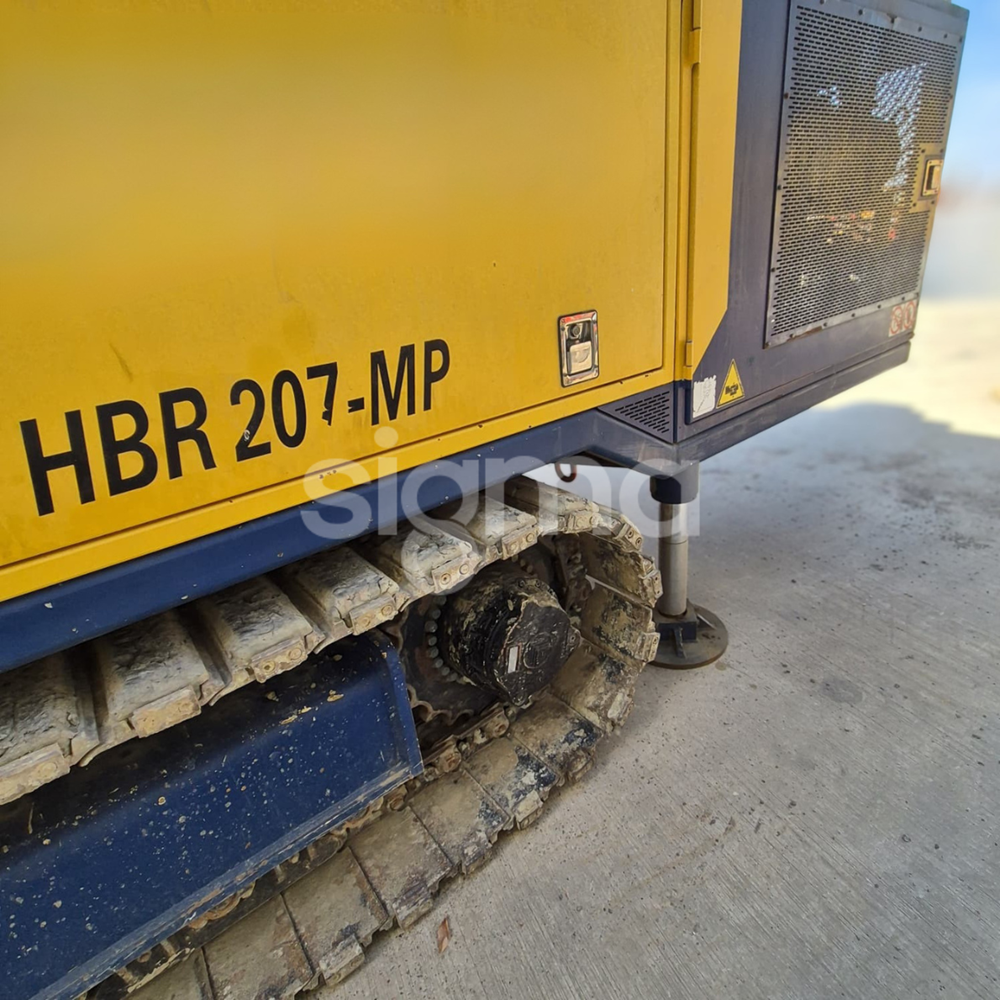

HBR 207
Year of manufacture:
2019
Working hours:
3700
Key features

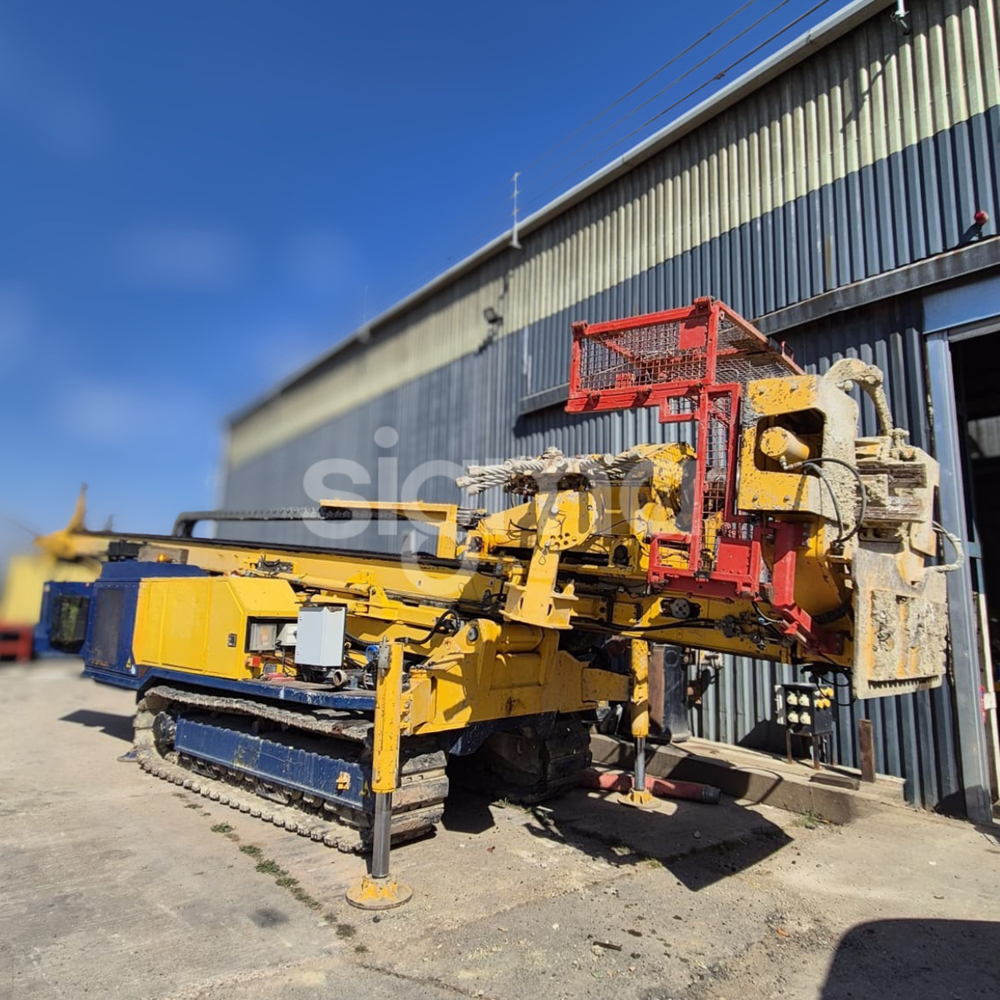

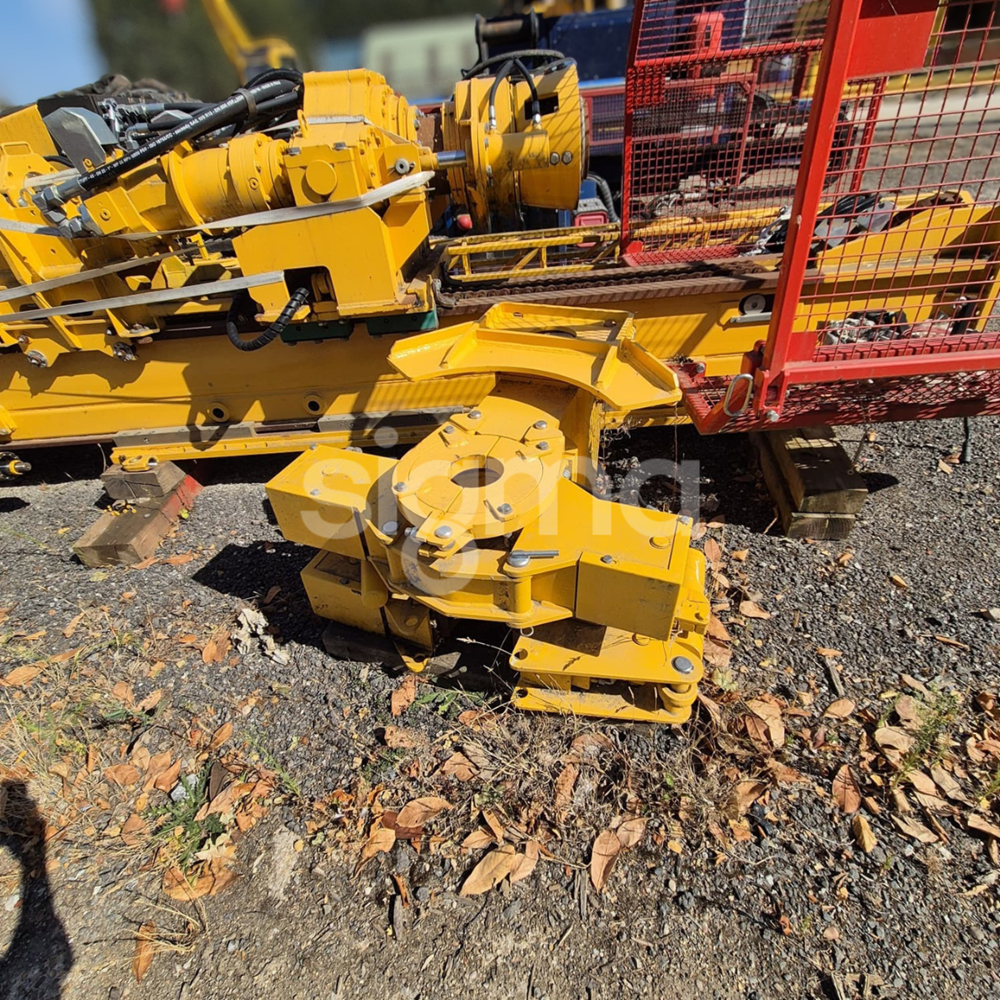

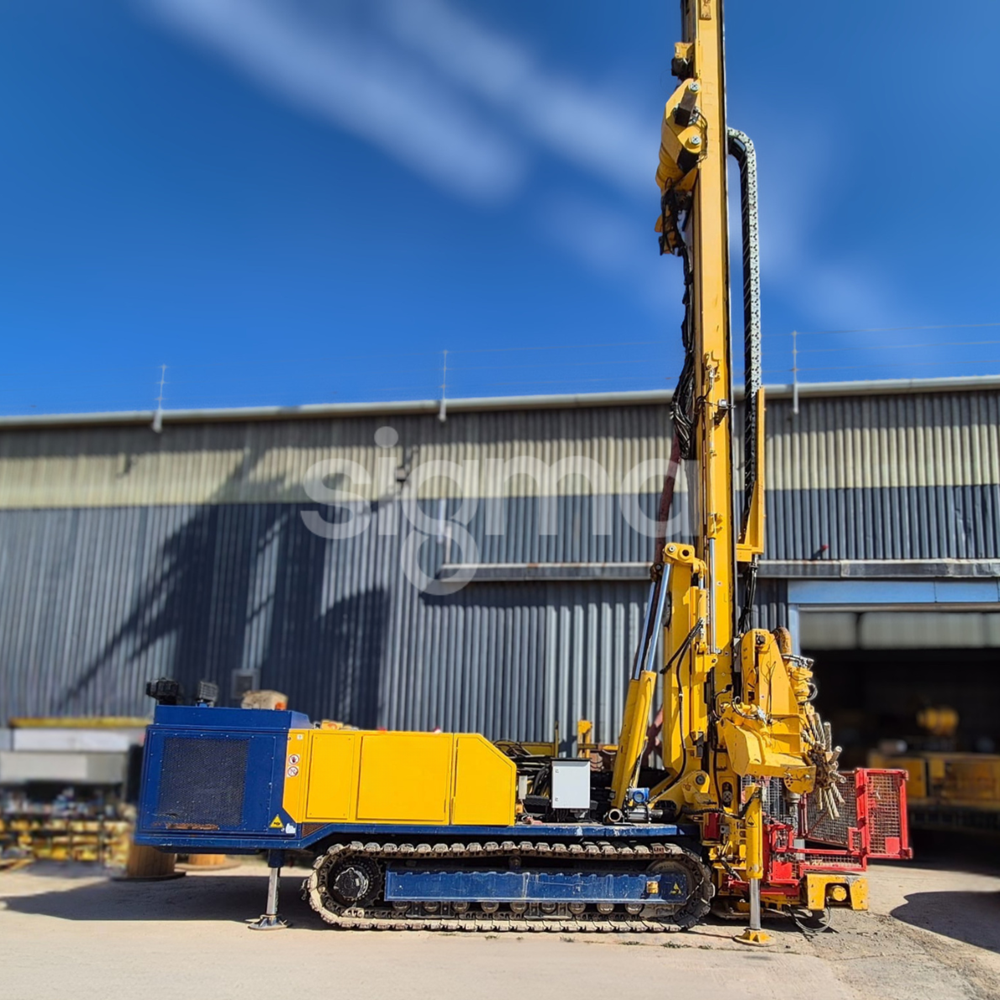

2019 Hütte HBR 207 with 3,700 hours, fitted with a 209 kW Cummins B6.7 engine, 70 kNm rotary head, 400 kN extraction/crowd force and 11.8 m rotary head stroke. Supplied with both standard and low-headroom masts, M7 clamps up to 610 mm and a full jet grout kit for 28 m single-pass drilling.
Machine specs
Drilling Capacity
- Max drilling depth (m): 28m
- Max drilling diameter (mm): 610 mm
- Max torque (kNm): 70 kNm
- Max pull force (kN): 400 kN
- Max push force (kN): 400 kN
- Max rotation speed (rpm): 50 rpm
Mast & Feed System

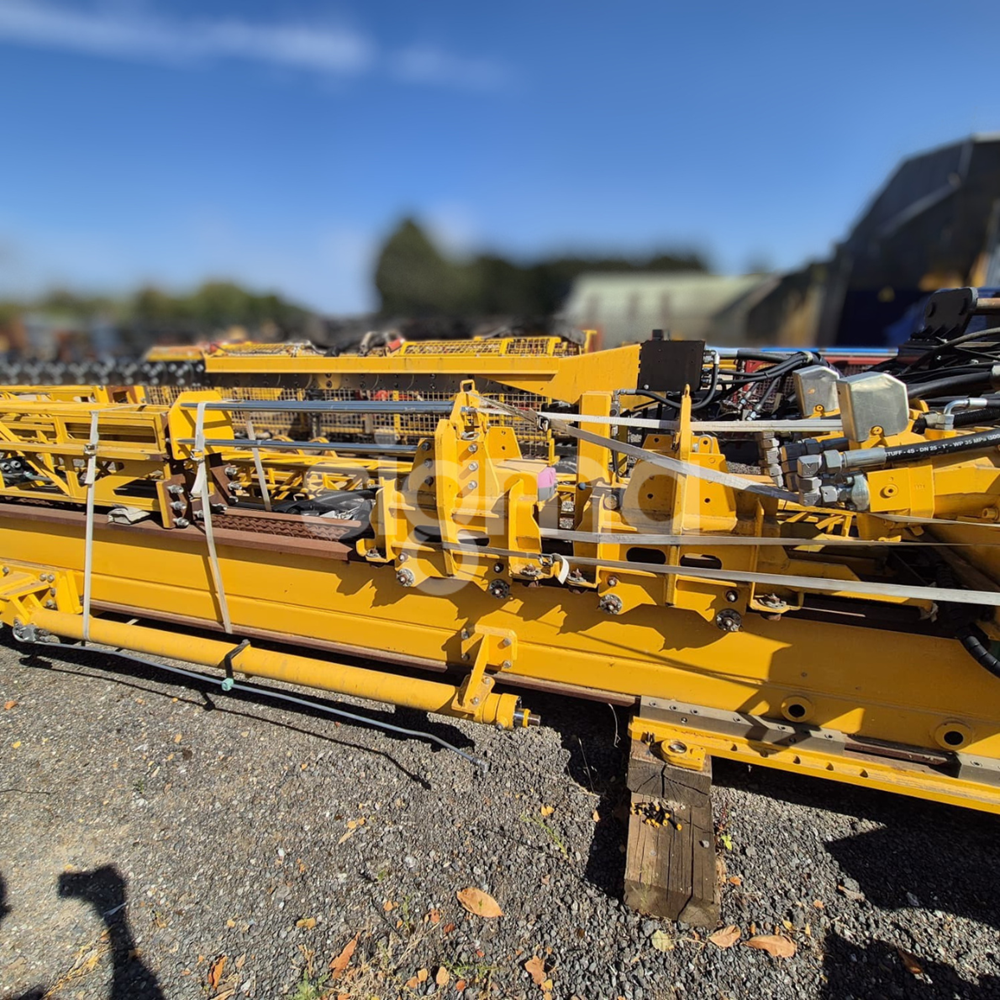

- Mast type: Standard mast + low headroom mast
- Mast stroke (m): 11.8 m
- Mast stroke (low headroom ): 5.3 m
- Mast inclination: ±20°
Jet Grouting System
- Jet grouting capability: Yes
- Jet grout kit: Full kit included
- Max jet grout depth: 28 m single pass
Power Unit
- Engine make & model: Cummins B6.7
- Engine power: 209 kW / 280 HP
- Emission standard: Stage V / Tier 4
- Fuel tank capacity: 345 L
Hydraulic System
- Hydraulic system type: Full Load Sensing
- Main pumps: 2 × 308 + 200 + 86 L/min
- Max operating pressure: 350 bar
- Hydraulic oil capacity: 560 L
Dimensions & Weight
- Working height: 16.8 m
- Transport width: 2,500 mm
- Transport height: 3,200 mm
- Transport length: 14,400 mm standard / 12,200 mm
- Operating weight: 32,000 kg
