Overview
Stock number:
PF 39007
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
,Geotechnical Drilling Rigs
,Underground and Tunnelling Rigs
Manufacturer:
Hutte
Model:
HBR202E
Year of manufacture:
2011
Working hours:
400
Key features
- 400 working hours
- Weight approx. 6750kg
Drilling Rig:
- Expanding tracks 700-1680mm
- Set of stabilisers
- Telescopic mast 3370-4620mm
- Stroke 1200mm Crowd/extraction force 3.9t/6.4t
- Hutte rotary head HG24
- 26400Nm max torque
- Max speed 58rpm
- 3 speeds Clamp 450-660mm dia
- Interlocked guards
- Winch 1.3t capacity
Power Pack:
- Electric motor
- 75Kw Main hydraulic pump 210 l/min
- 250 bar
Rotary Head type HG24
- Max speed 58rpm
- Max torque 2712NM
- Max working pressure 250bar
- Flow rate 90-200 l/min
- With 2 flushing connection
- Overall length 3940mm
- Overall Width 1090mm
- Overall height 2490mm

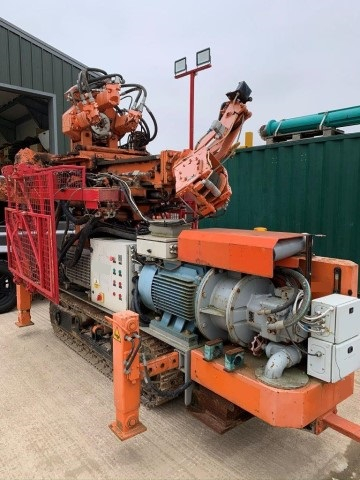

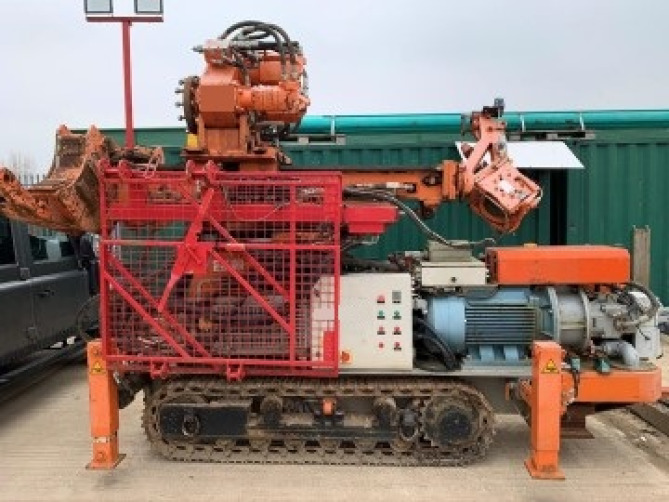

HBR 202 D/E
- a small drilling rig for large-diameter bores
- Hutte Bohrteehniks compact class drill rigs HBR 202, with integrated electric motor or diesel engine, was designed to fulfil clients need for small drill rigs for large-diameter bores.
- The drillling rig is especially suited for difficult drilling conditions in confined and limited areas, which require particularly compact and mobile equipment.
- It features a design with specific mast movements to reach drilling positions for special applications .
- At the same time the HBR 202 is able to drill big diameters , for example up to 324 mm and 406 mm.
- The compact-class Hutte drill rig HBR 202 E/D is self-contained, fully hydraulic crawler drill rig, which feature a compact and robust design, simple controls, as well as high efficiency.
- It incorporates the latest diesel technology, meeting the strict emissions regulations in the EU and the US.
- Furthermore the rig is fully radio-controlled which makes operations from various positions possible and offers control over the drill rig acccording to the lastest safety requirments.
- The drill rigs are equipped with telescopic undercarriages as well as a telescopic drill mast.
- Together with the powerful rotary head type HG28, which is a very compact and powerful rotary head, the Hutte rig HBR 202 is suitable for big-diameter surface drilling jobs, which require high torques.
