Overview
Machine location:
United States
Stock number:
PF 41231
Categories:
Rotary Bored Piling Rigs
Manufacturer:
IMT
Model:
AF220
Year of manufacture:
2008
Working hours:
12070

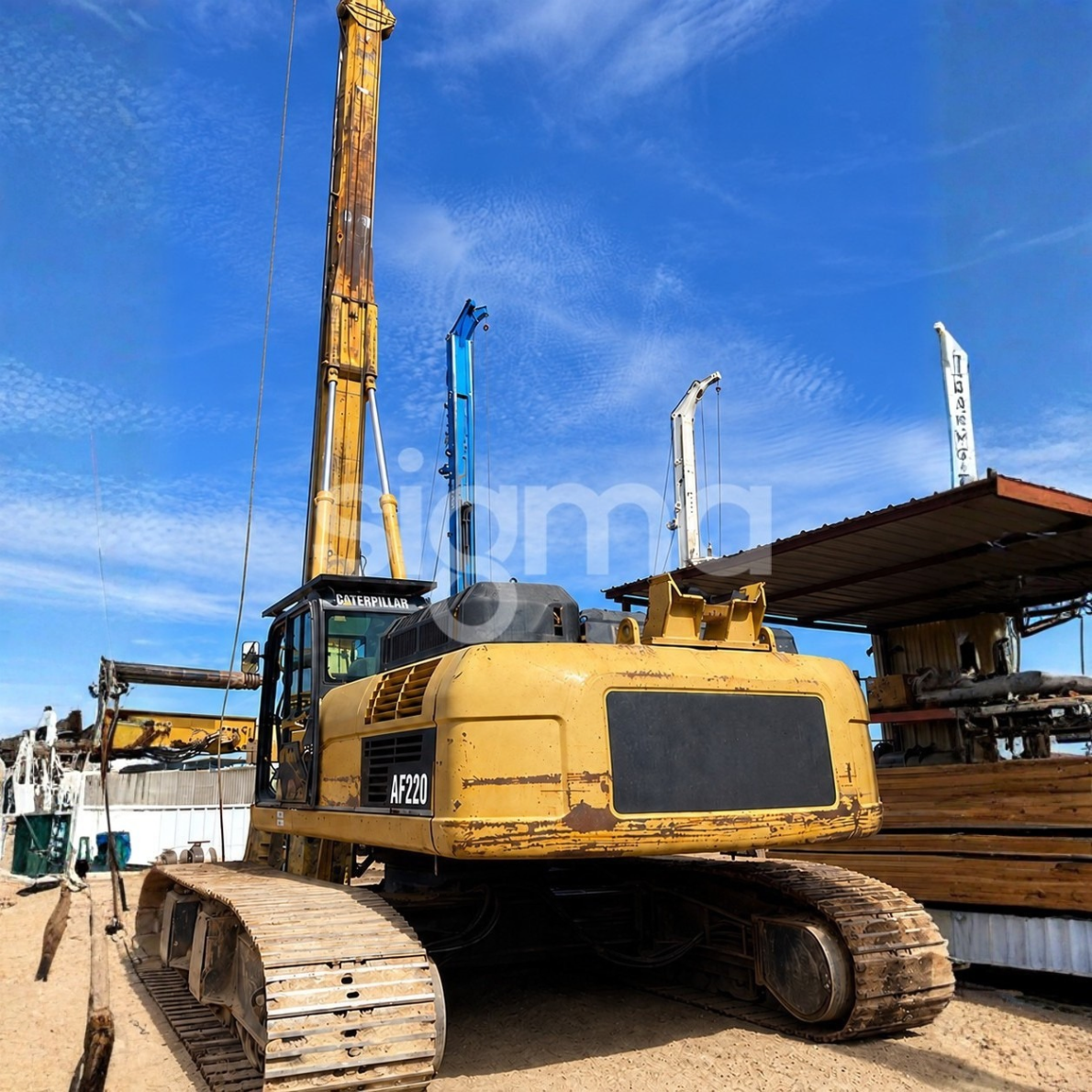

Key features

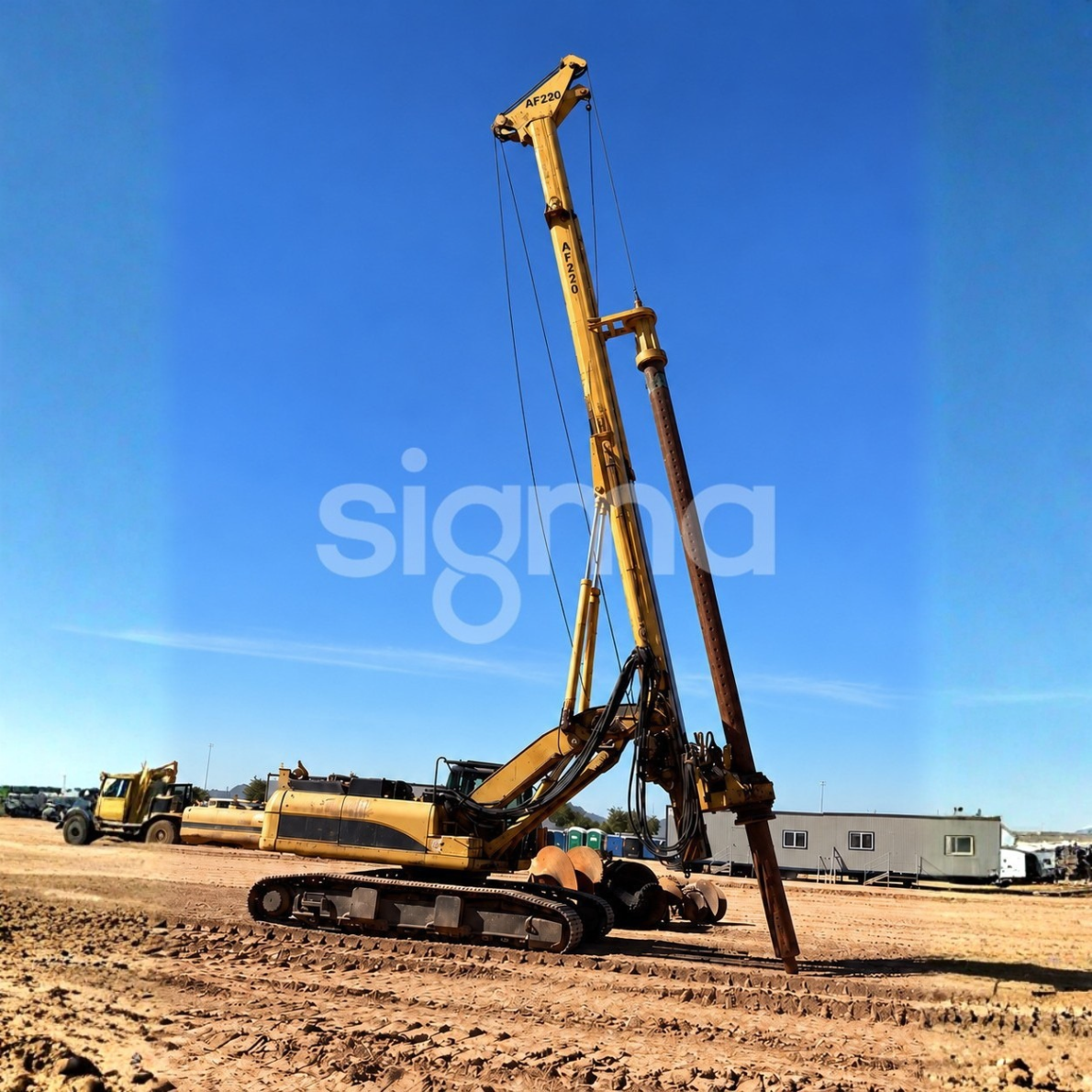

2008 IMT AF220 rotary bored piling rig with 12,070 recorded working hours, fitted with a four-element interlocking Kelly and Caterpillar C9 engine.
Rotary quill work

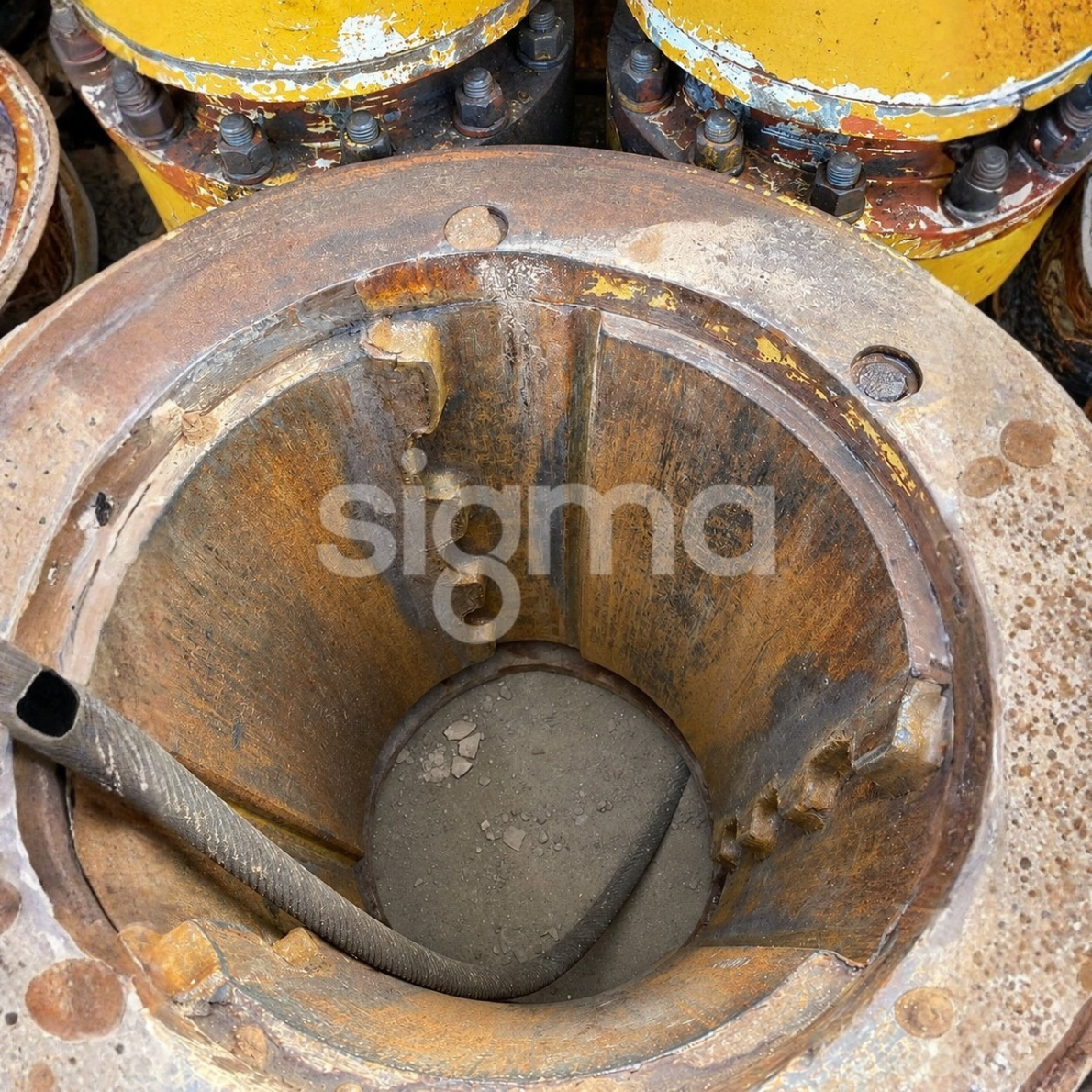

Kelly refurbishment by Blaze Equipment

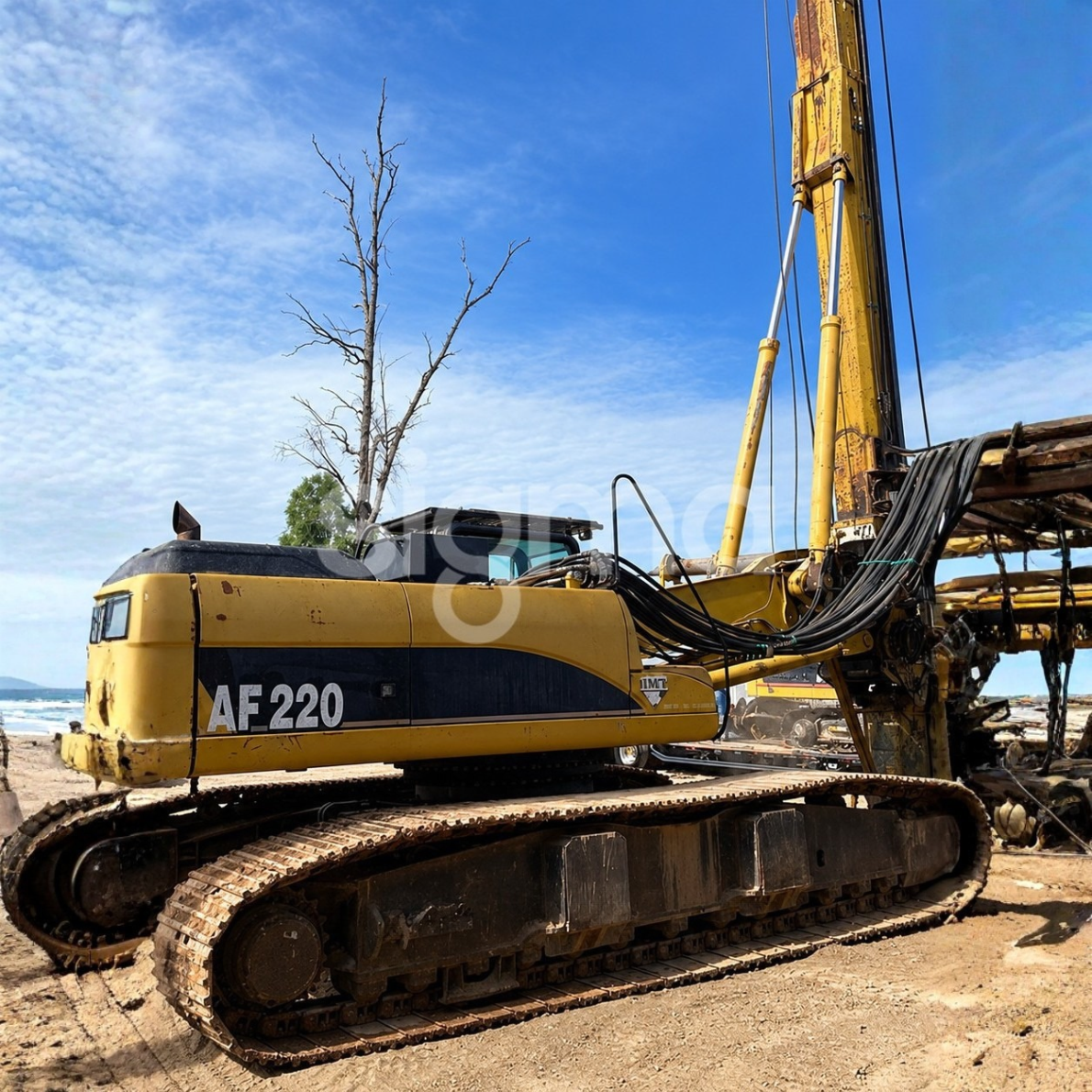

Wiring-harness upgrades

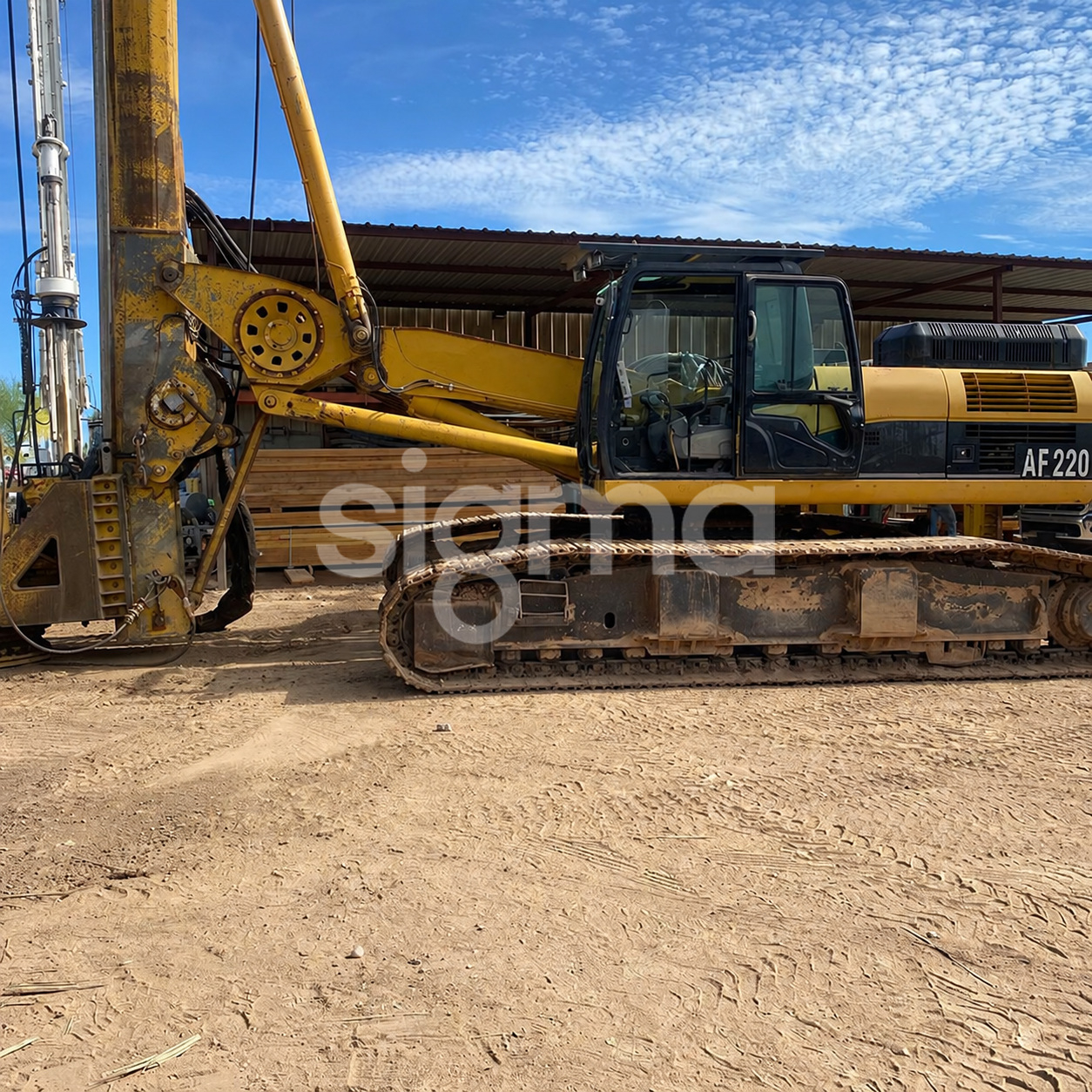

Enclosed operator cab
Joystick controls

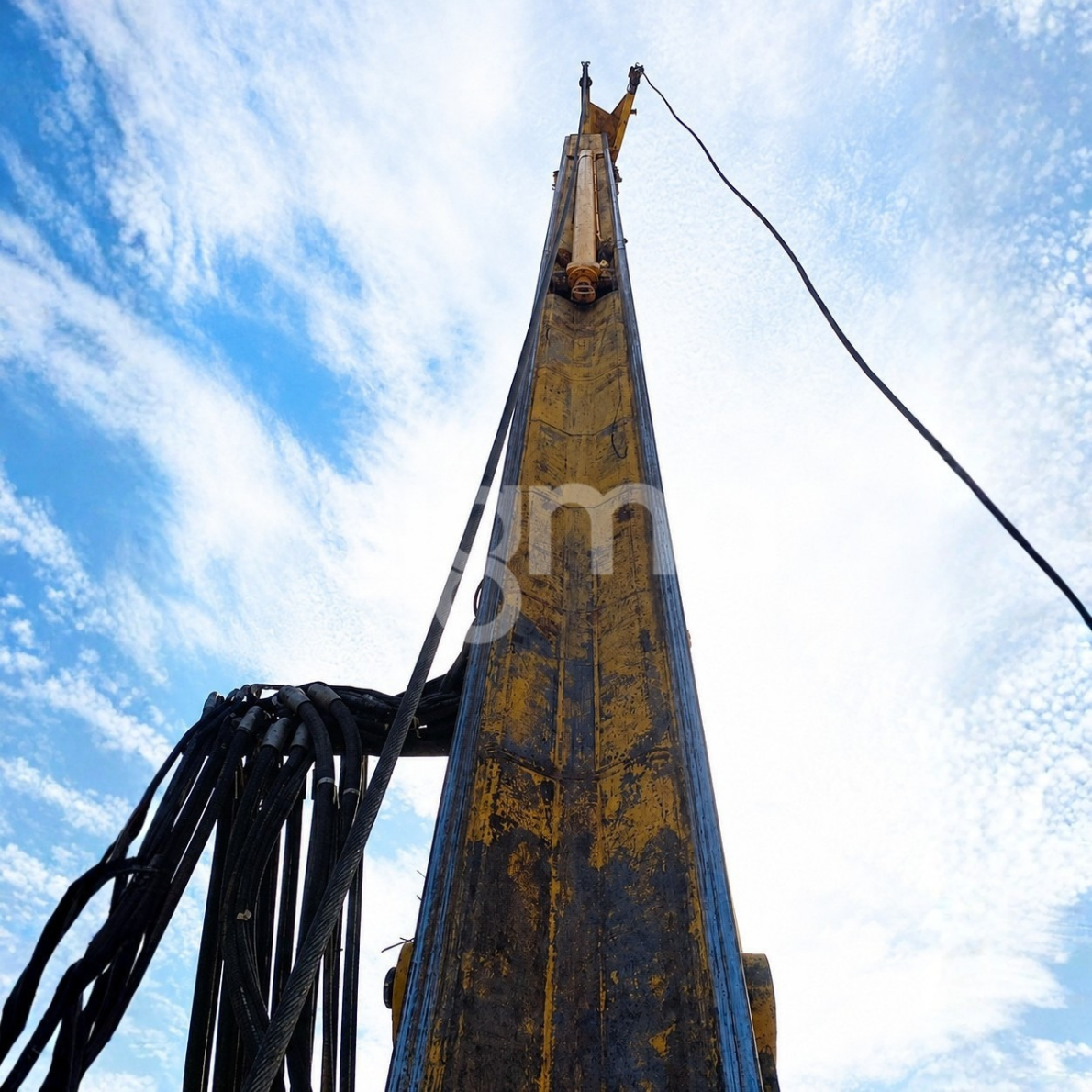

Machine specs
Working hours: 12,070

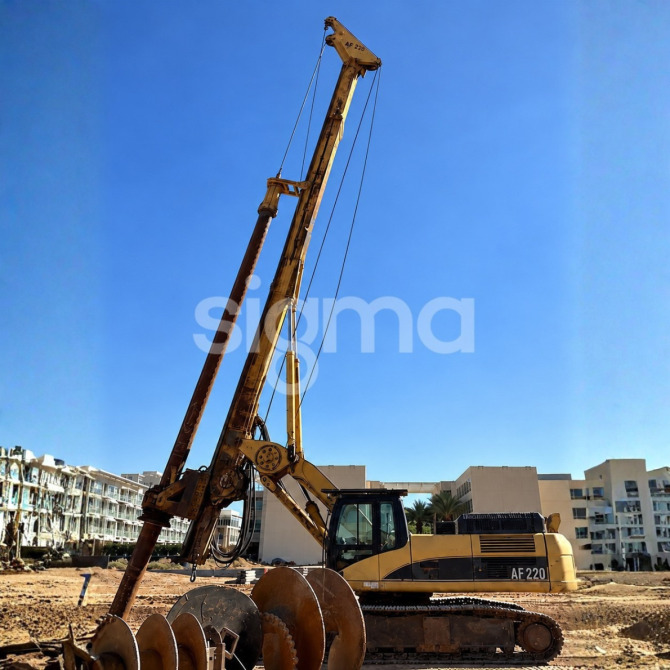

Piling Configuration
Maximum drilling diameter: 2,000 mm
Supplied Kelly advertised drilling depth: 18.3 m (60 ft)
Optional model drilling depth: Up to 66 m with alternative Kelly

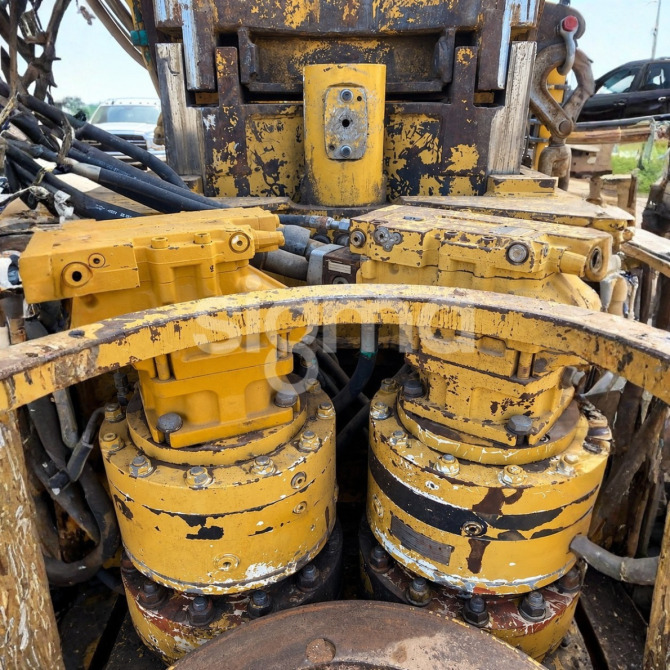

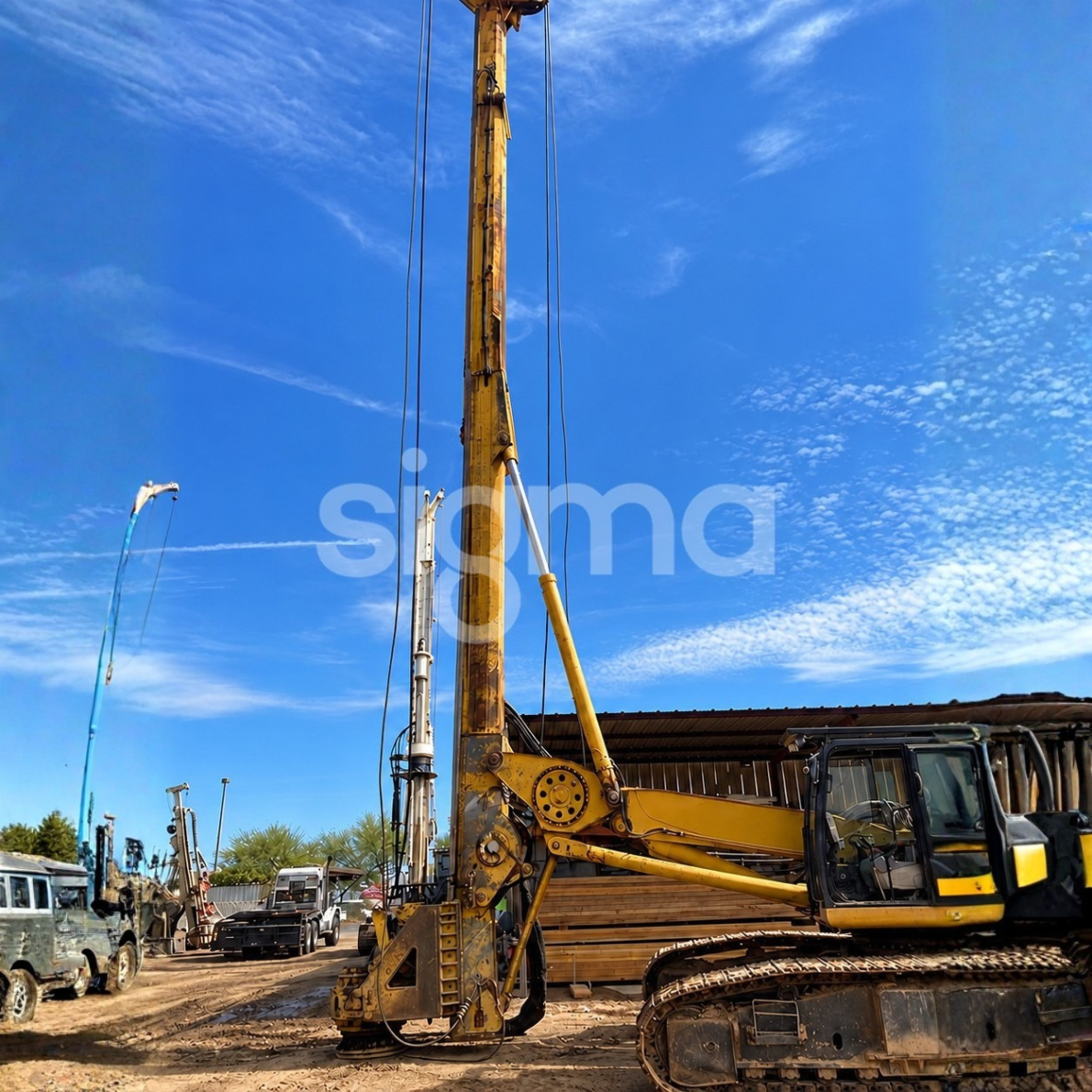

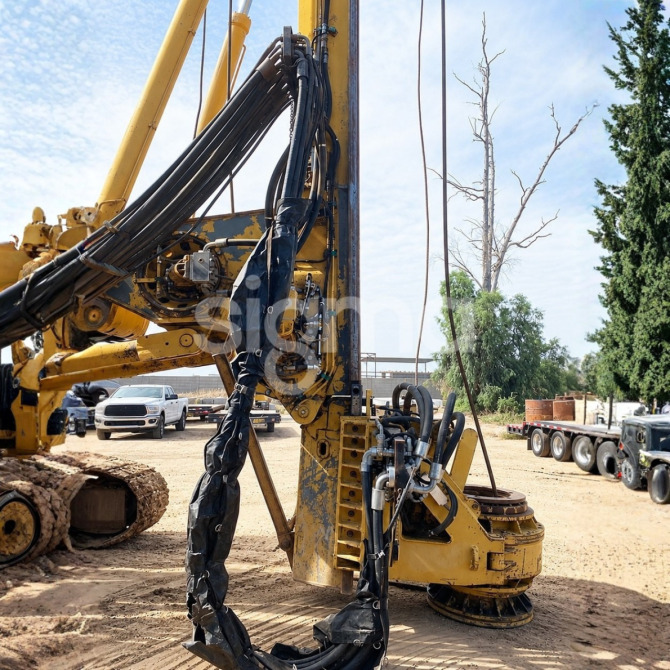

Rotary Head
Rotary torque: 260 kNm
Drilling speed: 7–27 rpm

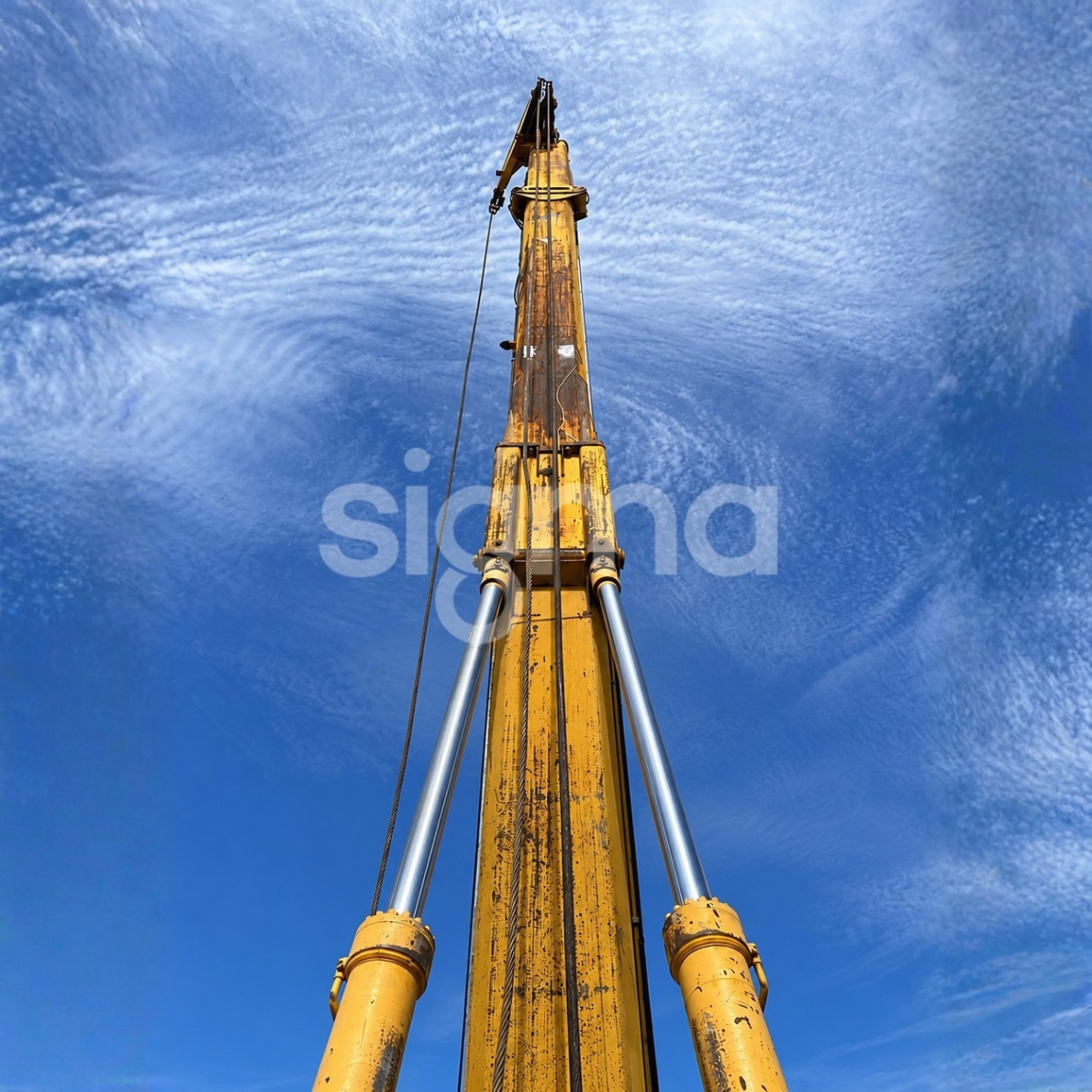

Crowd System
Crowd push: 250 kN
Crowd pull: 390 kN
Crowd stroke: 6,400 mm
Winches
Main winch pull: 240 kN
Main winch speed: 73 m/min
Main winch cable diameter: 28 mm
Auxiliary winch pull: 120 kN
Auxiliary winch cable diameter: 22 mm

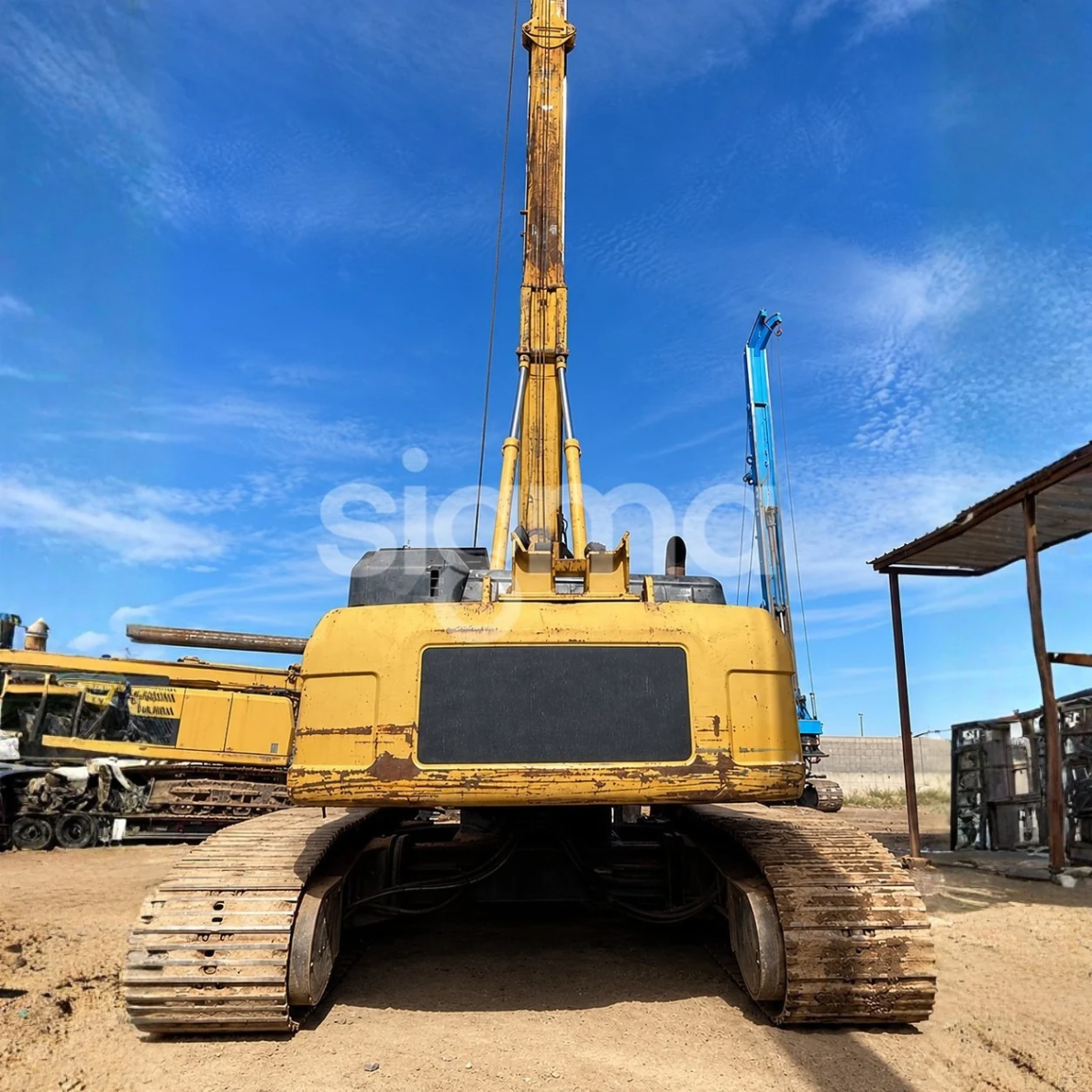

Power Unit

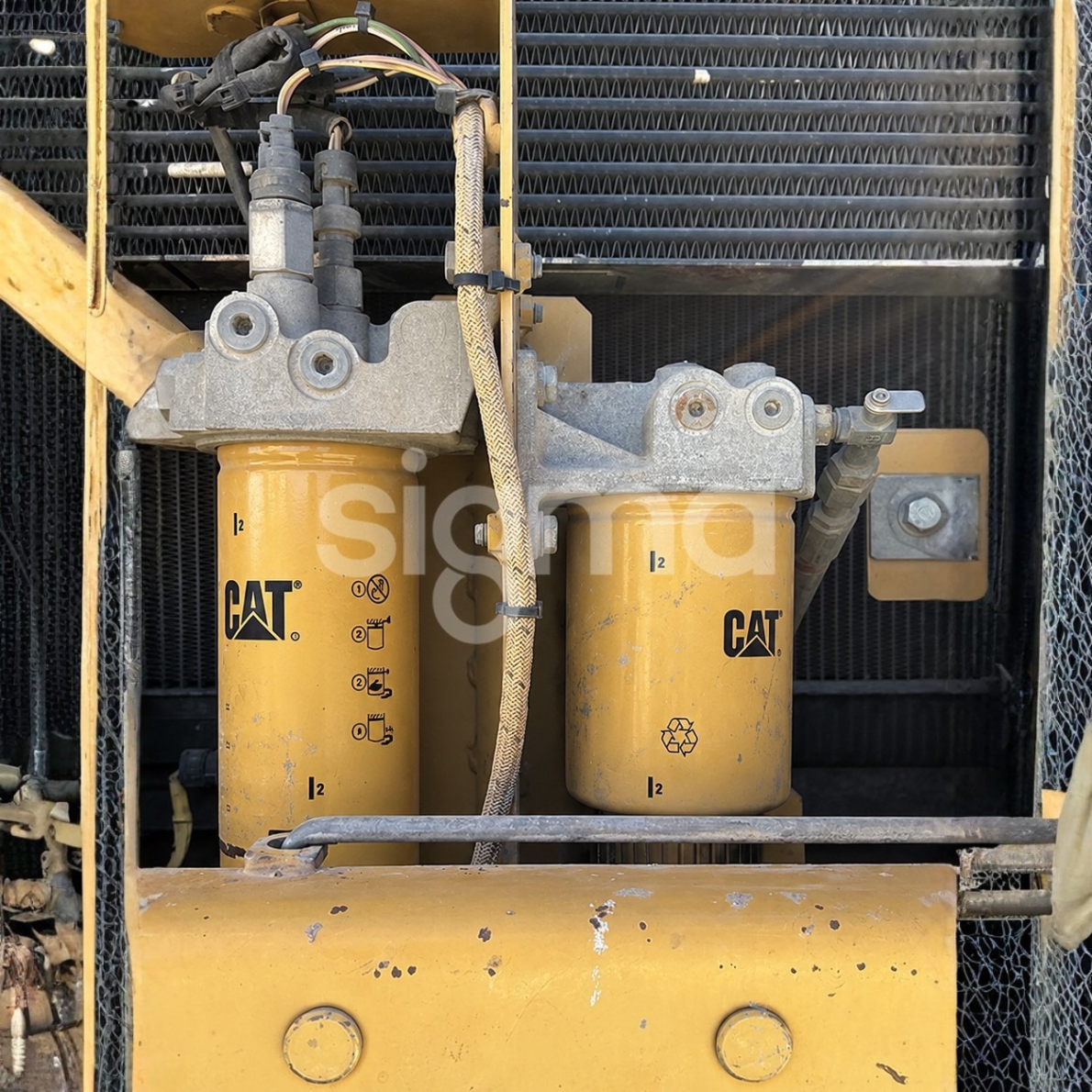

Engine make & model: Caterpillar C9
Engine power: 261 kW / 350 hp at 1,800 rpm
Dimensions & Weight
Transport length: 15,780 mm
Transport width: 3,000 mm
Transport height: 3,350 mm
Operating weight: Approximately 67 tonnes with standard Kelly
Scope of Supply
Kelly bar: Four-element interlocking Kelly
