Overview
Machine location:
Europe
Stock number:
PF 41232
Categories:
Hammer Piling Rigs
Manufacturer:
Junttan
Model:
MPx90
Year of manufacture:
2022
Working hours:
2900
Machine specs

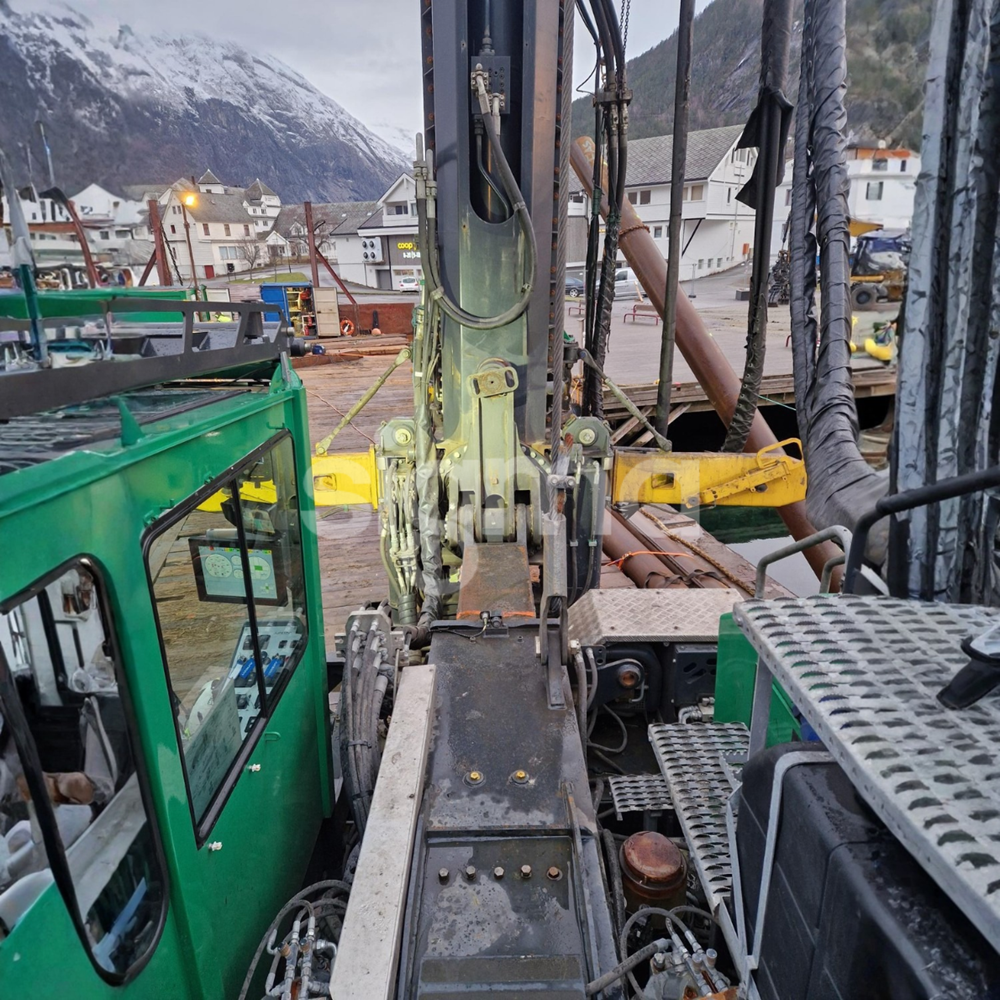

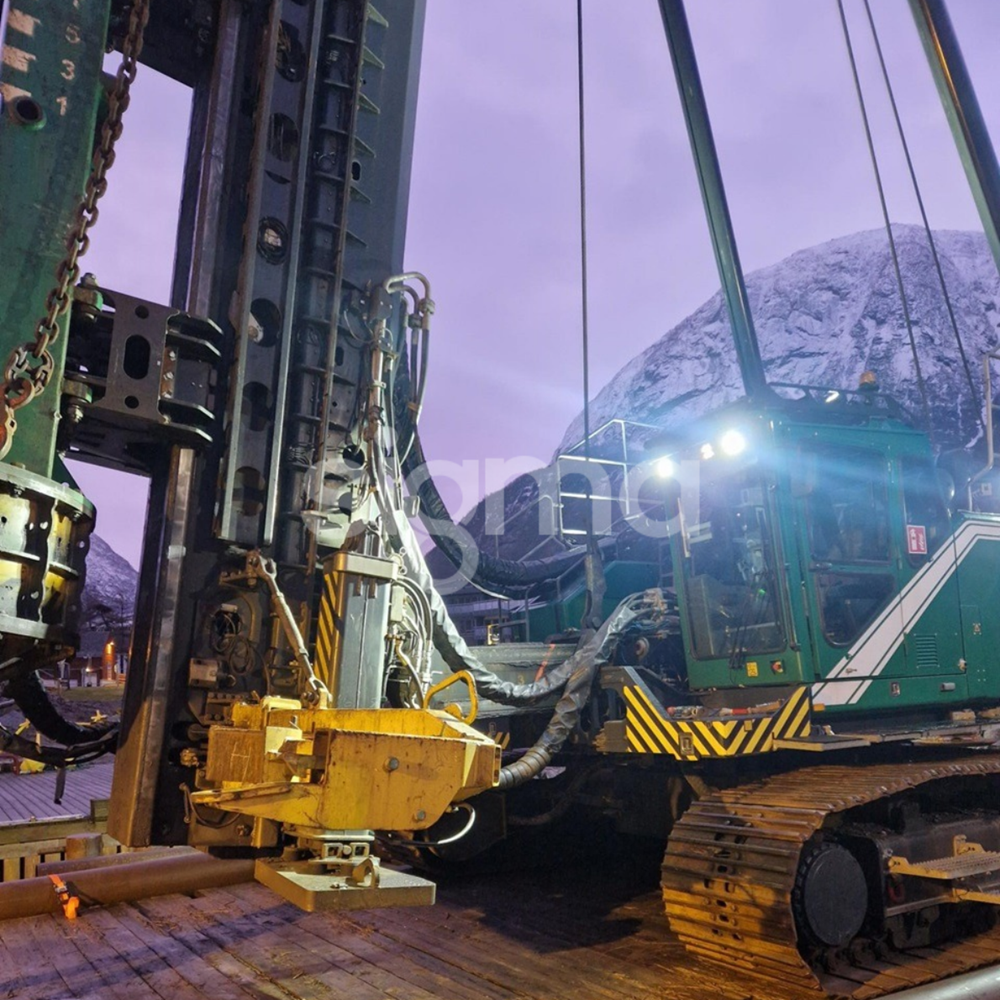

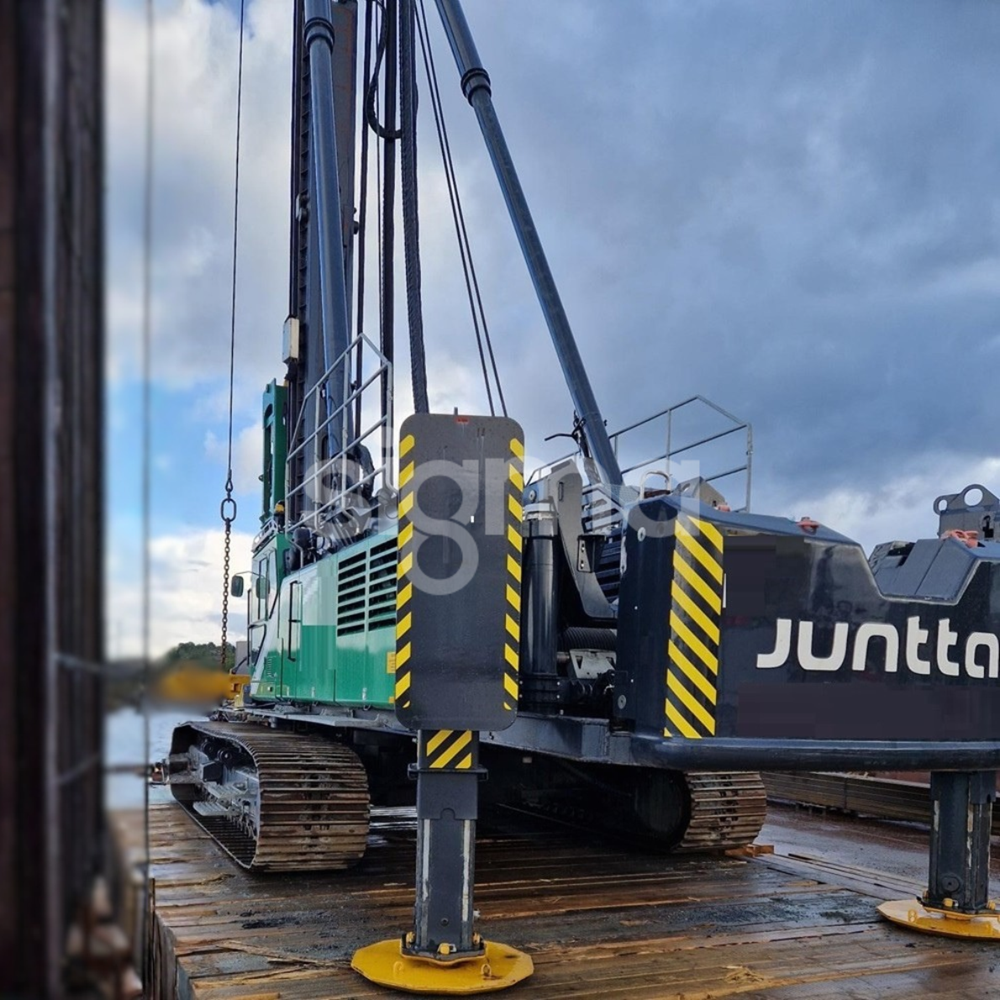

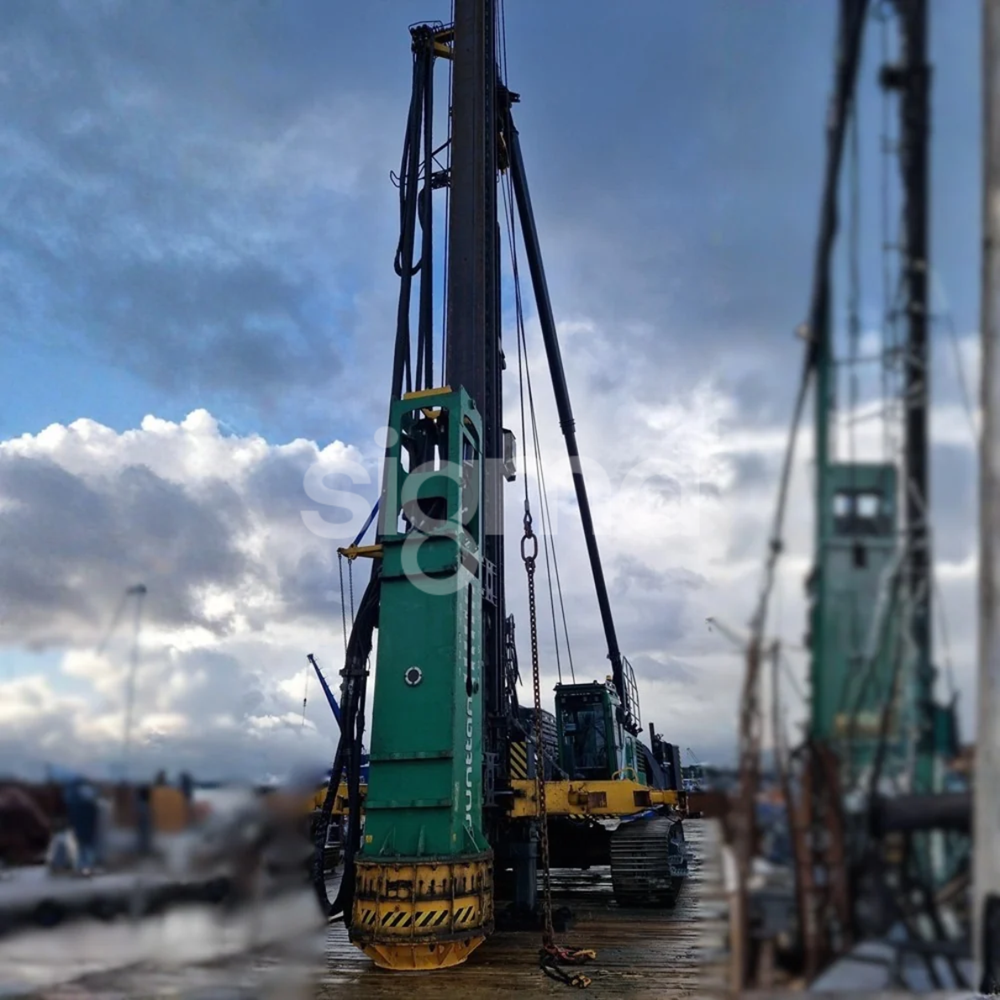

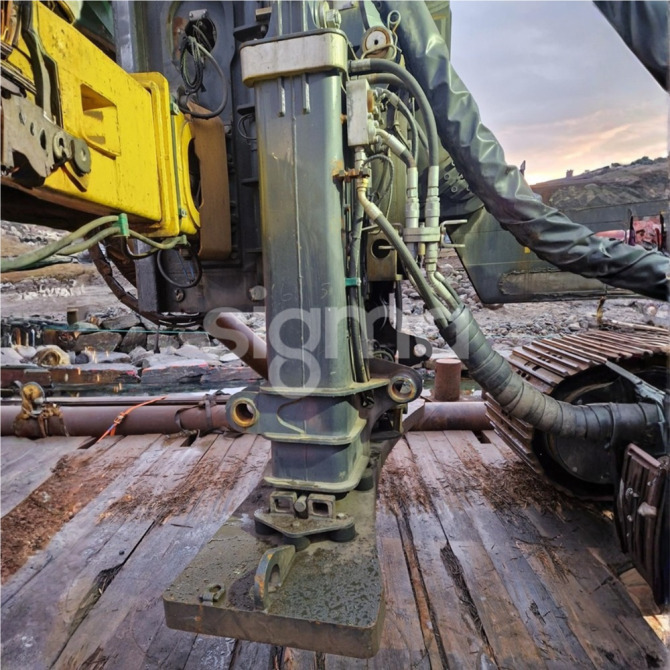

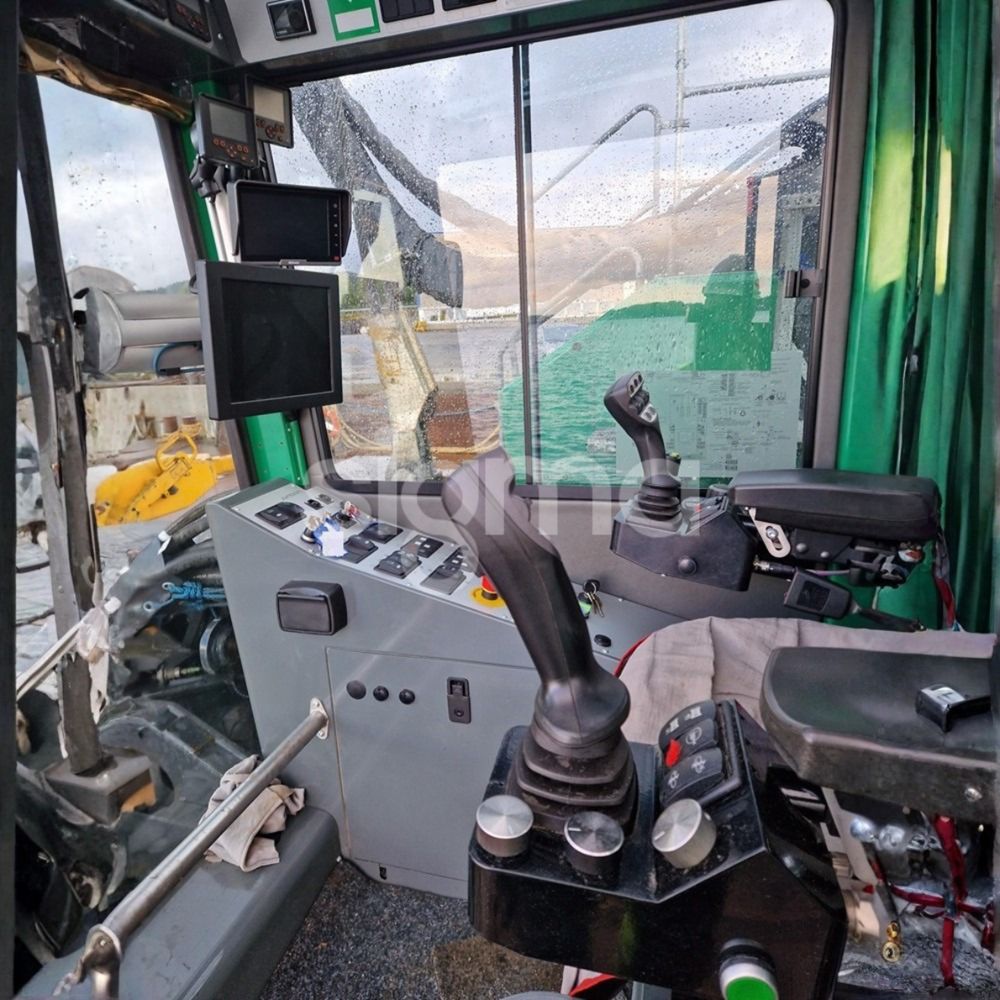

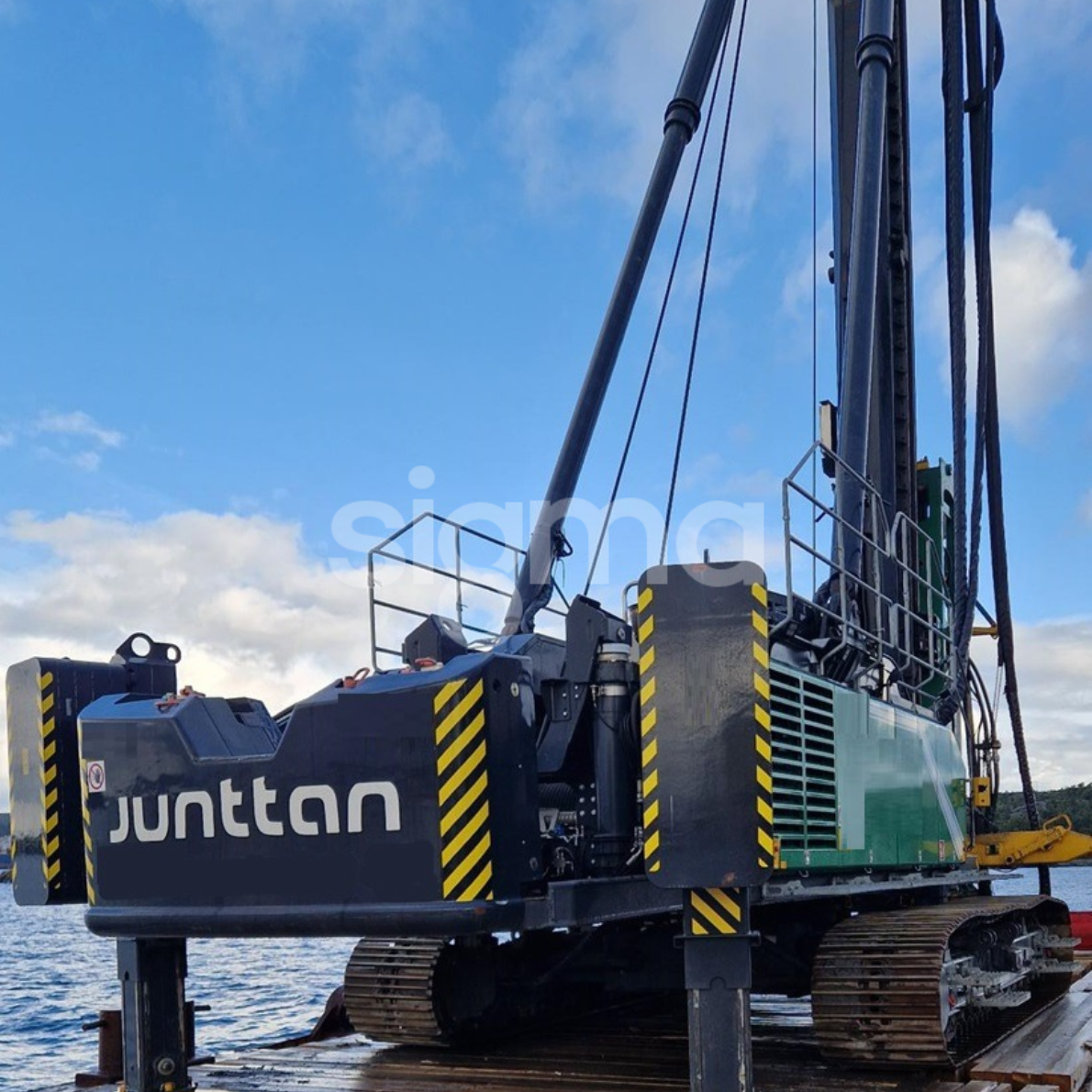

Multipurpose piling rig with 2900 working hours
Leader total length: 37m
Jib hoist capacity: 100kN

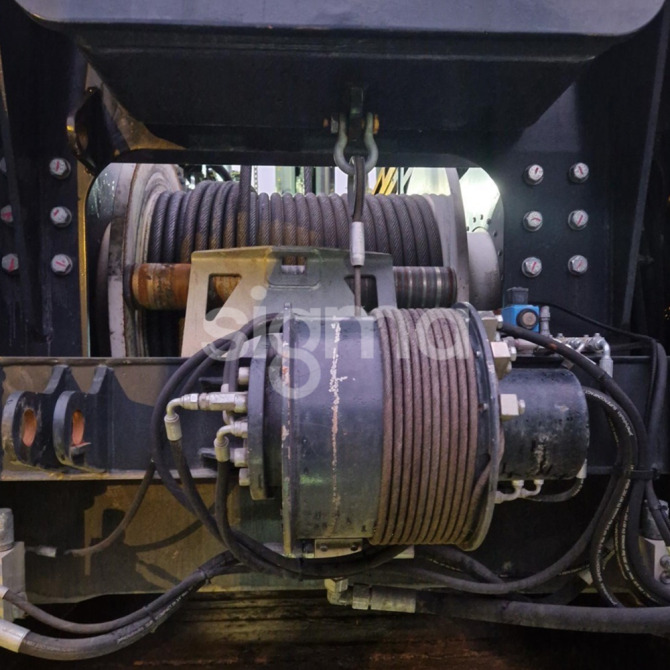

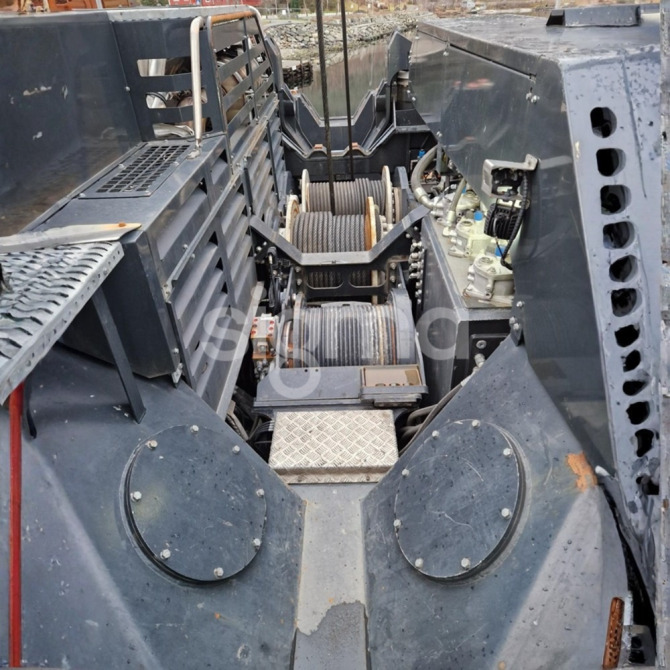

Main winch 1 capacity: 300kN
Main winch 2 capacity: 200kN
3rd winch: 100kN
4th winch 50kN
Cummins QSX15 Tier 4F engine (503kW)
Crawler length: 6,325mm
Min/max crawler width: 3470/5010mm
Triple grouser track shoes: (900mm width)

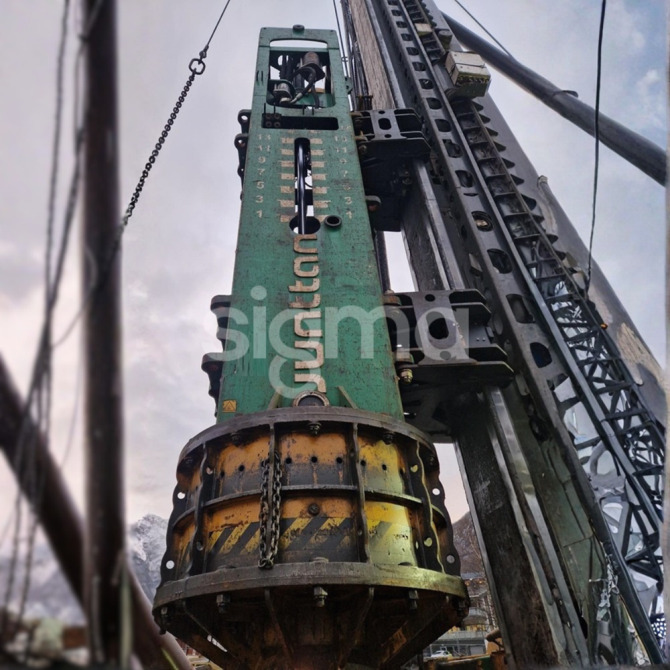

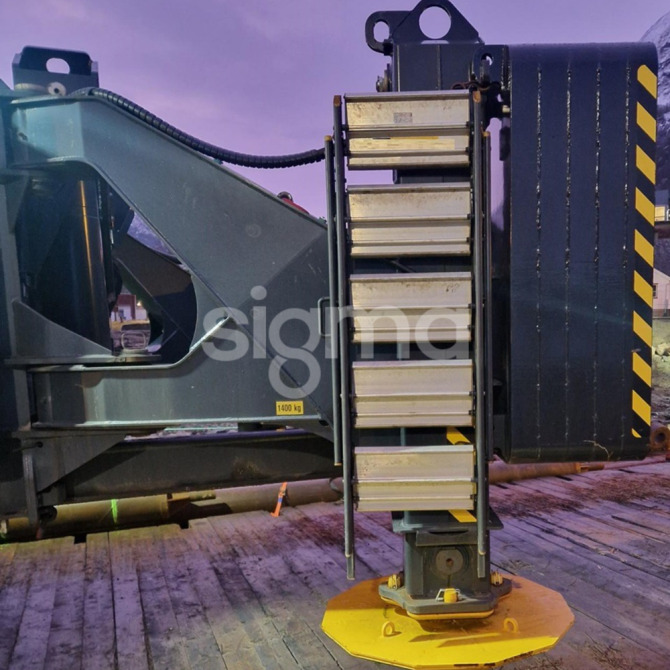

Equipped with Junttan HHK20S hydraulic hammer
- Ram weight: 20,000kg
- Max energy: 294kNm
- Drop height max: 1500mm
- Blows per min: 30-100
- Total weight: 34,856kg
CE marked
