Overview
Machine location:
Europe
Stock number:
PF 40328
Categories:
Hammer Piling Rigs
Manufacturer:

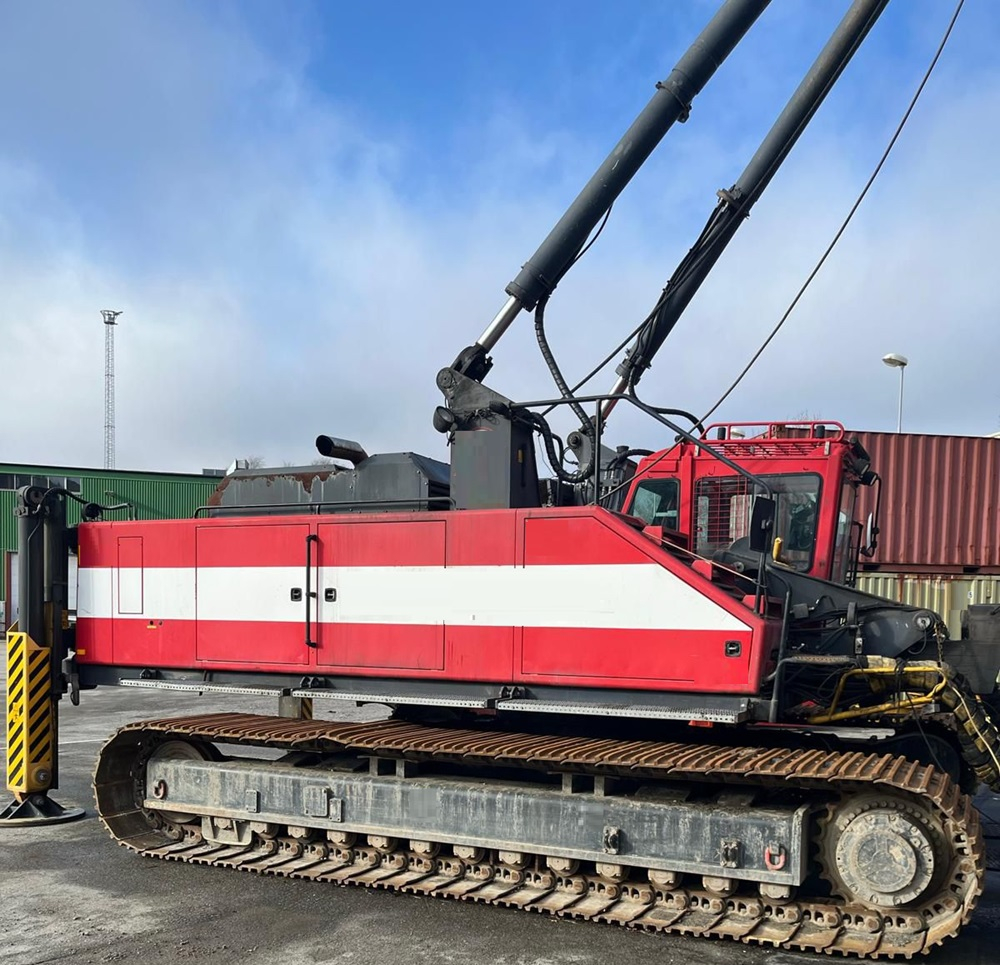

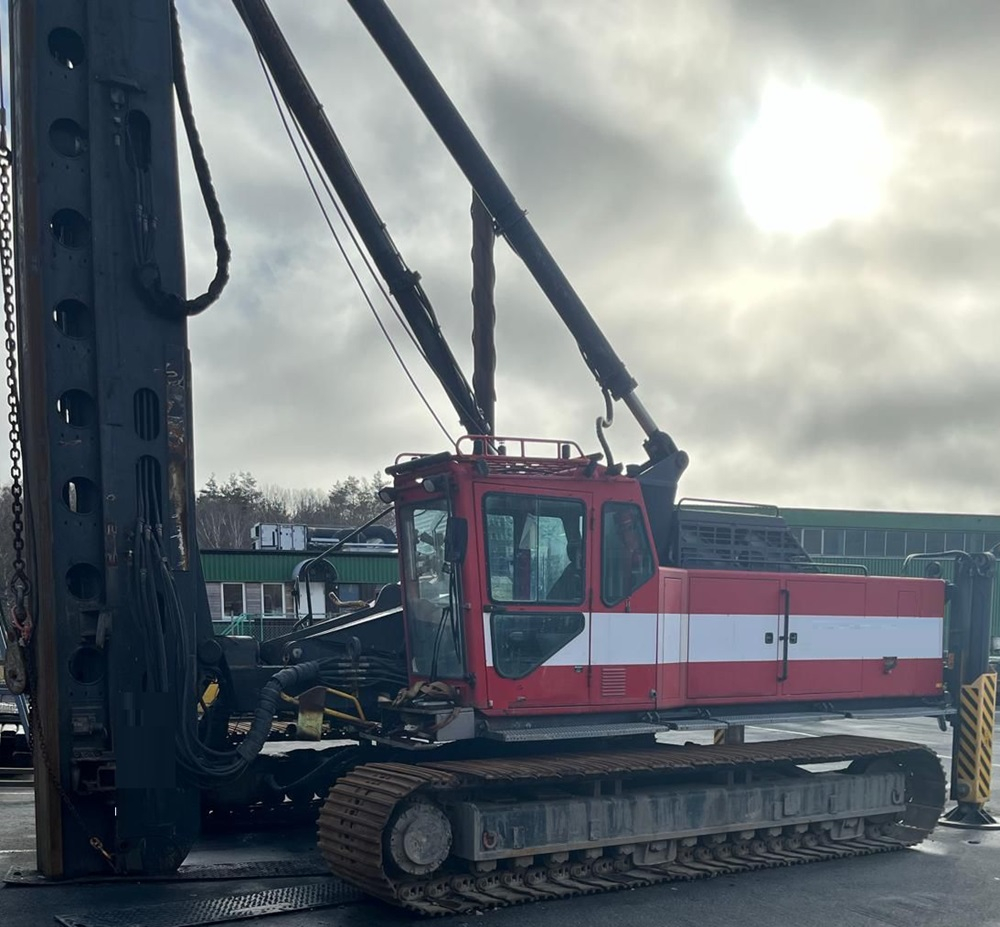

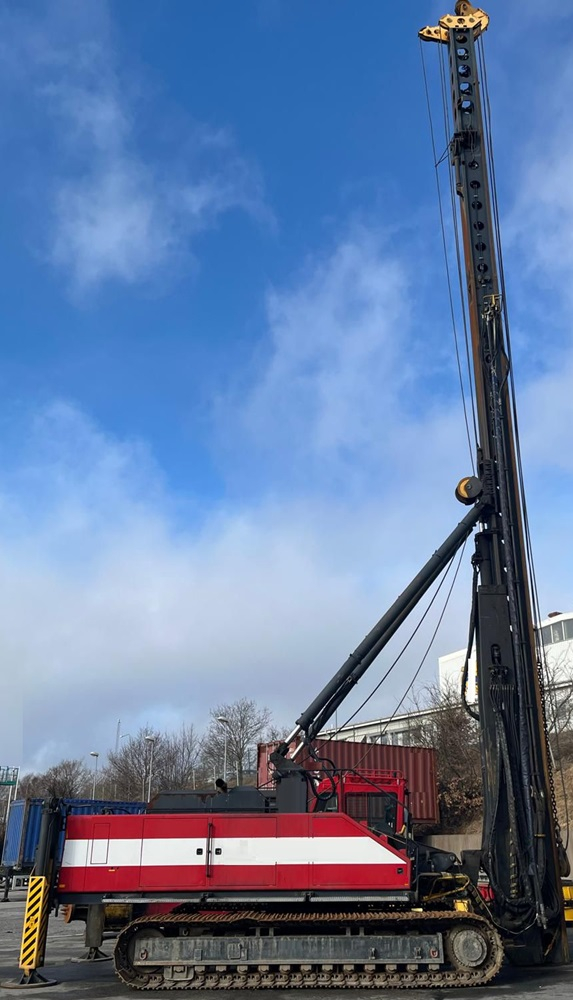

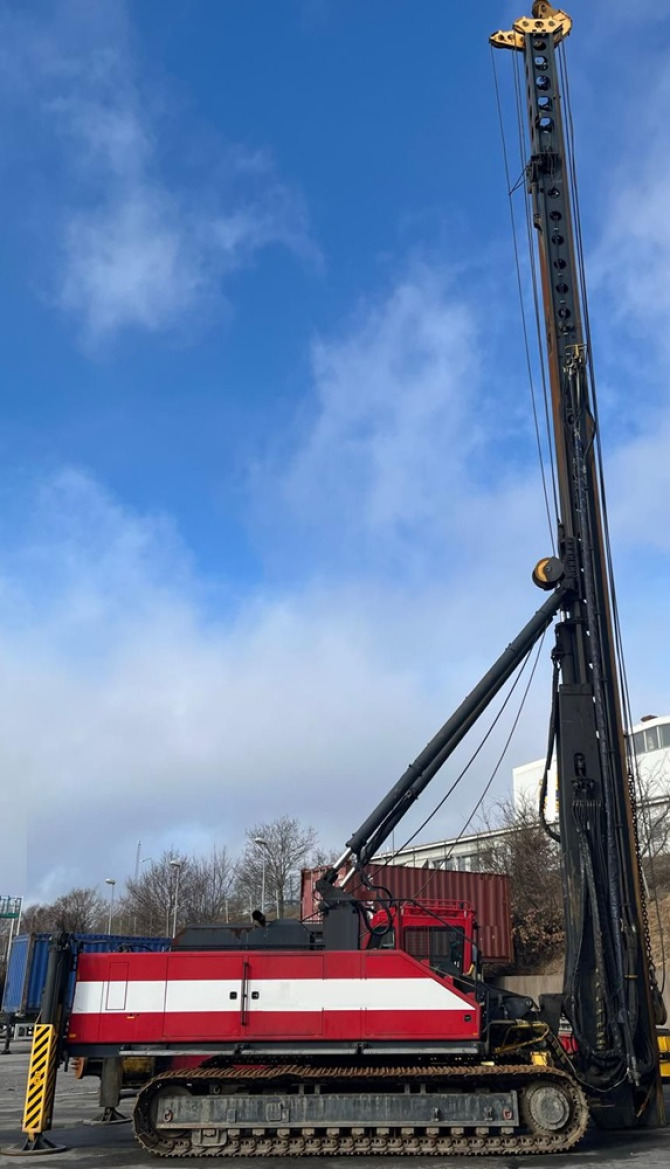

Junttan
Model:
PM25LC
Year of manufacture:
2009
Working hours:
7200
Key features
- With HHK 7/9S hammer
- 7200 hours

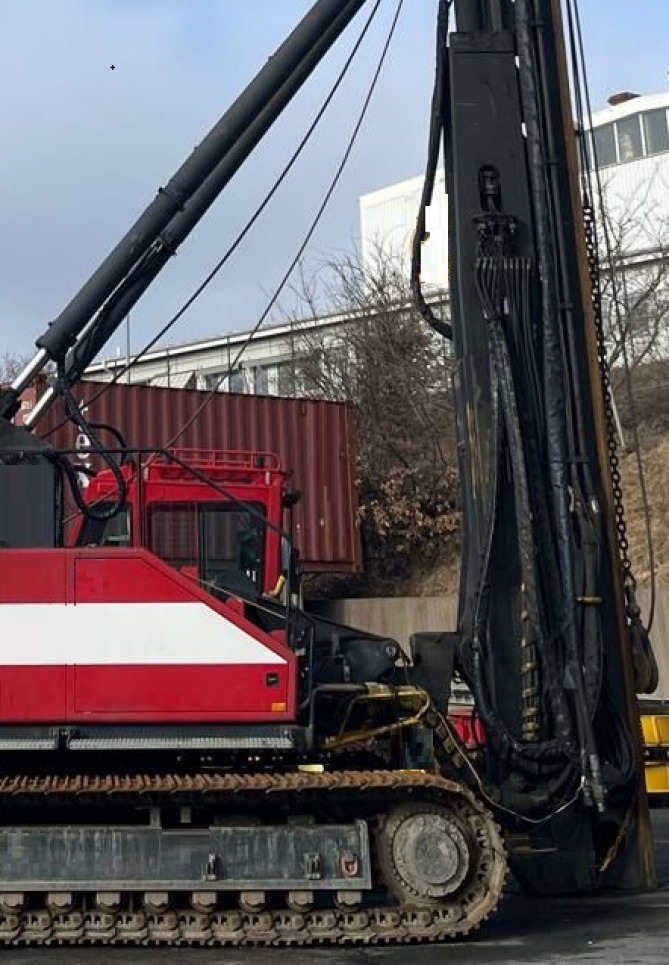

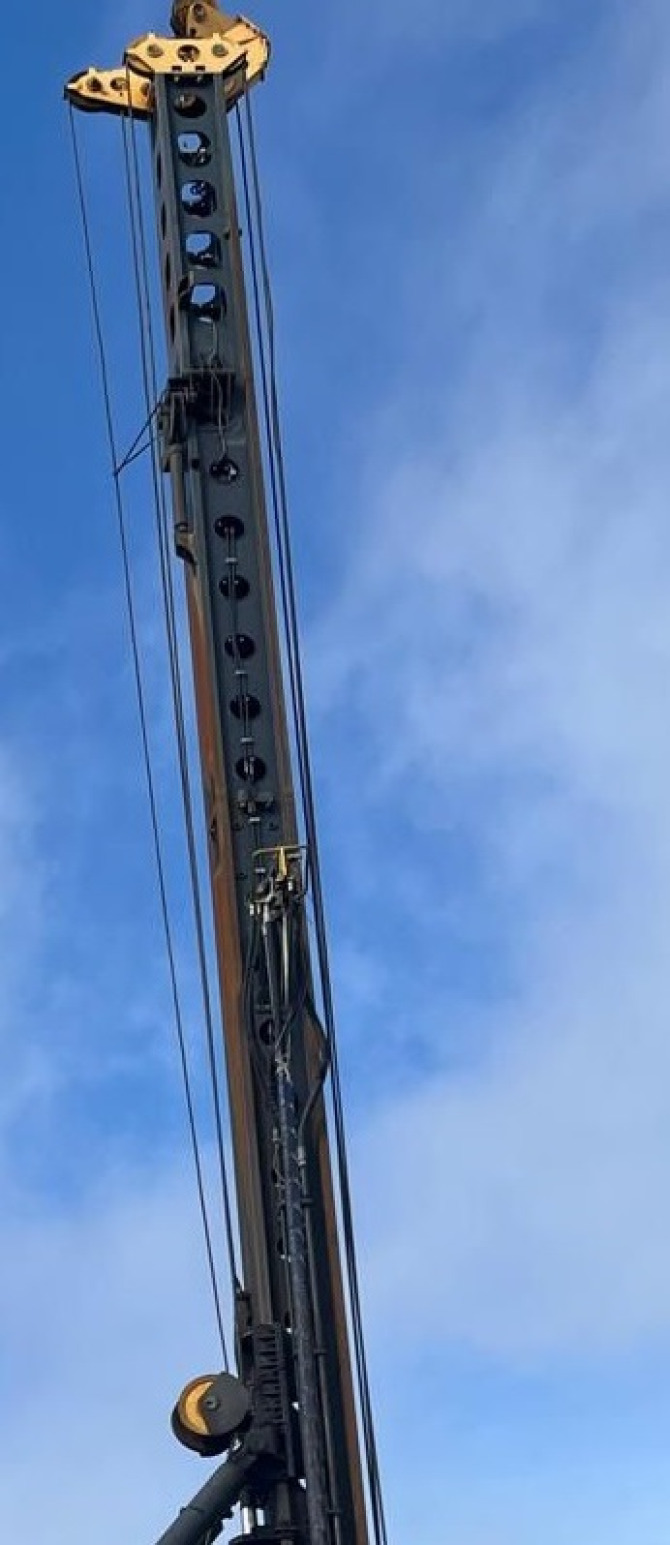

- Leader length 13,8 + 4.2 + 3.6m
- Top cathead
- Hydraulic pile arms
- Horizontal movement 1500mm
- Capacity 20 000 kg.
- Telescope movement 4m
- Inclinations according to separate capacity table
- Hammer winch Zollern 15tn
- Pile winch BB7 capacity 10tn
- Cummins QSM 11L, Tier 3 Engine
- Hydraulic tank capacity 670 l
- Fuel tank capacity 420L
- Neste VG 46 mineral hydraulic oils

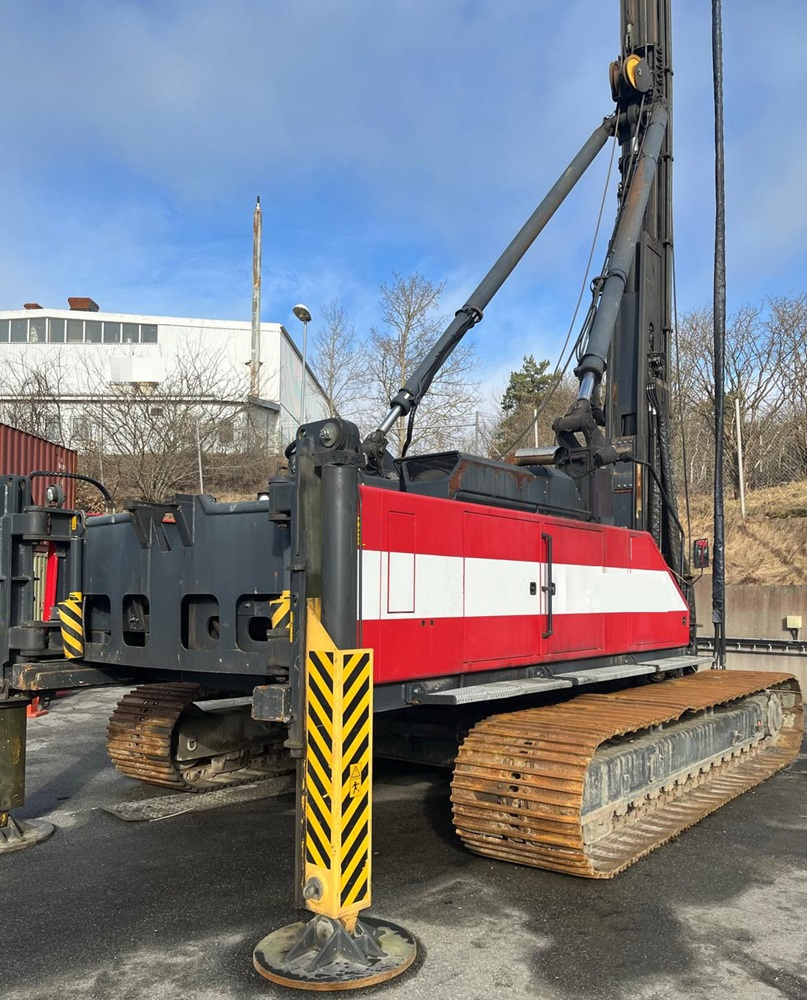

- Rear legs 2 pcs
- Counterweight 6 000 + 2 000 kg hydraulically movable 1500mm

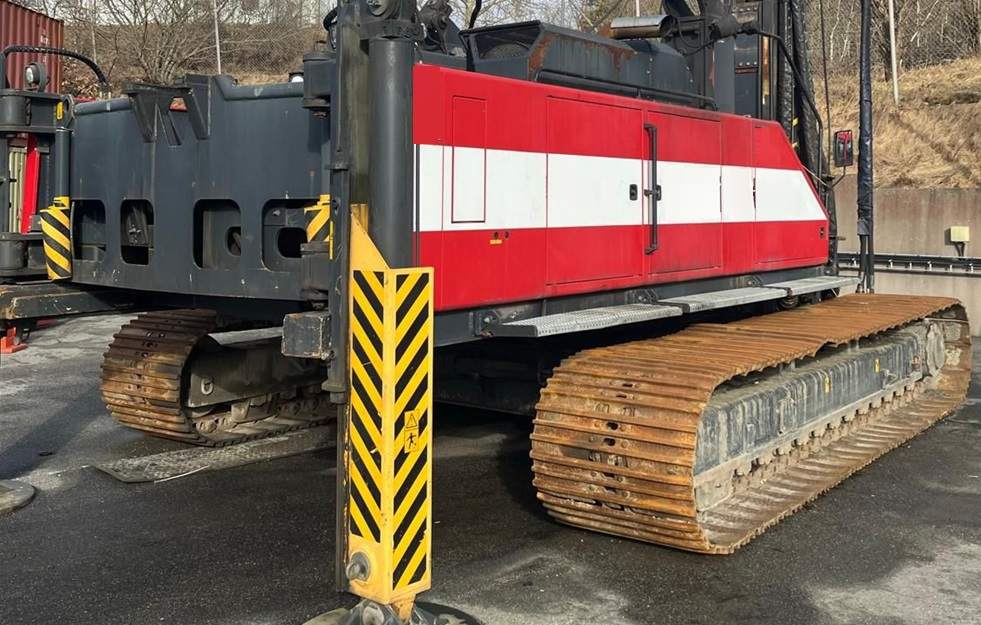

- Under carriage track pads 900 mm wide, triple grouser type
- Crawler length 5700 mm, min. width 3480 mm, max. working width 4700 mm

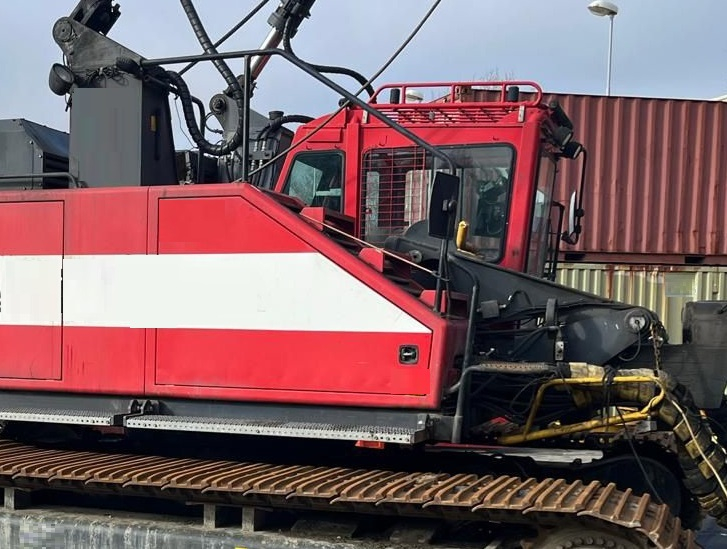

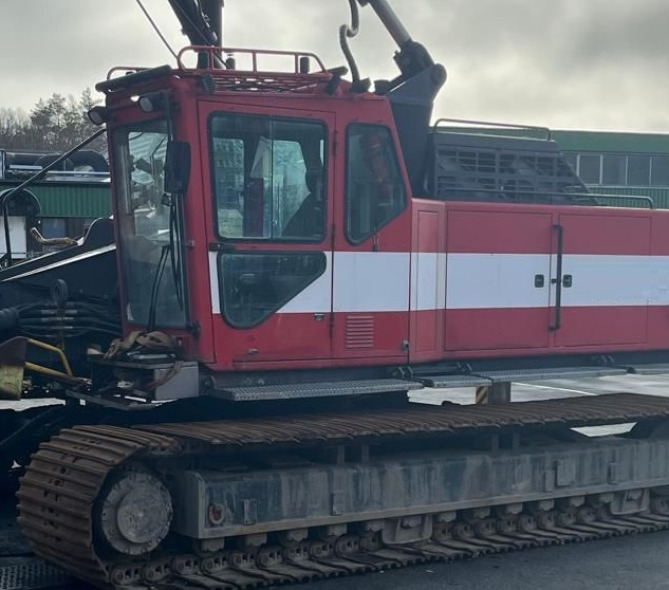

- Safety cabin (FOPS tested)
- Lockable vandal protection covers
- Air conditioning
- Walking board around the cabin
- Radio
- PCD-2 Energy measuring device readiness
