Overview
Stock number:
PF 41214
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Klemm
Model:
KR 806-4GM
Year of manufacture:
2020
Working hours:
2900
Machine specs

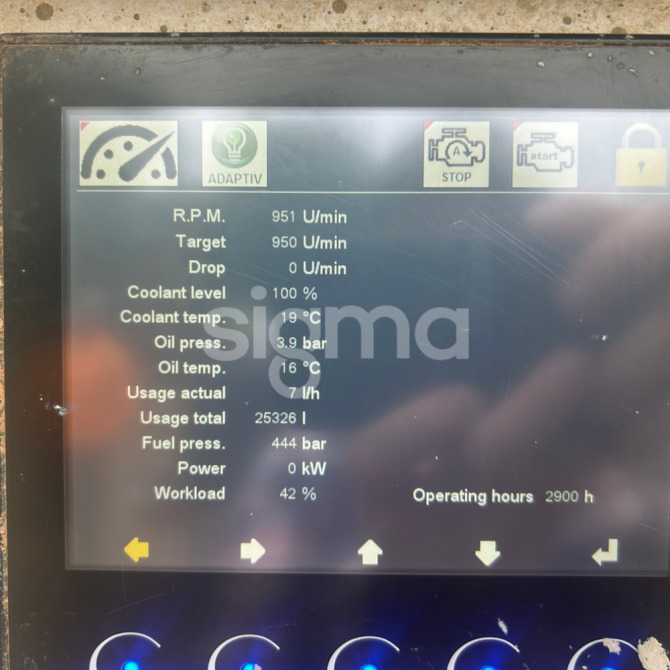

Operating hours: 2,900 h
Engine manufacturer: Volvo Penta
Engine power: 160 kW
Machine weight: 21,900 kg
Feed / retraction force: 100 / 100 kN
Electrical system: 24 V
CE marked
Engine & Hydraulics
Engine model: Volvo Penta TAD572VE (brochure specification)
Engine emissions label: EU Stage IV
Maximum hydraulic pressure: 350 bar
Hydraulic circuit 1: 238 L/min, load sensing
Hydraulic circuit 2: 238 L/min, load sensing
Hydraulic circuit 3: 30 L/min
Hydraulic circuit 4: 19 L/min
Optional circuit 5: 30 L/min
Diesel tank capacity: Approx. 401 L
DEF/AdBlue tank capacity: Approx. 45 L
Hydraulic oil tank capacity: Approx. 549 L
Mast & Drilling System
Mast type: 301/6
Mast frame length: Approx. 6,900 mm
Feed speed: 6 m/min
Retraction speed: 12 m/min
Fast feed speed: 24 m/min
Fast retraction speed: 48 m/min
Hydraulic double-clamp arrangement pictured

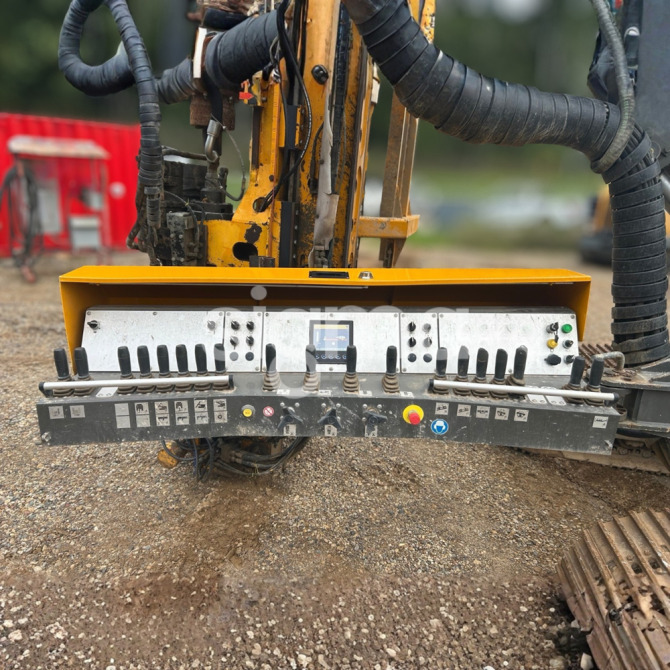

Remote control system pictured
Undercarriage
Crawler base: B2
Maximum tractive force: Approx. 188 kN
Travel speed: Approx. 2 km/h
Track shoe width: 500 mm
Ground pressure: 8.1 N/cm²
Oscillating range: +14° / -5°
Transport Dimensions
Length: 11,055 mm
Width: 2,800 mm
Height: 3,100 mm
Weight: 21,900 kg
Drilling Heads
Alternative double-head combination: KH 25 / KH 21
