Overview
Machine location:
Europe
Stock number:
PF 41106
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Klemm
Model:
KR702 - 2
Year of manufacture:
2015
Working hours:
2500
Key features

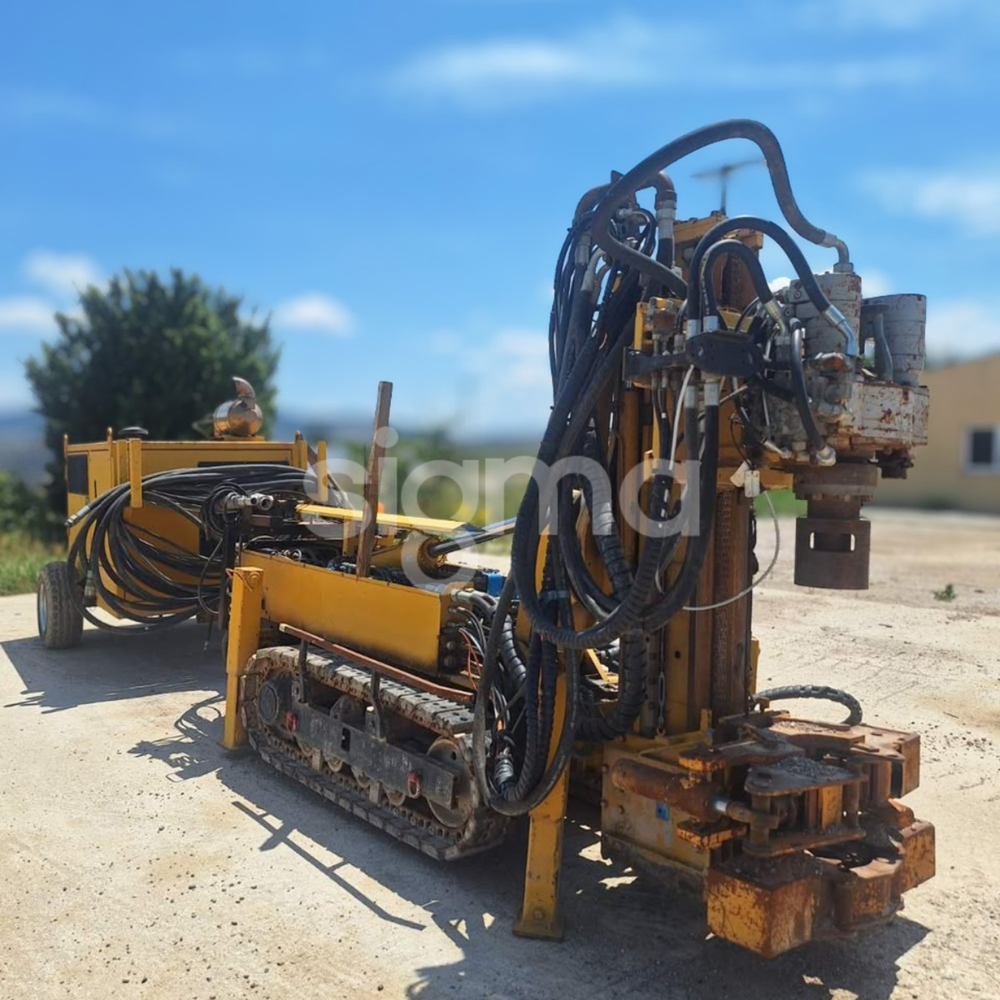

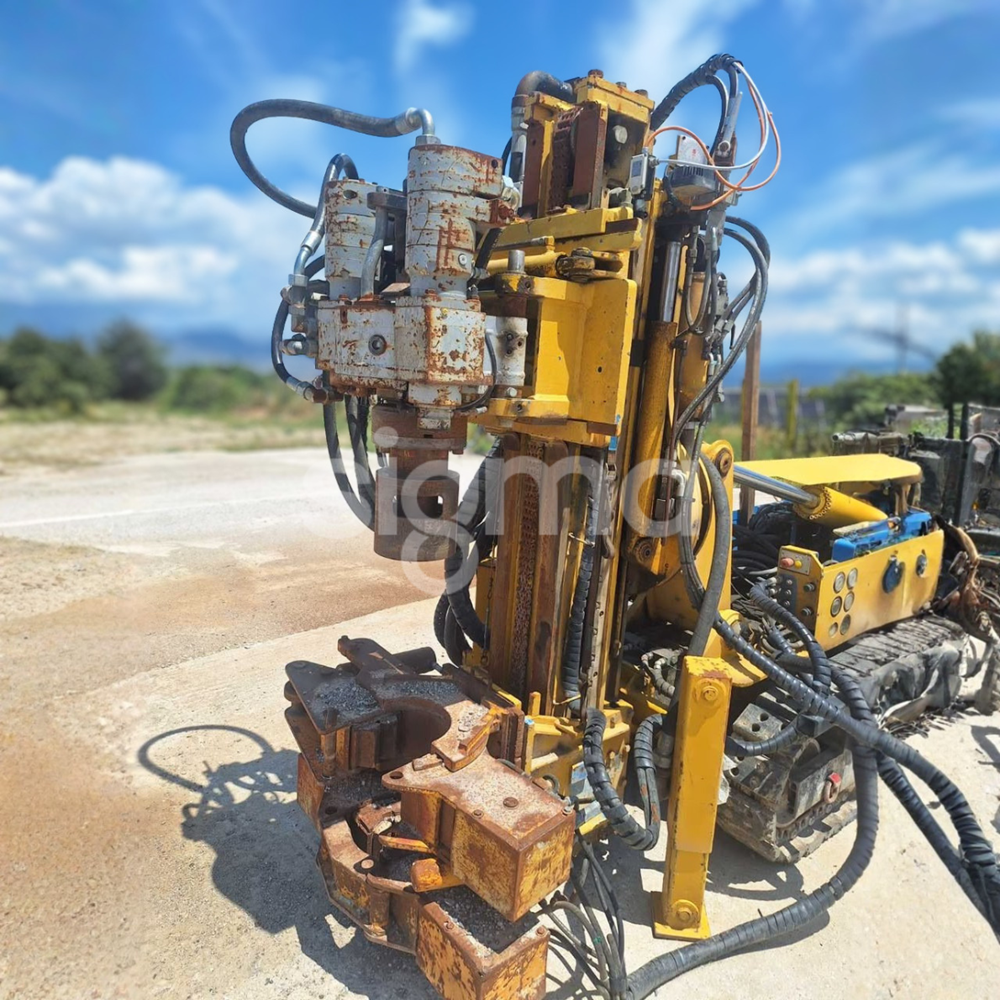

Mini piling and anchoring rig with 2,500 hours

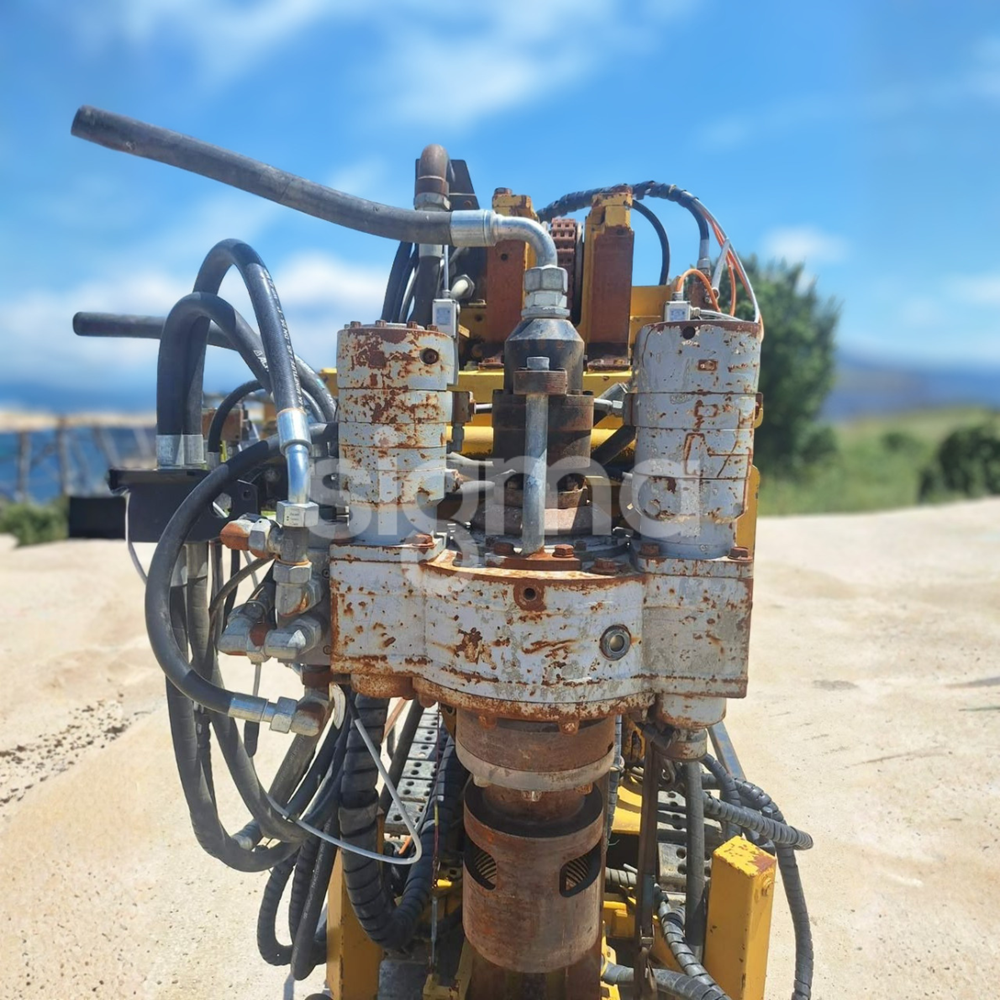

Drilling Performance
- Max torque: 55 kNm
- Rotation speed: 43 rpm
- Feed length: 1,200 – 2,200 mm
- Feed force: 38 kNm
- Pull force: 60 kNm
- Max drilling depth: 27m
- Max drilling diameter: 450
Engine
- Make: Deutz
- Model: TCD 2012 L04 2V
- Power: 95 kW (127 HP) @ 2,300
- Fuel tank: 150 l
Hydraulic system
- Pump capacity:
- 1st Circuit: 115 L/min
- 2nd Circuit: 92 L/min
- 3rd Circuit: 20 L/min
- 4th Circuit: 15 L/min
- Max pressure: 300 bar
- Hydraulic oil tank capacity: 450 litres
Transport Dimensions and weight (Machine)
- Length: 2,900 mm
- Width: 750 mm
- Height: 2,200 mm
- Weight: approx. 4,000 kg

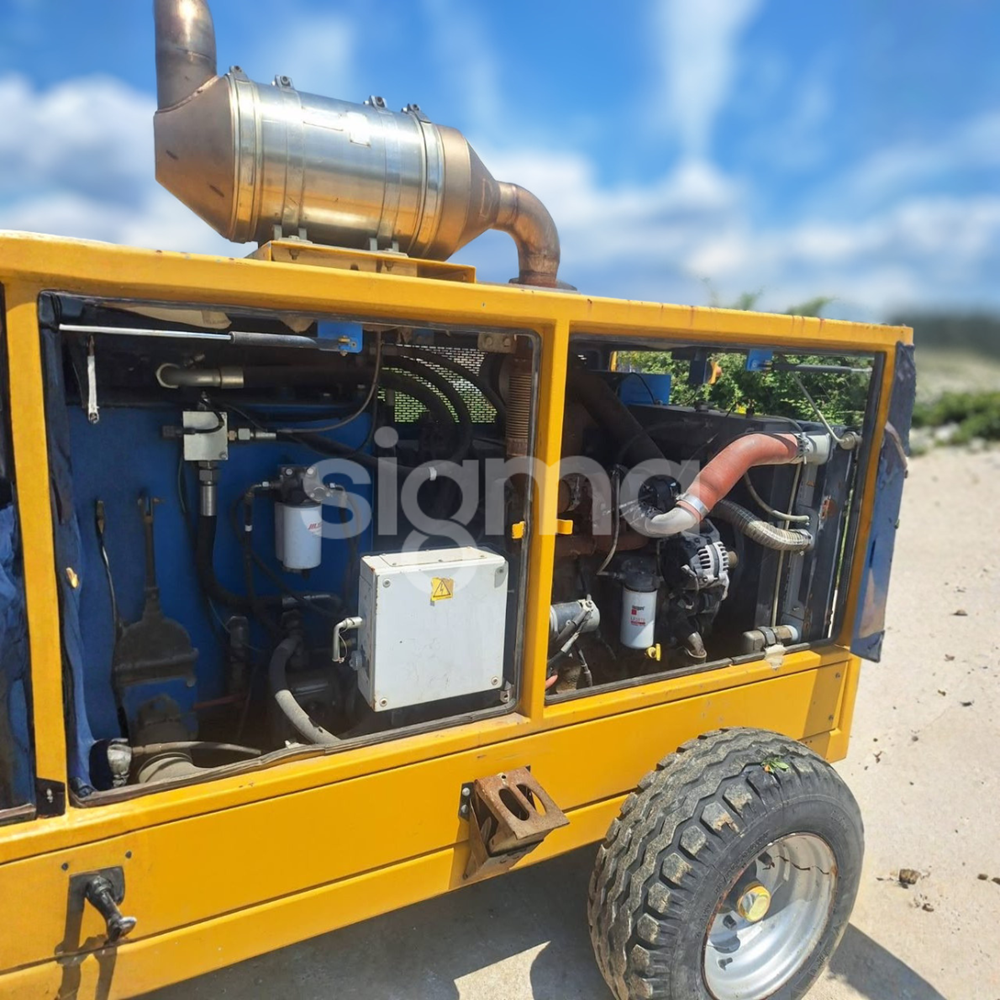

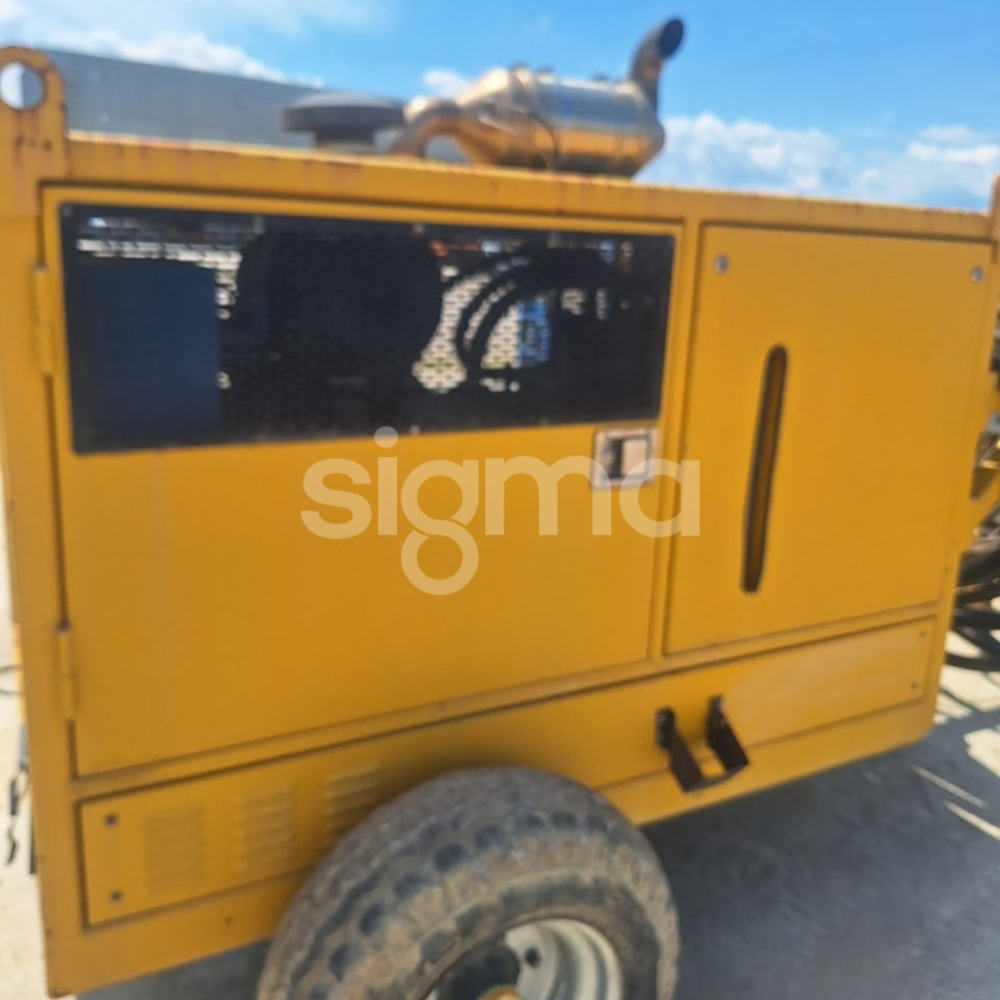

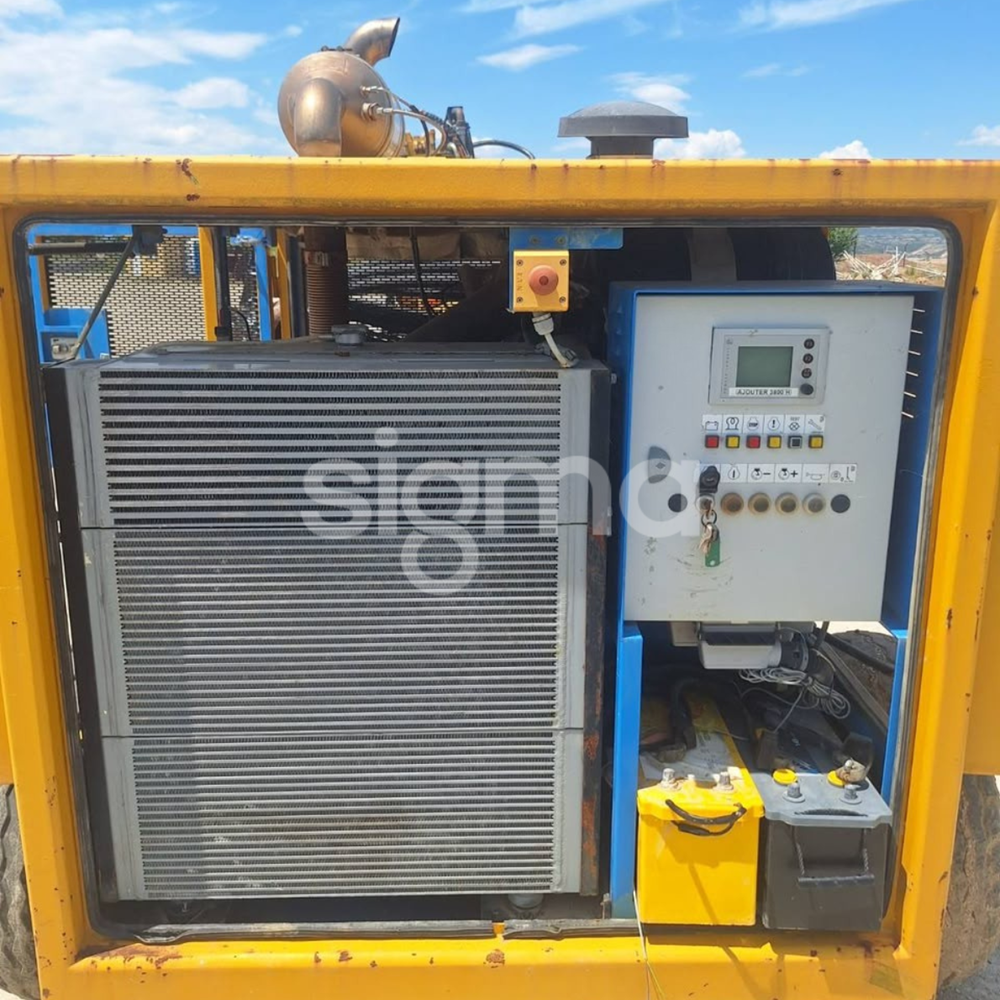

Transport Dimensions and weight (Powerpack)
- Length: 4,200 mm
- Width: 1,640 mm
- Height: 2,385 mm
- Weight: approx. 2,400 kg
