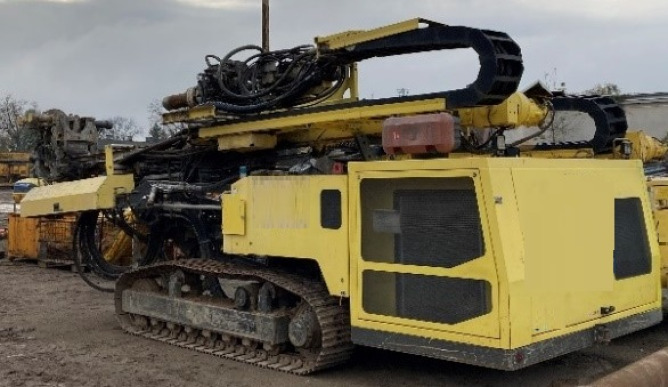

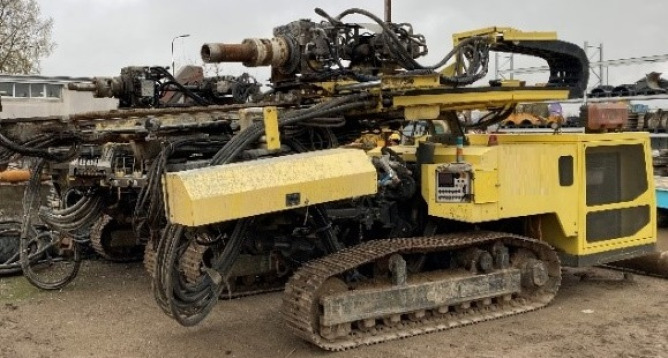

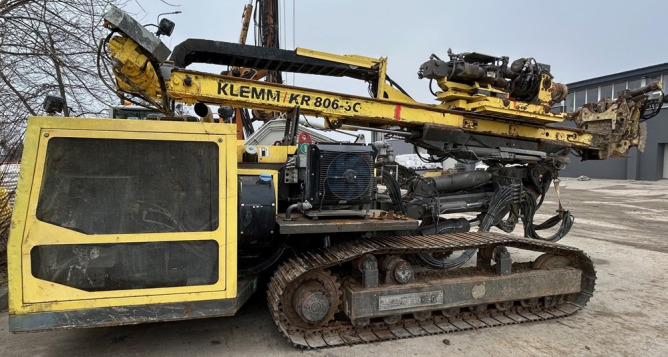

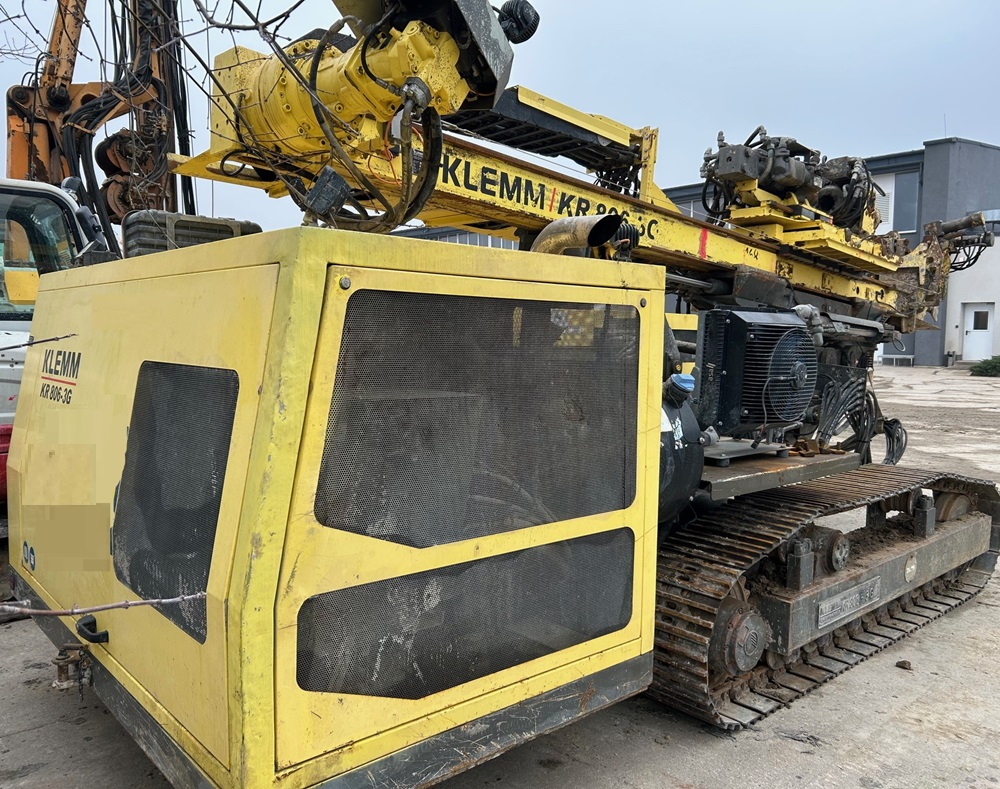

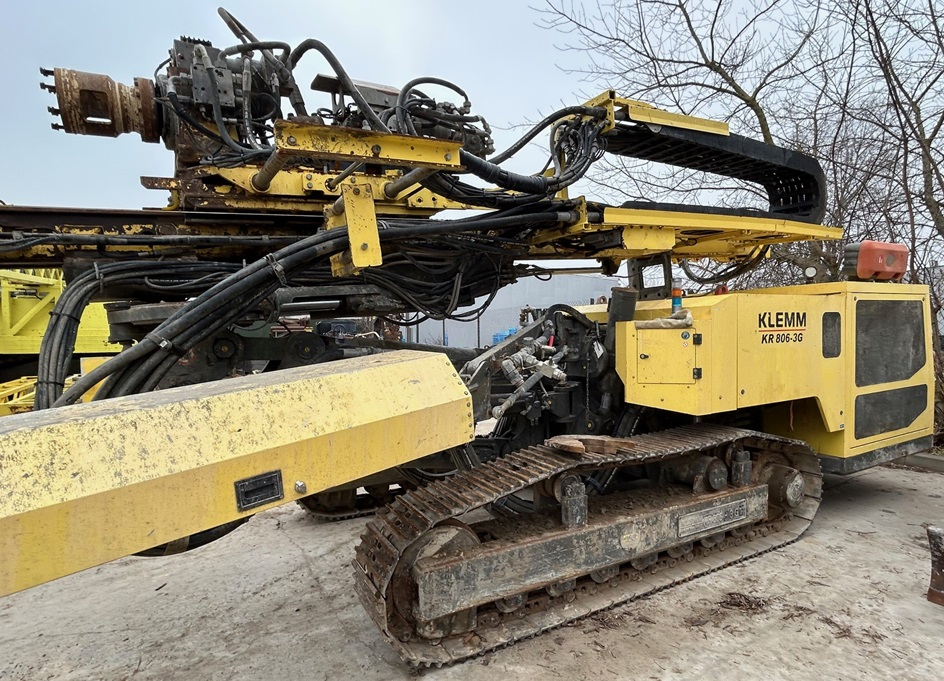

Klemm KR 806-3G

Mini piling & anchoring rig with 3065 working hours

Engine – Volvo Penta diesel engine TAD 572 VE, USA EPA/CARB tier 4f – Adblue required

Full radio remote control functionality (Positioning & drilling)

Klemm KH22 rotary head (max torque 24.4kNm, mas drill speed 203rpm, hollow shaft 102mm)

Klemm KD1011 hydraulic drifter (max torque 11kNm, max speed 362rpm)

- CE Certified

- 3065 Working Hours

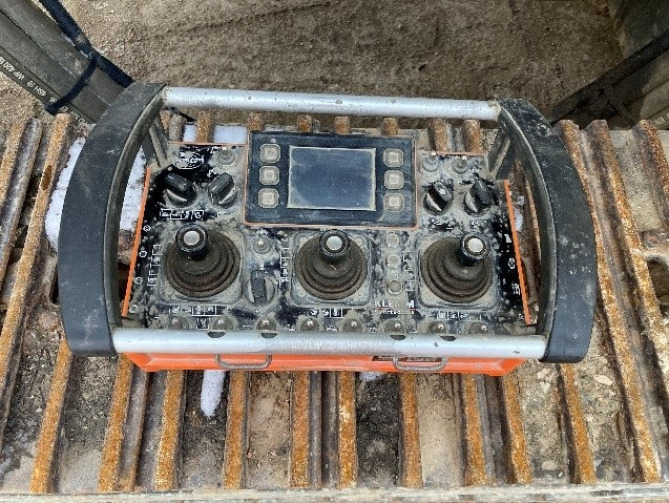

- Full Radio Remote Control Functionality

- Controls for both positioning and drilling

- DECT standard transmission

- Includes display, two rechargeable batteries (9h each), spare battery, and 230V AC charger

- Hot-swappable battery system for uninterrupted operation

- Waist belt and shoulder hook for operator comfort

- Backup cable control for use in restricted environments (e.g., hospitals, power plants, railways)

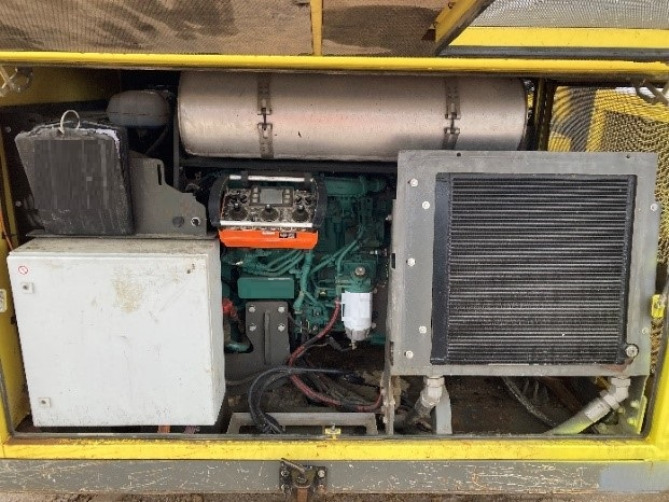

Engine

- Volvo Penta Diesel Engine – TAD 572 VE

- EPA/CARB Tier 4 Final compliant

- Power Output: 160 kW @ 2000 rpm

- SCR-Only Exhaust After-Treatment System (AdBlue® Required)

- No Particle Filter Required

Chassis & Undercarriage

- Crawler Base: Type B2

- Ground Pressure: 7.9 N/cm² (@ 19.0 t)

- Track Shoes: 3-web, 400 mm

- Ground Clearance: 348 mm

- Oscillation Range: ±15°

- Axis-to-Axis Length: 2600 mm

Hydraulic System – Power Sharing Concept

- Load-Sensing Circuits:

- 1st Circuit: 240 L/min

- 2nd Circuit: 240 L/min

- 3rd Circuit: 30 L/min

- Additional Circuits:

- 4th Circuit: 20 L/min

- 5th Circuit: 32 L/min

- Max Operating Pressure: 350 bar

- Hydraulic Tank Capacity: 630 L

- Pressure Maintaining Valve Included

- Uses PANOLIN SYNTH 46 Biodegradable Hydraulic Oil (Customer Supplied)

Drilling System

Drill Mast – KLEMM 202-10

- 2-Speed Feed Gear

- Feed/Retraction Force: 100 kN

- Frame Length: ~6200 mm

- Total Length (with Feed Gear): ~6570 mm

- Central Lubrication Points

- Hose Guide Chain: IGUS

- Pre-equipped for Guard Installation

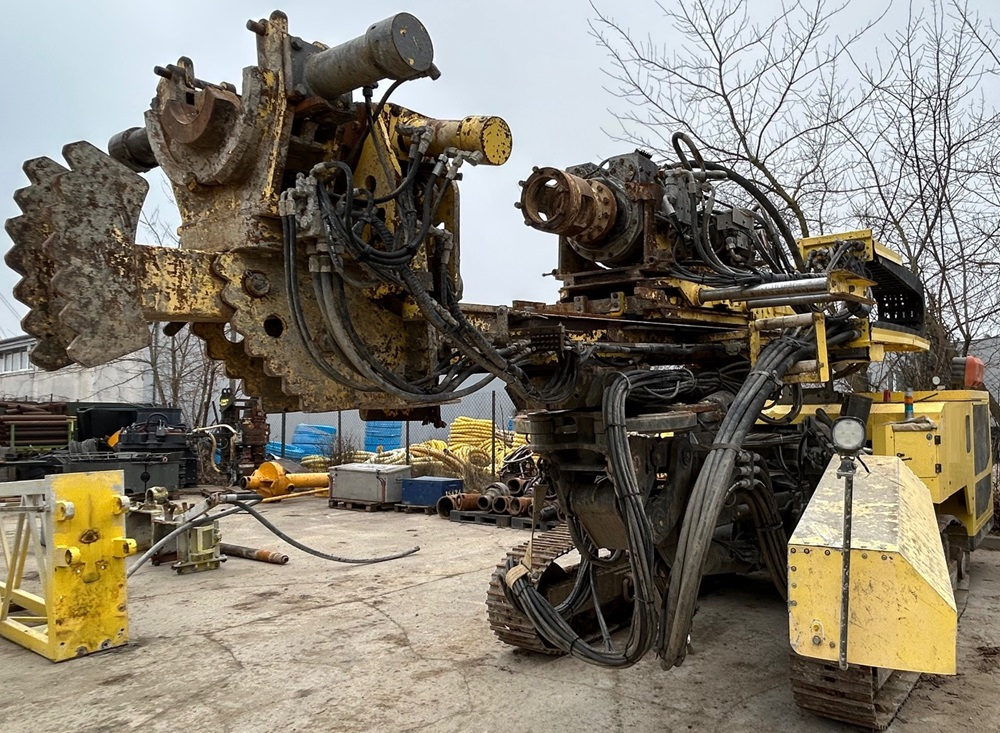

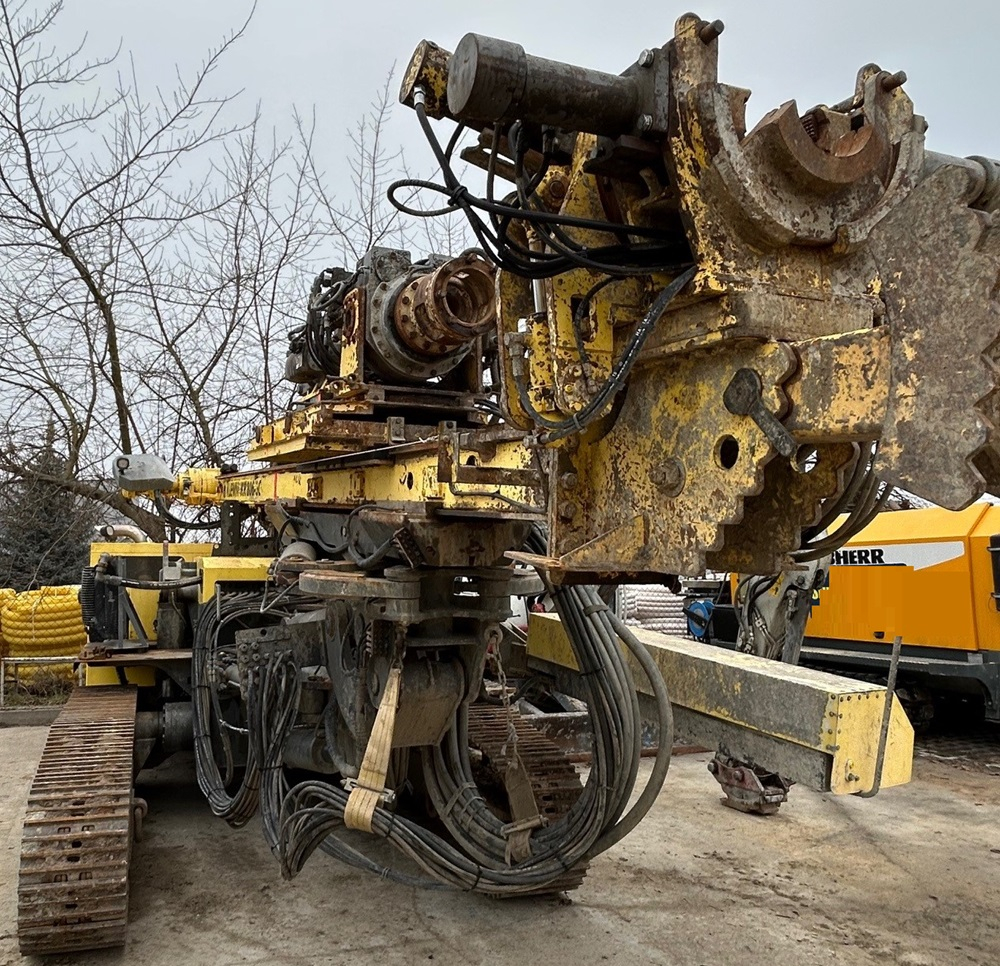

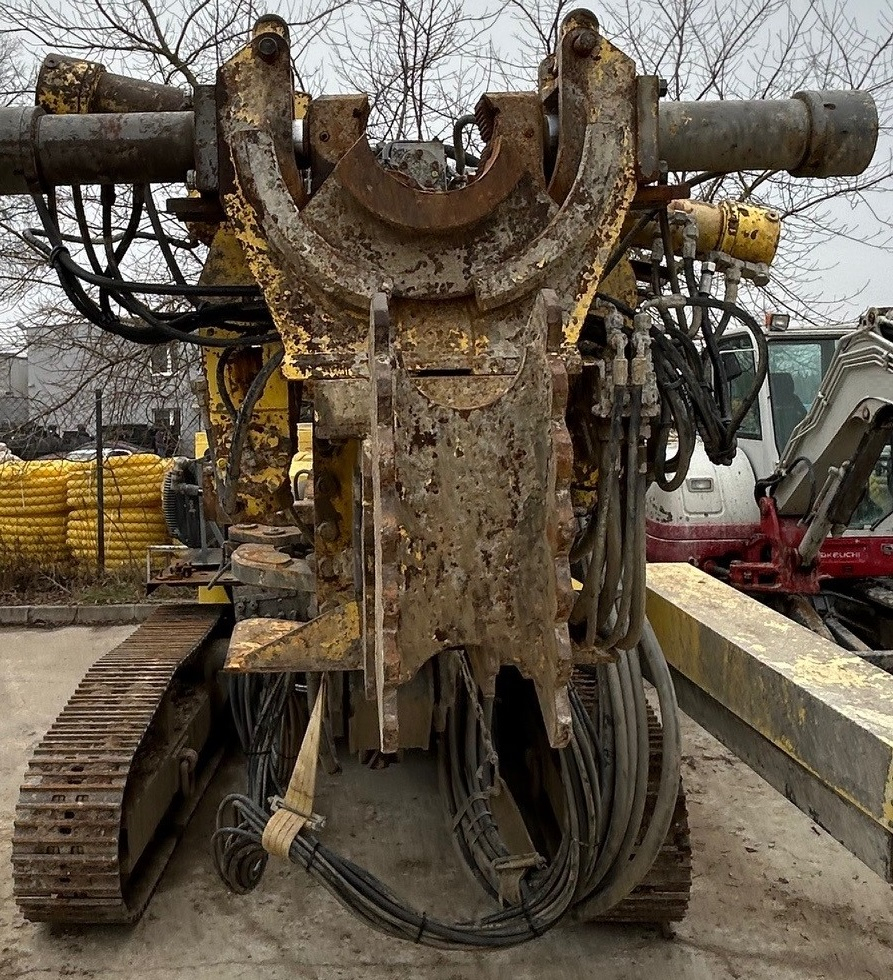

Clamping & Breaking Device

- Type EG

- Max Opening: Ø 356 mm

- Includes Integrated Spot Drilling Guide, Chucks, and Holders

- Mounted in Front of Mast

Rotary Head – KLEMM KH 22

- Max Torque: 24.4 kNm

- Max Drill Speed: 203 rpm

- Hollow Shaft Diameter: 102 mm

- Includes 2x Hydraulic Motors (H35T) and Remote Control

- Central Lubrication Included

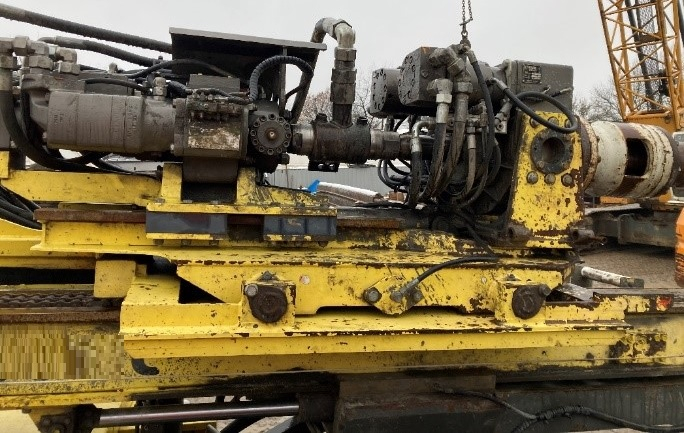

Hydraulic Drifter – KLEMM KD 1011

- Max Torque: 11 kNm

- Max Speed: 362 rpm

- Includes 2x Hydraulic Motors (Type B) and Shank Adapter H55 (Right-Hand Thread)

- Mounted with KH 22 on Adapter Plates for Double Head Usage

- Hydraulic Side Shift Slide: Center Height 500 mm

- Central Lubrication Points Included

Additional Equipment & Features

- Electric System: 24 V / 120 Ah

- Fuel Tank Capacity: 380 L

- DEF Tank Capacity: 45 L

- HD Air Filter

- 5x LED Working Lights

- Tramming Safety Signal

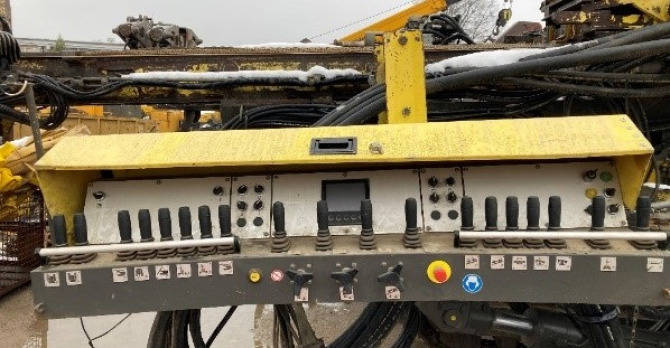

- Electric Control Panel (Hydraulically Height Adjustable & Mechanically Slewable)

- Full control of Drilling, Tramming, and Set-Up

- Integrated Display
