Overview
Stock number:
PF 40970
Categories:
Sheet Piling Rigs
Manufacturer:
Kowan
Model:
NEO-100SC
Year of manufacture:
2022
Working hours:

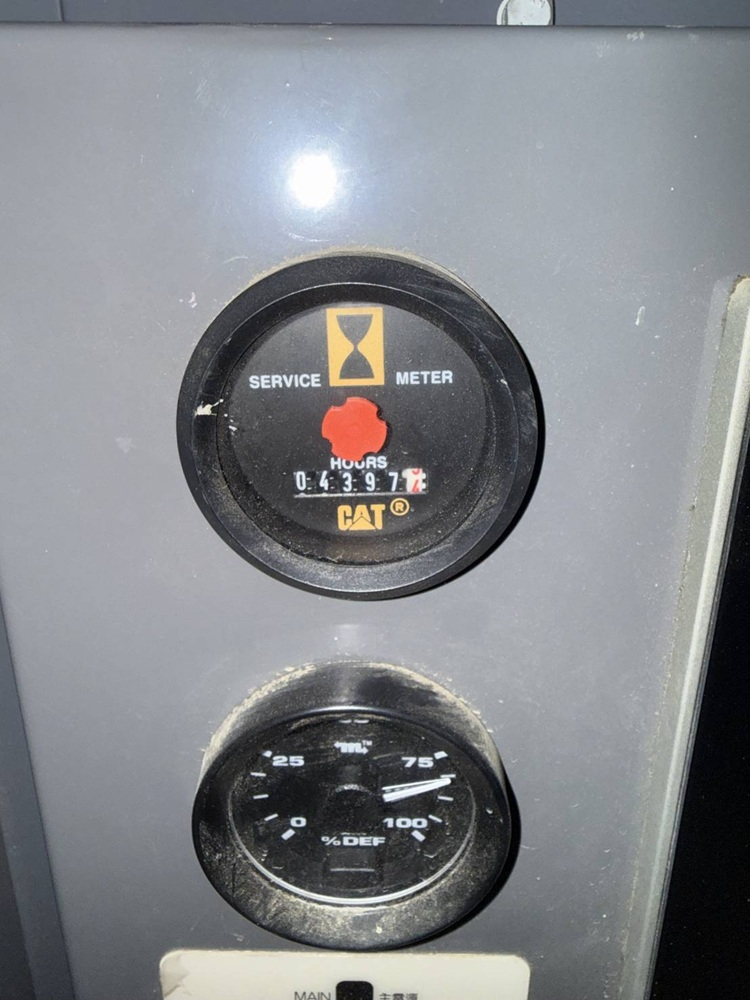

4397
Key features
- Sheet piling rig with 4397 hours

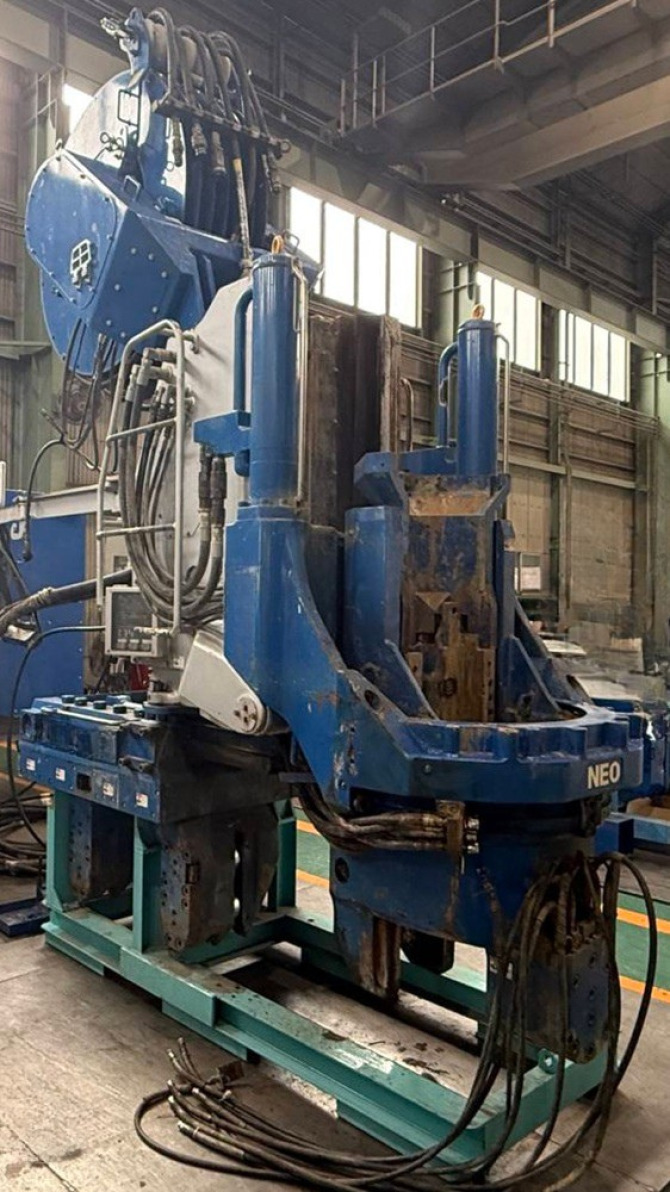

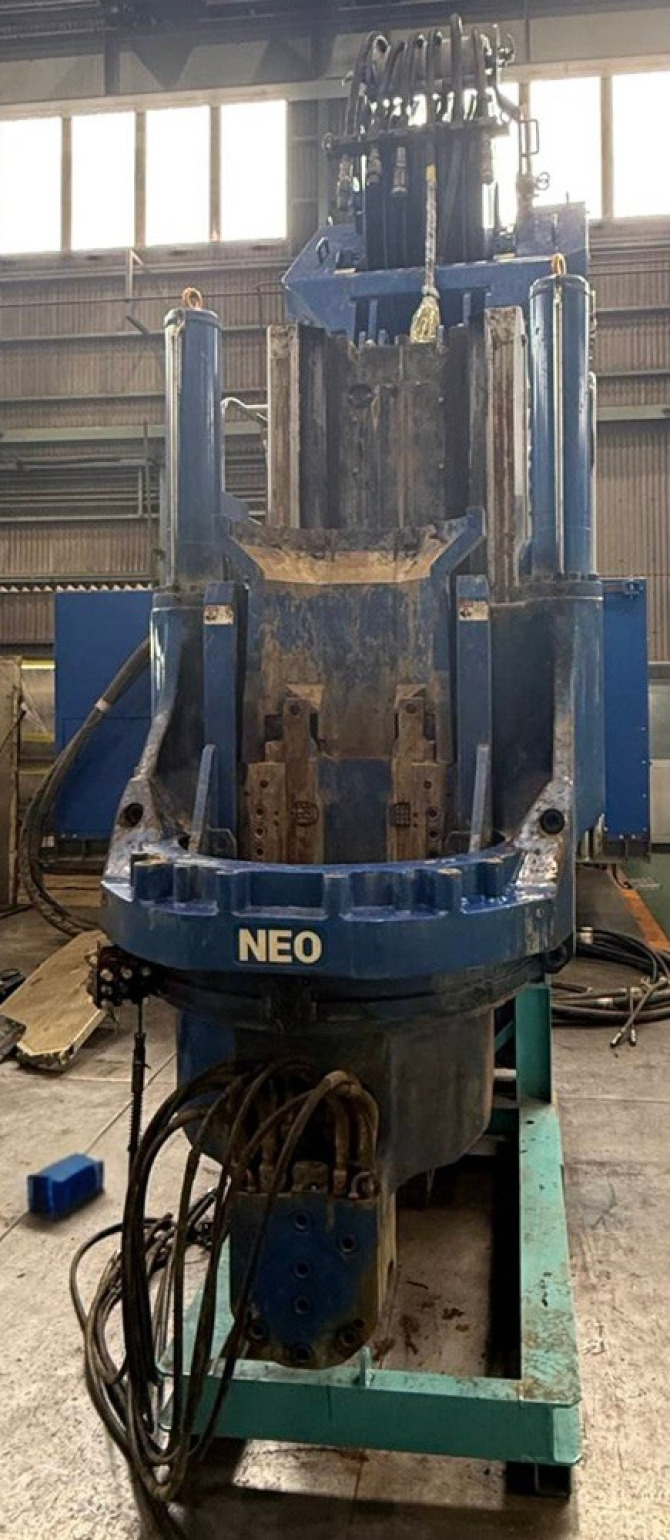

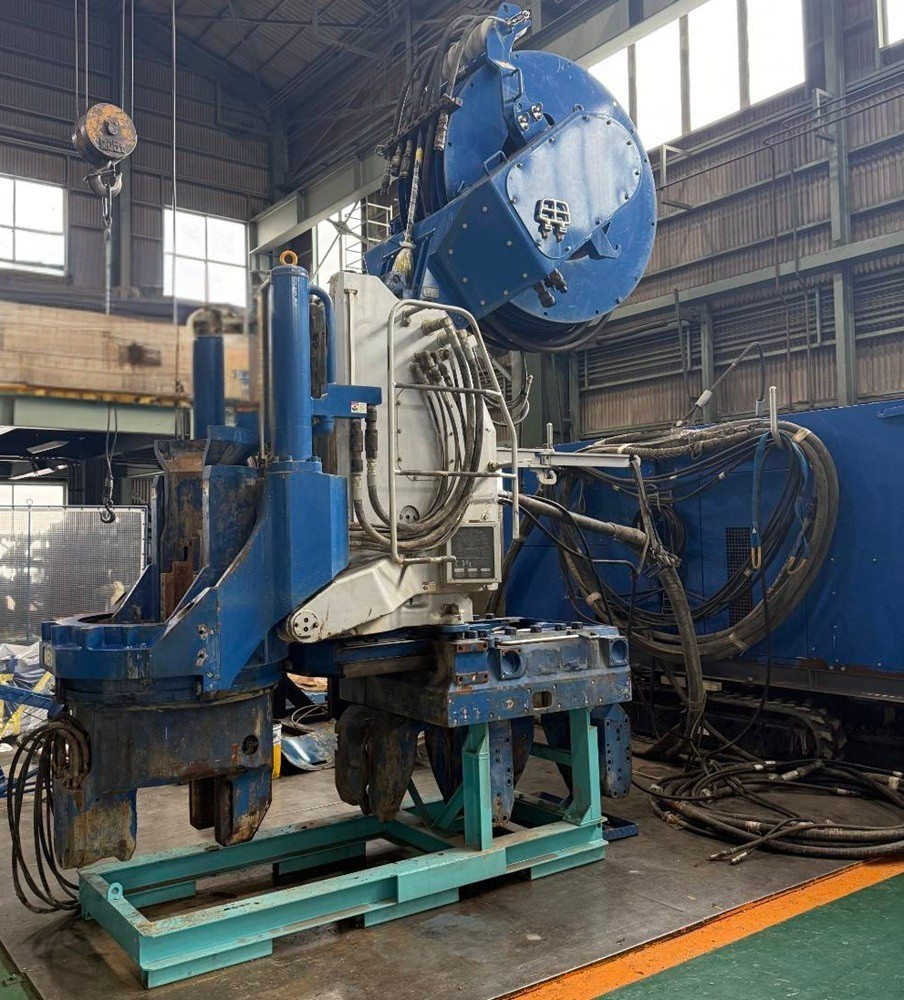

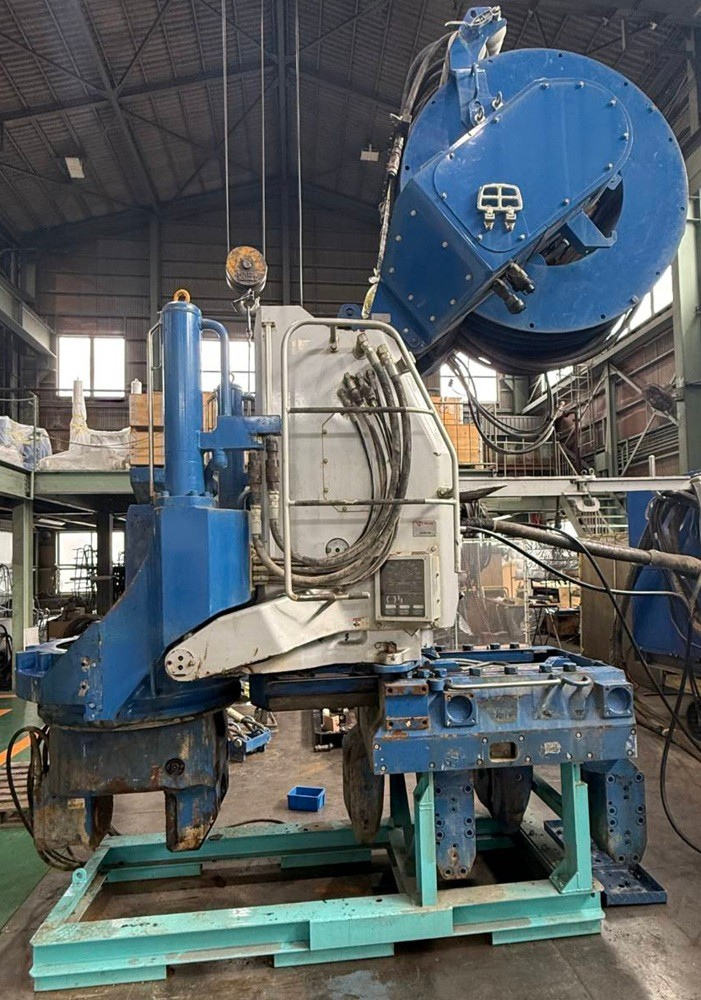

- Press in sheet piler for hard ground.

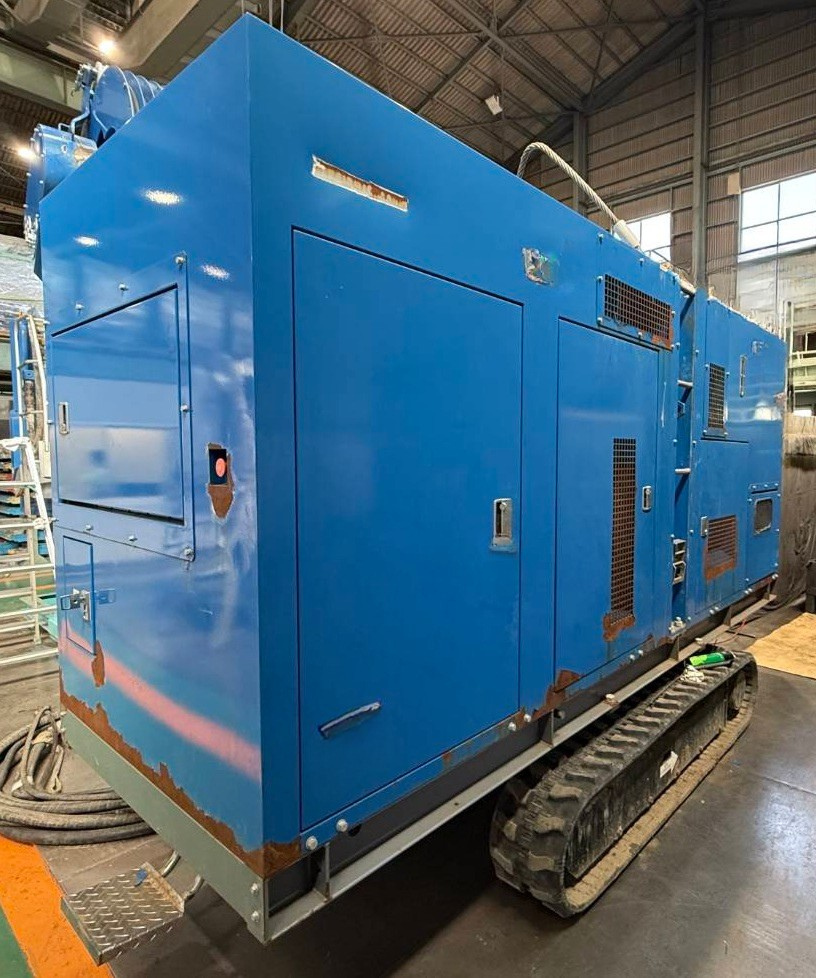

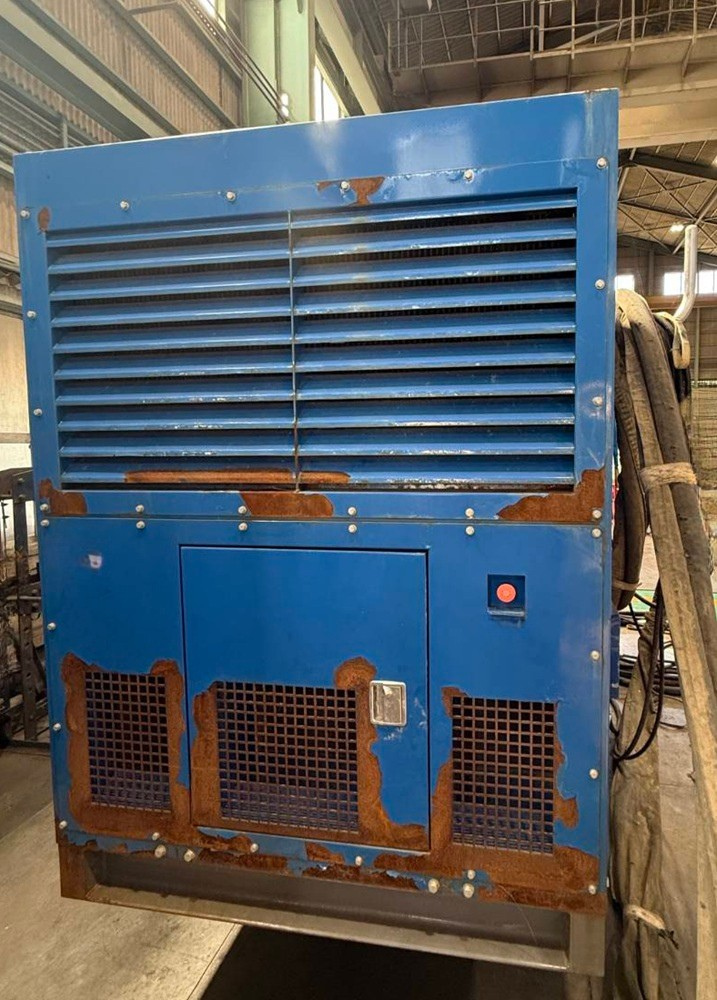

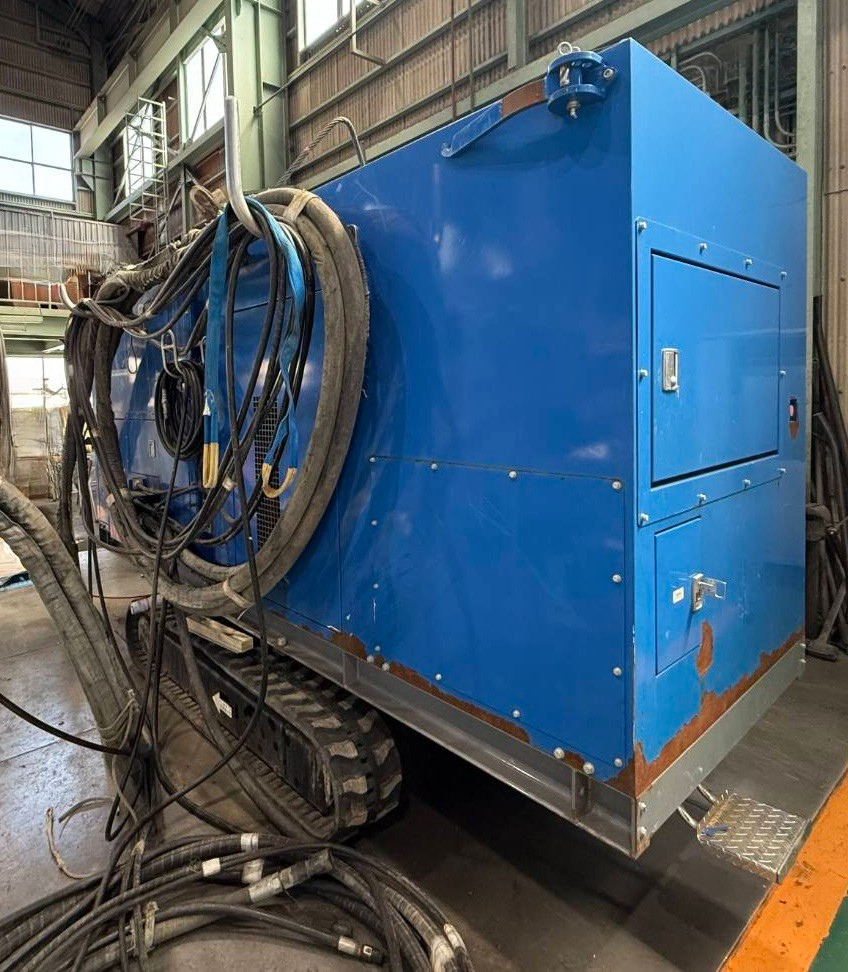

- With Tracked diesel KE-3000CA hydraulic power unit, 205kW diesel engine
- Max press in force 800kN
- Max extraction force 900kN
- Stroke 1000mm
- Press in speed 4.2-39 m/min
- Extraction speed 3.0-29 m/min

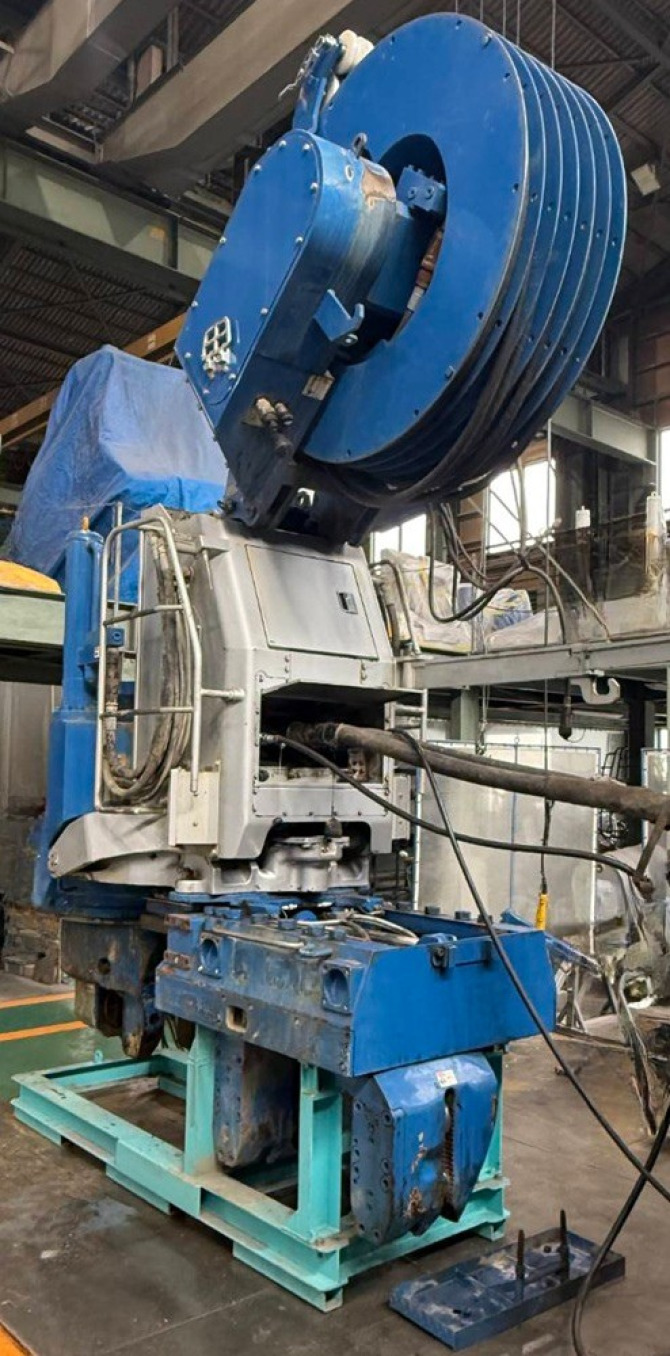

- Water jet reel
- 21m Leaders & 21m Casings
- Included screw heads.
- AC4700 pile auger.
- Includes wireless and wired remote controls, plus a cable.
- Machine is designed exclusively for U profile 400mm sheet piles
- Can be used in crush mode, jet reel mode, or standalone driving mode.
- Machine weight 11,000 kg
- Sheet pile length 21m max
