Overview
Stock number:
PF 41141
Categories:
Sheet Piling Rigs
Manufacturer:
Kowan
Model:
NEO-900
Year of manufacture:
2013
Working hours:
2545
Key features
Self-propelled hydraulic sheet piling machine designed for press-in and extraction of 900 mm HAT profile sheet piles. Supplied with a TE-200C hydraulic power unit, jet reel, work stage stand, wired and wireless remote controls, cables, battery and mounting base.
Machine specs
Working hours: 2,545 hrs
Piling Performance
- Applicable sheet piles: HAT Profile 900 mm
- Maximum press-in force: 1,000 kN
- Maximum extraction force: 1,100 kN
- Stroke: 750 mm
- Press-in speed: 3.0–36.0 m/min
- Extraction speed: 2.4–28.0 m/min
Operating System
- Control system: Wireless radio control
- Travelling method: Self-travelling
- Positioning control: Leader mast tilting
Main Machine Dimensions and Weight
- Length: 3,210 mm
- Width: Approx. 1,380 mm
- Height: 2,490 mm
- Machine weight: 10,200 kg

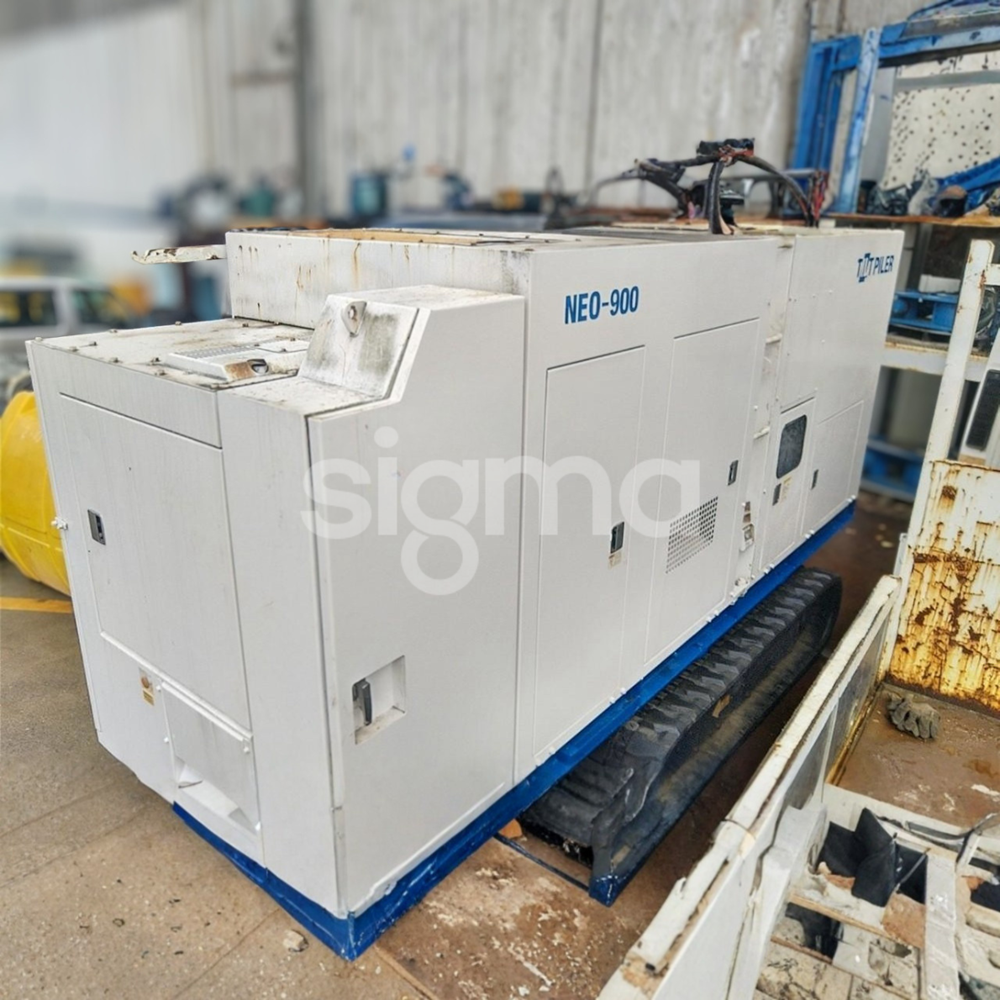

Hydraulic Power Unit
- Model: TE-200C
- Year of Manufacture: 2013

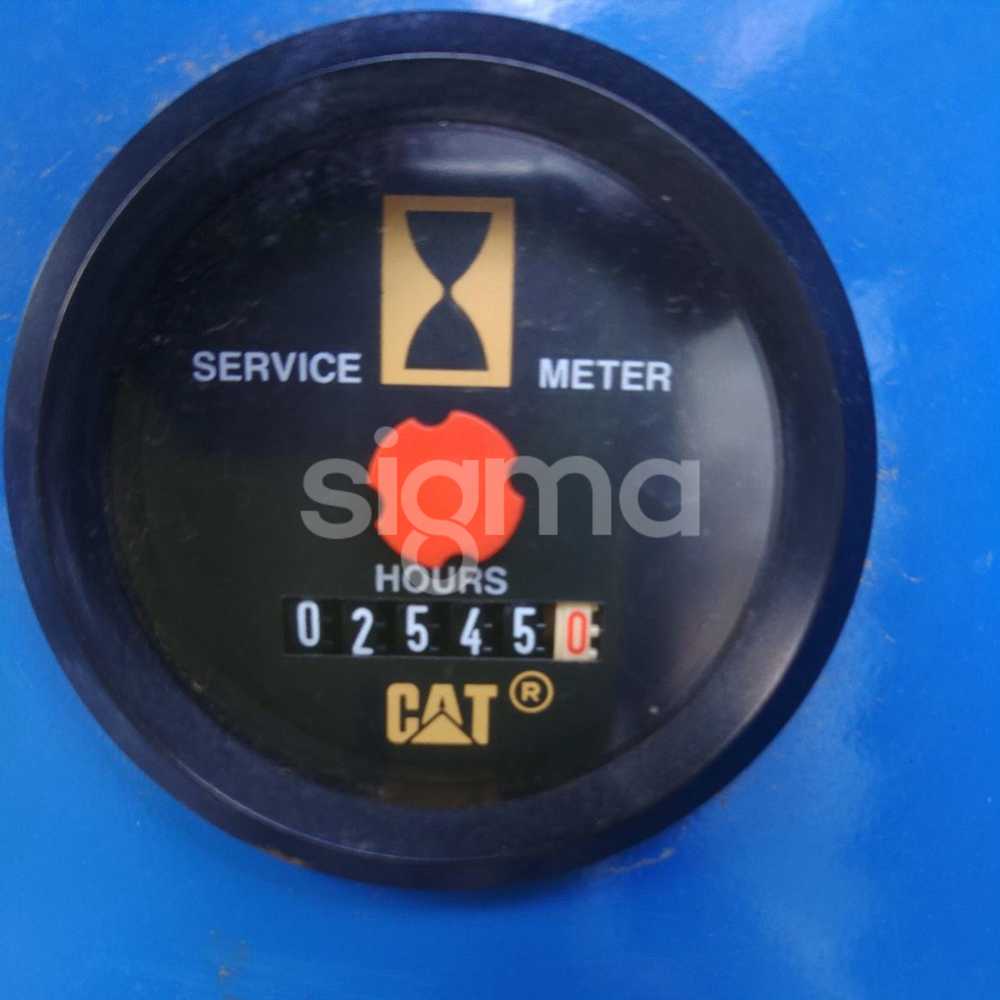

- Working hours: 2,545 hrs
- Power source: Diesel engine
- Rated output: 168 kW @ 1,800 rpm
- Fuel tank capacity: 350 L
- Hydraulic oil tank capacity: 500 L
- Travel speed: 1.6 km/h
- Power unit weight: 6,850 kg
Power Unit Transport Dimensions
- Length: 4,365 mm
- Width: 1,880 mm
- Height: 2,480 mm

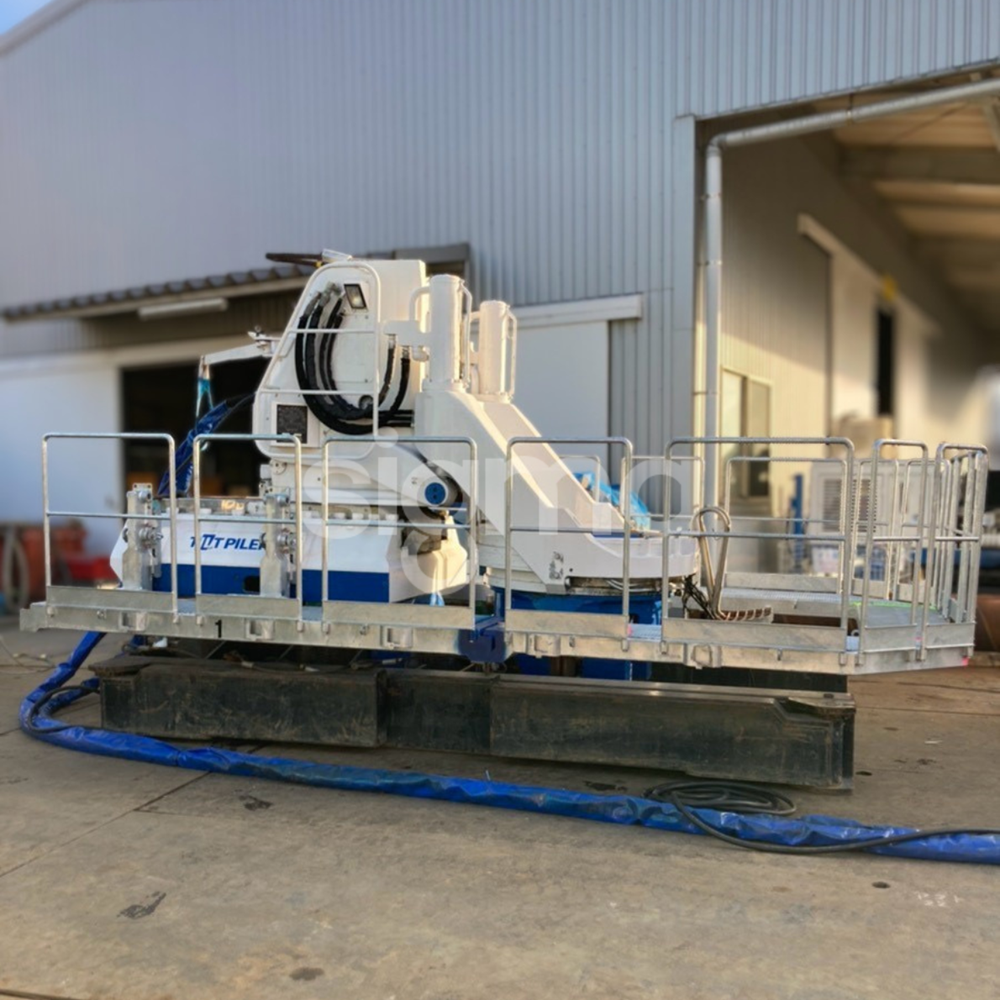

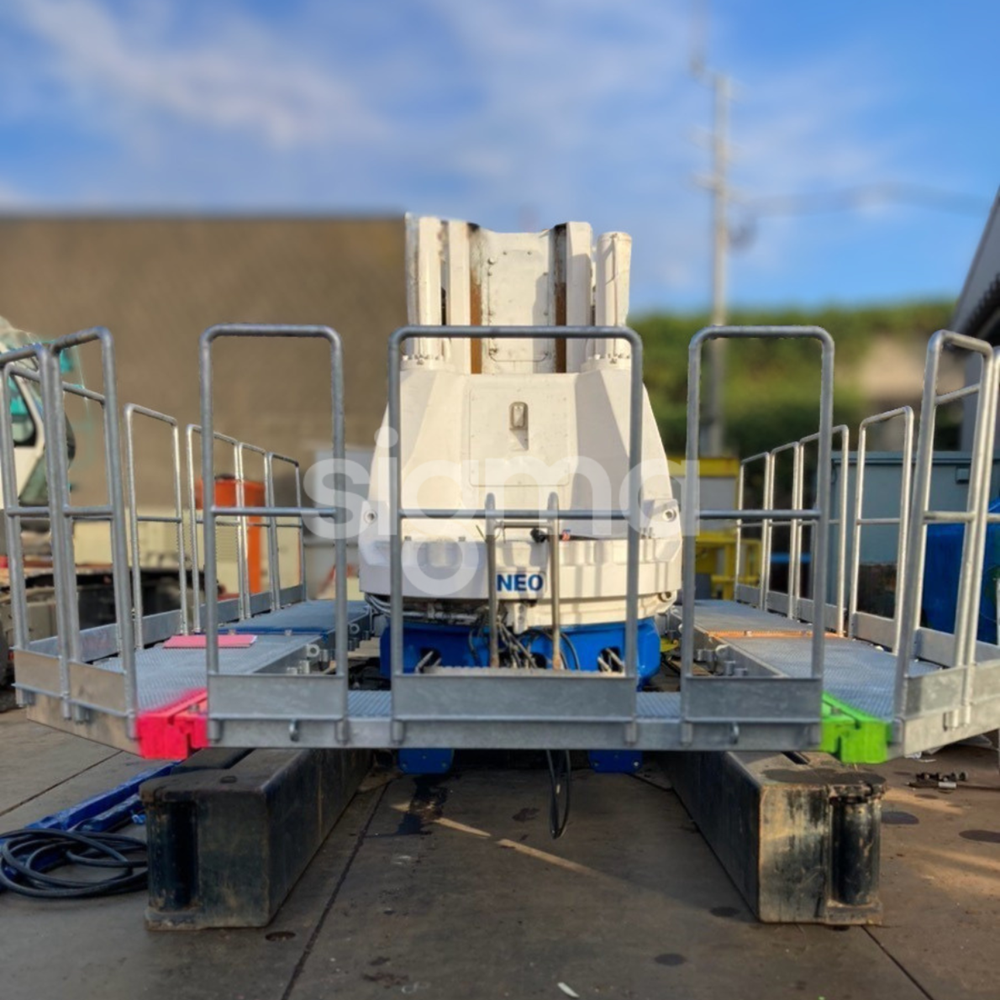

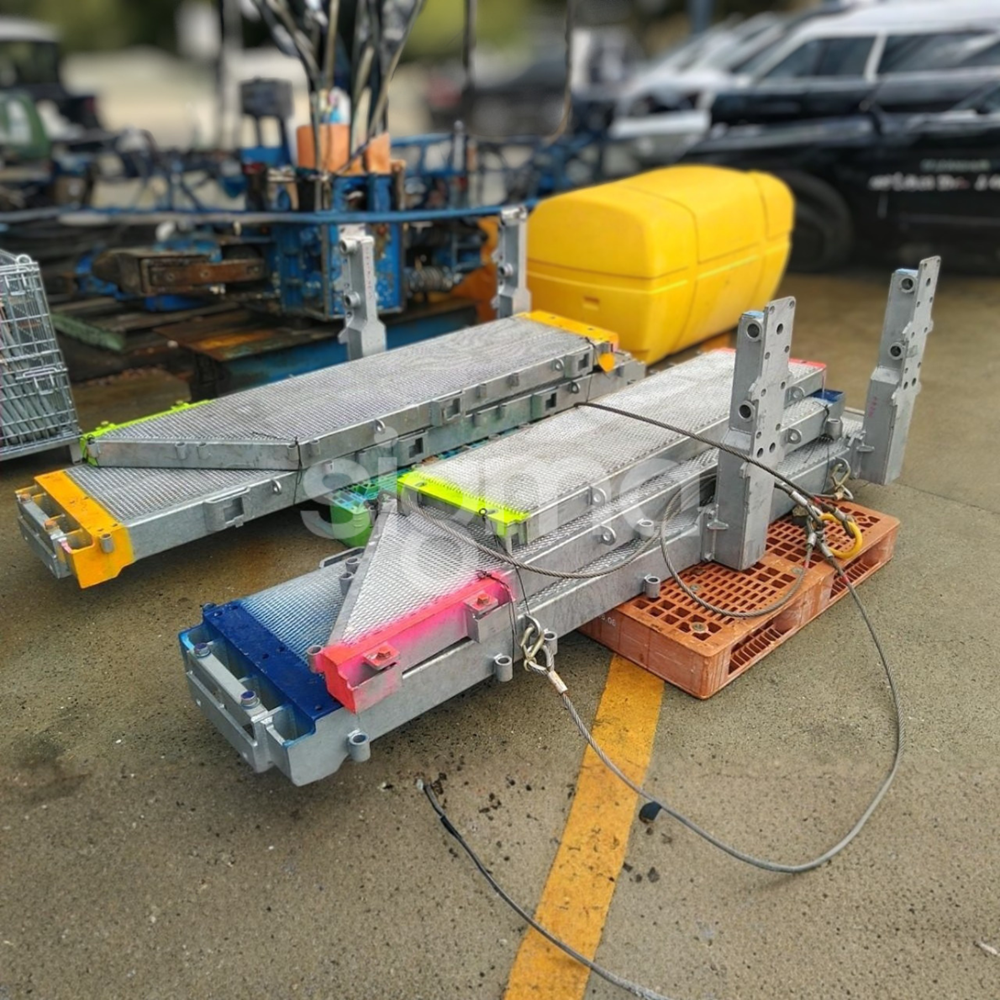

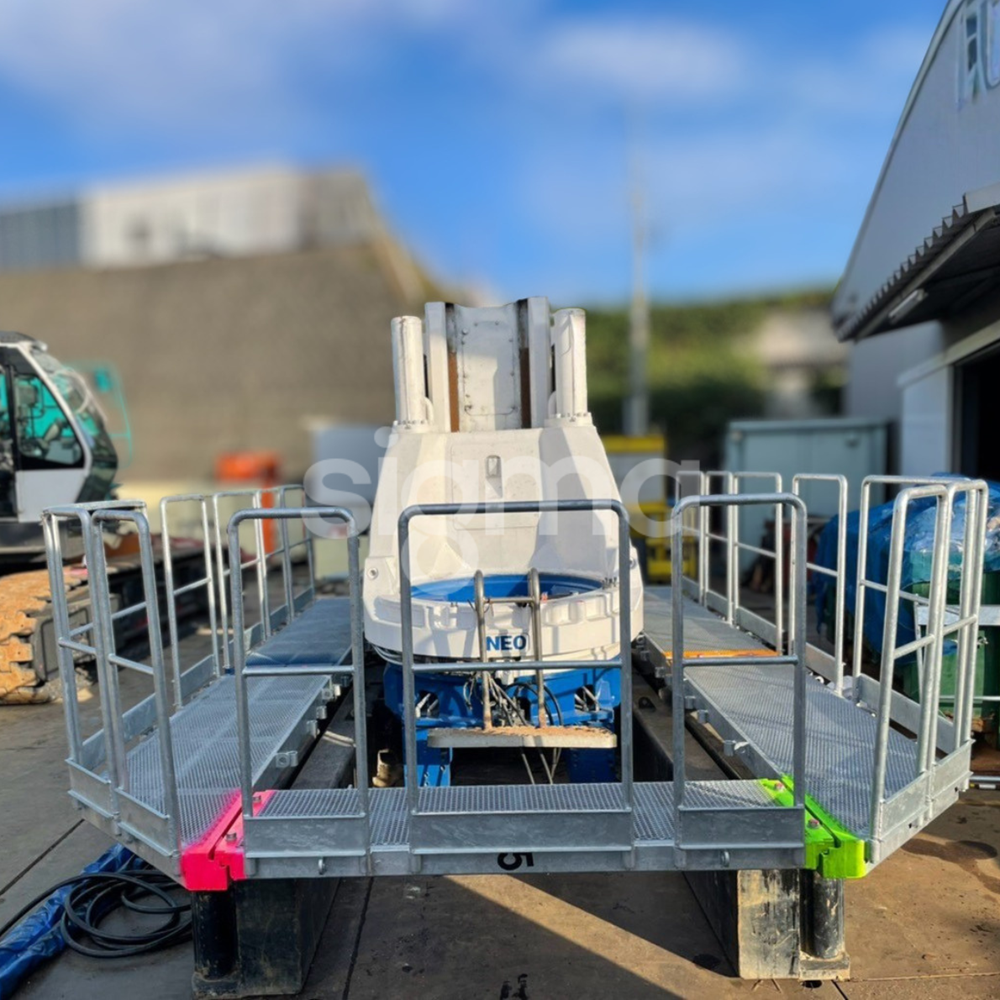

Work Stage Stand
- Year of Manufacture: 2022
- Weight: 2,360 kg
- Overall length: 7,060 mm
- Overall width: 5,235 mm

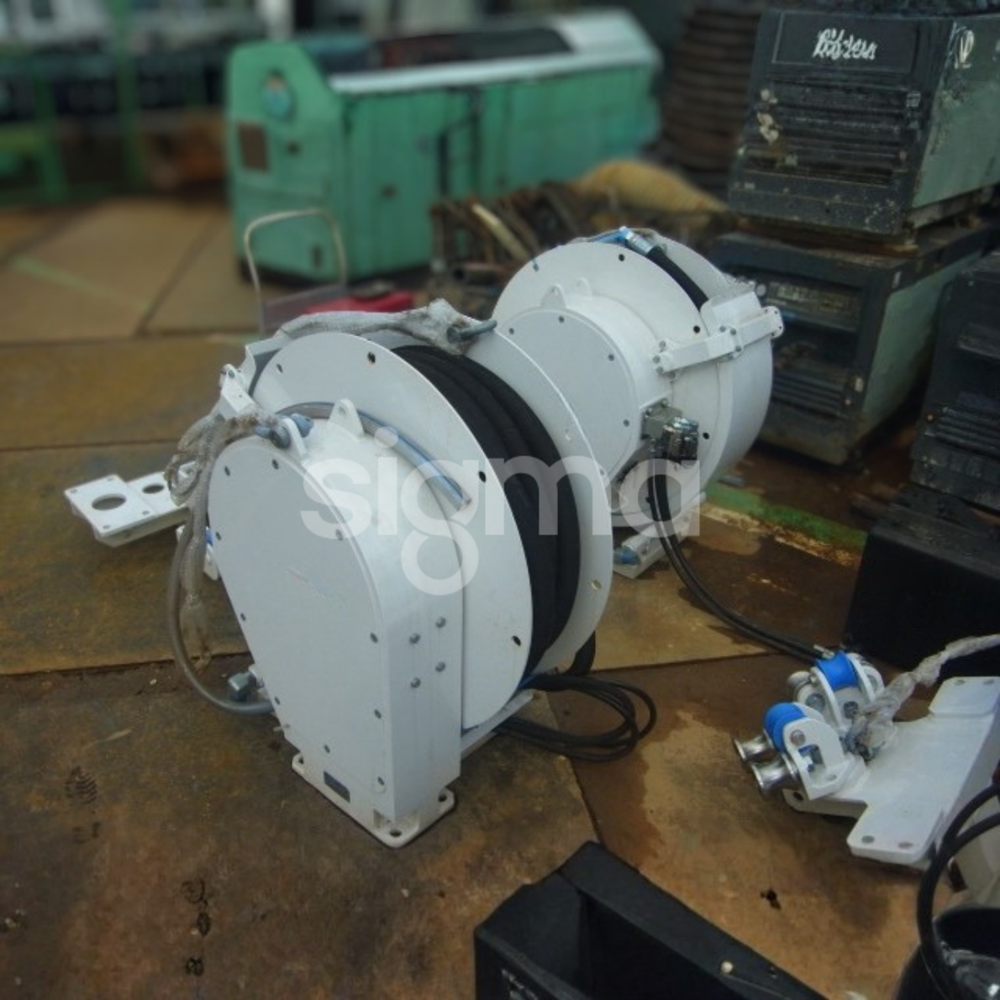

Jet Reel
Year of Manufacture: 2013
Weight: 700 kg
Remote Controls
- Wired remote control: Included
- Wireless remote control: Included
- Accessories: Cable and battery included
Transport Dimensions and Weight
- NEO-900 Main Unit
- Length: 3,210 mm
- Width: Approx. 1,380 mm
- Height: 2,490 mm
- Weight: 10,200 kg
TE-200C Power Unit
- Length: 4,365 mm
- Width: 1,880 mm
- Height: 2,480 mm
- Weight: 6,850 kg
- Work Stage Stand weight: 2,360 kg
- Jet Reel weight: 700 kg
