Overview
Stock number:
PF 40585
Categories:
Sheet Piling Rigs
Manufacturer:
Kowan
Model:
NEO400A
Year of manufacture:
2014
Working hours:
1014
Key features
- Hour meter reading:1014hrs
- Clamp : for 400㎜ and 500-600㎜
- Power:Pack:TE200C
- Auger: AC4700
- Water Jet
- Wireless remote controller
- Tilt Piler NE400α
- MAX pressing in force 800 kN
- MAX drawing out force 900 kN
- Stroke 800 mm
- Pressing in speed 3.0-31.0 m/min
- Drawing out speed 2.4-27.0 m/min
- Positioning control method Leader mast tilting
- Applicable sheet piles U profile 400 mm, 500 mm, 600 mm
- Moving system Self-moving
- Weight 11,100 kg
- HYDRAULIC POWER UNIT TE-200C
- Power Diesel engine, CAT C7 ACERT, in line 6, direct injection
- Output rating 168 kw/1,800 min -1
- Pump Variable capacity pump: 790 litres/min
- Pressure rating 35 MPa max
- Fuel oil tank 350 litres
- Hydraulic oil tank 500 litres

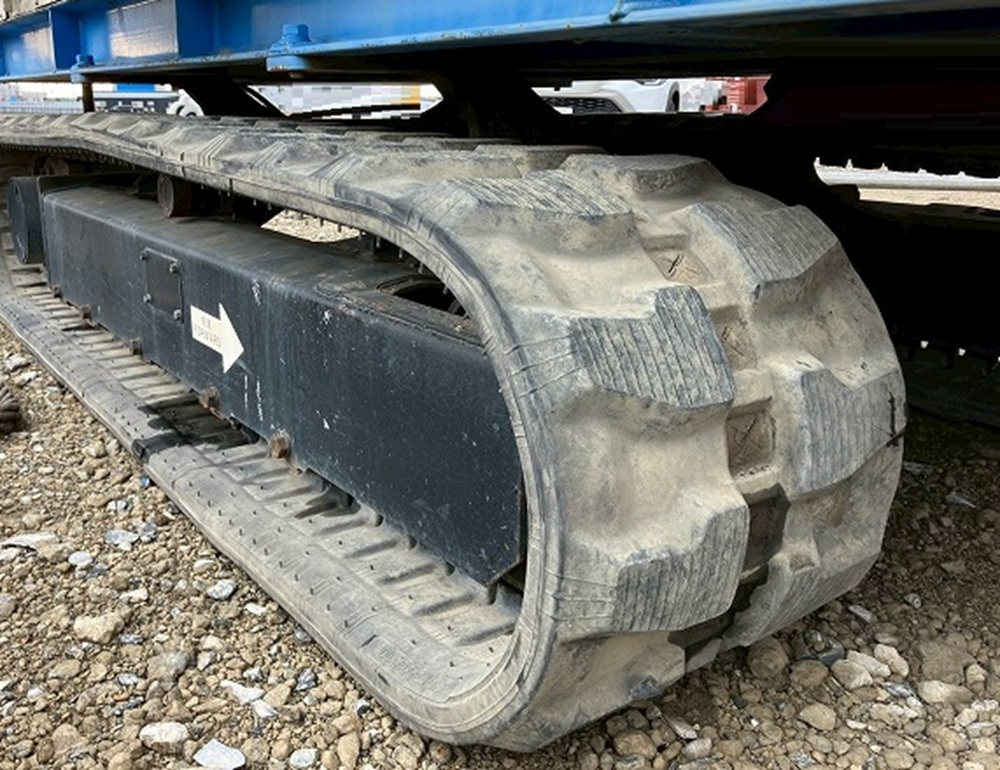

- Crawler operation system Cabled remote control
- Drive method 2 motors
- Moving speed 1.6 km/h
- Weight 7,500 kg
