Overview
Stock number:
PF 41002
Categories:
Rotary Bored Piling Rigs
Manufacturer:
Leffer
Model:
VRM250KL
Year of manufacture:
2023
Key features

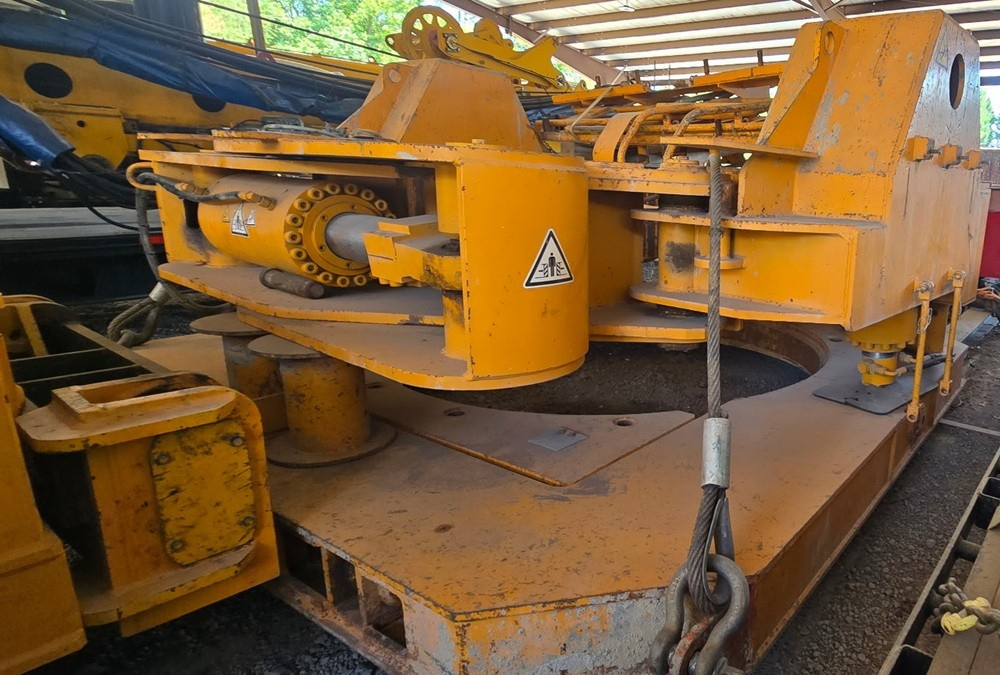

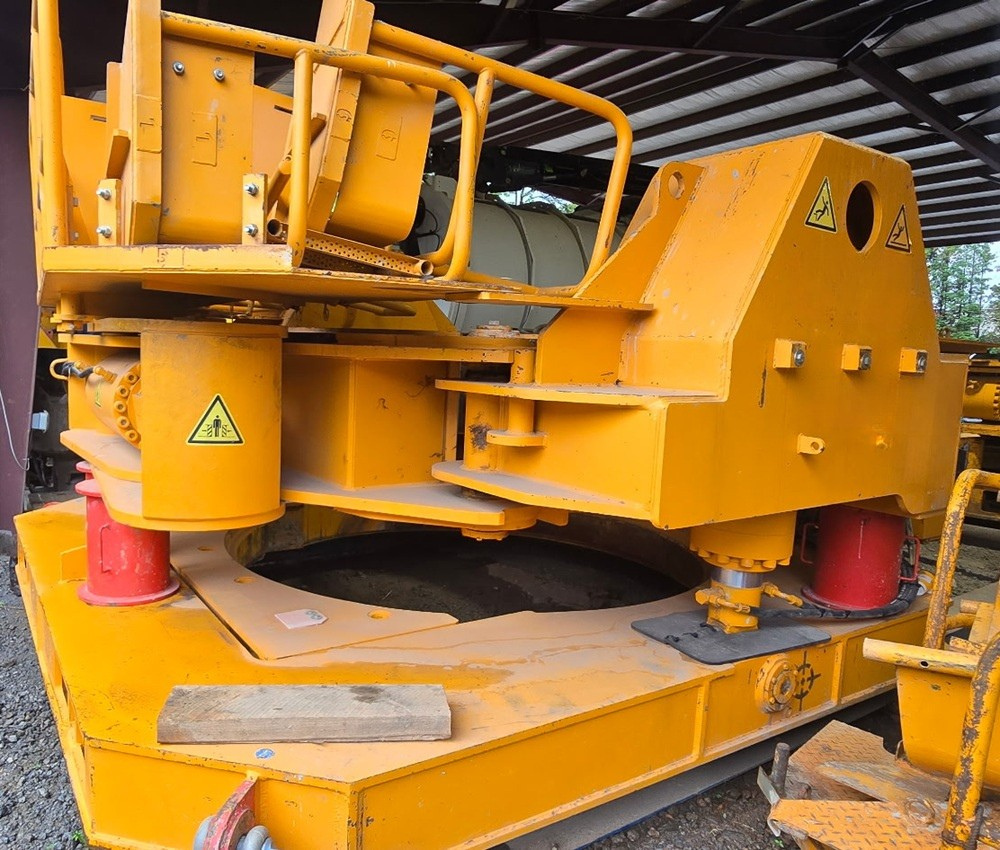

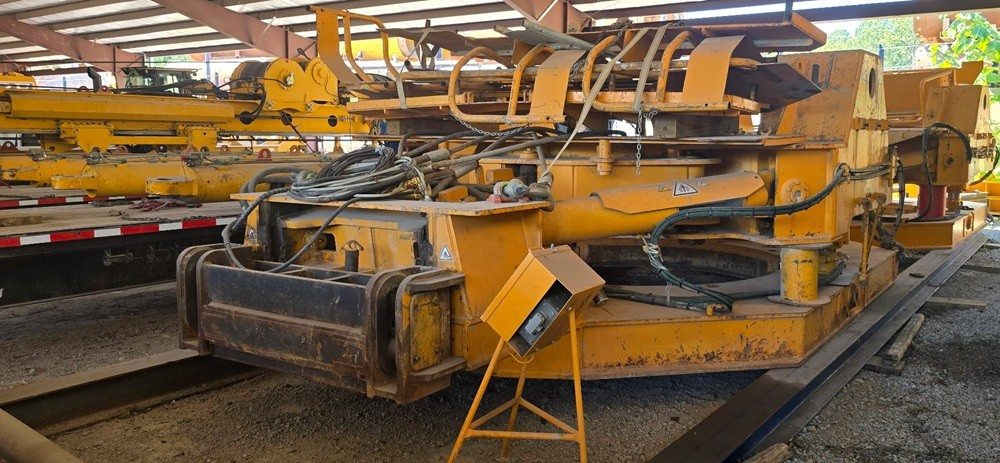

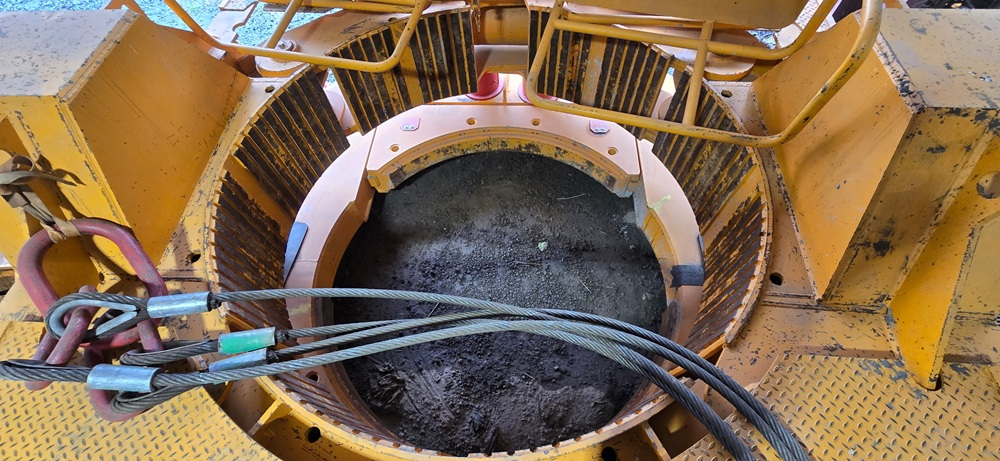

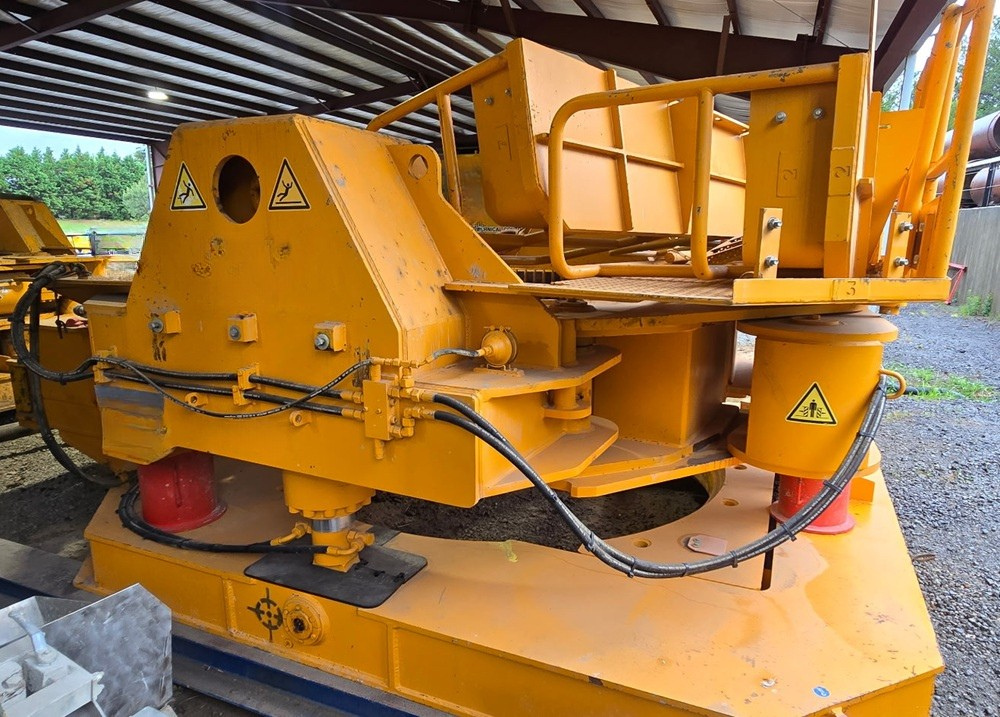

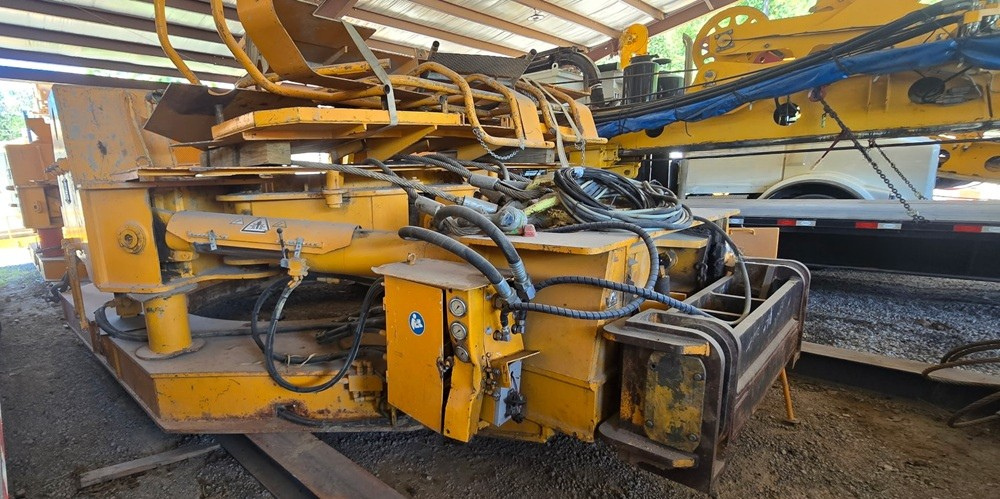

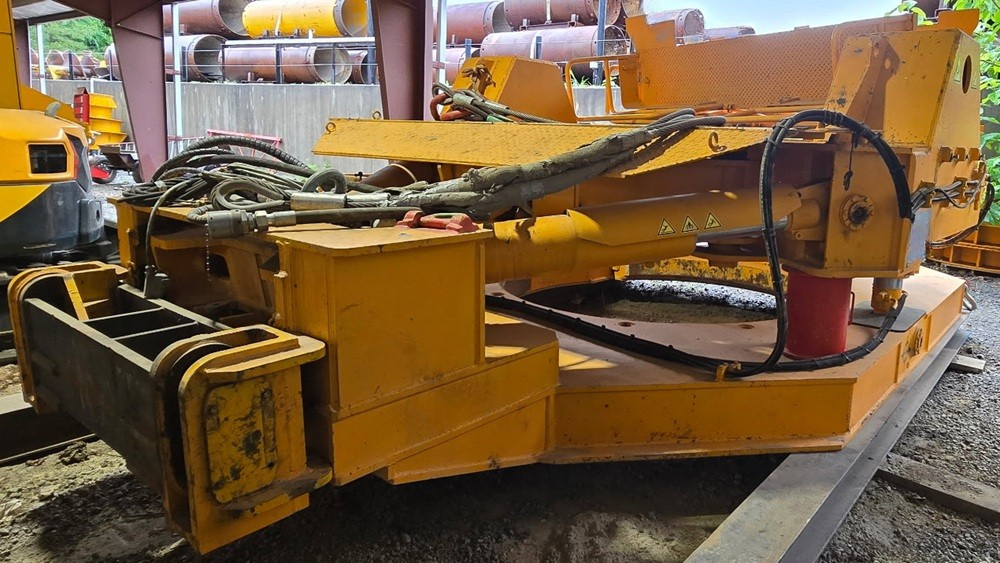

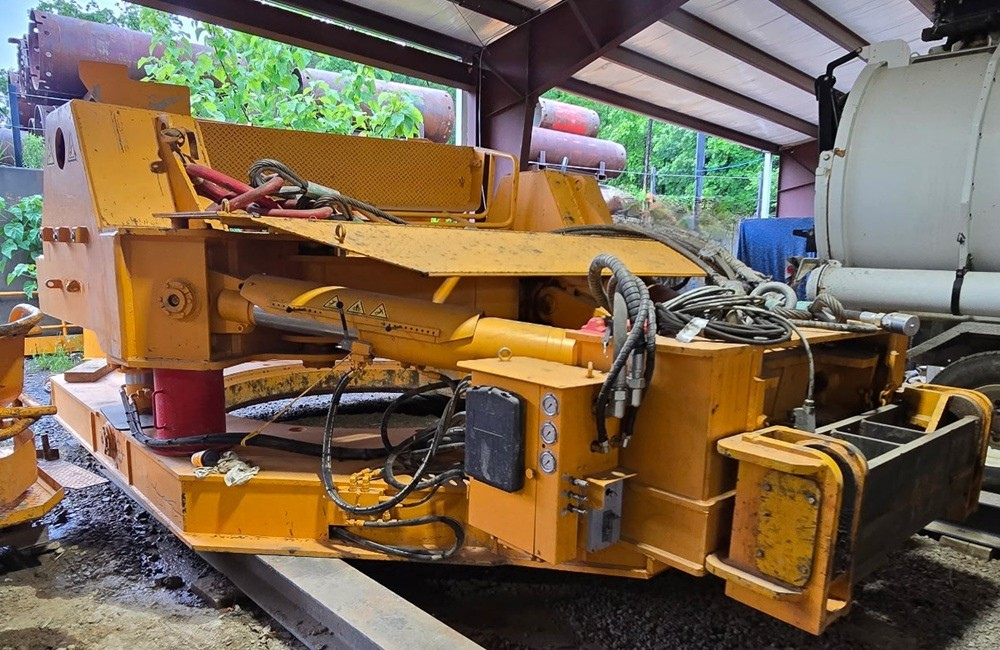

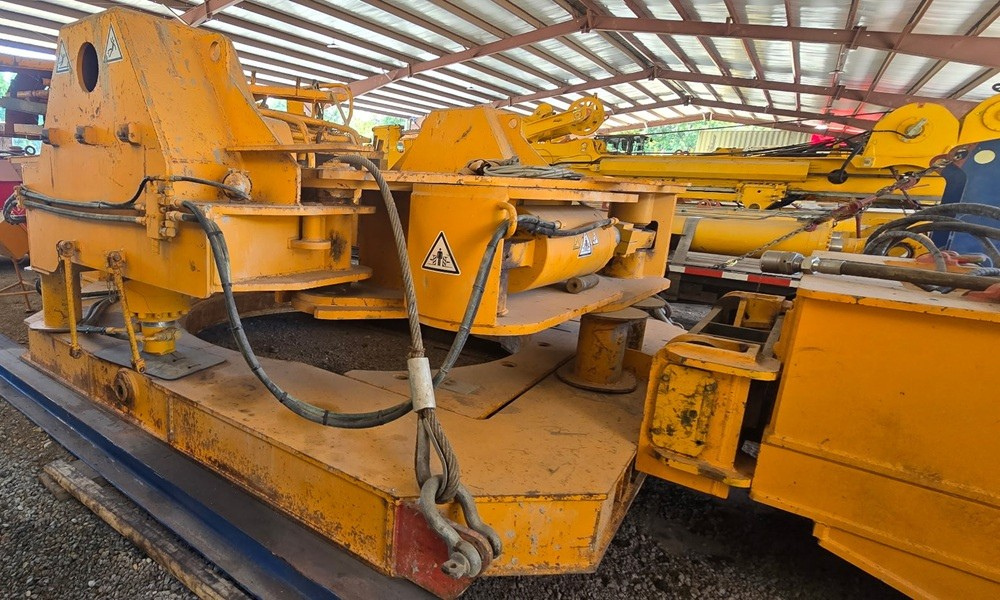

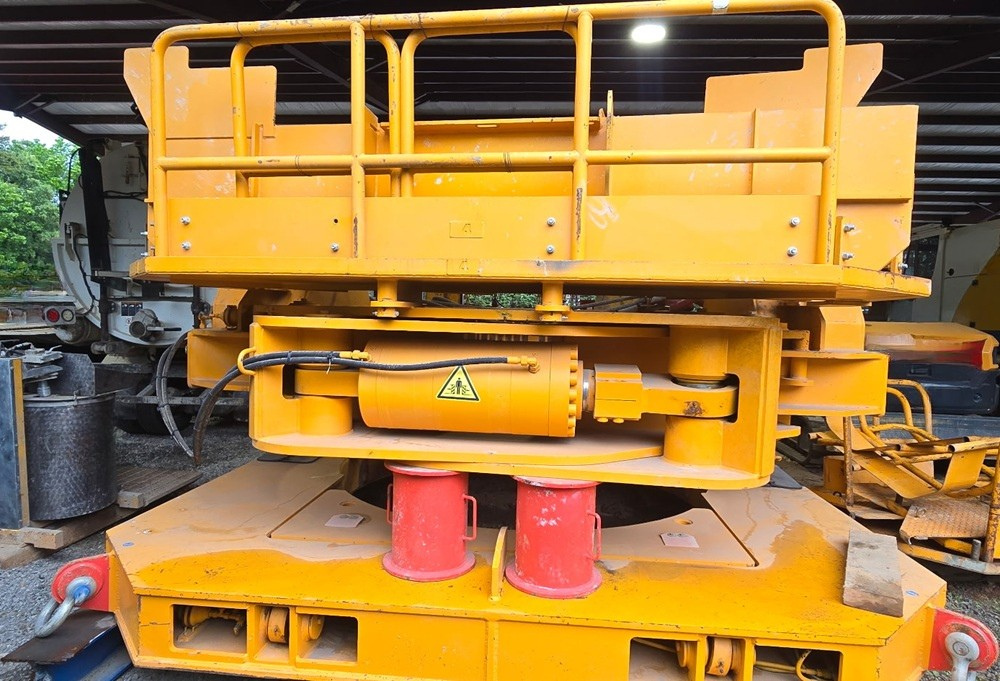

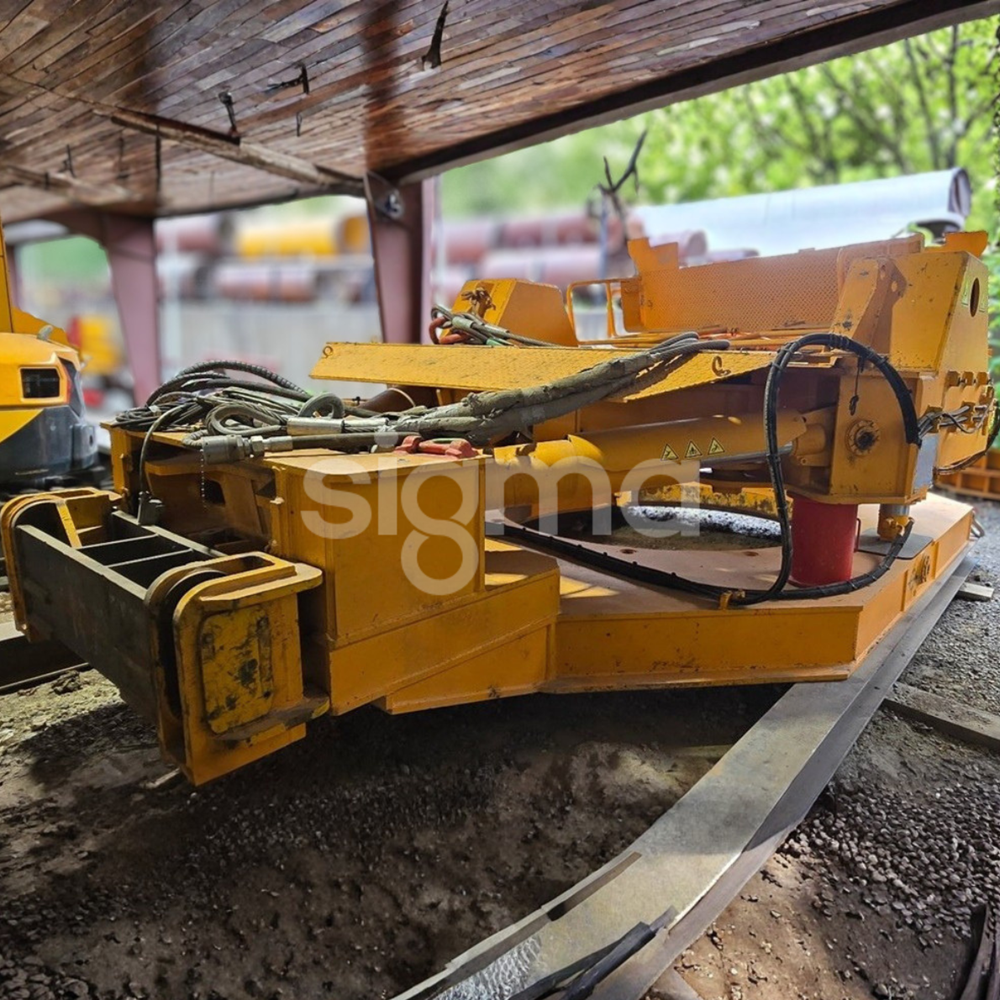

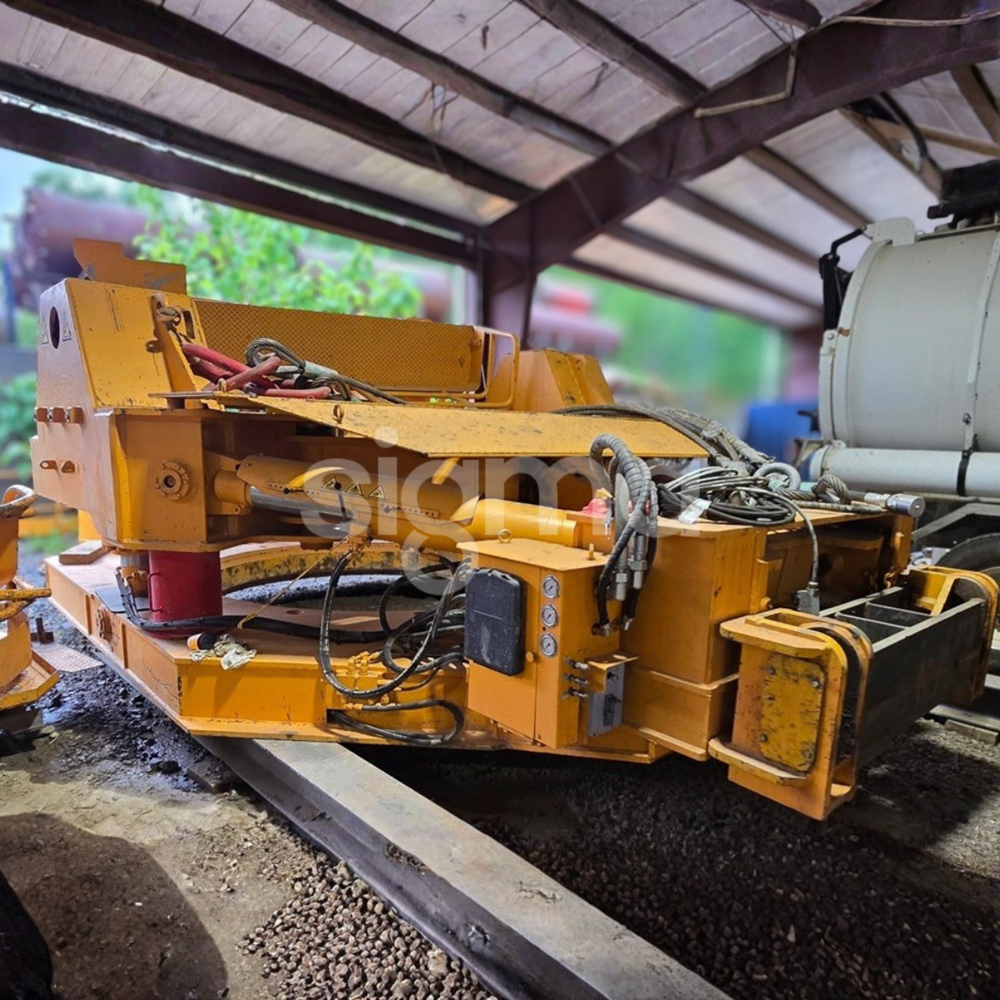

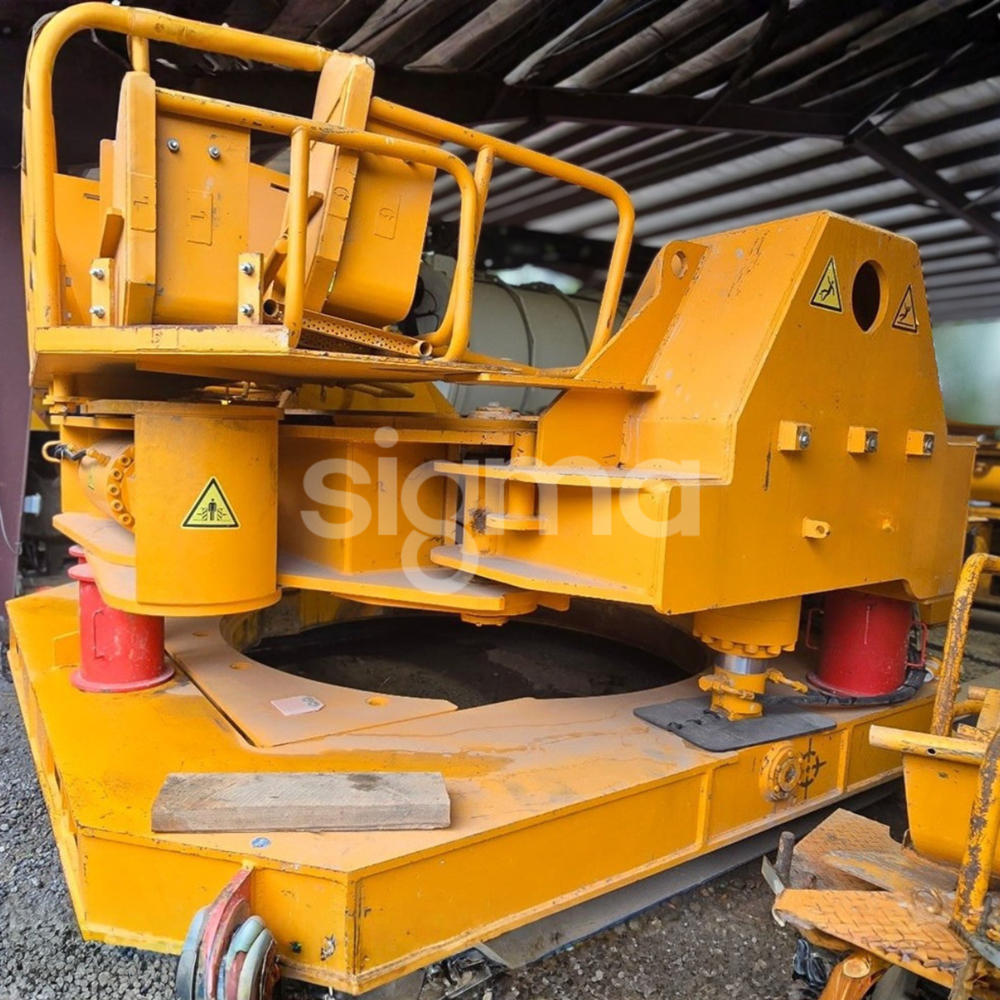

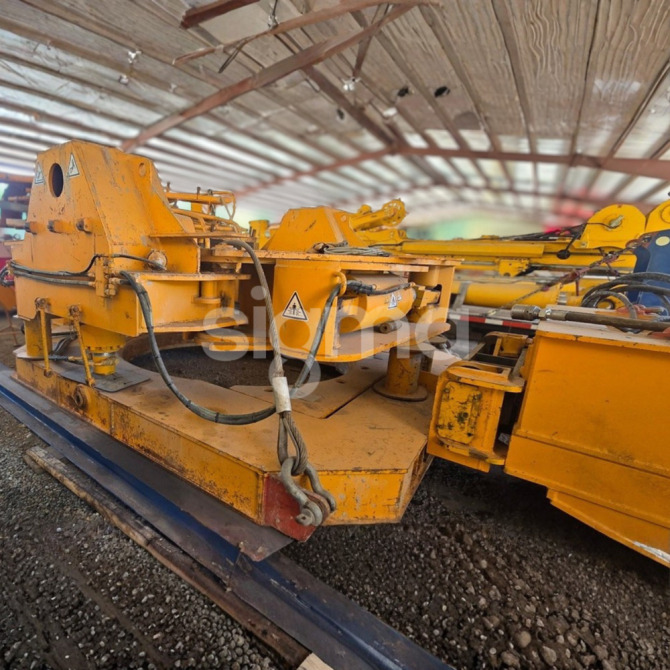

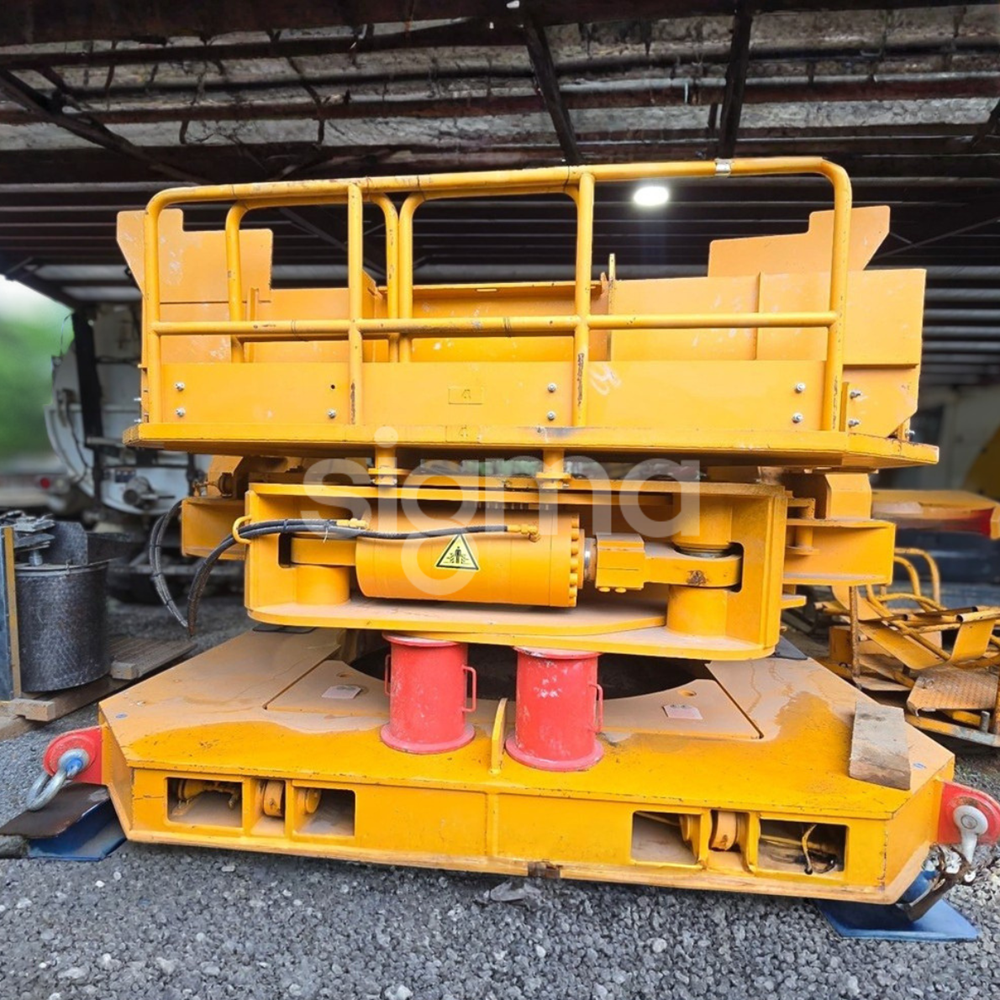

- 2023 Leffer VRM250 KL casing oscillator with sled to suit Bauer UW130–160 rotary drives, including BG42 / BG45 applications
- Stroke: 450mm
- Lifting force: 2,950 kN
- Clamping force: 2,570 kN
- Rotation angle: 20°
- Torque: 3,000kNm
- Operating pressure: 300 bar
- Travel of casing: 436mm
- Weight: 25t
- Max Casing diameter: 2,500mm
- Width of machine: 4,000mm
- Length of machine: 5,980mm
- Min spacing: 2,265mm
- Width of cradle: 800mm
- Width of machine excavator side: 1,800mm
- Cradle path: 450mm
- Axis excavator side: 630mm
- Height of machine side: 1,070mm
- Height of cradle guide: 700mm
- Height from ground to top of cradle: 1,000mm
- Height of machine: 1,855mm
- Length attachment-centre pile: 3,715mm
