Overview
Stock number:
PF 38382
Categories:
Rotary Bored Piling Rigs
Manufacturer:
Liebherr
Model:

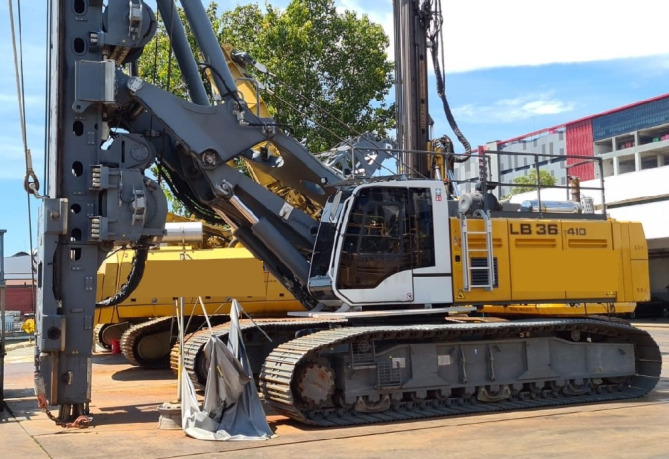

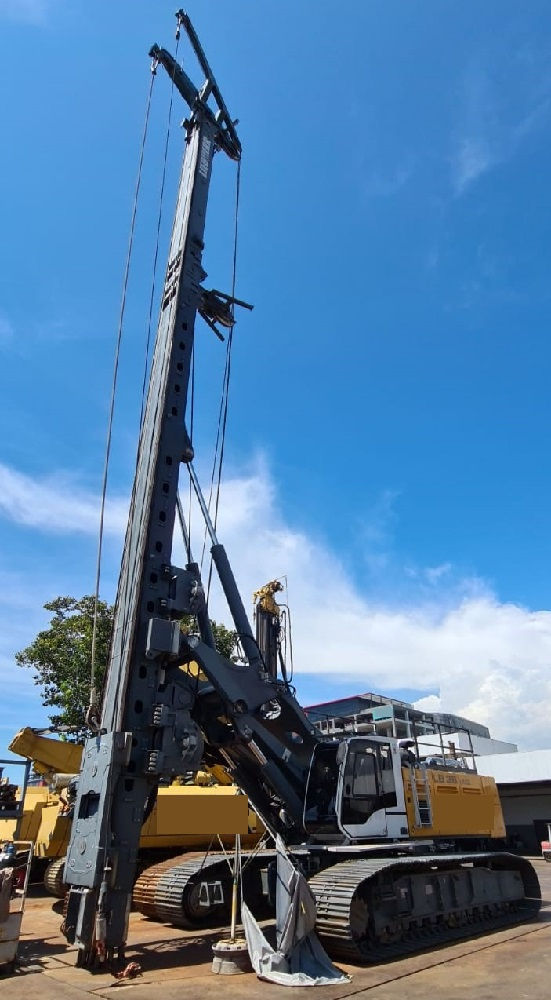

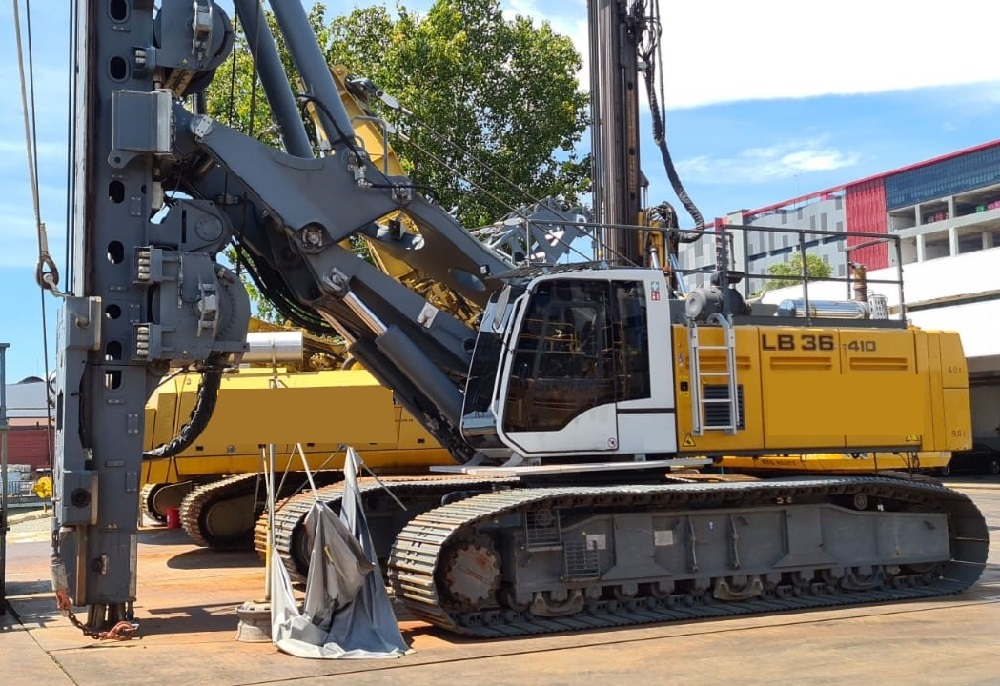

LB36-410
Year of manufacture:
2018
Working hours:
1866
Key features
- Hours 1866
- Robust universal machine for the following applications : Kelly drilling, Auger drilling, Full displacement drilling, Double rotary drilling
- Engine Liebherr D946 A7-04 Tier 4f
- Kelly Max torque for drilling 410 kNm
- Kelly Max drilling dia 2300mm uncased
- Kelly Max drilling dia 2000mm cased
- Rotary drive I torque 210 kNm
- Rotary drive II torque 105kNm
- Rotary max drill dia 750mm
- Rotary max drill depth 17.8m
- Max pull down force 900kn
- Kelly mode, Bauer Kelly 470/4 65mtrs
