Overview
Machine location:
United Kingdom
Stock number:
PF 41154
Categories:
CFA Piling Rigs
Manufacturer:
Liebherr

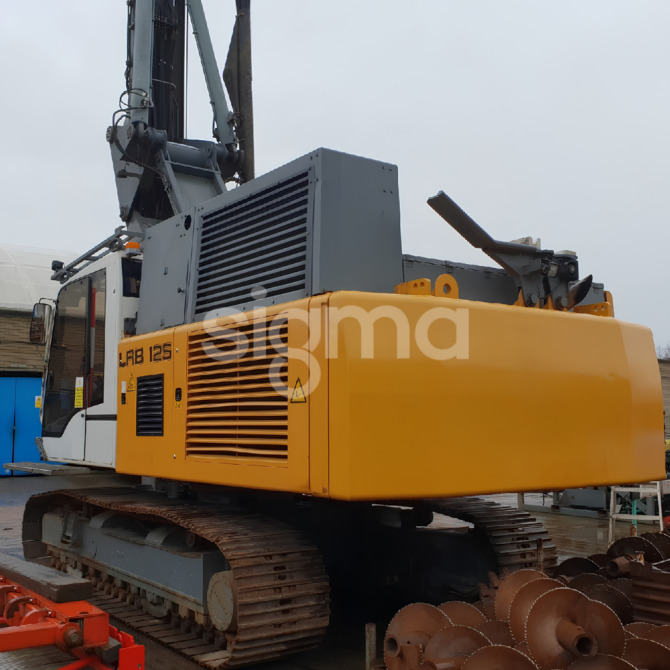

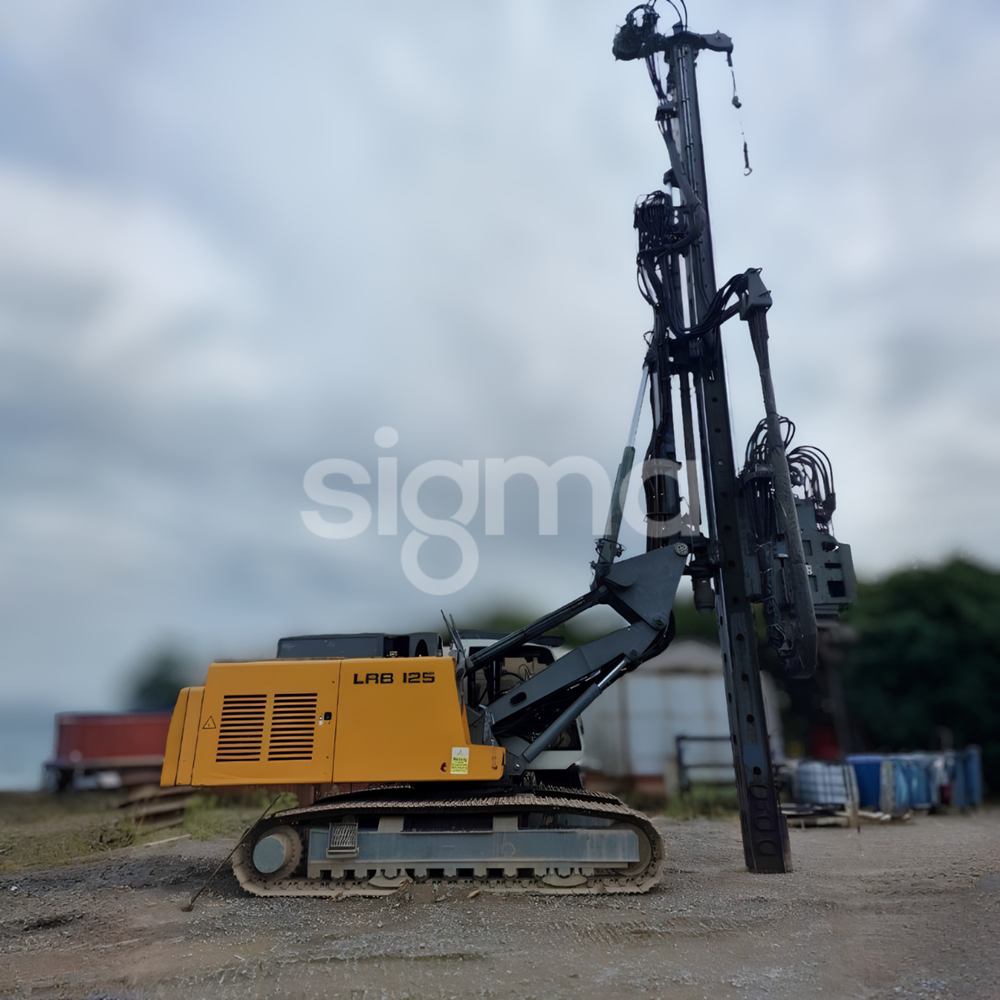

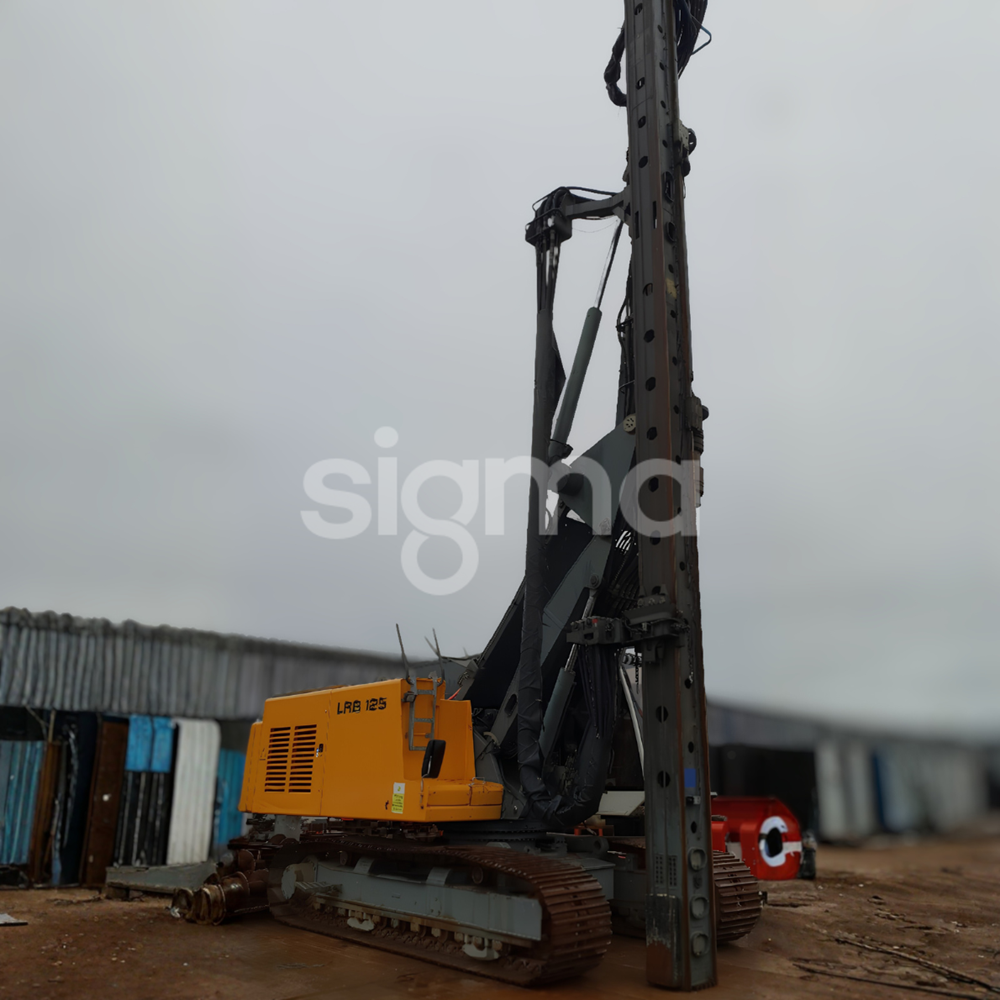

Model:

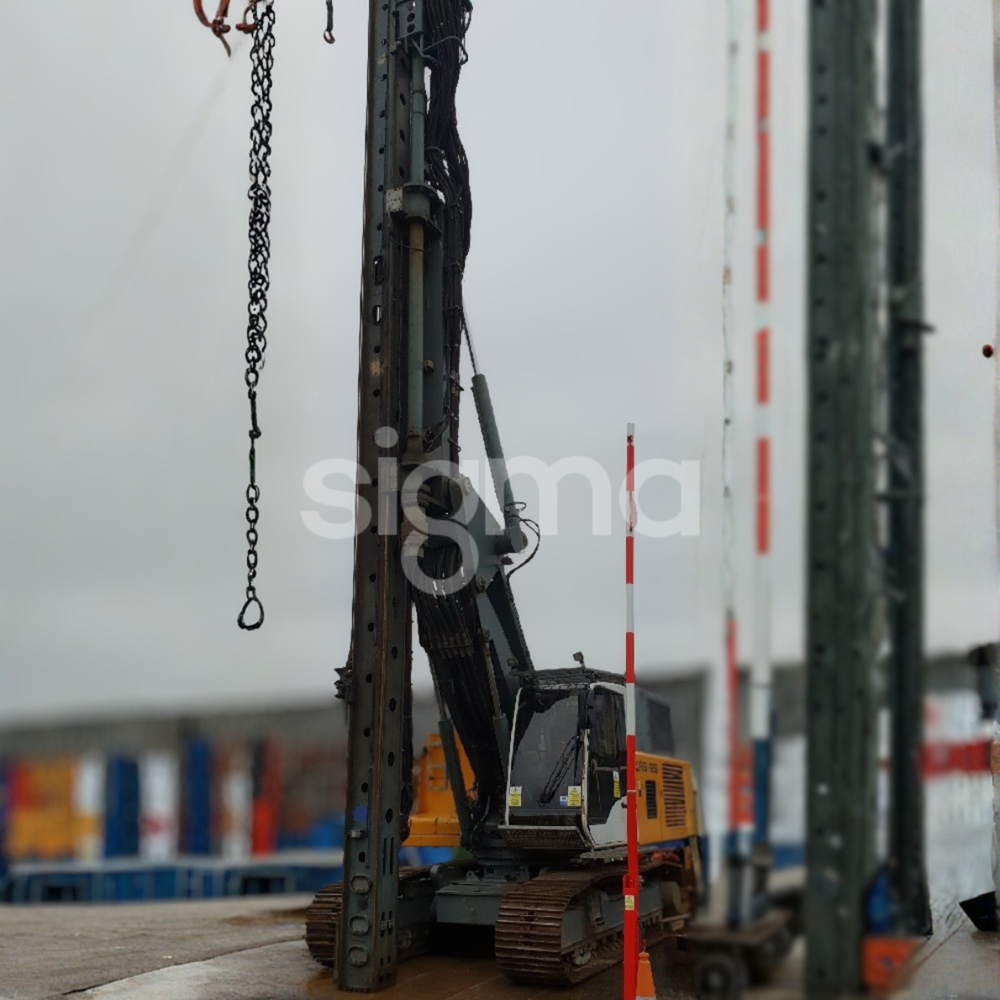

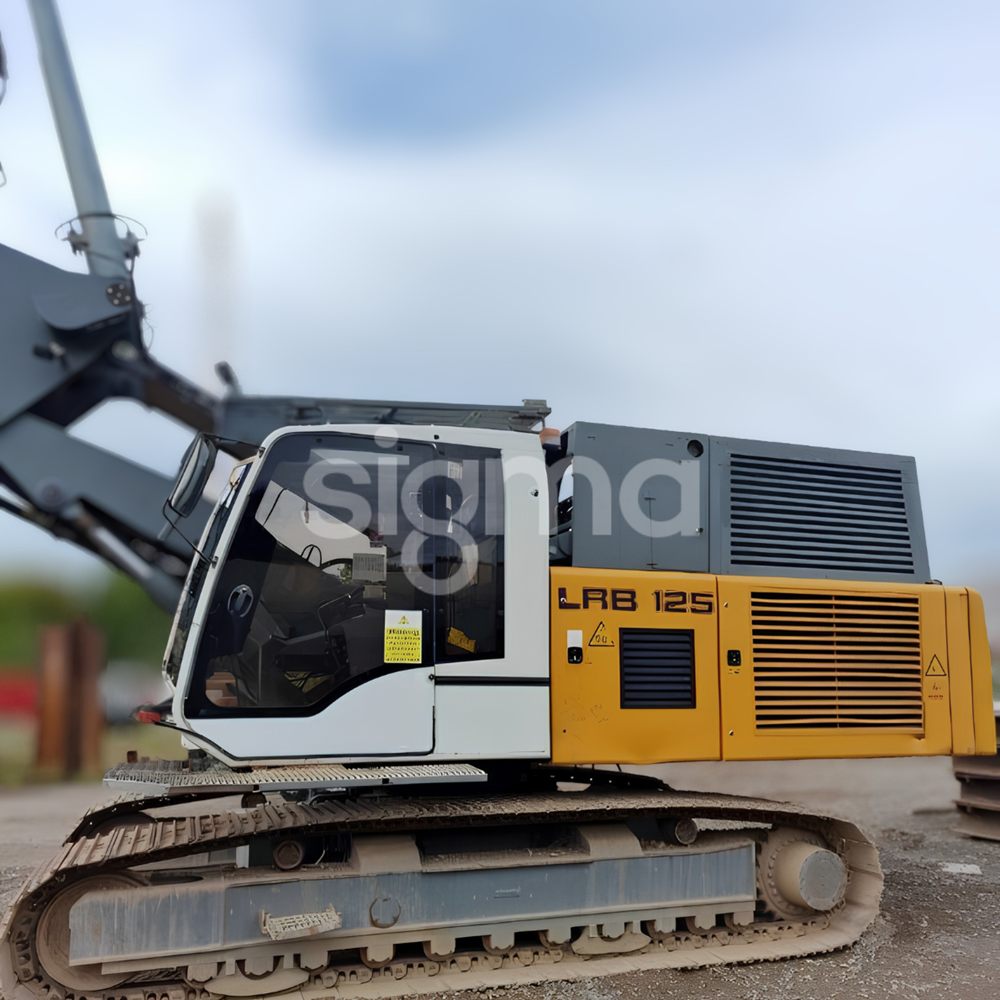

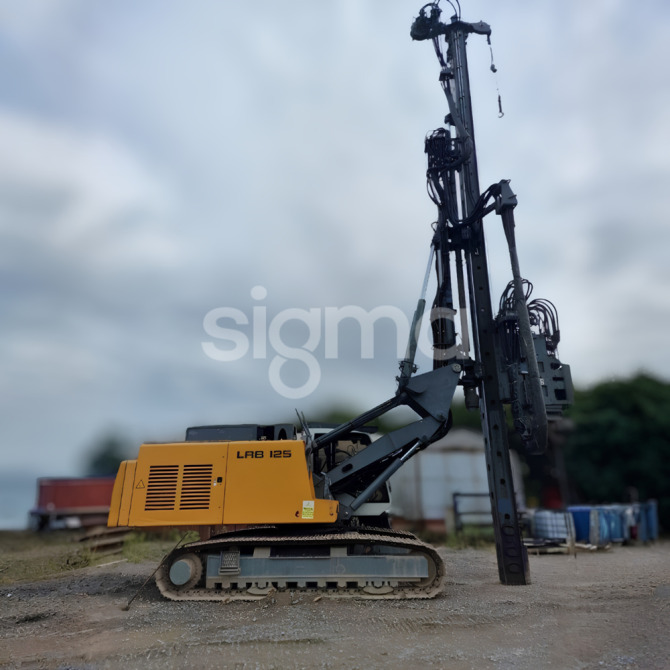

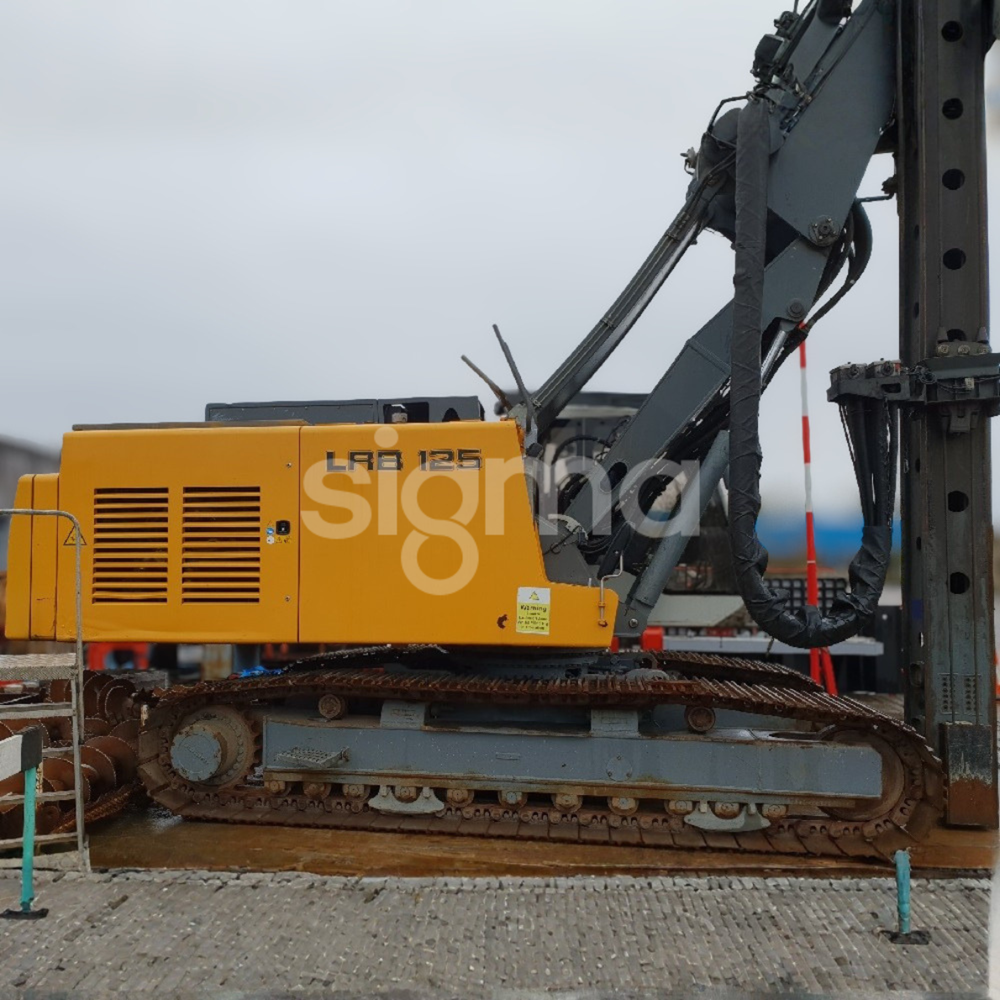

LRB125 XL
Year of manufacture:
2008

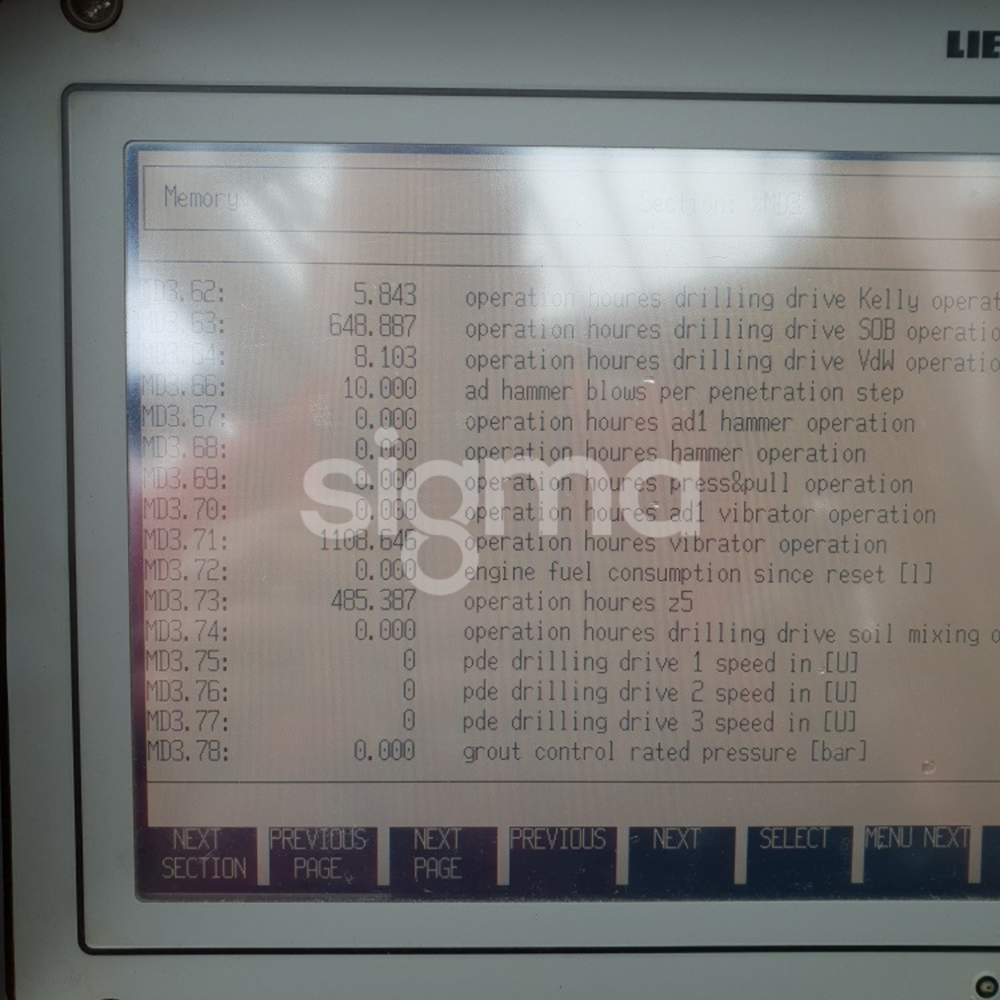

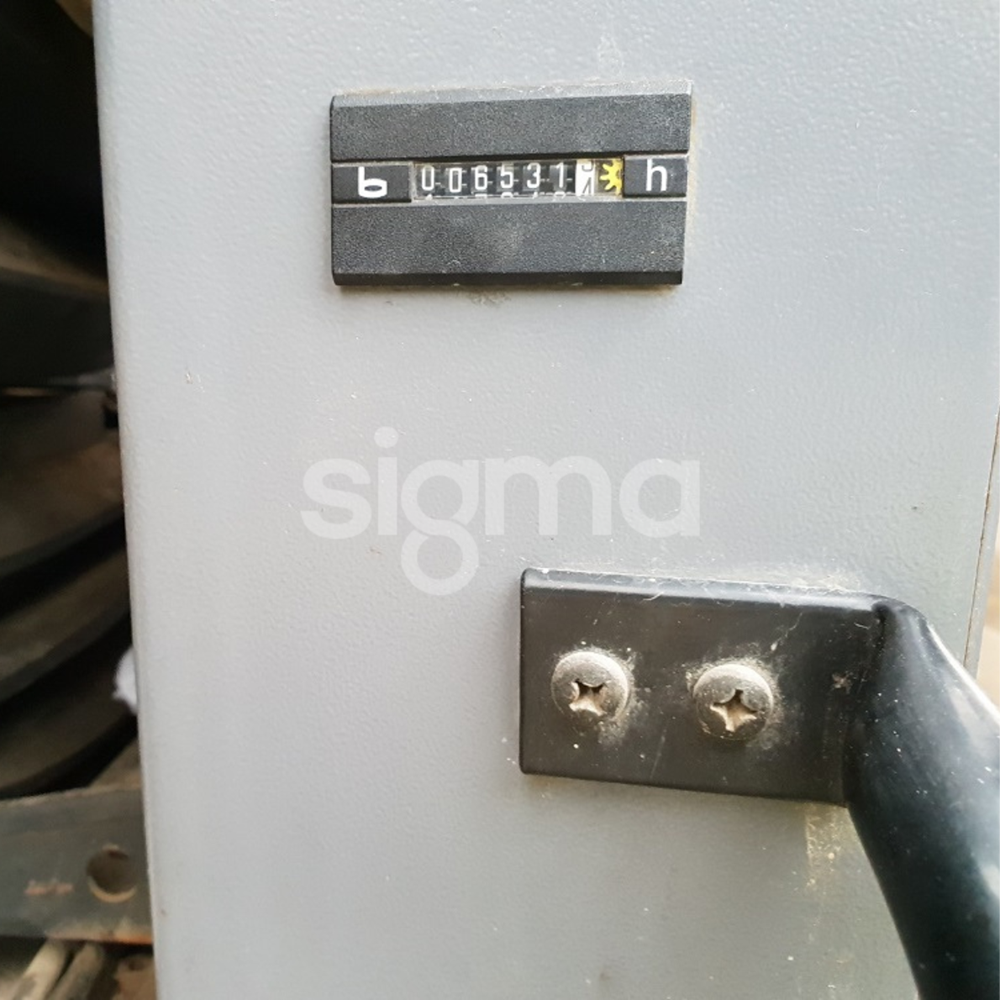

Working hours:
6820
Machine specs
Working hours: 6,820
CE Mark: Yes
Sheet Piling Performance
- Max sheet pile length: 15.5m
- Max sheet pile weight: 6t
- Max pile driving depth:15.5m
Hammer / Driving System

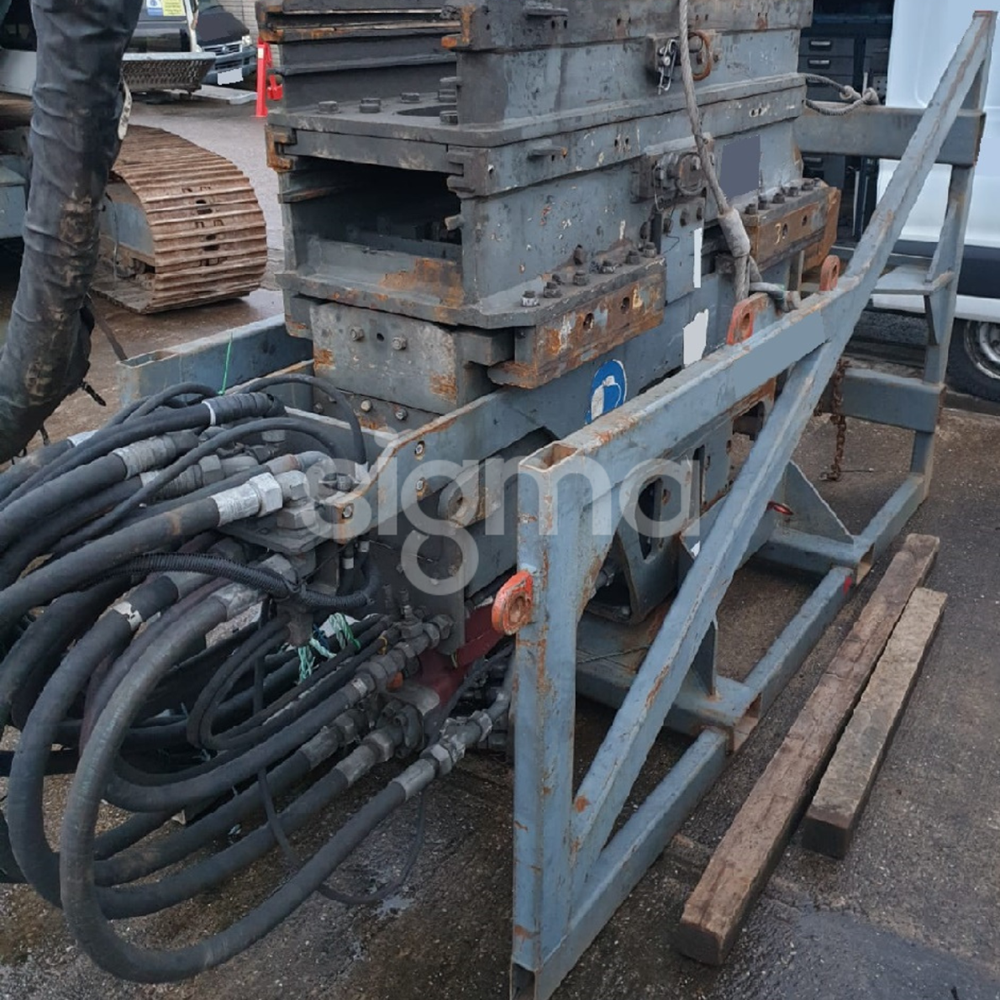

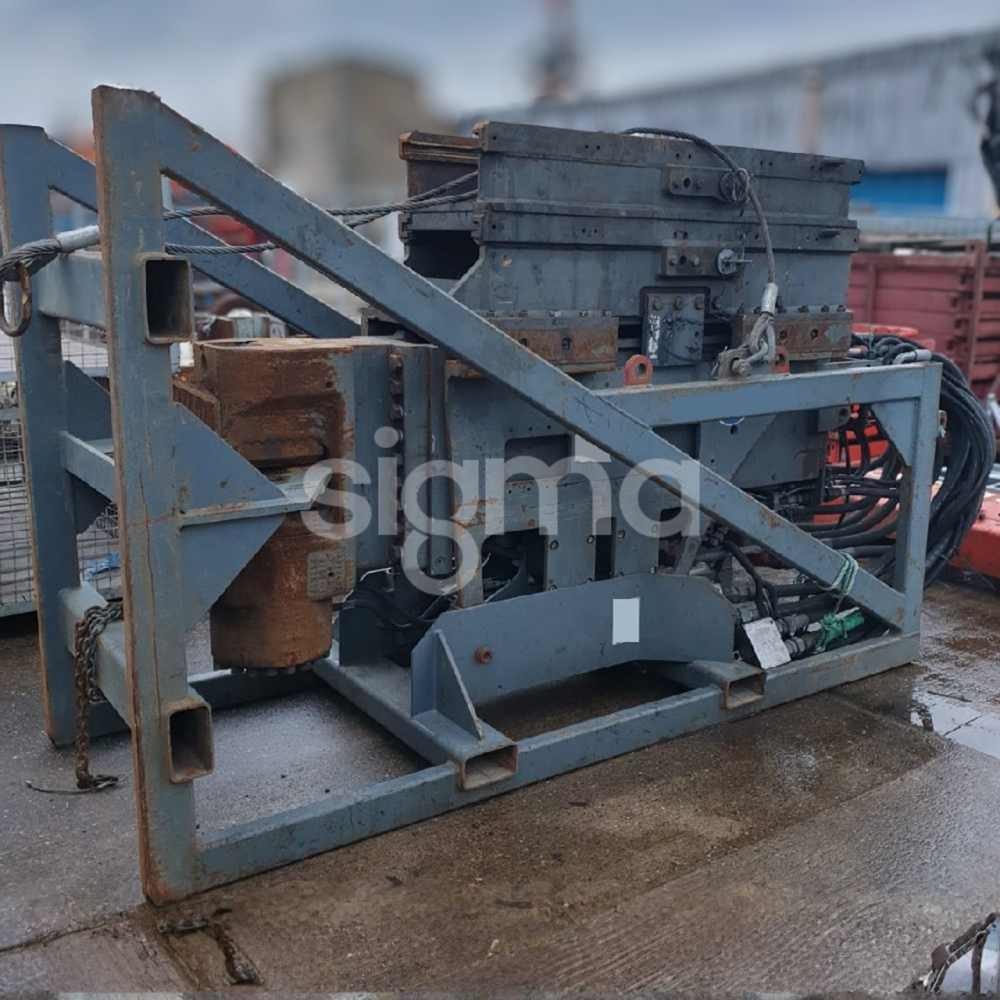

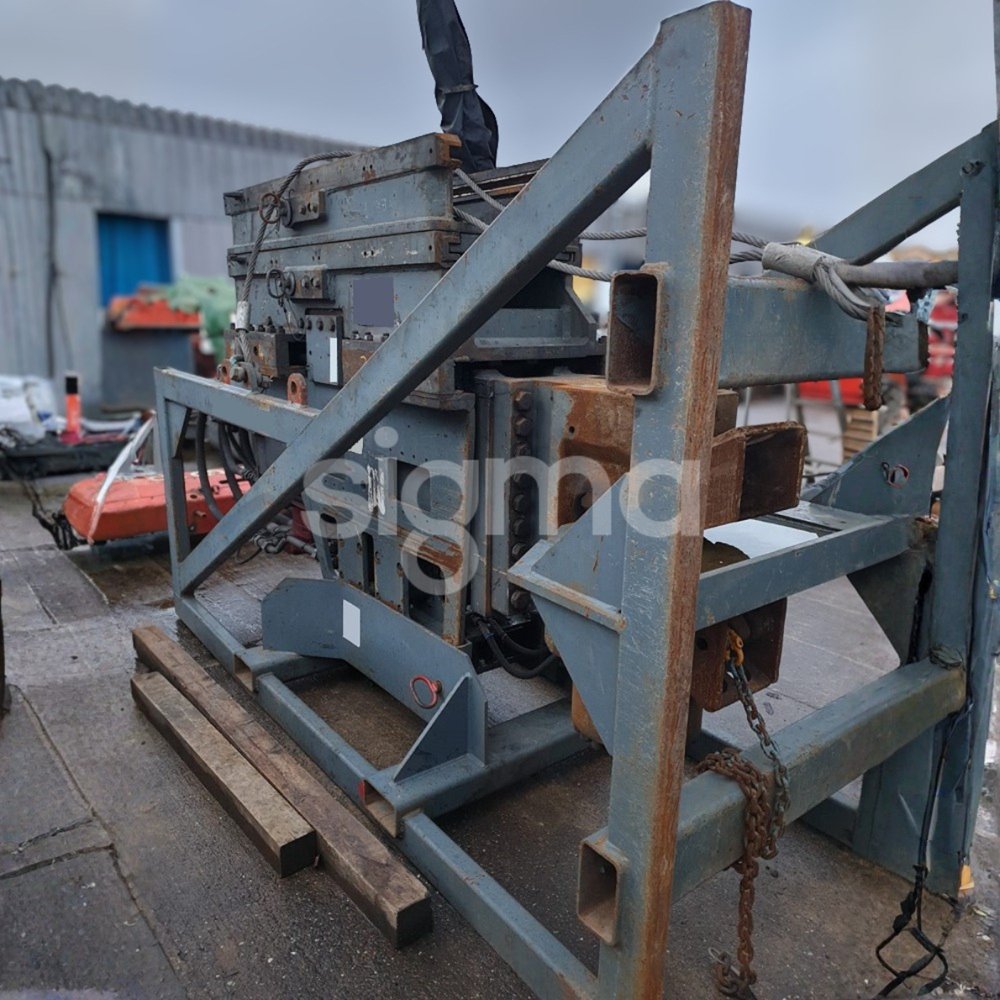

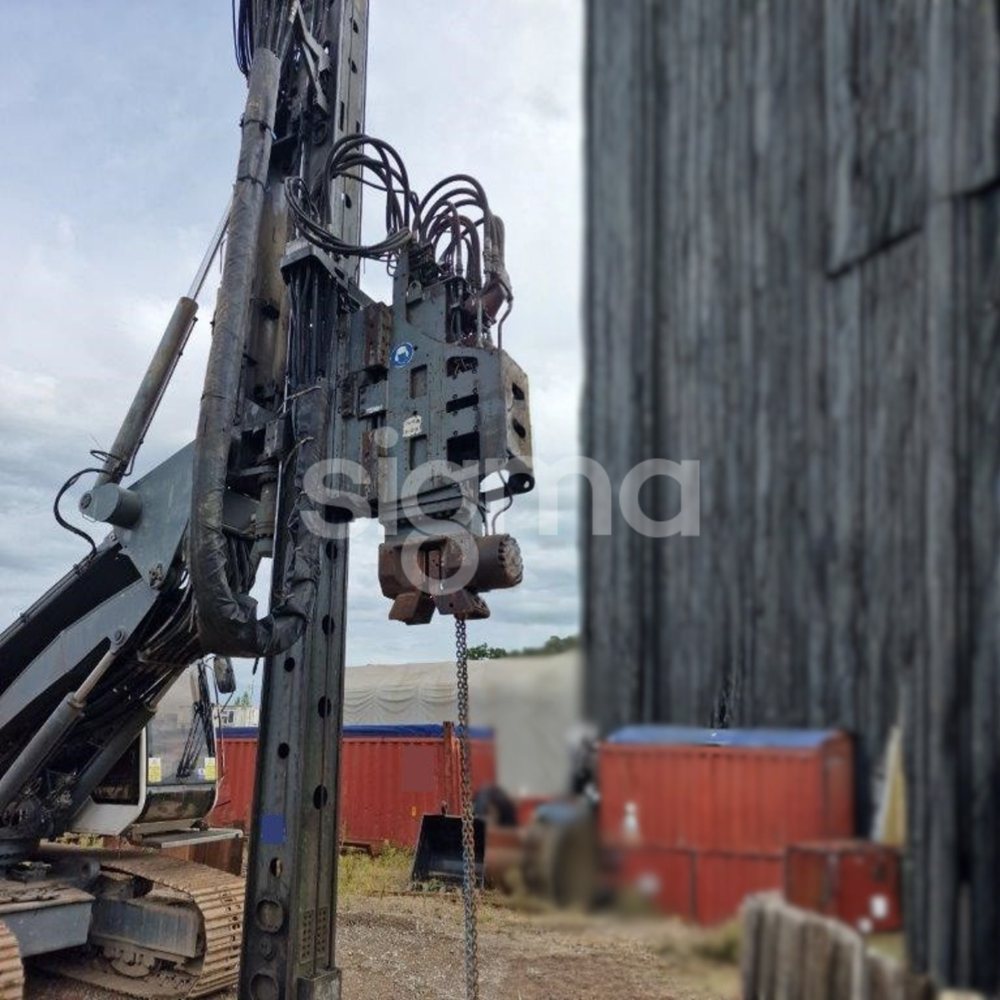

- Hammer type: Vibratory

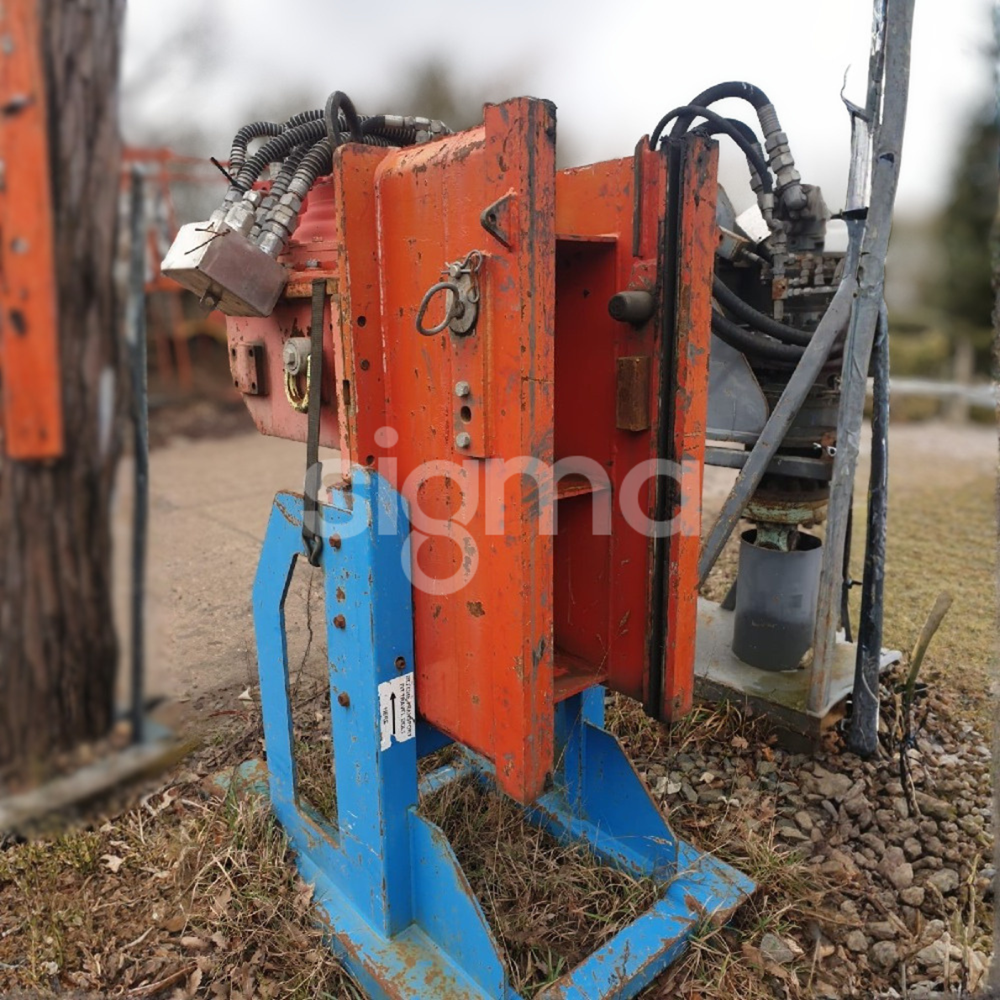

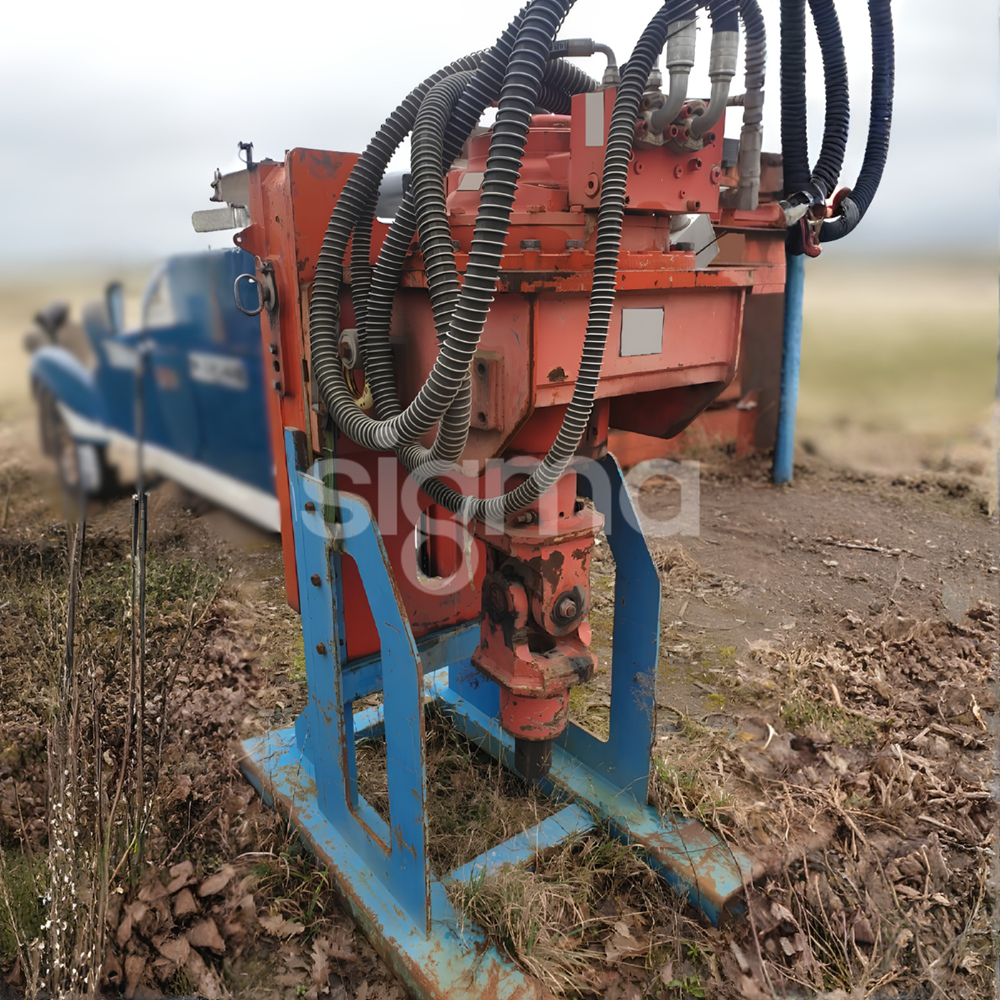

- Hammer make & model: Muller 1100H
Leader / Mast
- Leader length: 12.5m
- Leader inclination: ±1:20 lateral; 1:6 forward; 1:3 backward
- Max leader load (t):12
Winches & Handling
- Main winch capacity: 200 kN
- Auxiliary winch capacity: 50 kN
Power Unit
- Engine make & model: Liebherr D 9508 A7
- Engine power: 450 kW (603 hp) @ 1,900 rpm
- Emission standard: Tier 3 / Stage III
- Fuel tank capacity: 870l
Hydraulic System
- Hydraulic system type: Load sensing
- Main pumps: 2 × 350 + 2 × 190 L/min
- Max operating pressure: 350 bar
- Hydraulic oil capacity (L): 825
