Overview
Machine location:
Europe
Stock number:
PF 40909
Categories:
Hammer Piling Rigs
Manufacturer:
Liebherr
Model:
LRH100
Year of manufacture:
2010
Working hours:
10968
Key features
- Hammer piling rig with 10,968 hours
- CE marked
- Max pile length: 19.5 m
- Max pile weight: 8 t

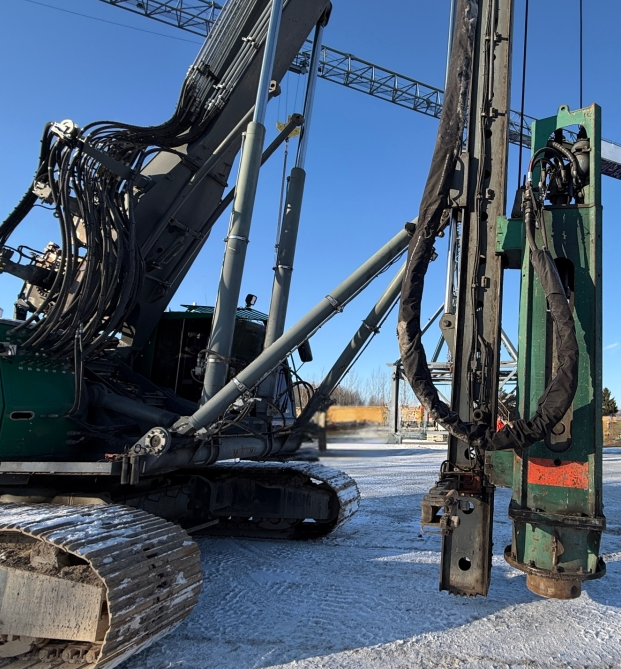

- Liebherr H40/5 hydraulic hammer + 2 t extension
- Impact energy: 40 + 15 kNm
- Blow rate: 40–80 bpm
- Hammer weight: 8,100 kg / 10,400 kg
- Leader length 24 m
- Main winch: 104 kN
- Auxiliary winch: 80 kN
- Pile handling winch fitted
- Liebherr D 936 A7-04 engine – 250 kW / 335 HP (Tier 4)

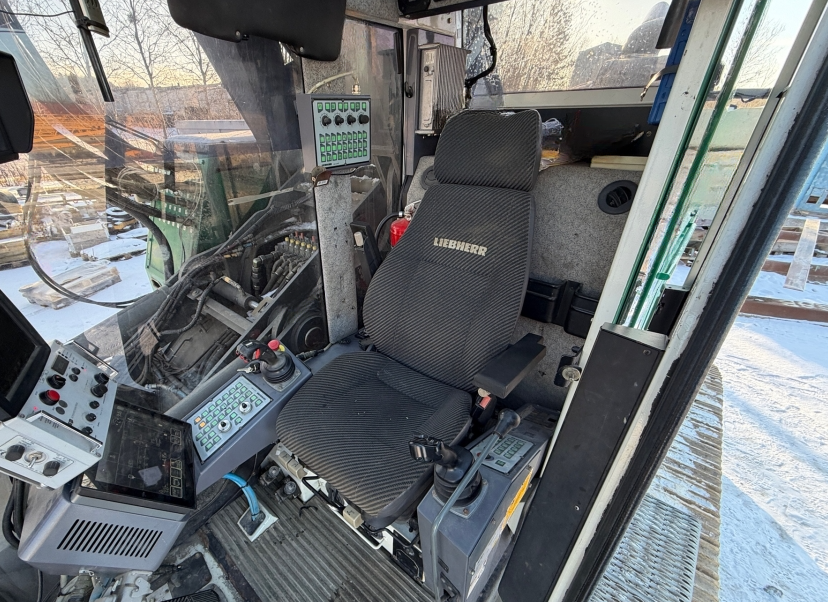

- Enclosed cab with LEPC control system & remote monitoring
- Crawler undercarriage – 900 mm track shoes
- Operating weight: 65 t (incl. hammer)
- Transport dimensions: 3,490 mm (W) × 3,000 mm (H) × 16,040 mm (L)
