Overview
Machine location:
Europe
Stock number:
PF 41024
Categories:
CFA Piling Rigs
Manufacturer:
Llamada
Model:

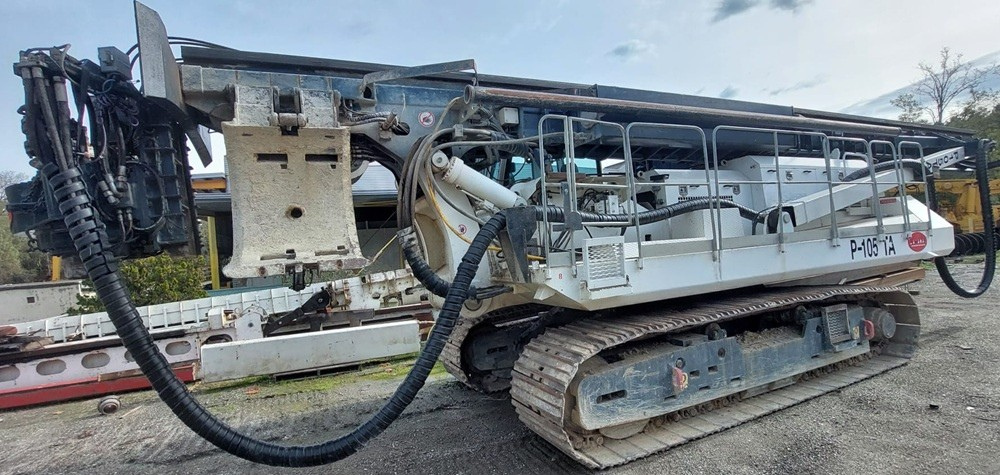

P105 TA
Year of manufacture:
2021
Working hours:
2366
Key features
- Hydraulic CFA Drilling rig with 2366 working hours
- Maximum Drilling Depth: 24 meters.
- Drilling Auger Diameter: Between 400 mm and 1000 mm
- Engine Manufacturer/Model: CATERPILLAR C7.1 Turbo Diesel
- Engine Output: 205 kW (278 HP) @ 2,000 rpm.

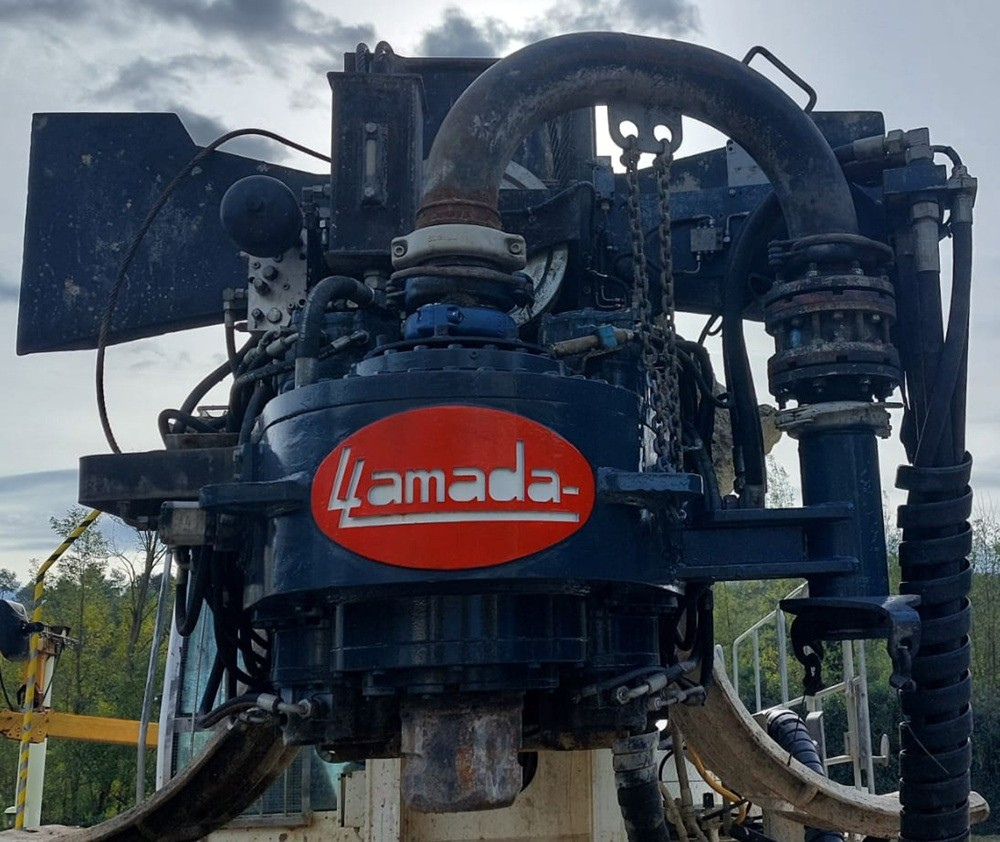

- Adjustable rotary head with three gear/speed positions:
- Position 1 (High Torque / Low Speed): 127.5 kNm at 0–12 RPM
- Position 2 (Medium Torque / Medium Speed): 95.1 kNm at 0–17 RPM
- Position 3 (Low Torque / High Speed): 63.7 kNm at 0–25 RPM
- Lutz Dialog MX system
- 3-ton crowd winch
- 1,000 mm hydraulic auger guide
- 400, 500, 600, 700, and 800 mm auger shells
- Star-type auger cleaner
- 49-point central lubrication system
- Air conditioning
- Rigid concreting pipe running along the mast
- Hydraulic high-pressure washing system with water tank
- Additional lighting
- 4 panoramic cameras
- Linkage mechanism that enables horizontal movement of the mast foot.
