Overview
Machine location:
United States
Stock number:
PF 41030
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:

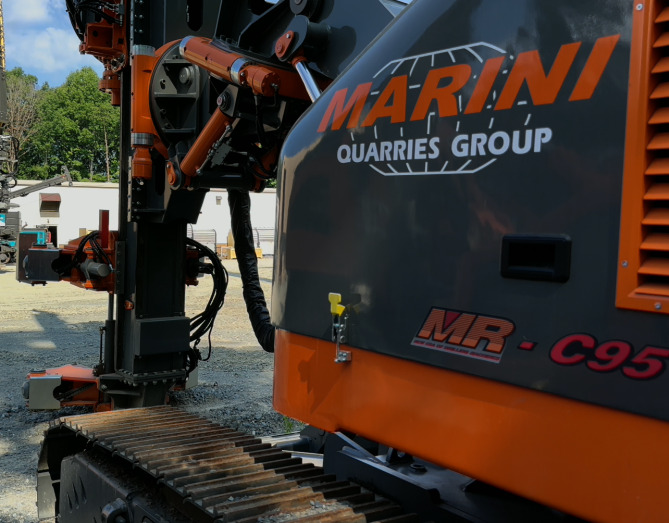

Marini
Model:
MR-C 95
Year of manufacture:
2022
Working hours:
1097
Key features
- Mini piling and anchoring rig with 1,097 hours
- Rotary head
- Model: Krupp HR 50
- Max torque: 18.3kNm
- Rotation speed: 120 rpm
- Stroke: 7,498mm
- Clamps
- Max clamping force: 300 kNm
- Max stroke: 500mm
- Max rod diameter: 70 - 365 mm
- Breaking torque: 47 kNm
- Casing extractor force: 100 kNm
- Engine
- Make: JOHN DEERE
- Model: 4045HFC04
- Power: 104 kW (140 HP) @ 2,200 rpm
- Fuel tank: 170l
- Engine Stage: Stage 4
- Winches
- Main winch:
- Line pull: 9 kN
- Rope length: 20 m
- Rope diameter: 8mm
- Main winch:
- Hydraulic system
- Pump capacity: 240 l/min
- Max pressure: 200 bar
- Hydraulic oil tank capacity: 350 litres
- Transport Dimensions and weight
- Length: 10,400 mm
- Width: 2,500 mm
- Height: 3,300 mm
- Track shoe width: 400 mm
- Weight: 23,500 kg
