Overview
Machine location:
Europe
Stock number:
PF 41011
Categories:
Sheet Piling Rigs
Manufacturer:
Movax
Model:
SGL-15
Year of manufacture:
2024
Working hours:
4
Key features

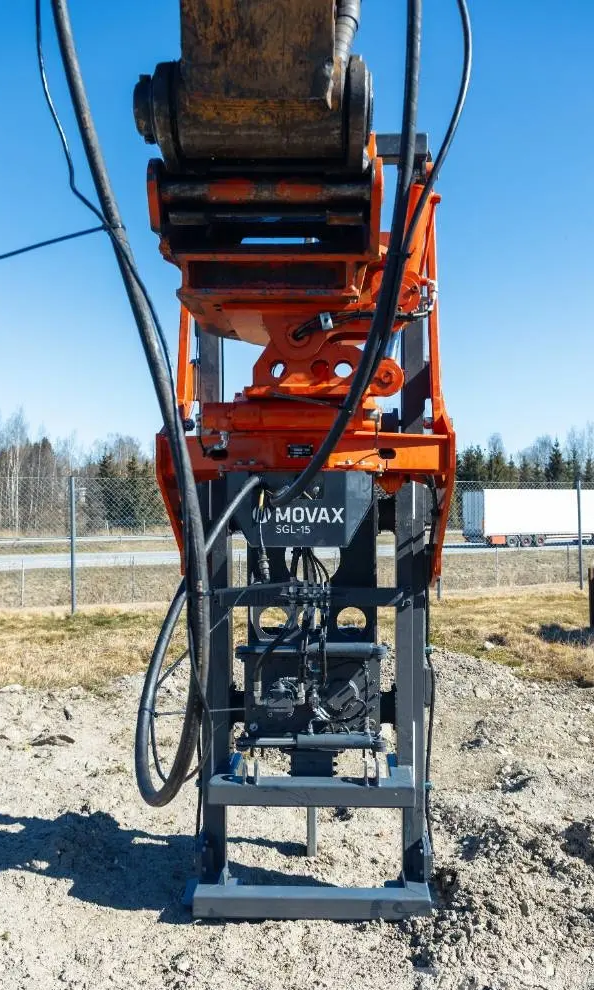

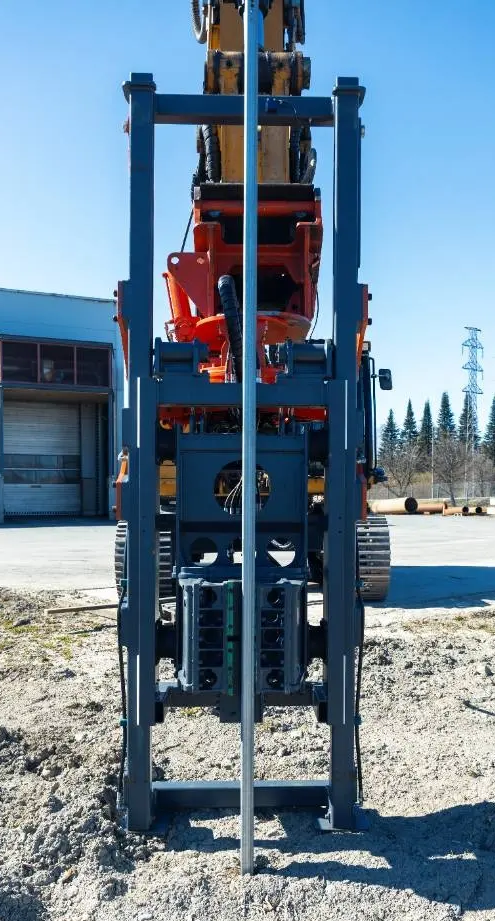

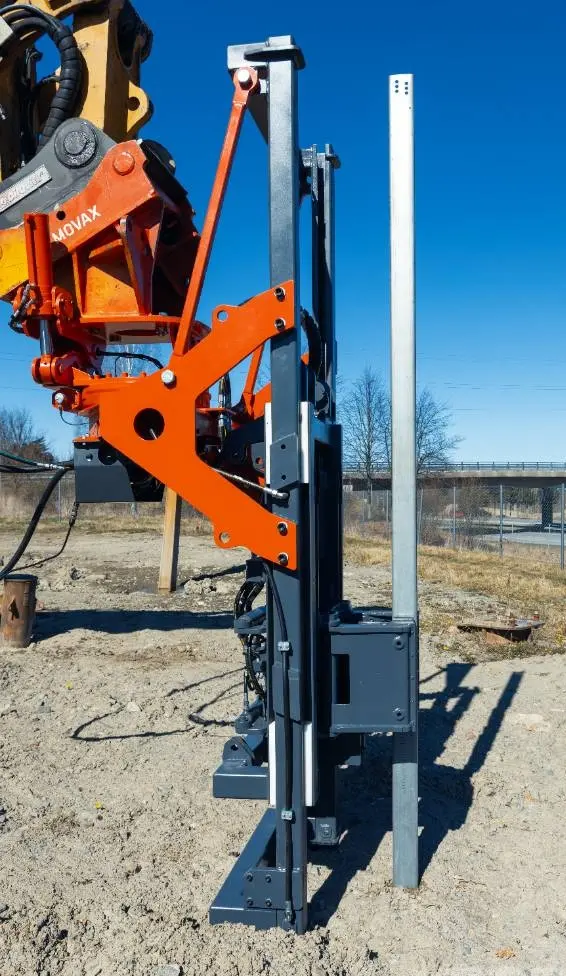

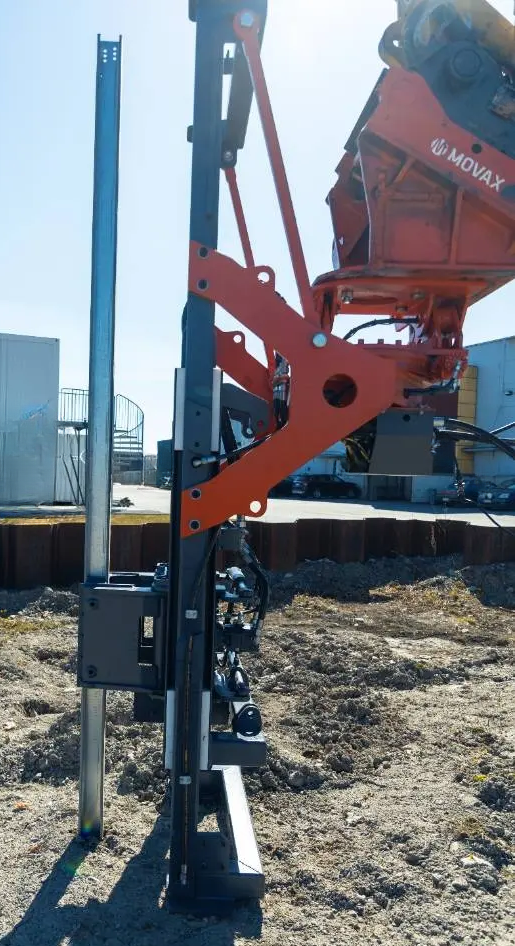

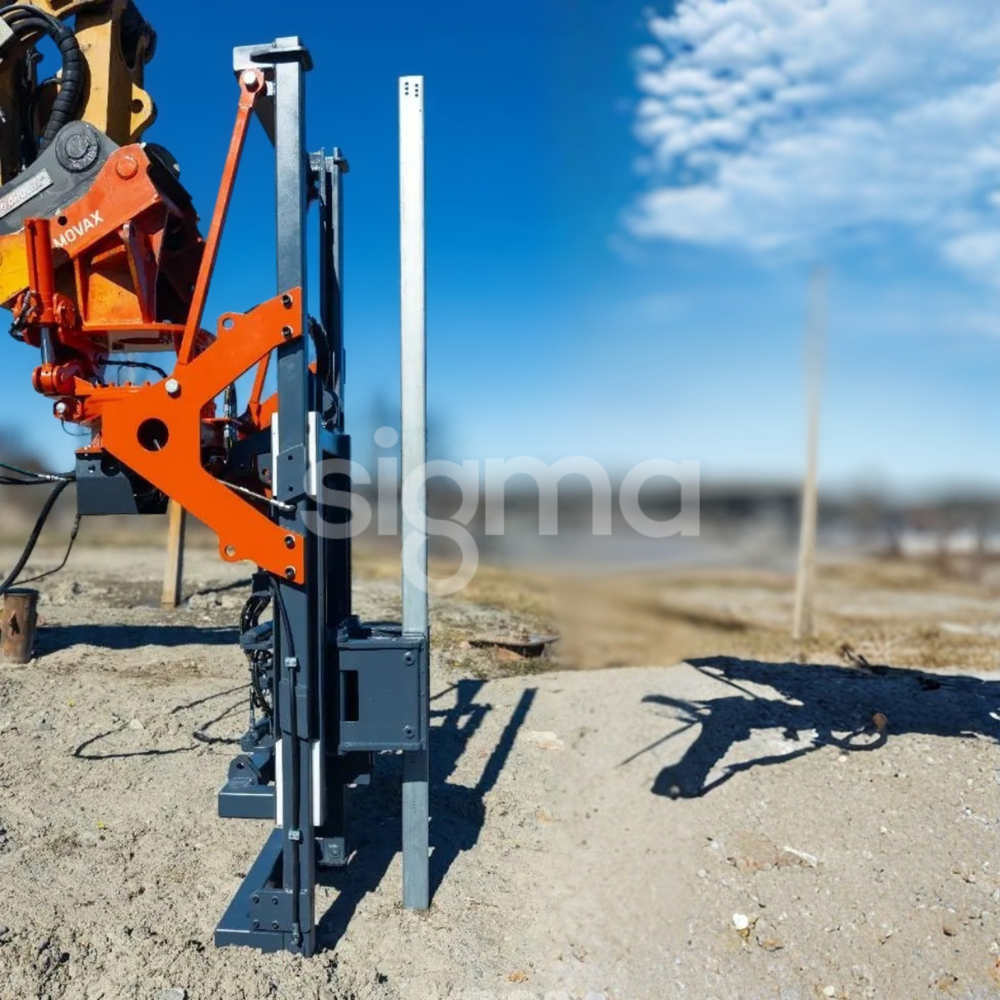

- Sheet piling rig with 4 hours
- Vibratory unit
- Vertical stroke: 1,500 mm
- Frequency: 2,300–3,000 1/min
- Eccentric moment: 1.6 kgm
- Maximum centrifugal force: 150 kN
- Swing / tilt angle: 200° / 30
- Maximum pile length & weight: 9 m × 400 kg
- Excavator requirements
- Suitable excavator class: 8–21 t
- Minimum engine power: 38 kW
- Maximum return pressure: 5 bar
- Pressure setting: 300 bar
- Dimensions and weight
- Weight: 1,200 kg
- Height: 3,505 mm
- Depth: 1,480 mm
- Width: 1,125 mm
