Overview
Stock number:
PF 39939
Manufacturer:
Nippon Sharyo
Model:
RT-200A III
Year of manufacture:
2010
Working hours:
3083
Key features

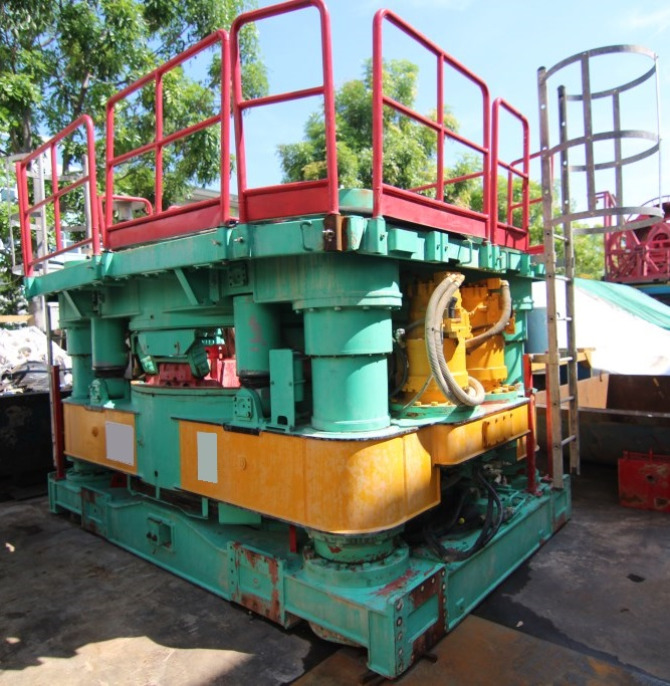

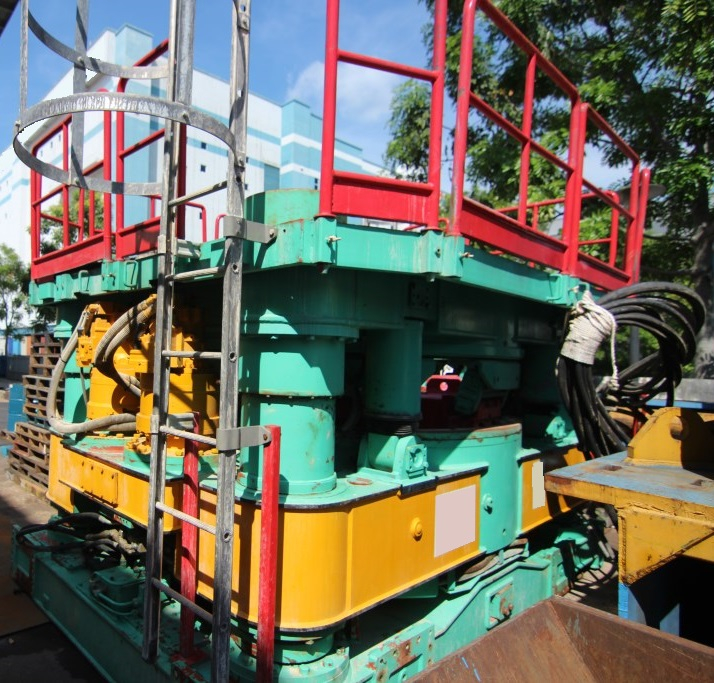

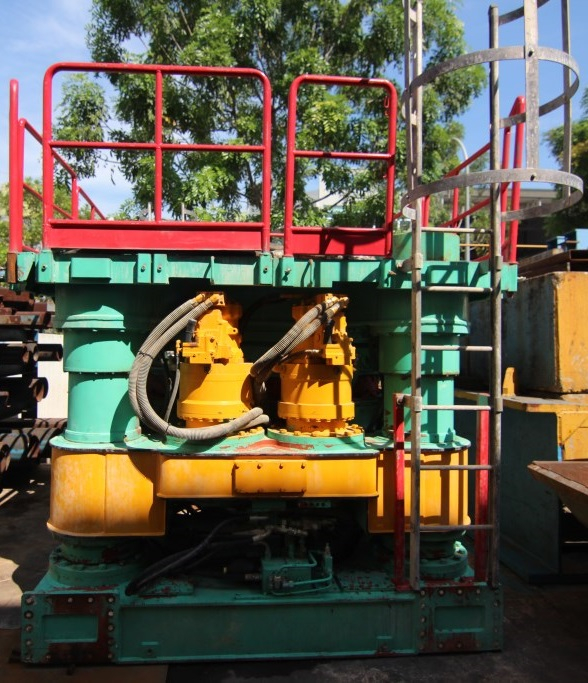

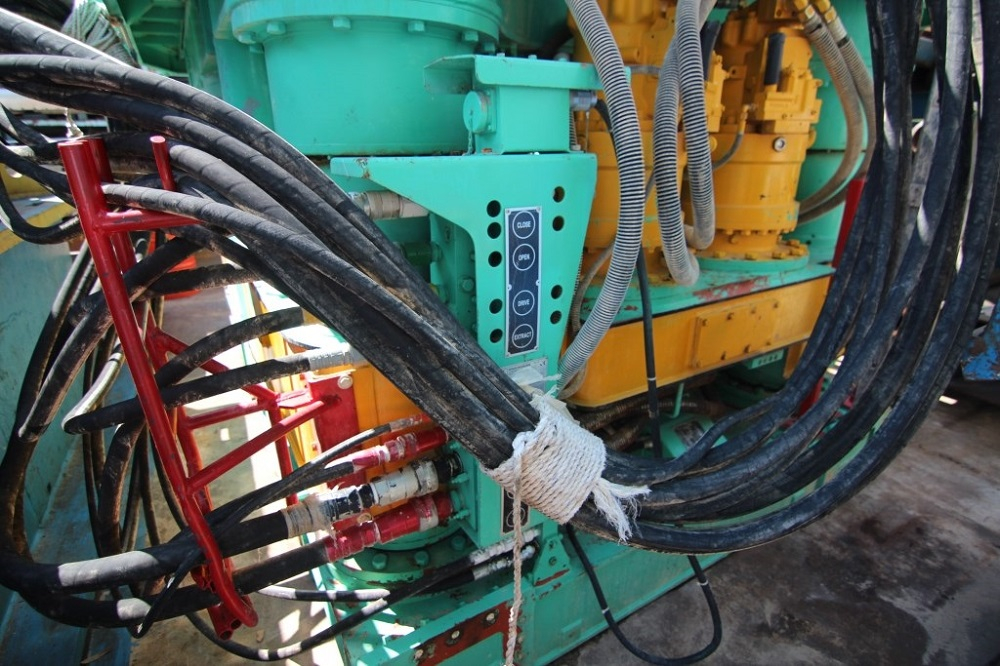

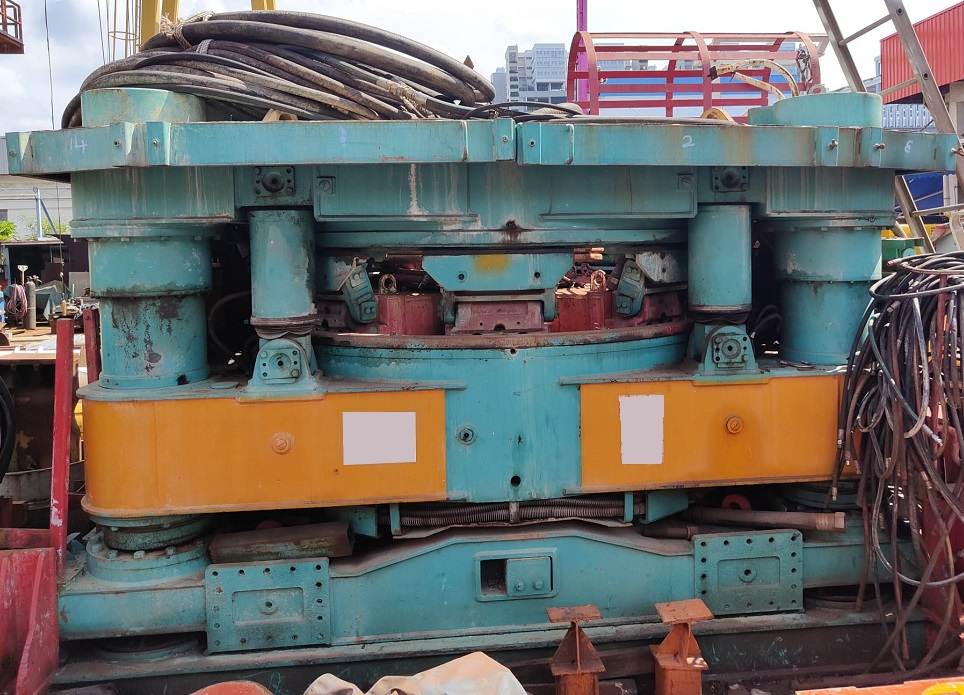

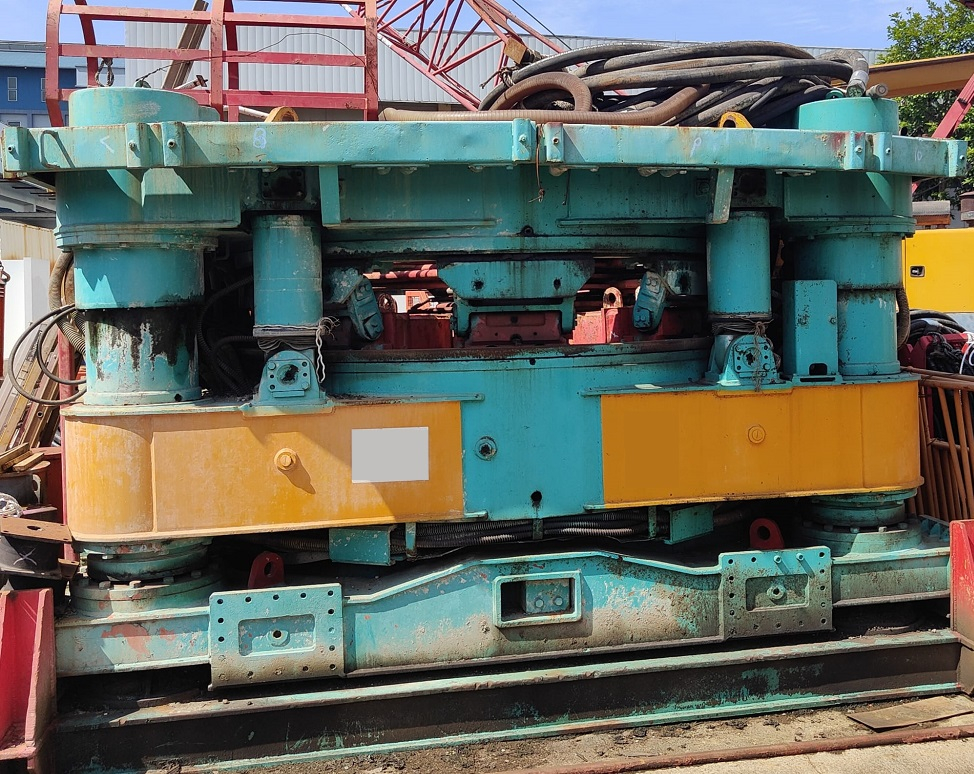

- Casing Rotator

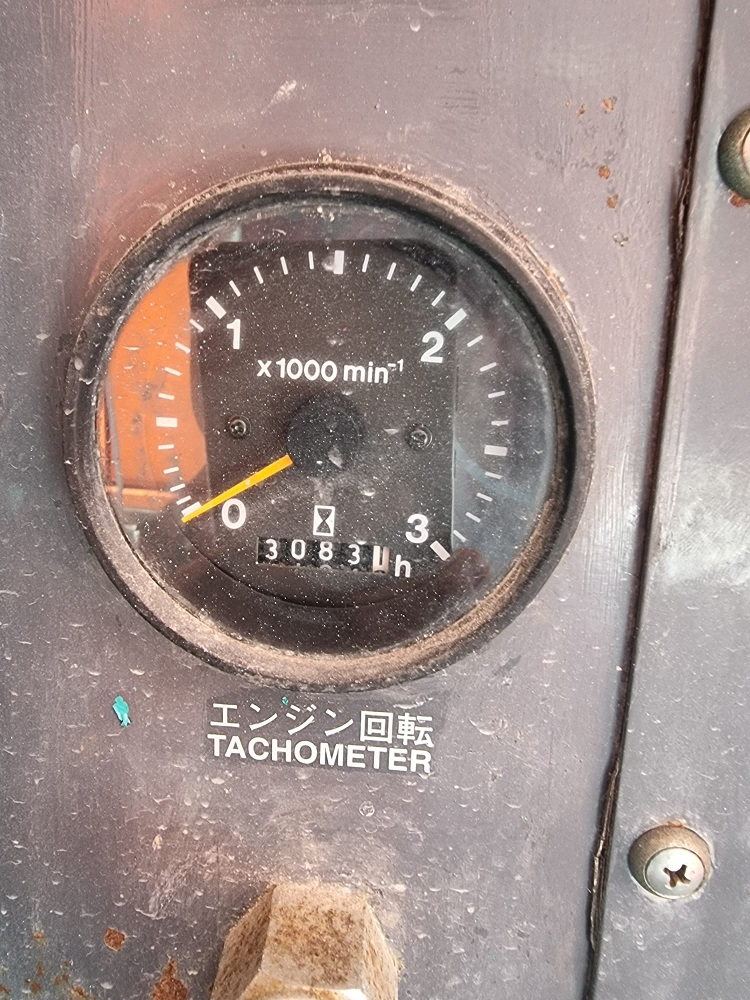

- 3083 hours

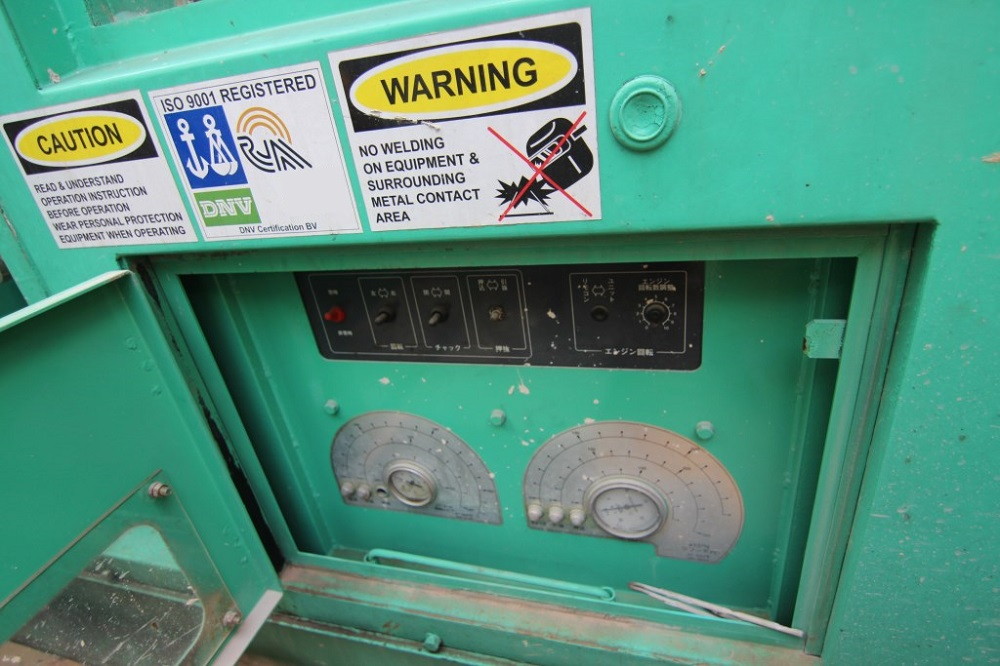

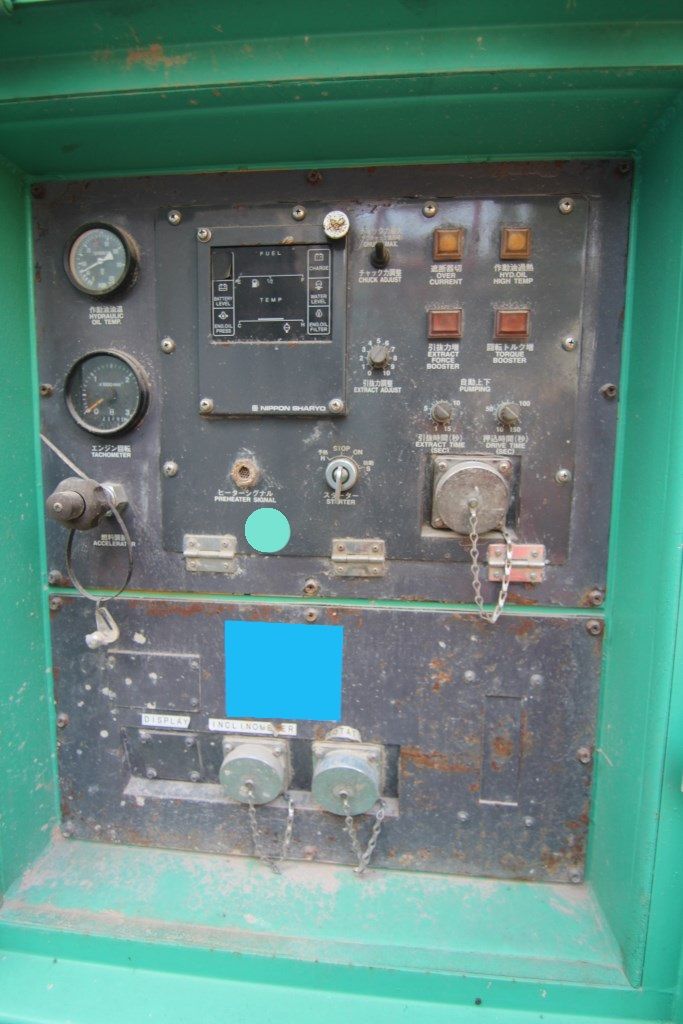

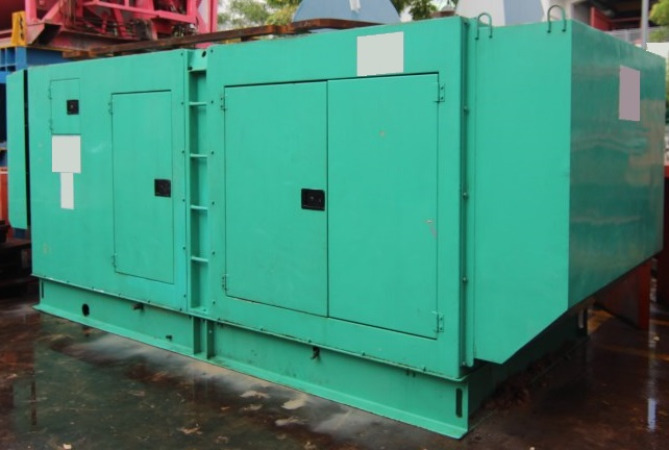

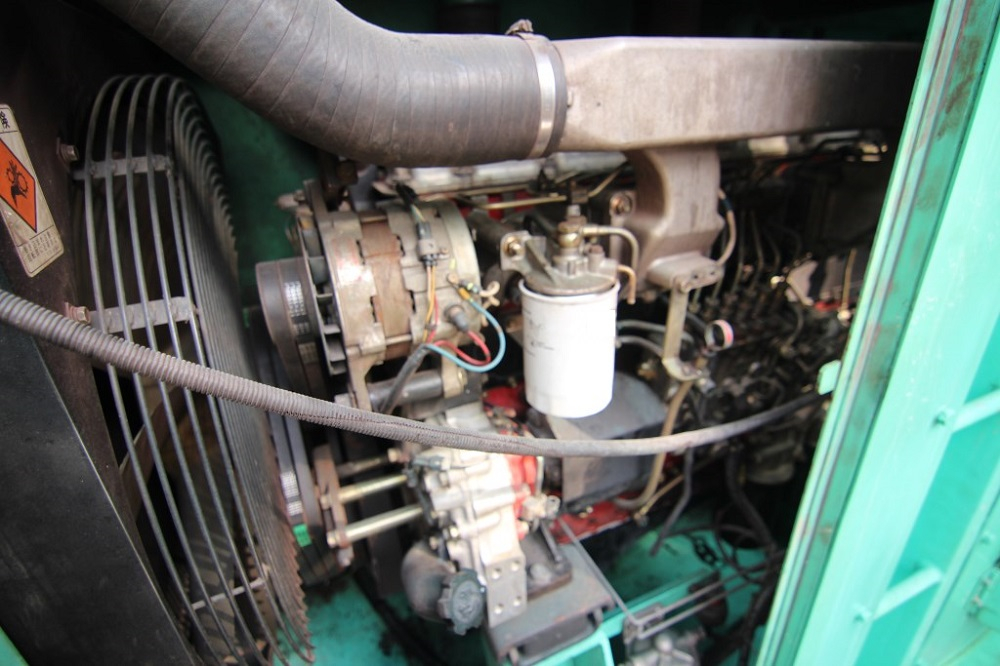

- Comes with Nippon Sharyo RTP-350E-1 Powerpack with Hino K130-UV (direct injection) Engine
- Bore hole diameter 1000 to 2000 mm
- Casing extracting force (Normal) 2600 kN or Emergency use 2990 kN
- Casing driving (push-down) force: 470kN (Hydraulic) plus 220kN (Dead weight)
- Thrust cylinder stroke 750 mm
- Torque (Normal) 2170/1270/740 kN-m or Emergency use 2530 kN-m
- Rotation speed 1.1/1.8/3.1 rpm
- Weight 30 ton plus 7 ton power pack
