Overview
Stock number:
PF 41048
Categories:
Sheet Piling Rigs
Manufacturer:
PTC
Model:
24HFV
Year of manufacture:
2018
Working hours:
132
Key features

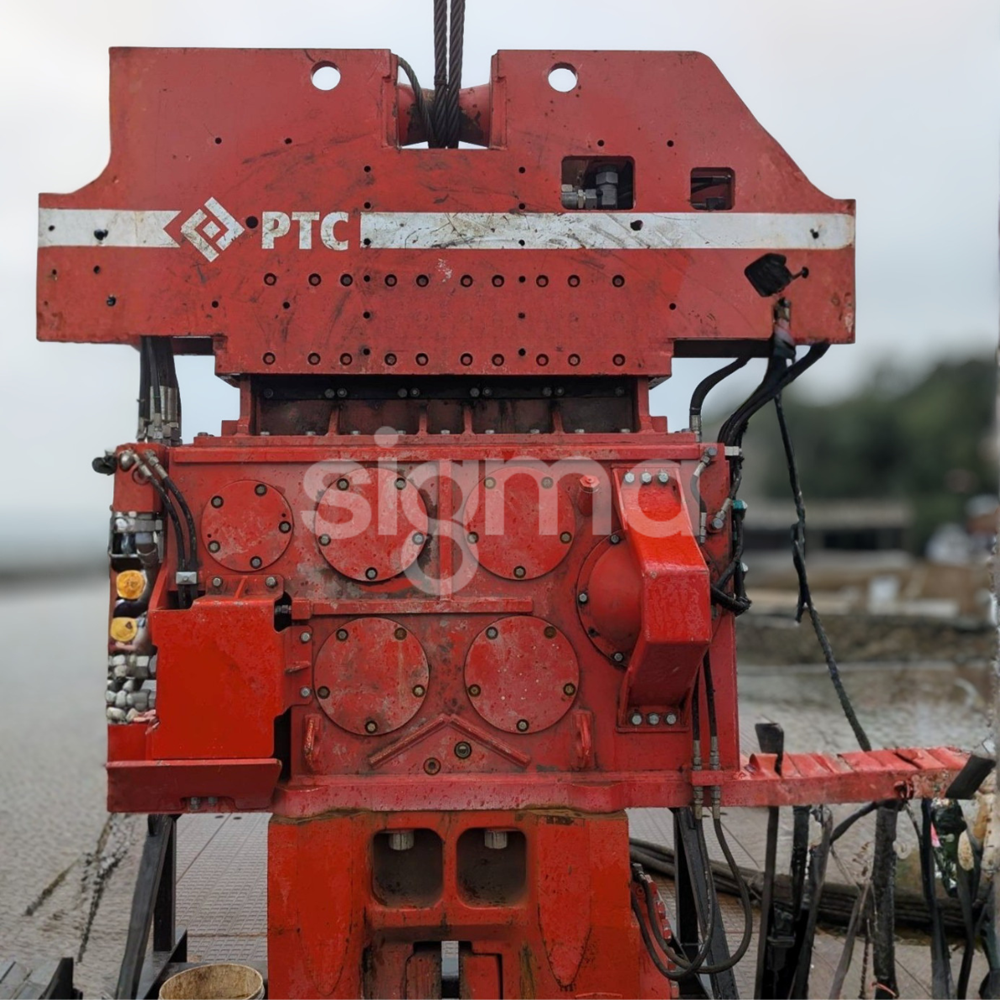

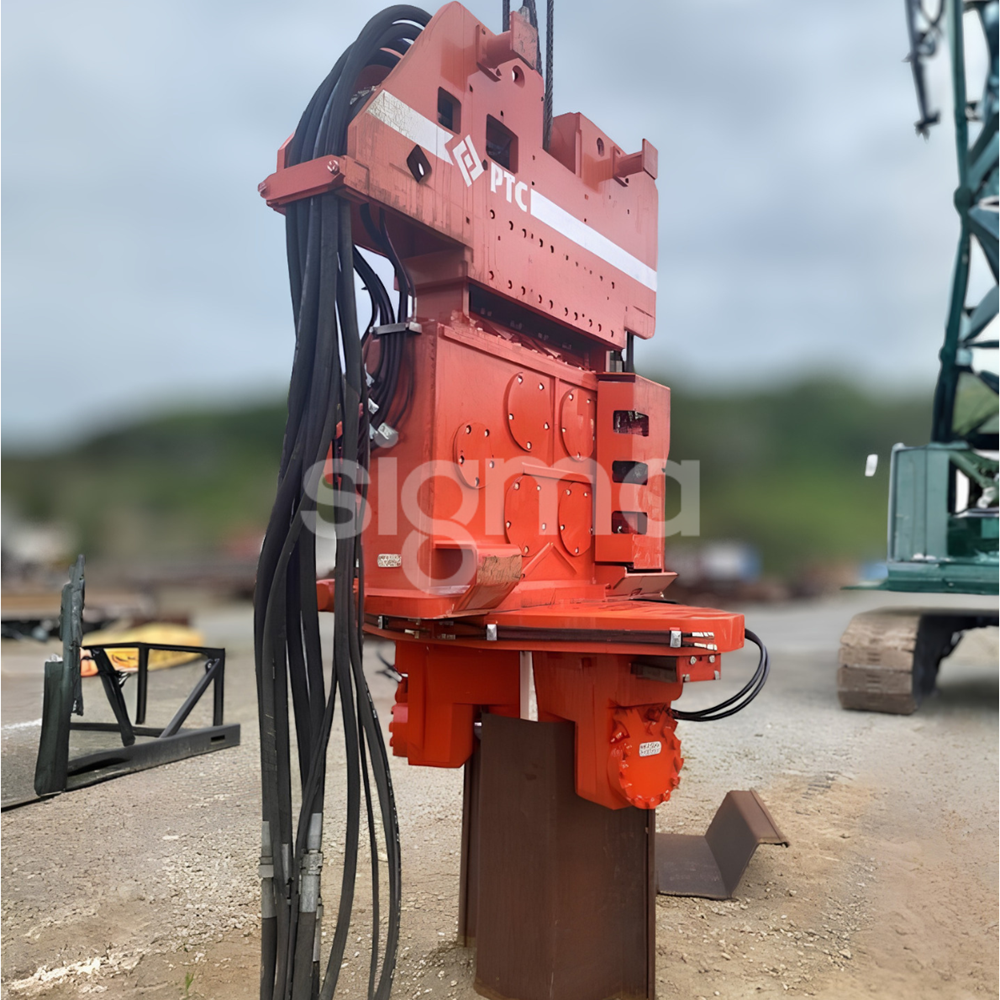

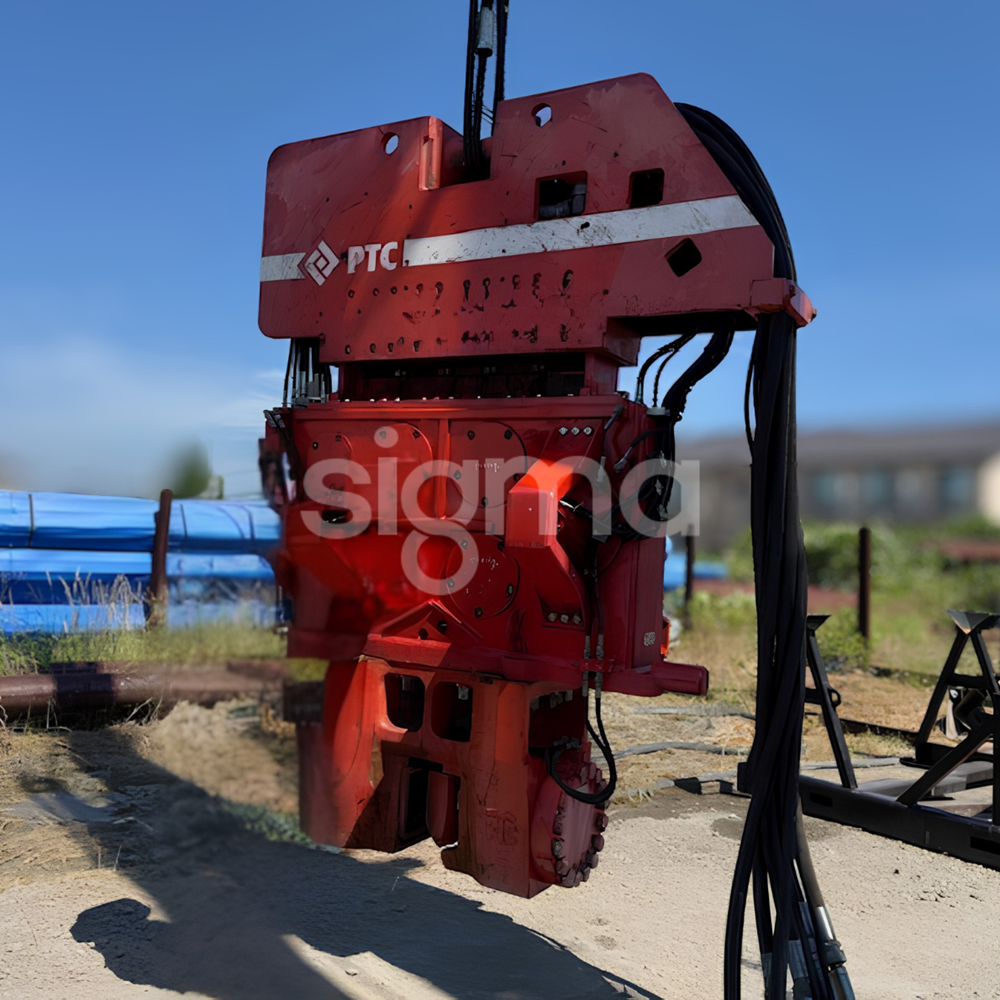

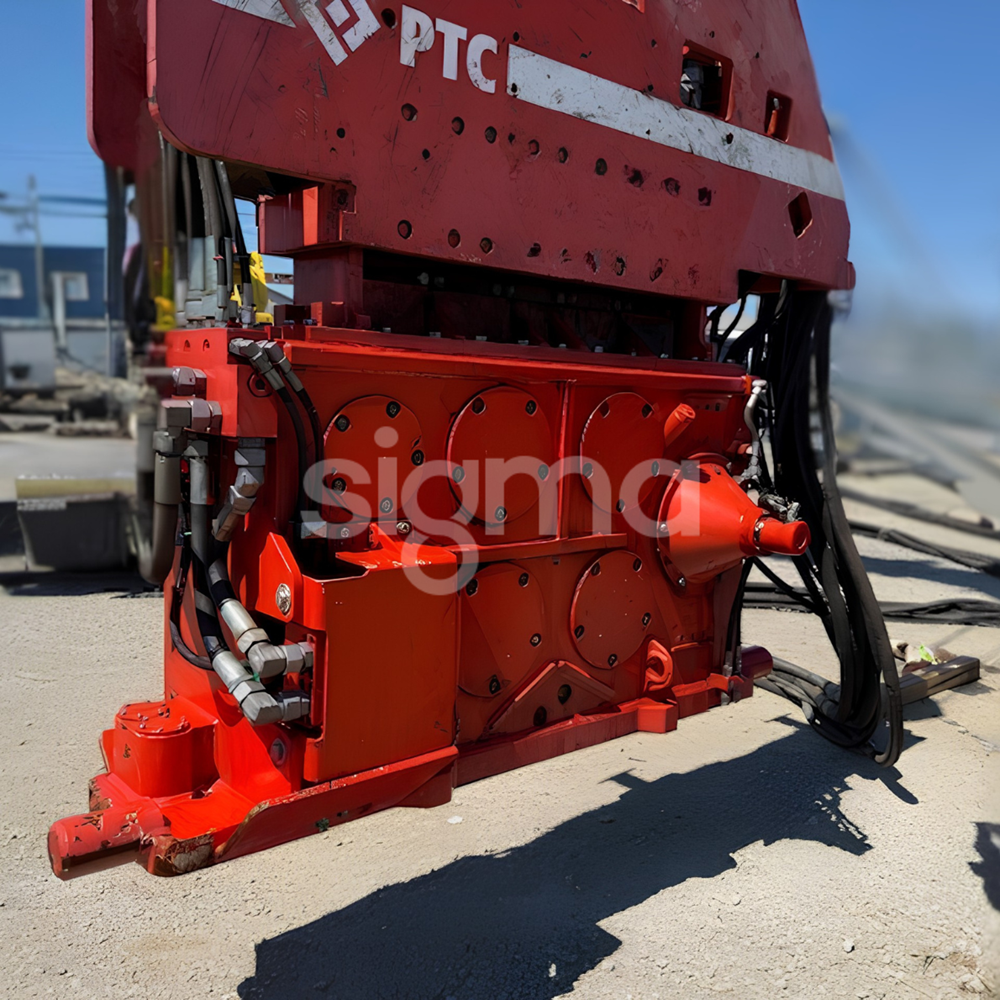

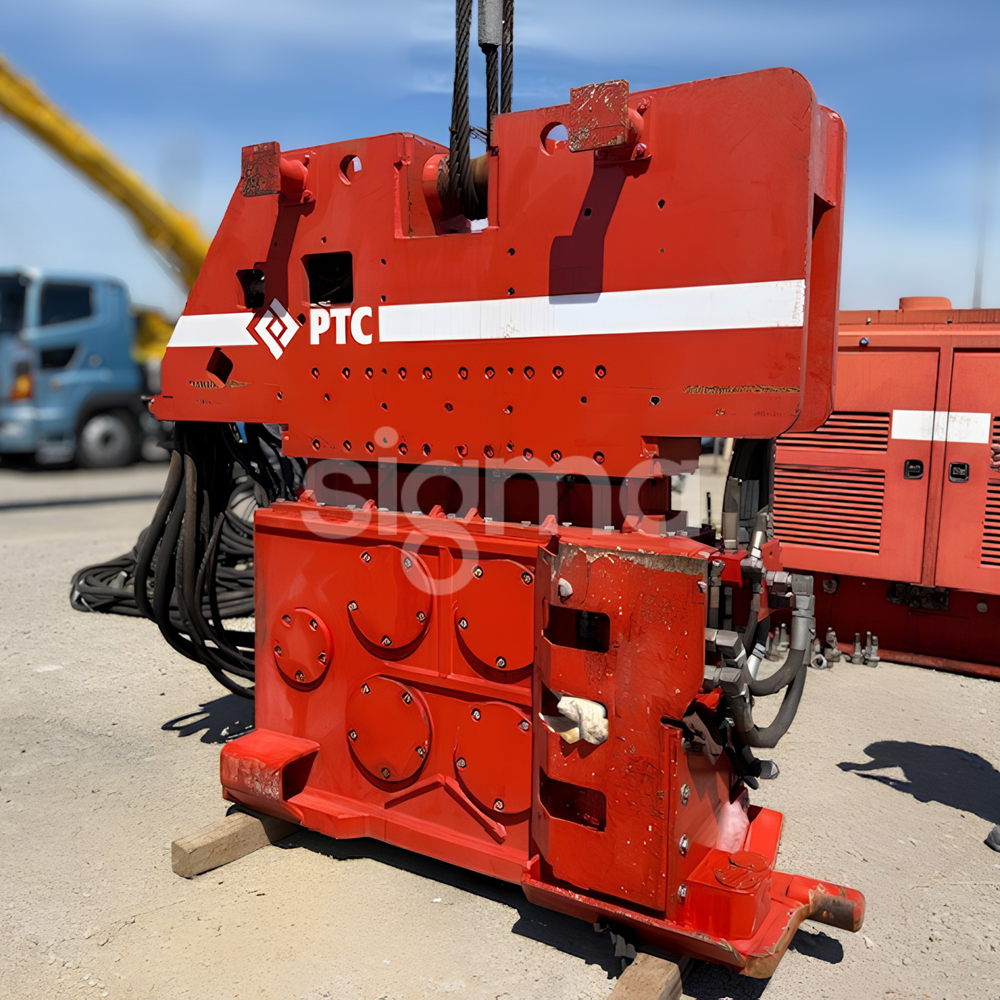

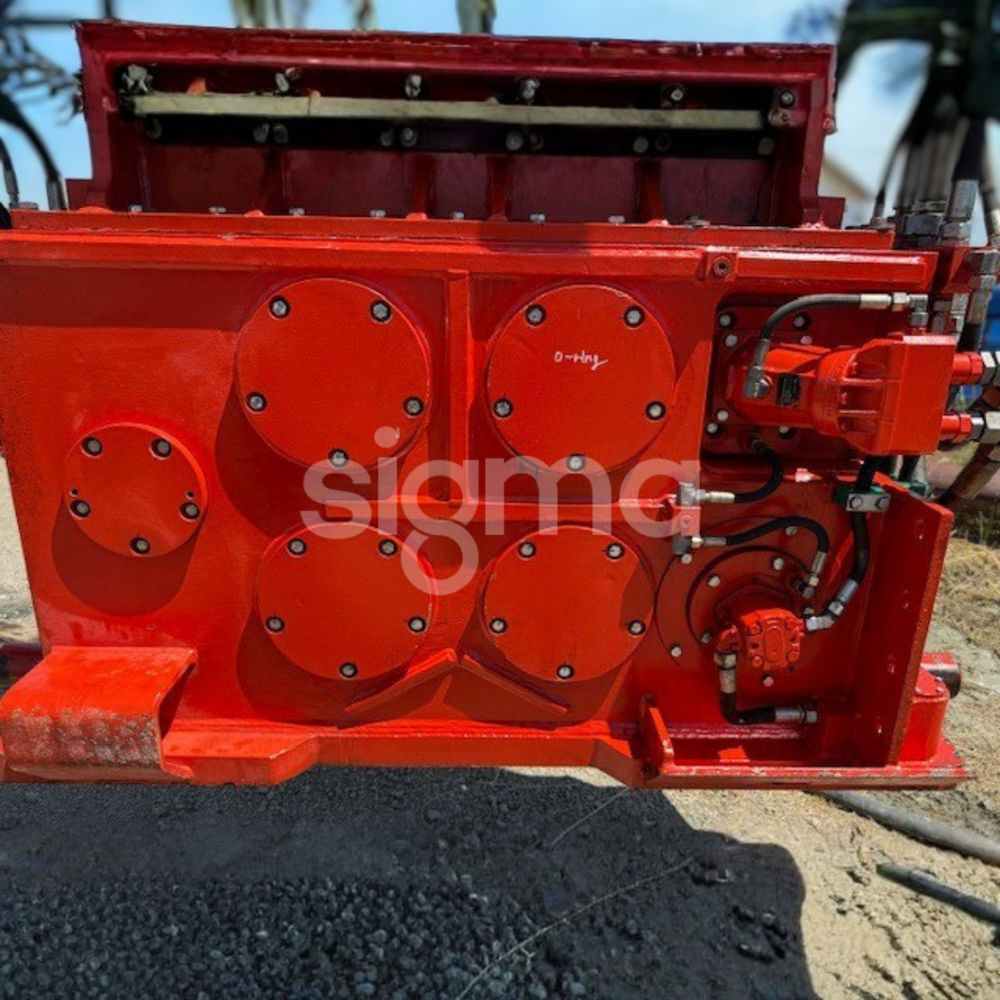

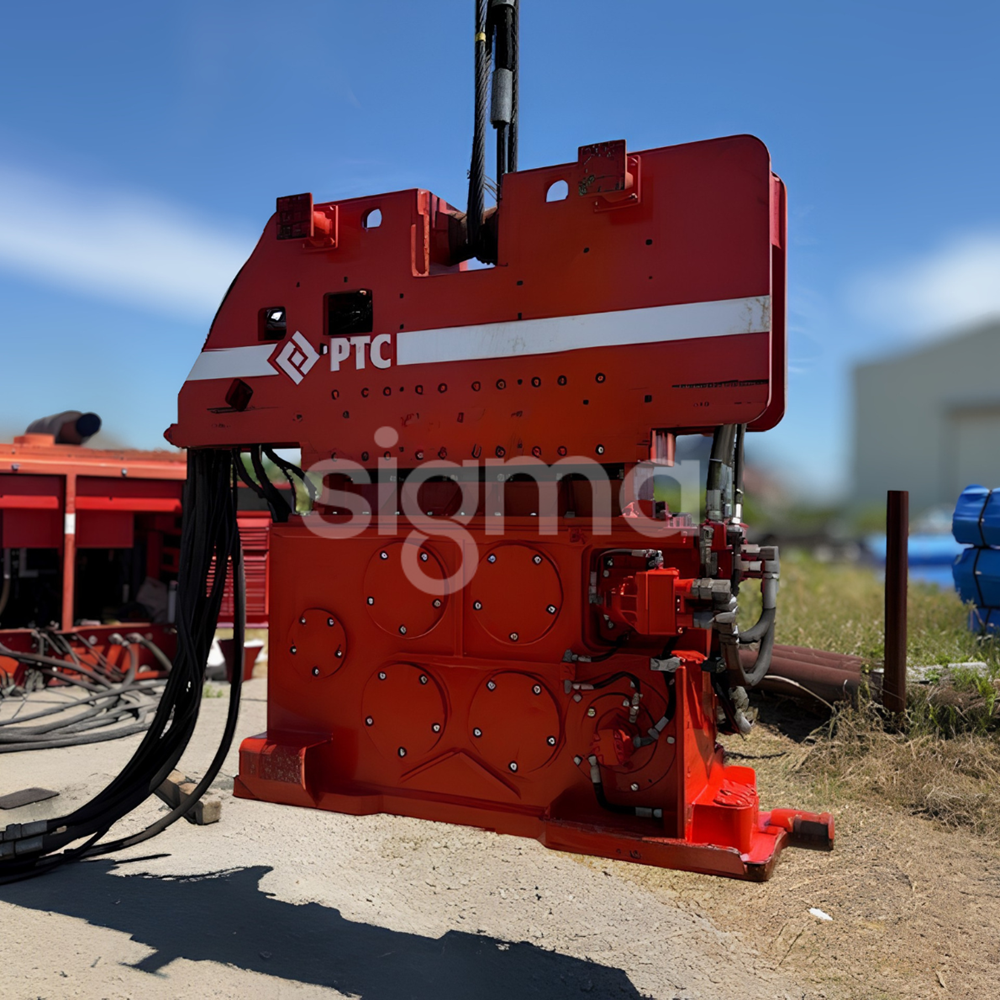

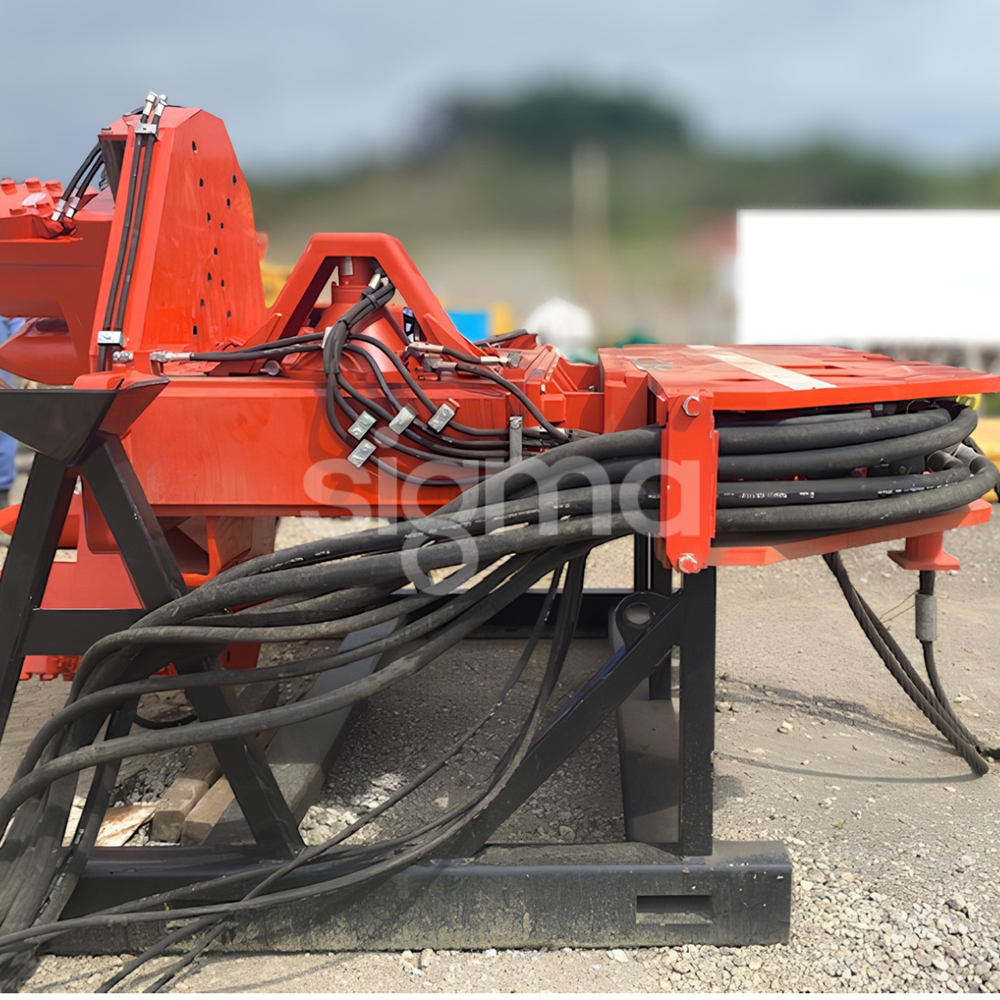

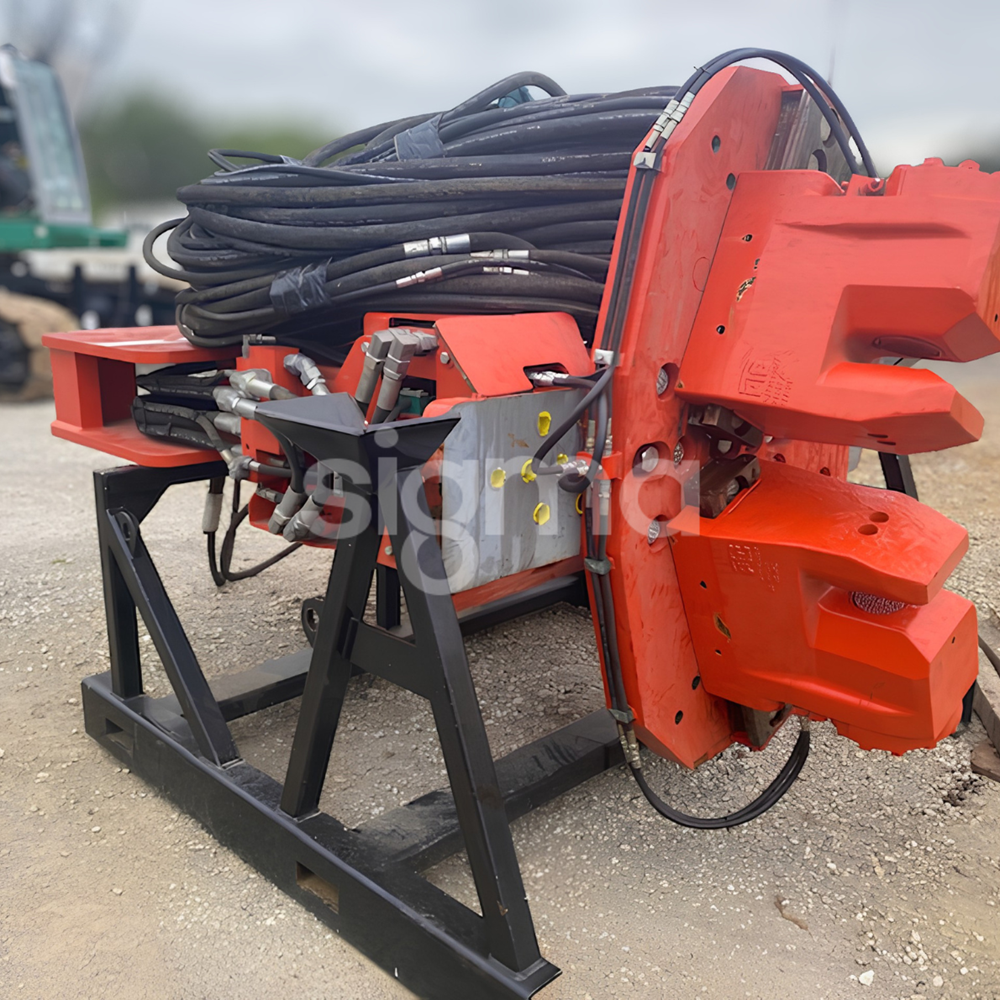

- High frequency and Variable Moment vibrodriver with 650CO (Tier 3A) power pack.
- 132 Hours

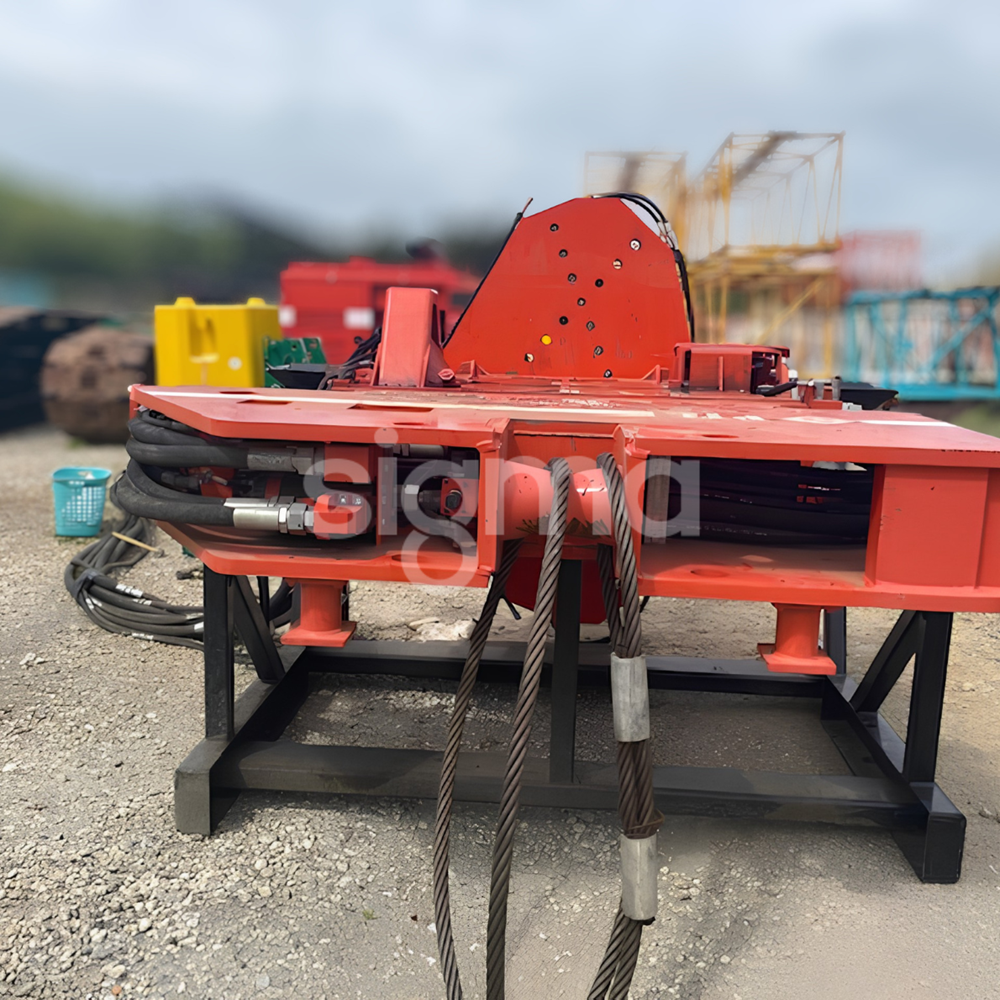

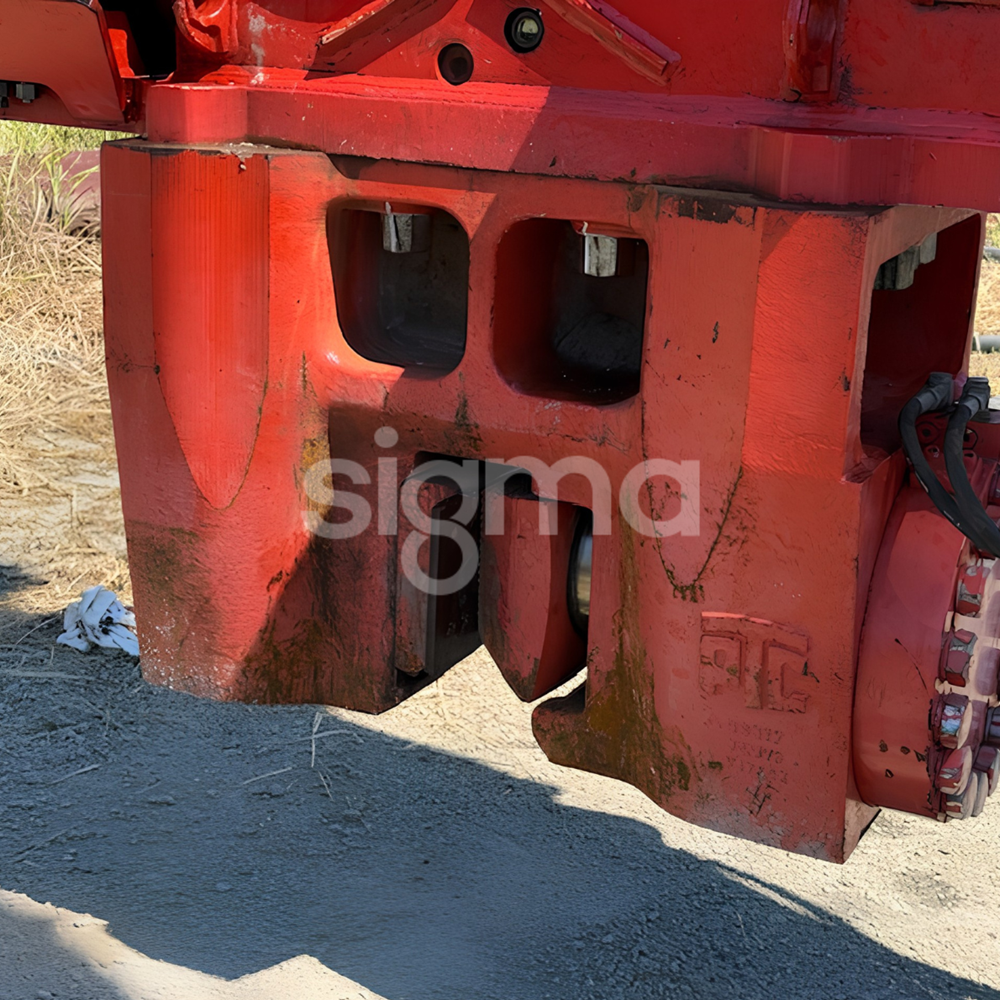

- 170t Single Clamp.

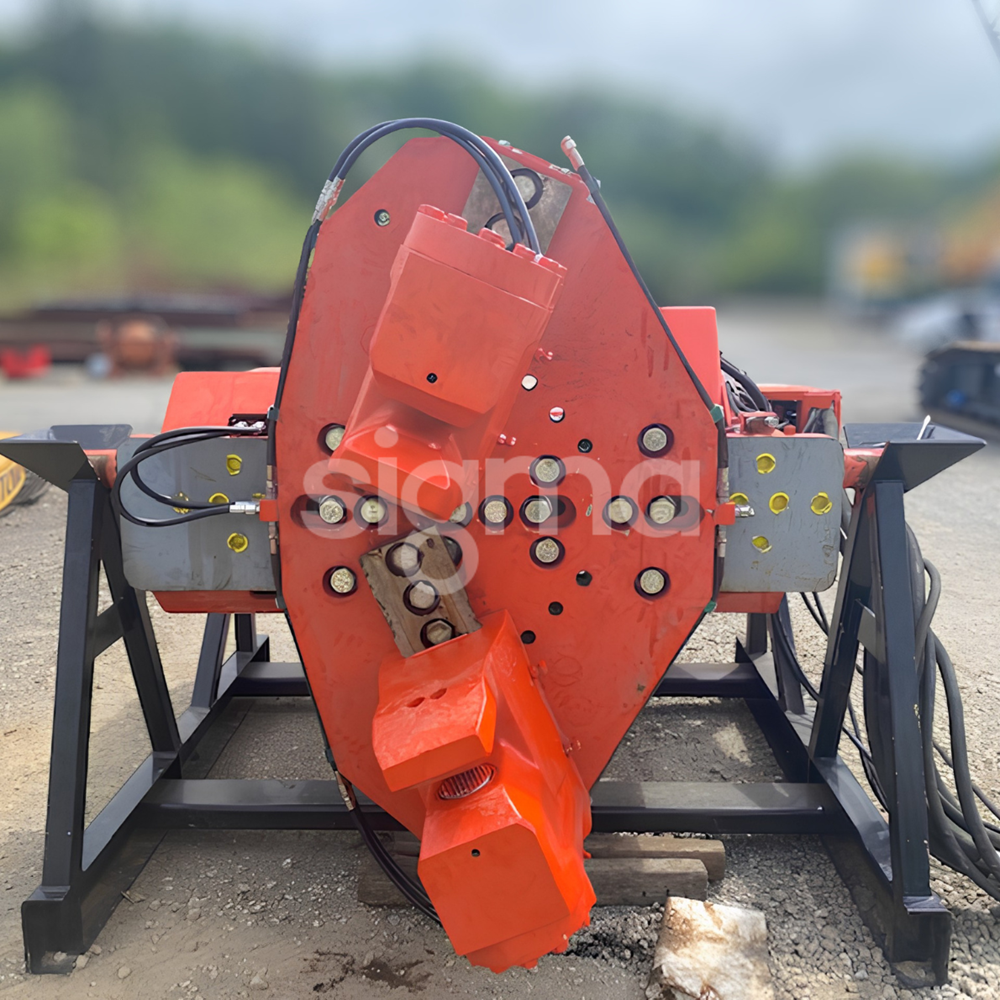

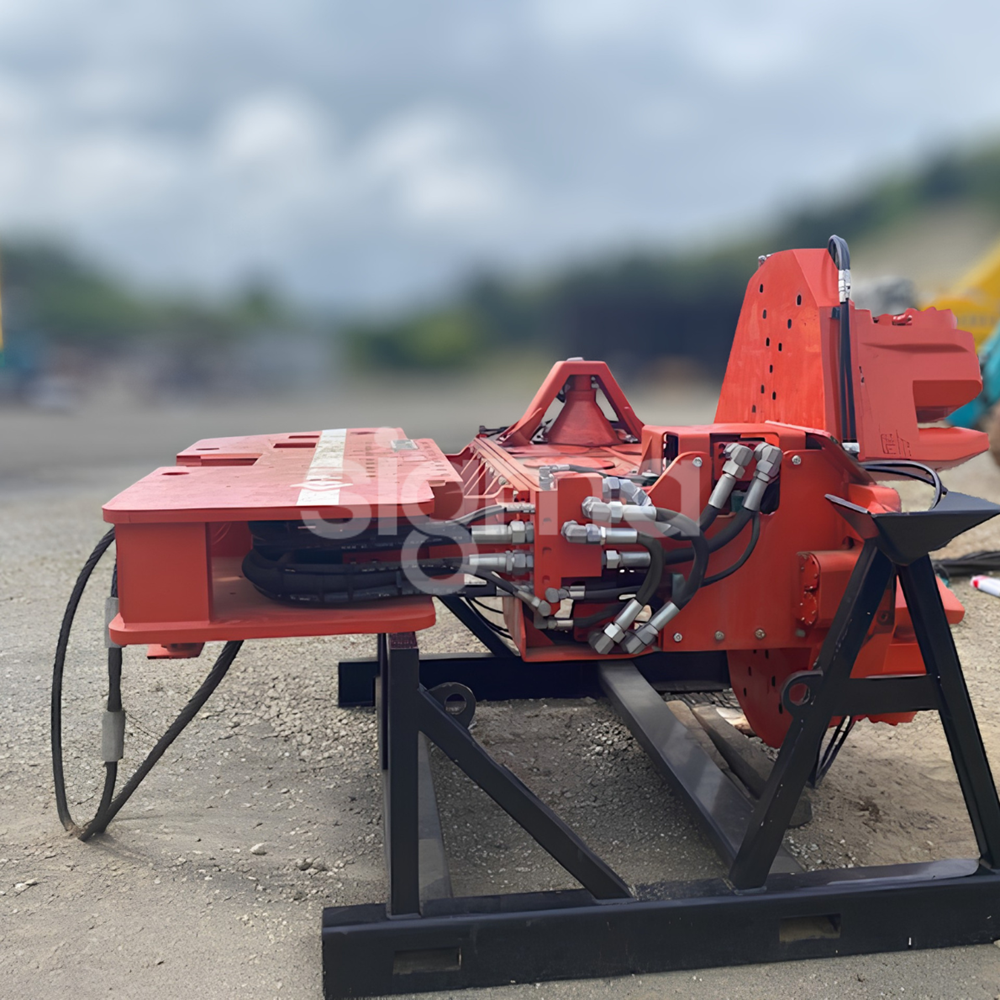

- 2 x 85t clamps for casing and tube pile.

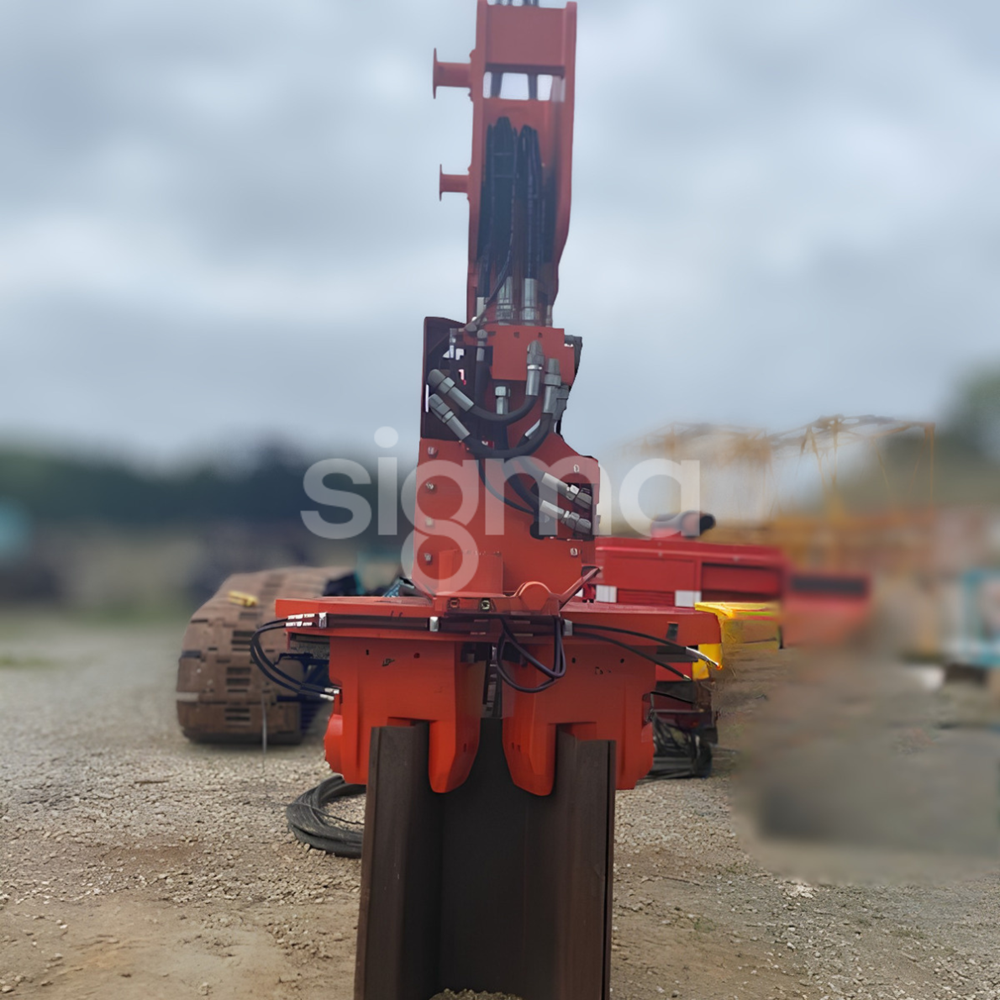

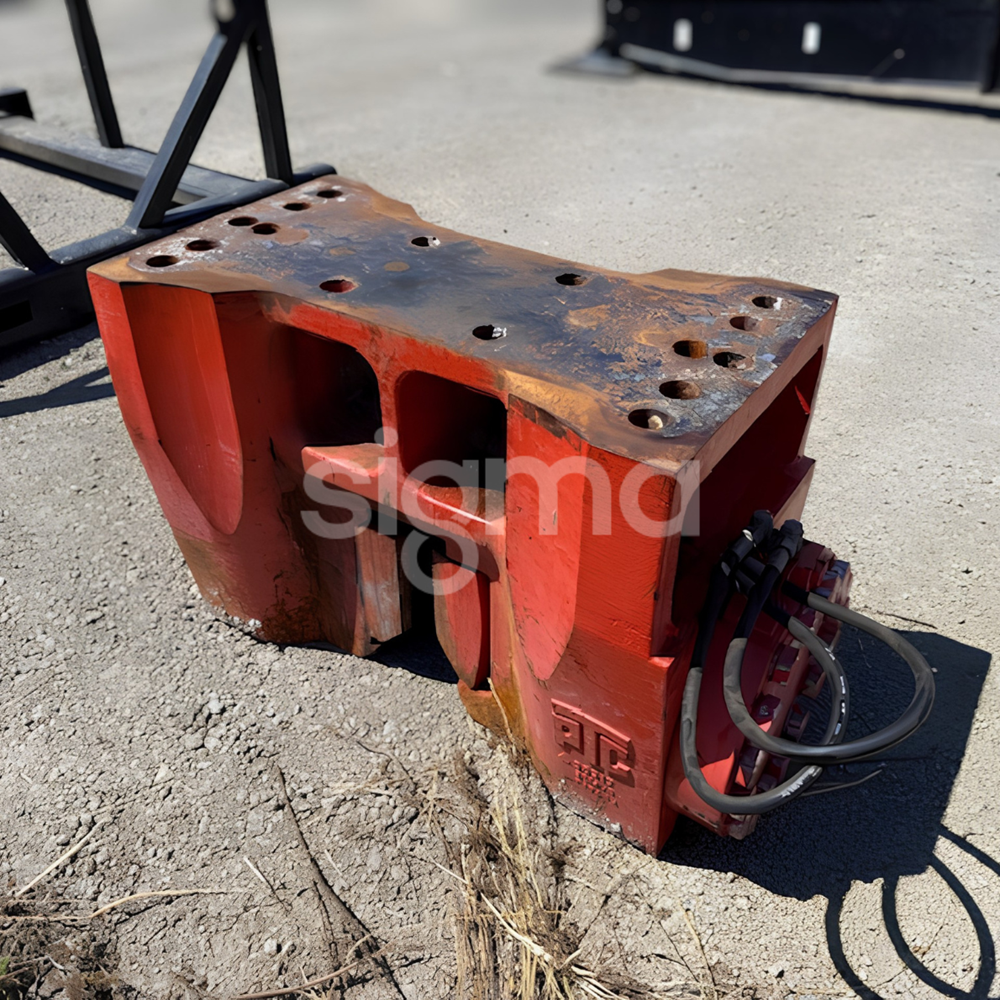

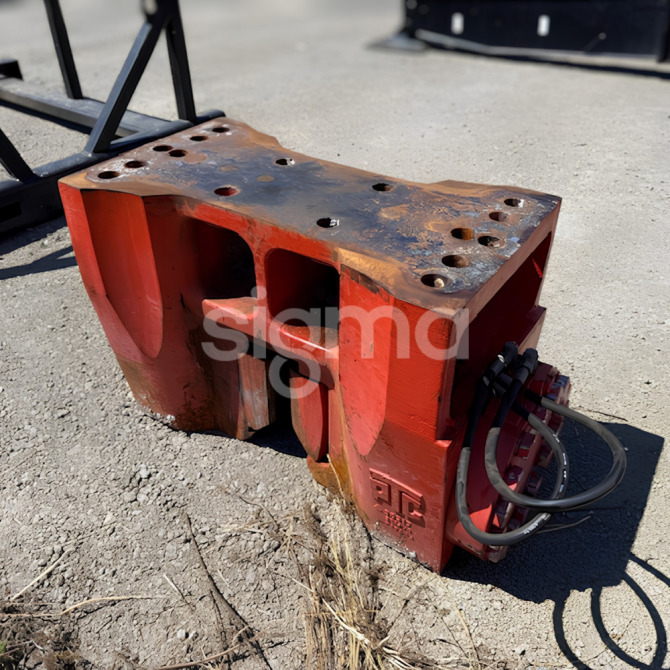

- Intermediate plate for 900mm sheet piles
- Eccentric moment 0-24 Kg.M
- Hydraulic power 356 kW
- Max. Frequency/eccentric rotation speed 38 Hz /2300 rpm
- Max. centrifugal force: 1390 kN
- Max. line pull capacity: 410 kN
- Vibrating weight without clamp: 2588 kg
- Total weight without clamp: 3772 kg
- Max. amplitude vibrodriver alone: 19 mm
- Length: 2184 mm
- Width: 794 mm
- Centre width: 330 mm
- Height without clamp: 2017 mm

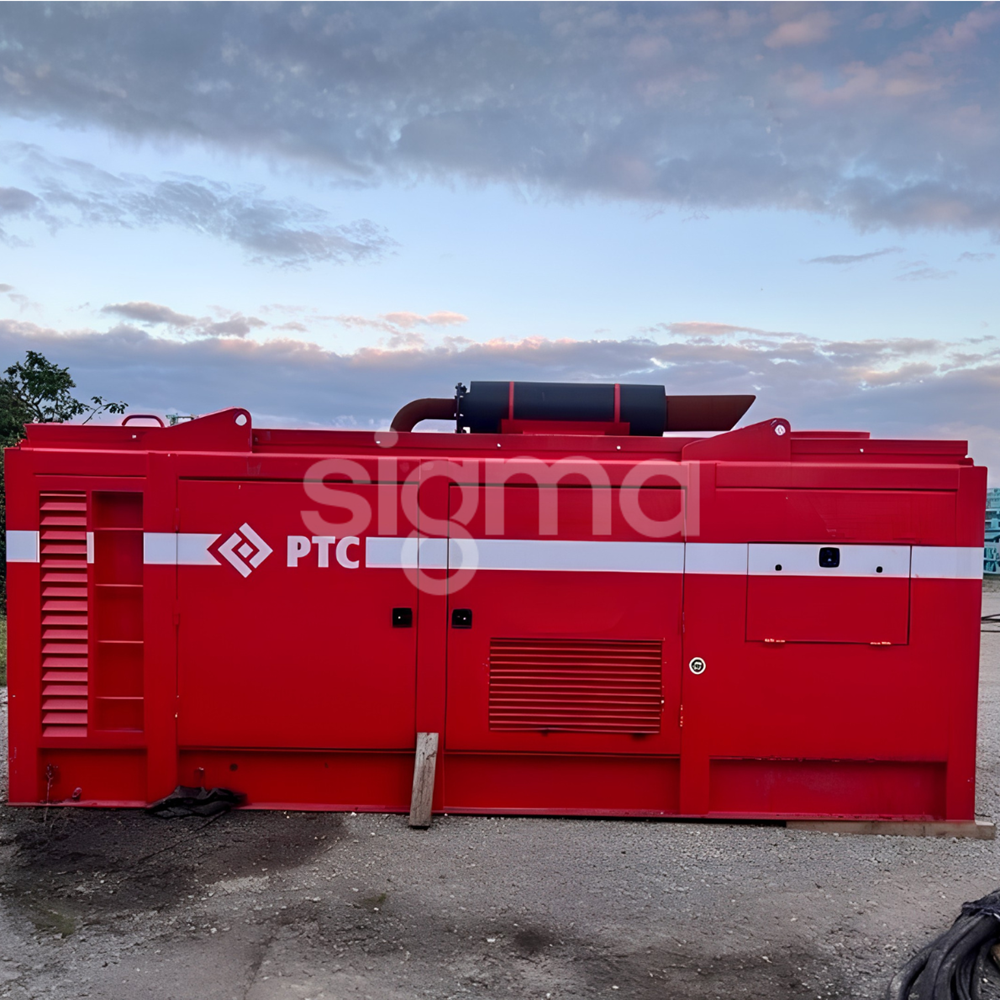

- Power pack: 600CO (Tier 3A)
- Volvo TAD 1650 VE engine
- Engine Power: 430 kW / 577 hp
- Nominal Hydraulic flow: 650 l/min
- Max. Hydraulic pressure: 350 bar
- Oil capacity: 1300l
- Fuel capacity: 1350l
- Length: 4800mm
- Width: 2000mm
- Height: 2305mm
- Weight: (with fuel) 9400kg
- CE marked
