Overview
Machine location:
Europe
Stock number:
PF 41133
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Ripamonti
Model:
GEORIG 620
Year of manufacture:
2020
Working hours:
1186
Key features

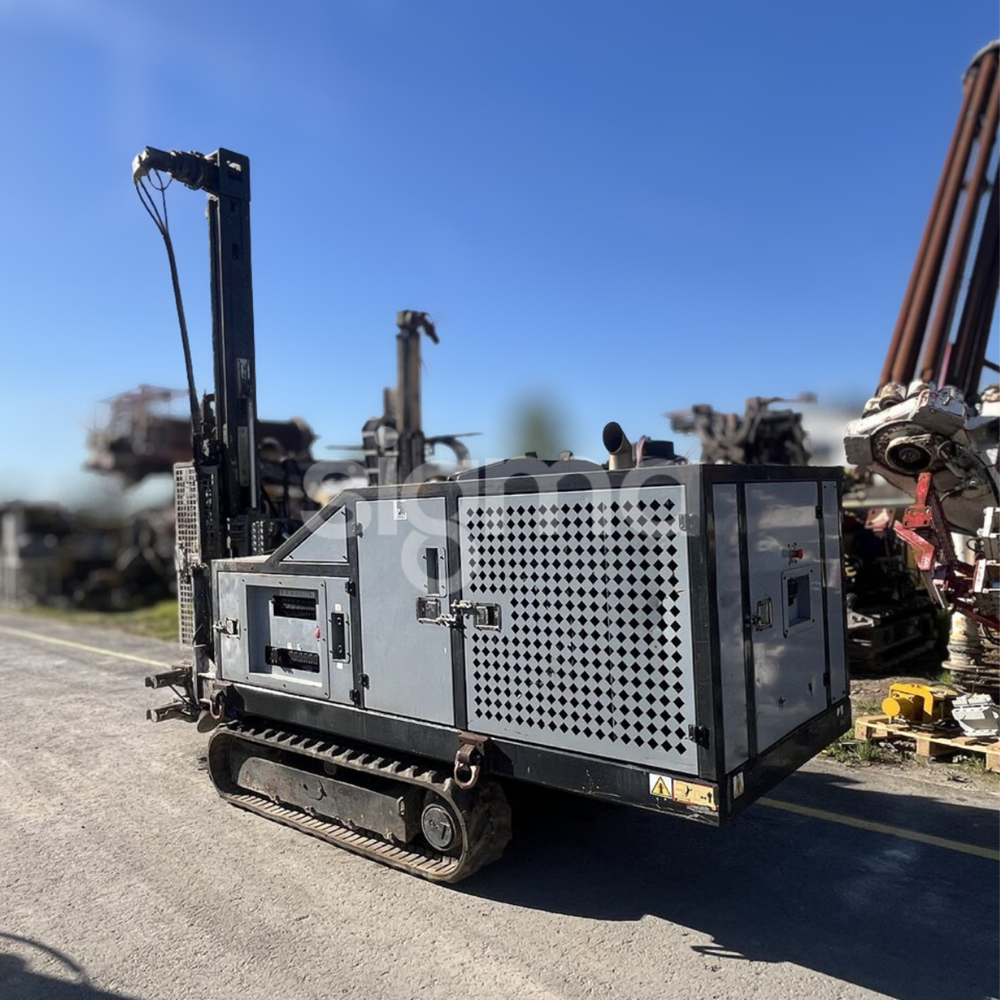

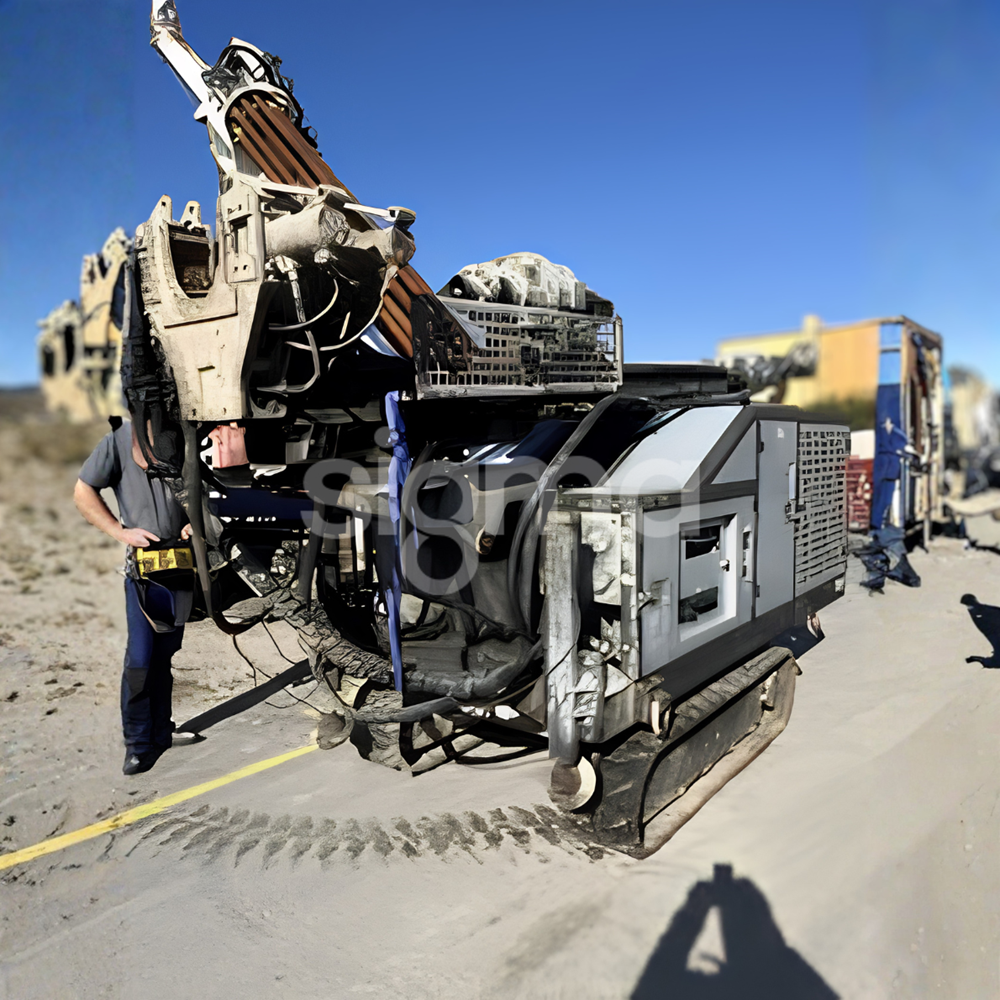

Compact self-propelled geotechnical drilling rig with 1,186 working hours, suitable for drilling, ground investigation, consolidation, anchoring and civil engineering applications
Machine specs

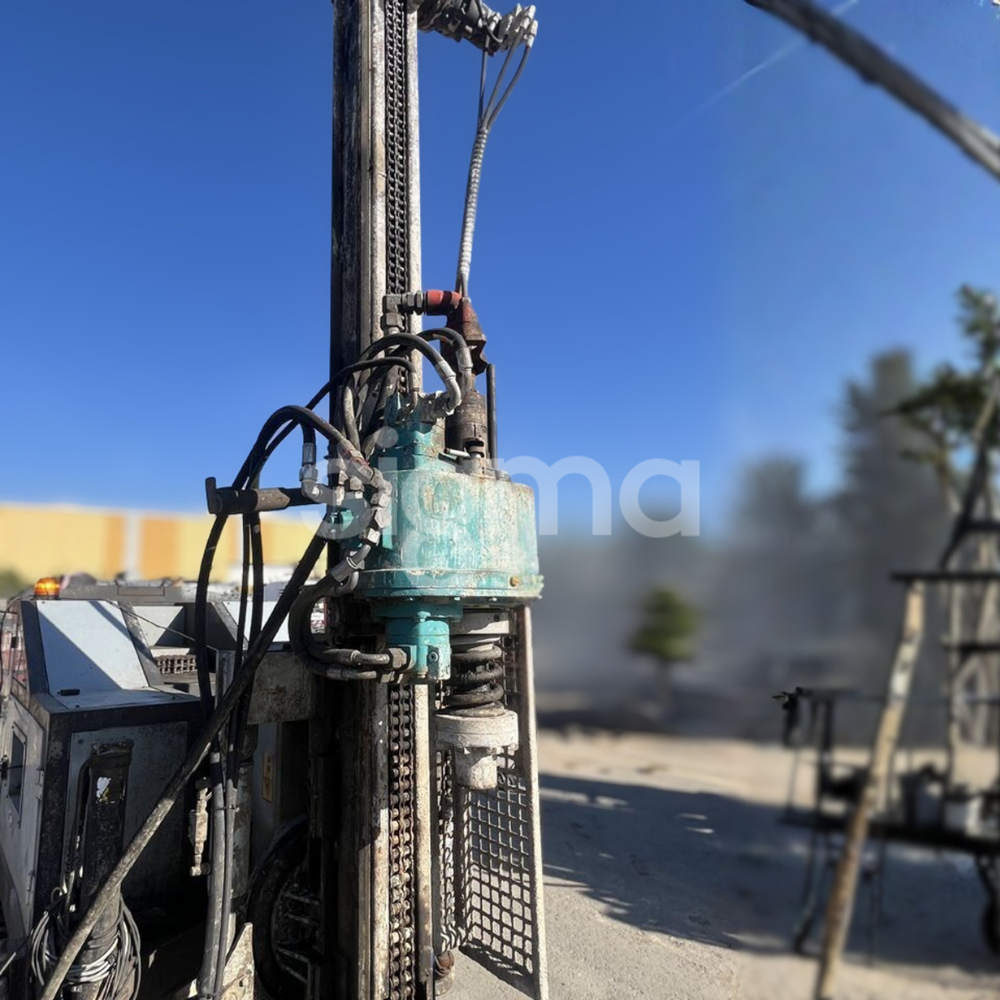

Rotary Head
- Make: Eurodrill
- Model: RH6
- Max torque: Not stated
- Rotation speed: Not stated
- Weight: 180–305 kg
Mast / Feed System
- Model: STEEL 300
- Pull-back force: 4,500 kg
- Feed stroke: 750–2,300 mm
- Feed drive: Hydraulic
- Feed motor displacement: 200 cm³
- Mast weight excluding head and connections: 500 kg
Engine
- Make: Kubota
- Model: V3307 DT
- Engine Stage: Stage V
- Type: 4-stroke diesel, direct injection
- Cylinders: 4 in-line
- Displacement: 3,331 cm³
- Power: 74 HP / 55.6 kW
- Engine speed: 2,600 rpm
- Fuel tank: 100 L
Hydraulic System
- Operating pressure: 220 bar
- Hydraulic oil tank: 220 L
Undercarriage
- Type: Crawler
- Track shoe width: 300 mm
- Track gauge / overall track width: 1,450 mm
- Track contact length: 1,935 mm
- Maximum travel speed: 2.45 km/h
- Ground pressure: 0.60 kg/cm²
Transport Dimensions and Weight
- Length: 4,230 mm
- Width: 1,450 mm
- Height: 2,400 mm
- Weight: 5,600 kg
