Overview
Machine location:
United States
Stock number:
PF 41139
Manufacturer:
Sandvik
Model:
DP1600i
Year of manufacture:
2022
Working hours:
1227
Key features

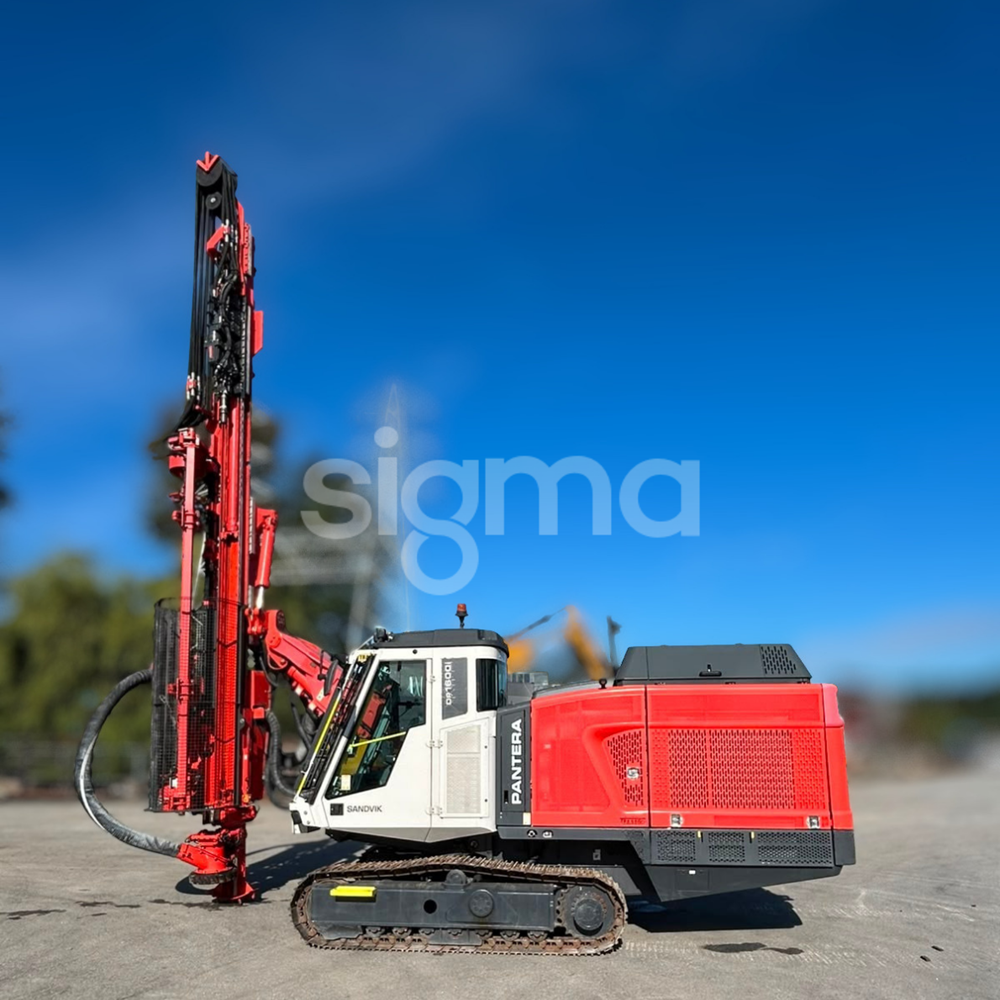

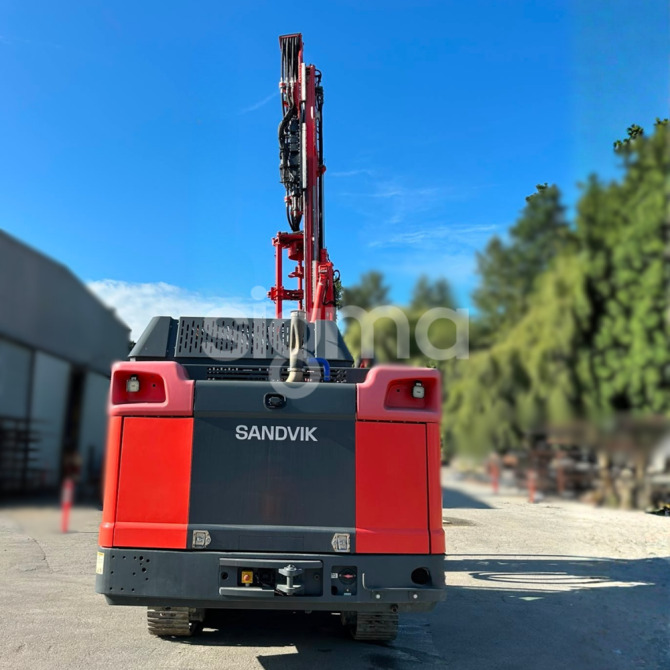

2022 Sandvik Pantera DP1600i with 1,227 hours. This crawler-mounted surface drill is equipped with an RD1840C 49 kW hydraulic drill, LF 1514 HR feed, RC 1514 automatic rod changer and ZB 1550 H telescopic boom. Powered by a 280 kW Tier 4 Final/EU Stage V engine, it drills 102–178 mm holes and features a 14 m³/min onboard compressor, automated drilling functions and hydraulic dust collection
Machine specs
Rotary head
- Model: RD1840C
- Max rotation speed: 80rpm
- Max torque: 4,300 Nm
Feed / Boom
- Boom Type: ZB 1550 H
- Feed type: LF 1514 HR
- Total length: 9,154mm
- Feed length: 4,980 mm
- Pull out force: 36 kN
Rod Changer
- Type: RC1614
- Max storage capacity: 7+1 rods
- Rod length: 4,270mm
- Max hole depth: 32.6m
- Engine make & model: CAT C 9.3B
- Engine power: 280 kW (375 hp) @ 1,800 rpm
- Emission standard: Stage V / Tier 4f
- Fuel tank capacity: 680l
- Emergency stop system: YES
- Fire suppression system: YES
- Dust suppression system: DC 1550 H dust-collection system + water-injection system
Dimensions & Weight
- Transport width: 2,500mm
- Transport height: 3,340mm
- Transport length: 11,500
- Operating weight (kg): 22,700
