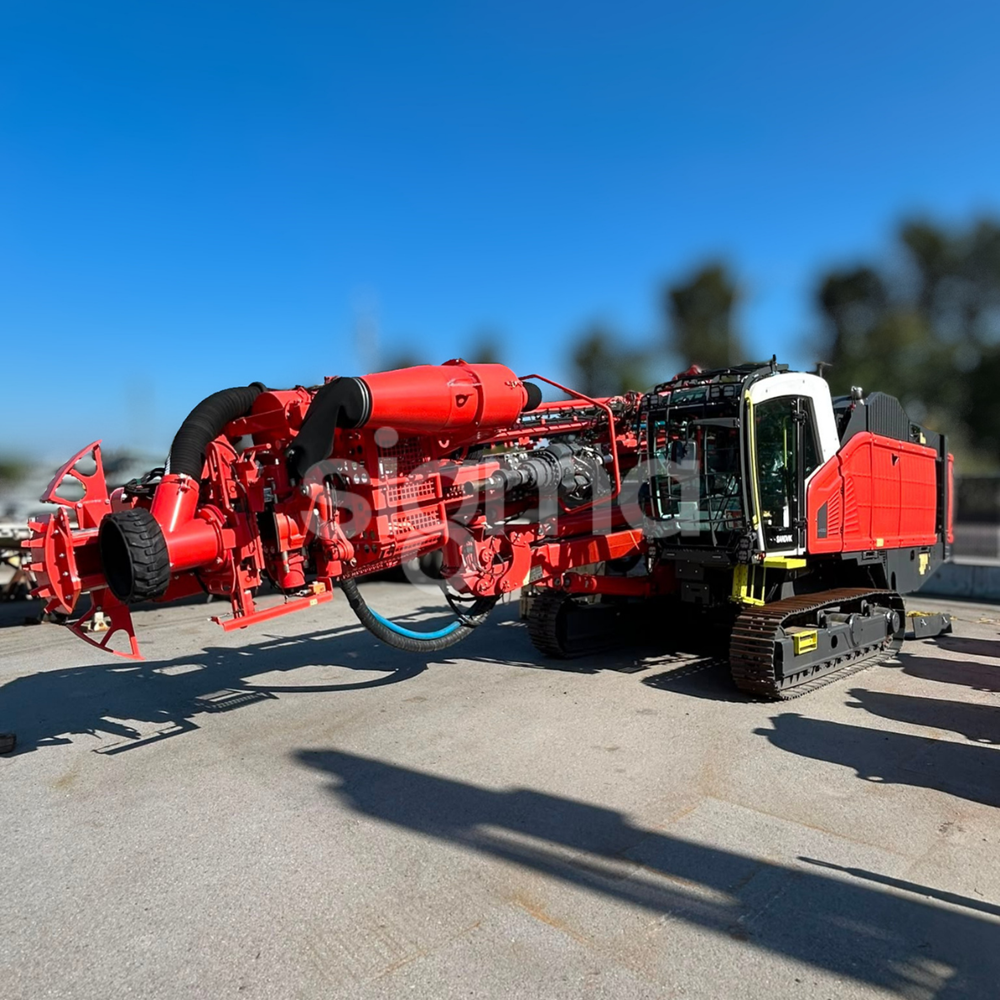

Sandvik Leopard DI650i S5

Drilling Performance

• Hole diameter: 115–203 mm
• DTH hammer size: 4", 5" and 6"
• Primary hammer configuration: 6" DTH hammer
• Drill pipe diameters: 89 / 102 / 114 / 127 / 140 mm
• Main drill pipe magazine: 114 mm
• Magazine capacity: 8 + 1 pipes
• Alternative drill pipe kit: 89 mm
• Maximum hole depth: 53.6 m with 89–114 mm pipes
• Maximum hole depth with 127–140 mm pipes: 29.6 m

The attached build specification specifically lists a 114 mm, 8+1 pipe magazine, an alternative 89 mm pipe configuration and a 6-inch DTH hammer as the mainly used hammer.

Rotary Head

• Type: MRH6 HD
• Rotation speed: 0–100 rpm
• Maximum torque: 5,800 Nm
• Operating pressure: 180 bar
• Hammer lubrication: Air / oil mist
• Flushing: Air
• Rotary head weight: Approx. 560 kg

Sandvik specifies the MRH6 as capable of 5,800 Nm maximum torque, while the S5 build specification identifies the fitted head as the MRH6 HD.

Feed System

• Feed type: Chain feed
• Total feed length: 11,400 mm
• Rotary head travel: 6,550 mm
• Drill pipe length: 6,000 mm
• Feed extension travel: 1,100 mm
• Feed / pull-out force: 54 kN
• Feed swing: +30° / -30°
• Feed tilt: -32° / +93°

Pipe Changer

• Type: Carousel
• Capacity with 89–114 mm pipes: 8 + 1
• Capacity with 127–140 mm pipes: 4 + 1
• Pipe length: 6,000 mm
• Build configuration: 114 mm pipe magazine, 8 + 1

Boom

• Type: Fixed boom
• Boom reach: 4.2 m
• Boom swing: 0° / +20°
• Collaring height: +0.7 m / -3.5 m

Engine

• Make: Caterpillar
• Model: C15
• Engine Stage: Stage V / Tier 4 Final
• Engine power: 403 kW
• Engine speed: 1,800 rpm
• Transmission: Direct
• Fuel tank: 900 L
• DEF tank: 44 L

Compressor / Air System

• Compressor: GHH CF 1000H
• Air delivery: 28.3 m³/min
• Rated air pressure: 24 bar
• Maximum working pressure: Up to 30 bar / 435 psi
• Air filters: 2 dry-type filters

The attached build specification identifies the high-capacity air system and the S5 configuration; Sandvik's manufacturer sheet rates air delivery at 28.3 m³/min.

Hydraulic System

• Type: Load-sensing hydraulic system
• Gear pumps: 2
• Piston pumps: 3
• Filtration: 10 micron
• Hydraulic oil tank: 290 L
• Cooling capacity: Up to +50°C ambient temperature

Dust Collection

• Dust collector: X-200
• Type: Dry dust collector
• Capacity: 76 m³/min at 500 mm WG
• Filter elements: 4
• Total filter area: 24 m²
• Primary cyclone: Standard
• Movable suction head: Standard

Undercarriage

• Type: Crawler / track mounted
• Track type: FL7
• Grouser plate width: 400 mm
• Ground contact length: 2,450 mm
• Ground clearance: 360 mm
• Ground pressure: 1.25 kg/cm²
• Track oscillation: ±10°
• Tramming force: 168 kN
• Maximum travel speed: 3.6 km/h

Cabin

• Type: Sandvik iCAB
• Certification: FOPS / ROPS
• Cabin noise: Below 78 dB(A)
• Air conditioning: Intelligent climate control
• Cabin pressurisation: Standard
• H13 HEPA cabin filter: Fitted
• Reversing camera: Fitted

Transport Dimensions and Weight

• Length: 12,400 mm
• Width: 3,000 mm
• Height: 3,500 mm
• Weight: 25,100 kg dry weight
• Operating height: Approx. 4,200 mm

 Options / Equipment Fitted

• Alternative air-cushioned seat with 3-point seat belt
• H13 HEPA cabin filter
• USB / MP3 / WMA / Bluetooth radio
• Reversing camera
• Cabin roller blinds
• Emergency glass breaker
• Alternative pipe kit
• Service winch
• Thread greasing system
• Heated pipe transfer arm
• Full radio remote control for tramming, drilling and service winch
• NAVIGATION iDRILL onboard automation package
• Lincoln central lubrication system
• Fast-fill connections for coolant, hydraulic oil and engine oil
• Wiggins fast fuel-fill connection
• Remote Screen interface
• Pressure washer
• 15 LED working lights
• Fluid service fill safety lockout
• Drill bit opening device for 6–8" bits
• Eclipse Extreme automatic fire suppression, rated 0°C to -40°C
• Manual compressor disengagement clutch
• Extra-large fuel-powered engine heater
• Jump-start connection
• Water injection system
• Knowledge Box with 4G/LTE and Wi-Fi
• My Sandvik Productivity / Drill Plan Transfer licence
• Cold-environment compressor cooler package, -40°C to +39°C
• GPS
