Overview
Machine location:
Europe
Stock number:
PF 41122
Categories:
Diaphragm Wall Rigs
Manufacturer:
Soilmec
Model:
SC-90 TIGER Hydromill
Year of manufacture:
2008
Working hours:
13000
Key features
Complete Soilmec SC-90 TIGER hydromill package with approximately 13,000 operational hours. Supplied with an SM P700 hydraulic power pack, SMH10 TIGER cutting module with pump, four sets of H8 hydraulic motors, a 2016 Soilmec mud pump and one set of 2,800 x 1,200 mm cutting drums.
Machine specs

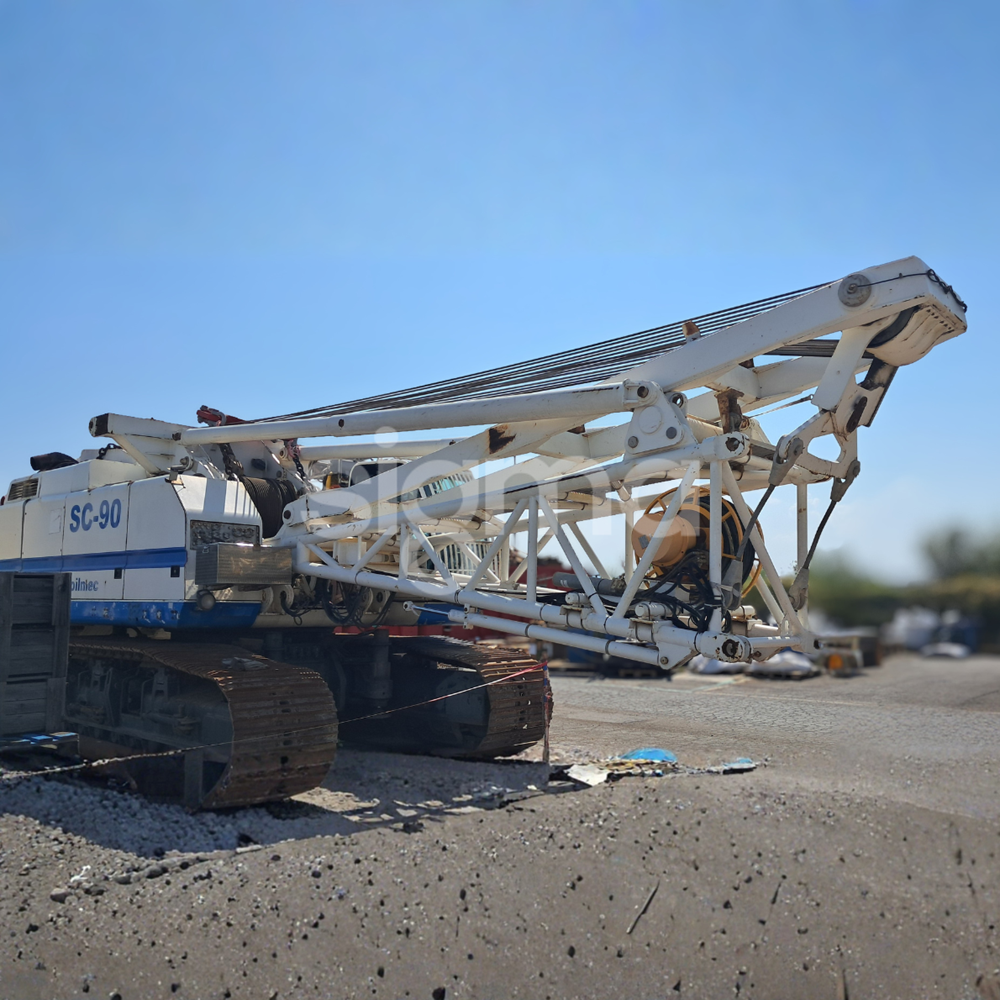

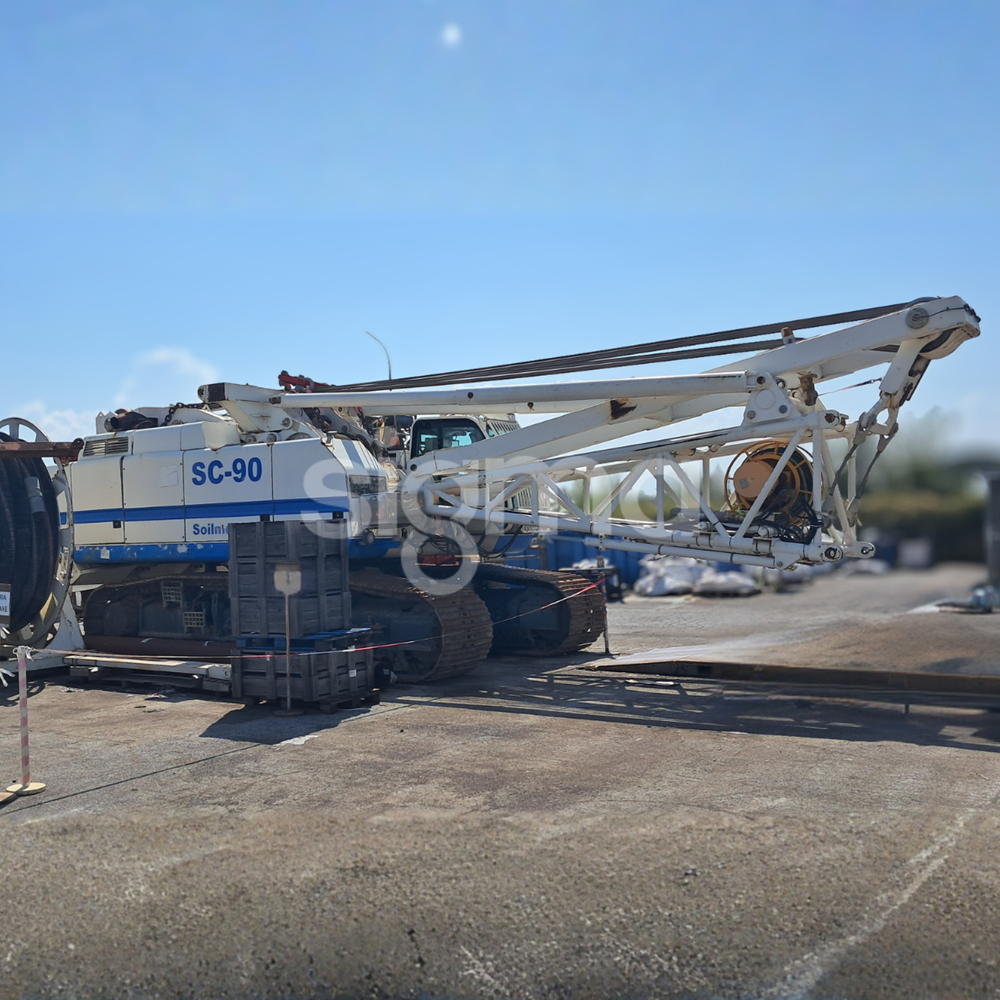

Soilmec SC-90 TIGER Base Carrier
- Year of manufacture: 2008
- Engine power: 470 kW / 630 HP
- Maximum lifting capacity: 90 tonnes
- Main-winch line pull: 250 kN
- Maximum rope speed: 77 m/min
- Maximum swing speed: 3 rpm
- Track shoe width: 800 mm Travel speed: 1.2–2.4 km/h
- Transport weight with tracks: Approximately 64,000 kg
- Quantity: 1 unit
Soilmec SM P700 Hydraulic Power Pack
- Year of manufacture: 2008
- Power output: 708 kW / 950 HP
- Quantity: 1 unit
Soilmec SMH10 TIGER Cutting Module
- Year of manufacture: 2008
- Cutting drum dimensions: 2,800 x 1,200 mm
- Panel length: 2,800 mm
- Trench thickness: 1,200 mm
- Nominal mud-pump output: Up to 500 m³/h
- Pump included
- Quantity: 1 unit
Soilmec H8 Hydraulic Motors
- Years of manufacture: 2015–2016
- Maximum torque: 87 kNm per motor
- Maximum cutting speed: 25 rpm
- Quantity: 4 sets
Soilmec Mud Pump
- Year of manufacture: 2016
- Nominal output: Up to 500 m³/h
- Quantity: 1 unit

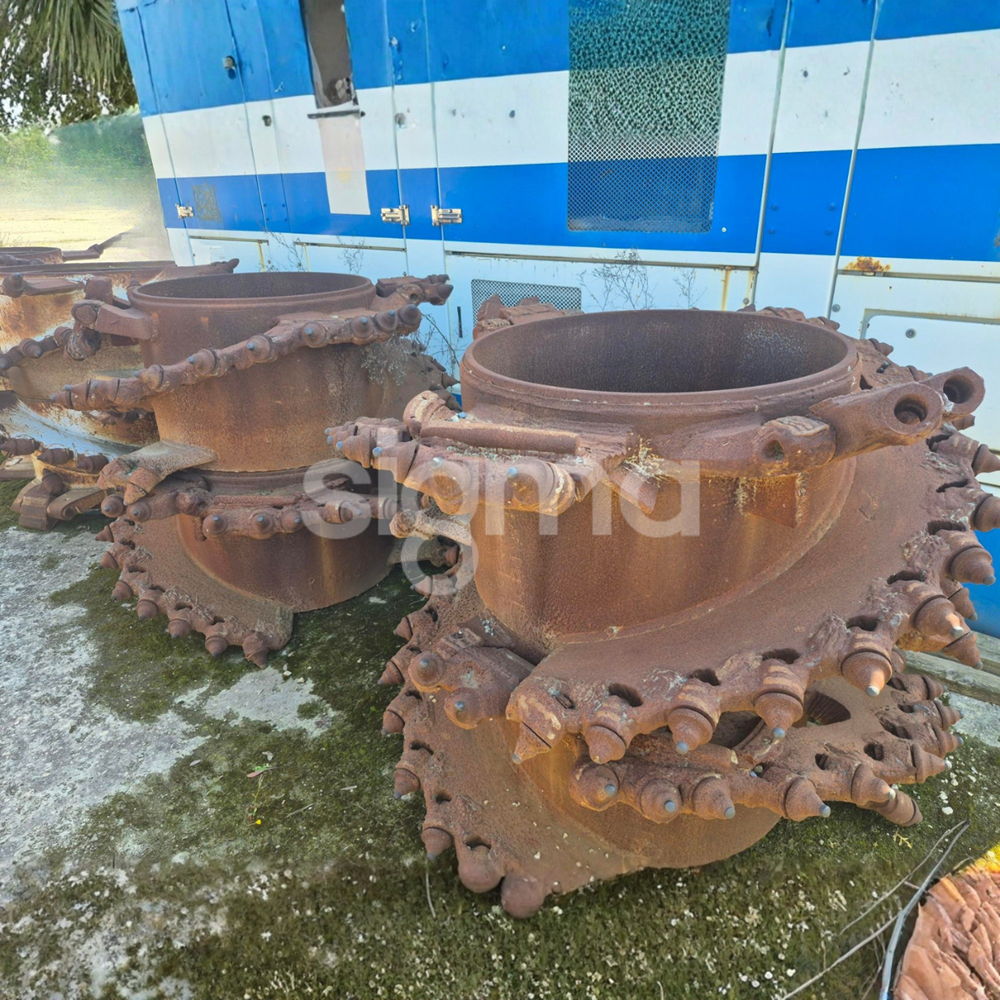

Soilmec Cutting Drums
- Dimensions: 2,800 x 1,200 mm
- Panel length: 2,800 mm
- Cutting width: 1,200 mm
- Quantity: 1 set
