Overview
Machine location:
United Kingdom
Stock number:
PF 41098
Manufacturer:
Soilmec
Model:
SF50
Year of manufacture:
2016
Working hours:
8532
Key features
- Multipurpose drilling rig with 8,532 hours

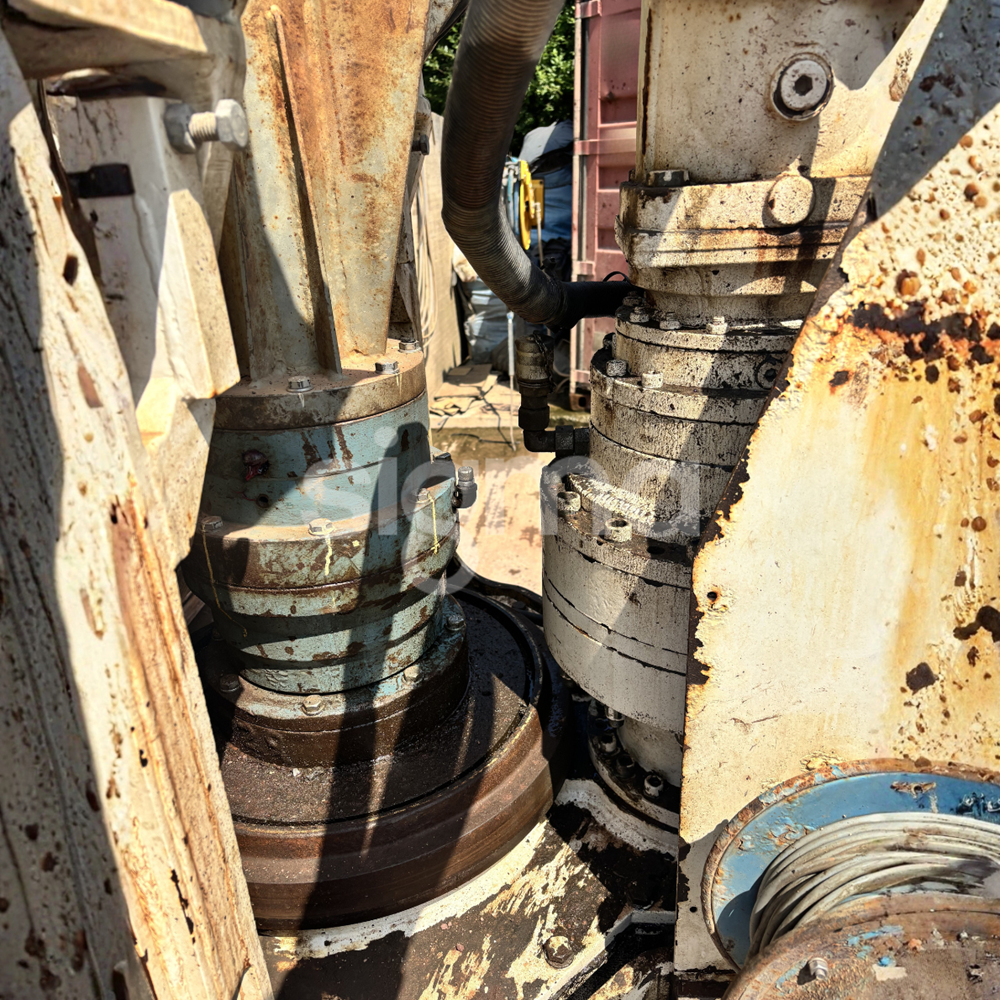

- Rotary head
- Max torque: 100kN
- Rated torque: 87kNm
- Rotation speed: 40.9 rpm
- Drilling performance
- Max pile diameter: 900mm
- Max pile depth: 25 (19+6)m
- Max extraction force: 510 kN

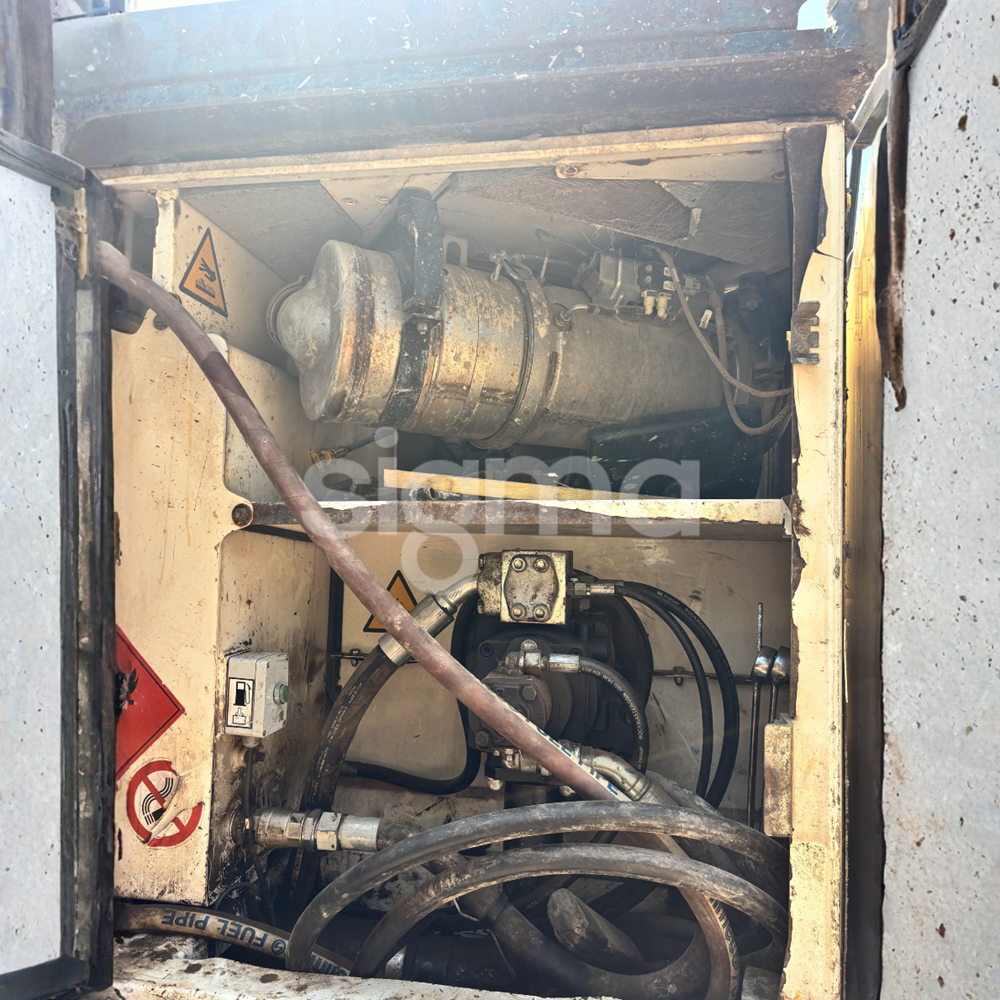

- Engine
- Cummins QSB6.7
- 164 kW @ 2200 rpm
- 620l fuel tank
- EU Stage IIIA
- Winches

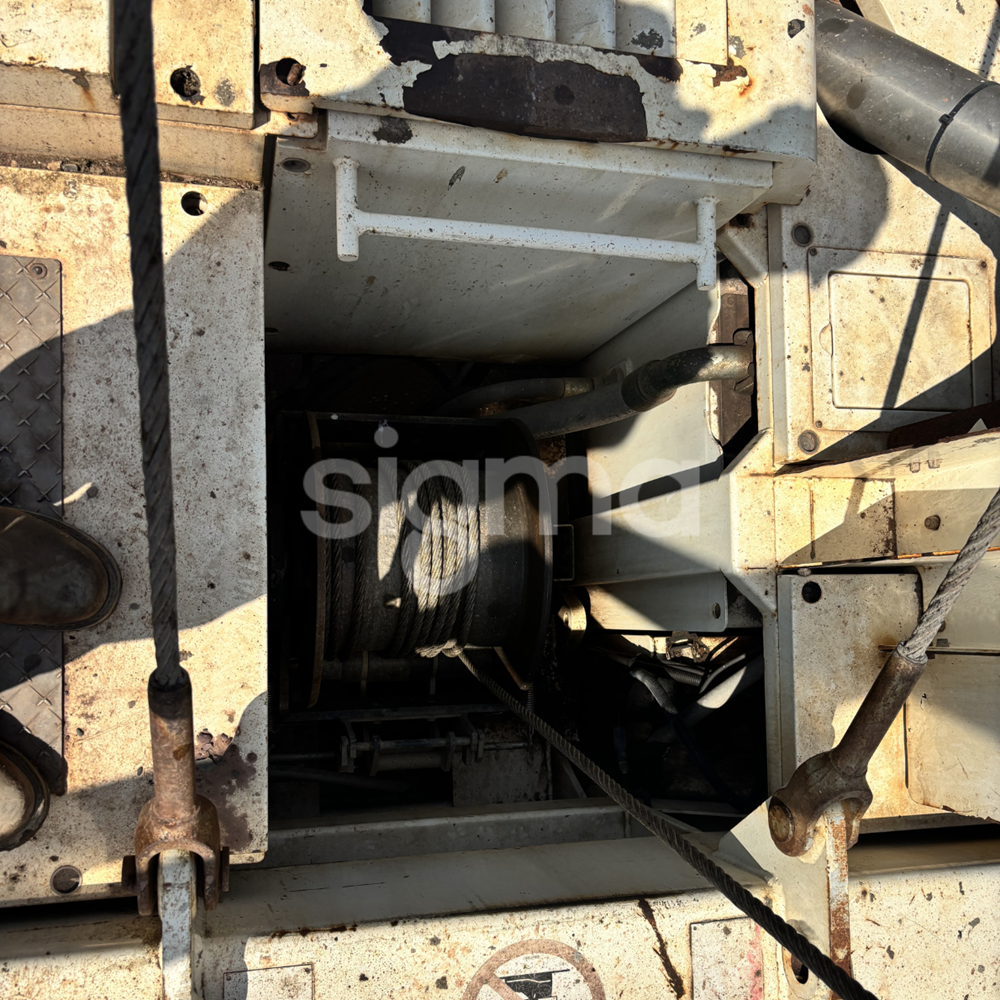

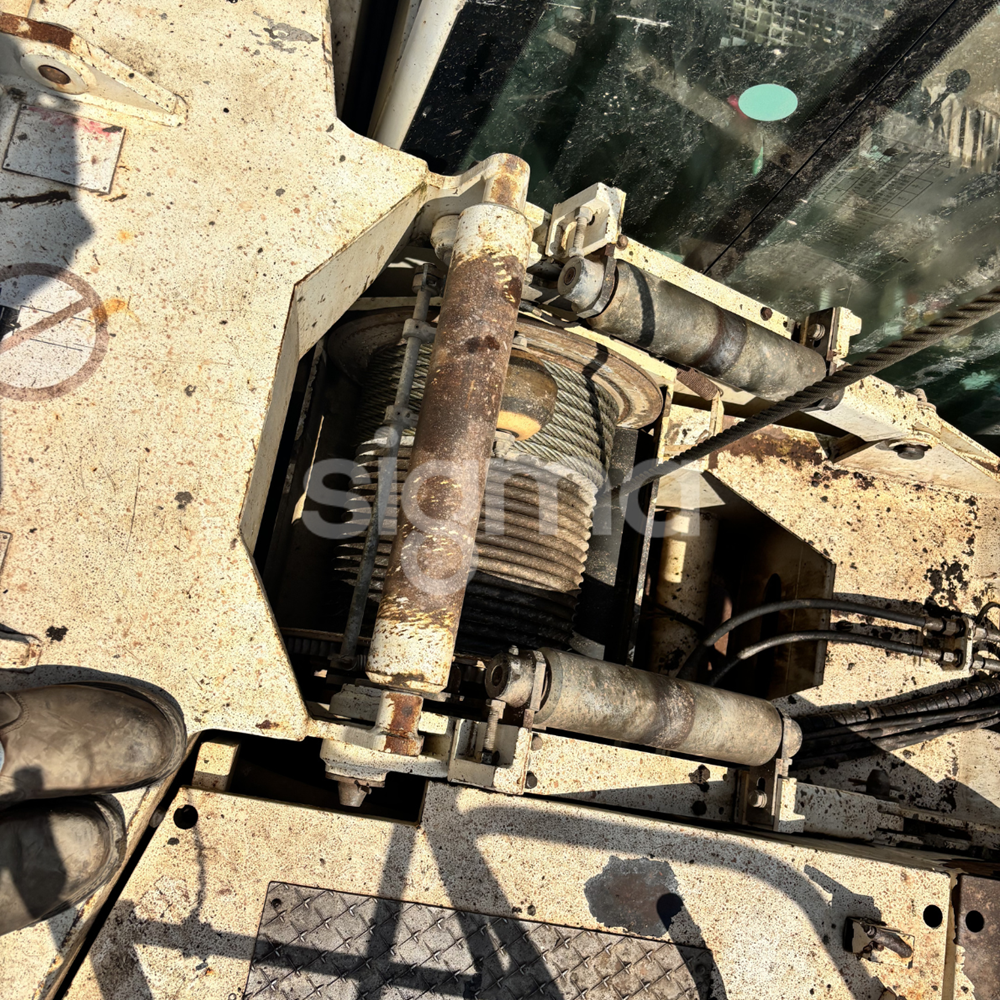

- Main winch: 102 kN
- Aux winch: 41 kN
- Crowd winch: 37 kN
- Hydraulic system
- Main pump 320 l/min
- 30 Mpa
- Transport Dimensions and weight
- Length: 16,368 mm
- Width: 2,550 mm
- Height: 3,254 mm
- Track shoe width: 700mm
- Weight: 30,650 kg
- Operating weight: 39,000 kg
