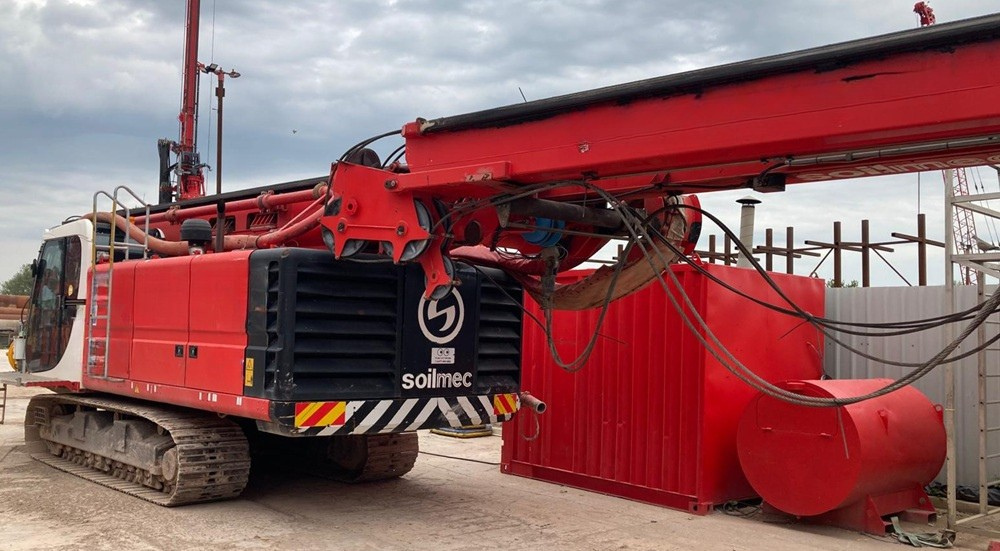

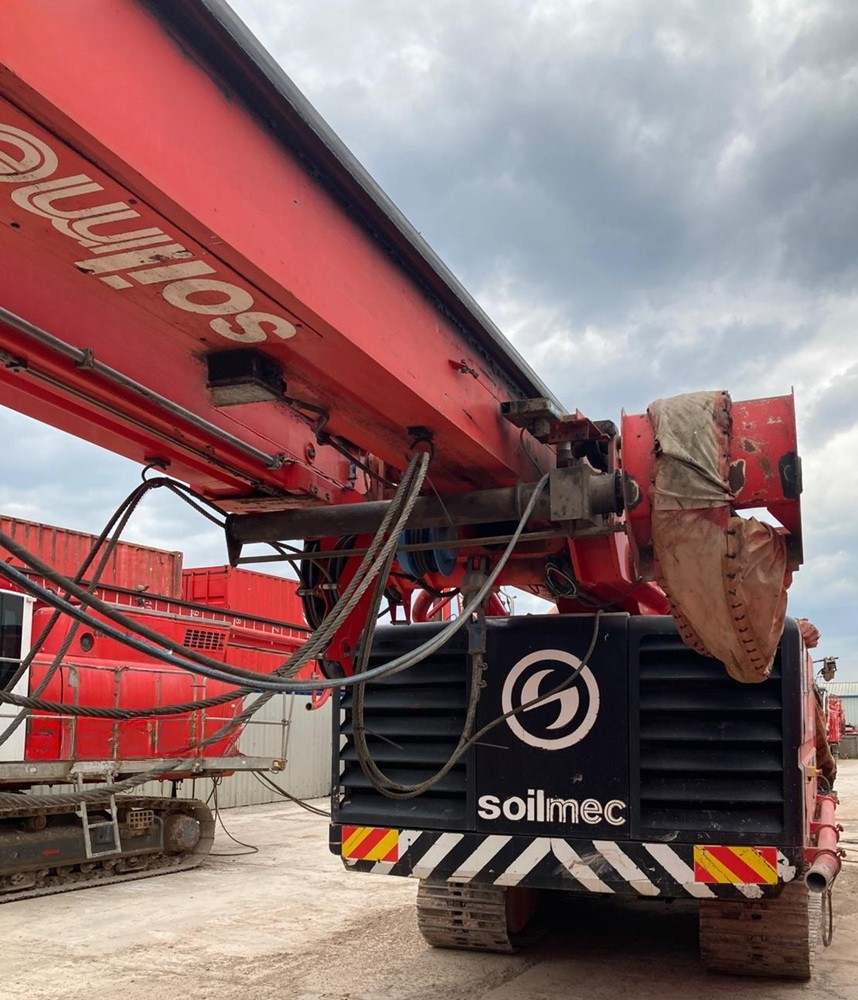

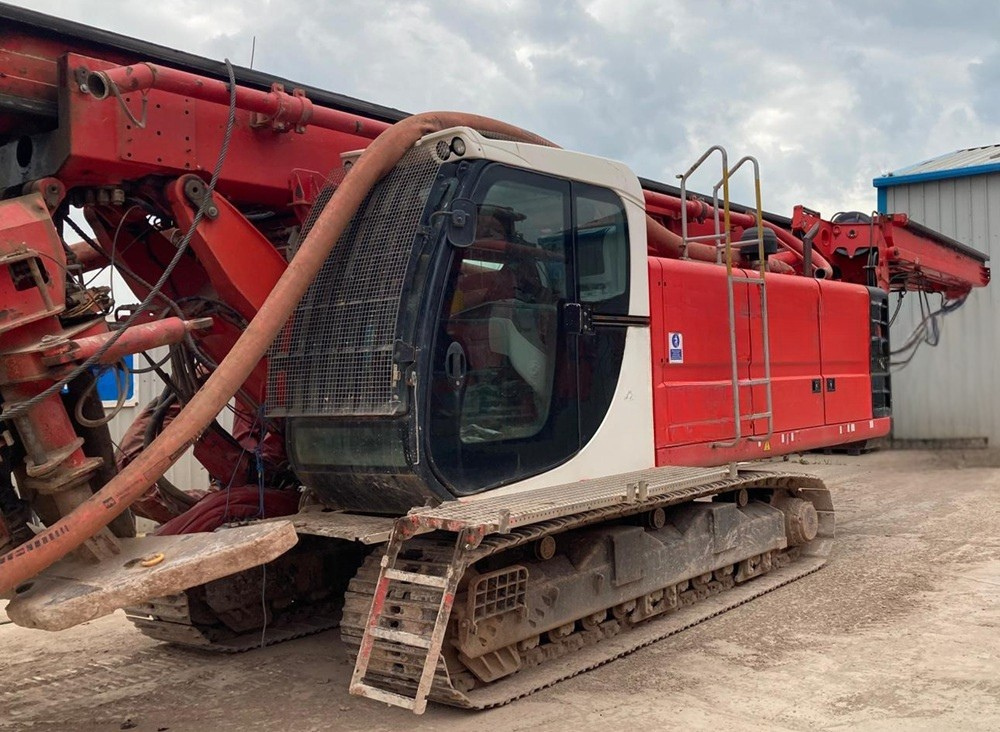

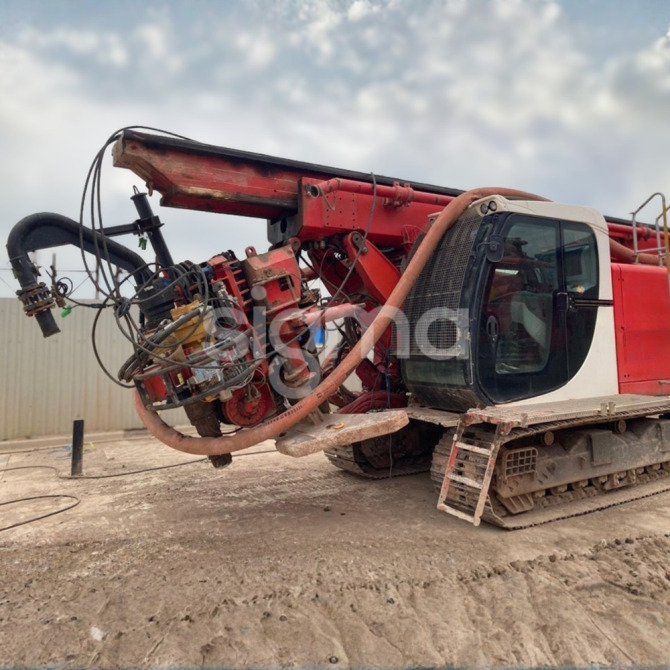

Soilmec SF65

Multipurpose drilling rig with 4,443 hours

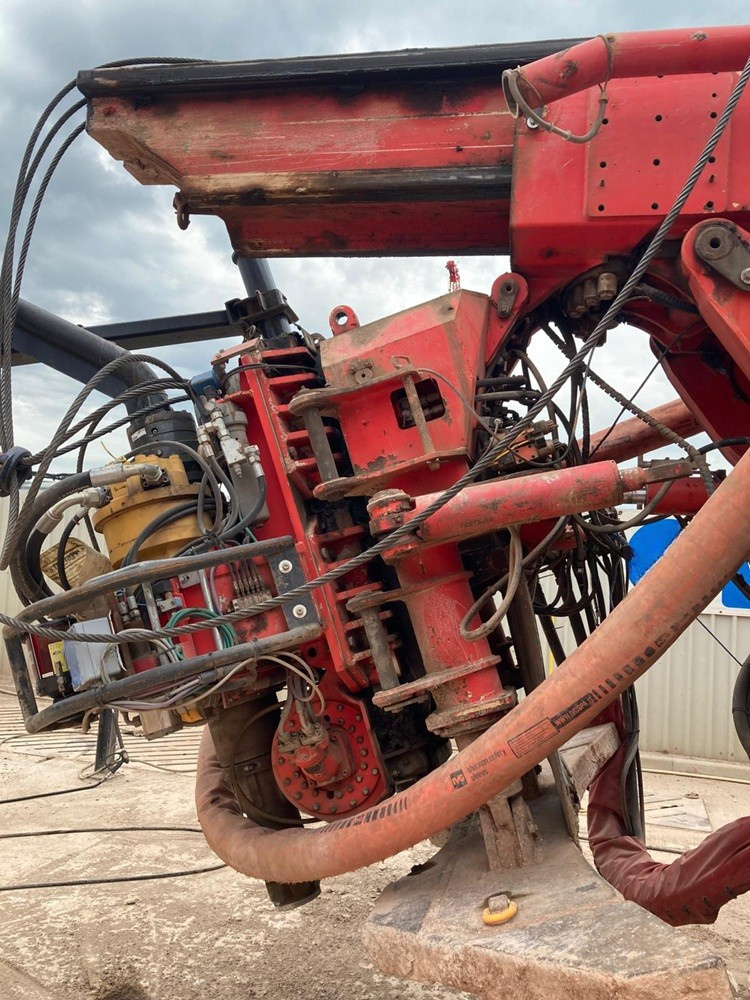

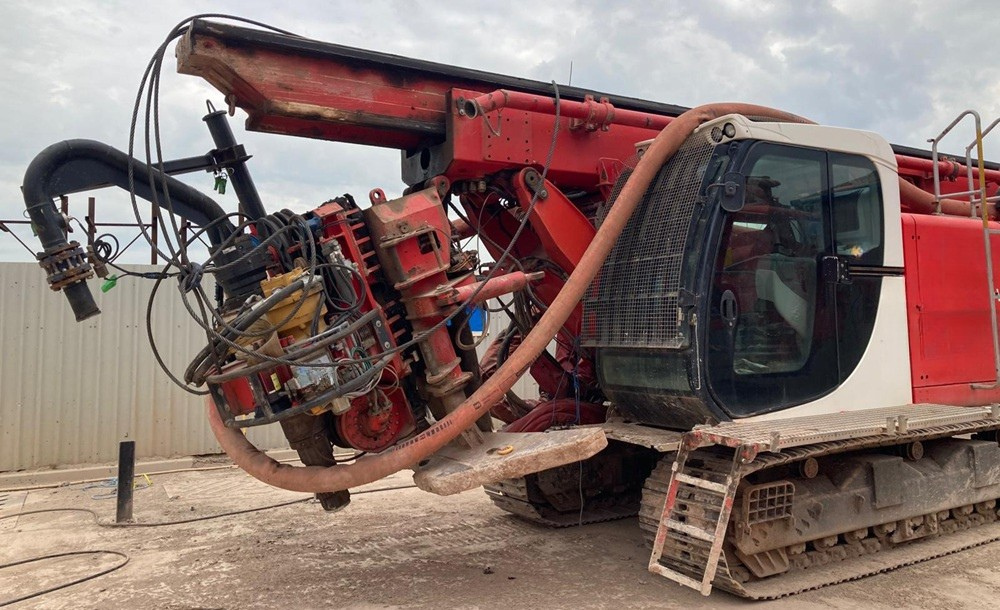

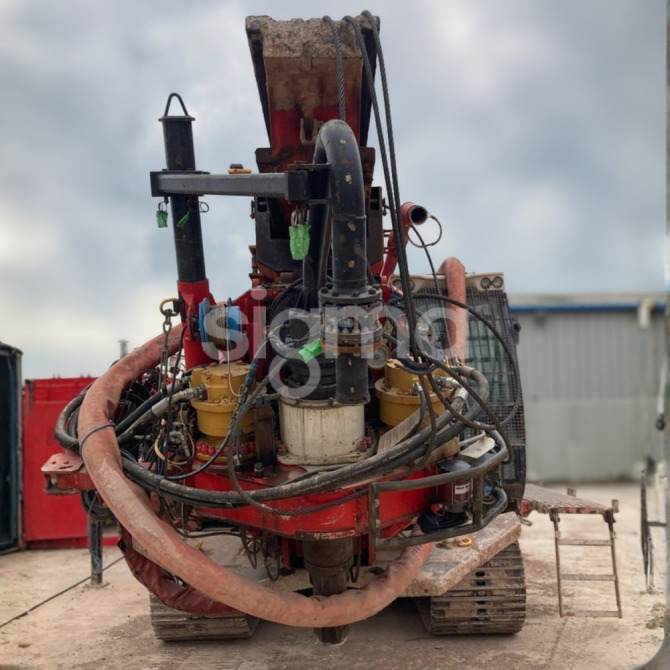

Rotary Head

• Max torque: 165 kNm
• Rated torque: 151 kNm
• Rotation speed: 31 rpm

Drilling Performance

• Max pile diameter: 1,000mm
• Max pile depth: 30m (24m + 6m Kelly extension)

• Max extraction force: 572 kN

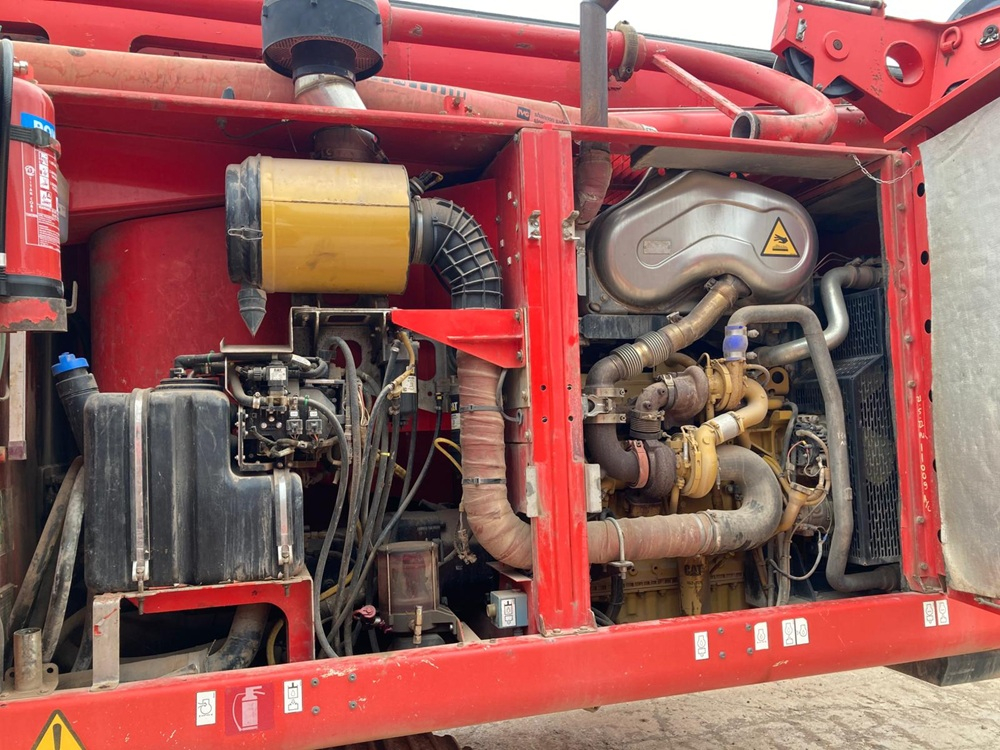

Engine

• Cummins QSB6.7
• 209 kW (280 HP) @ 2000 rpm
• 385l fuel tank
• EU Stage 4f

Winches

• Main winch:
  • Line pull: 143 kN
  • Rope diameter: 22 mm
  • Max speed: 68 m/min
• Auxiliary winch:
  • Line pull: 65 kN
  • Rope diameter: 18 mm
  • Max speed: 67 m/min
• Crowd winch:
  • Max crowd force: 97 kN
  • Max extraction force: 572 kN

Hydraulic System

• Pump capacity: 1 x 520 + 1 x 150 l/min
• Max pressure: 350 bar
• Hydraulic oil tank capacity: 895 litres

Transport Dimensions and Weight

• Length: 15,720 mm
• Width: 2,980 mm
• Height: 3,455 mm

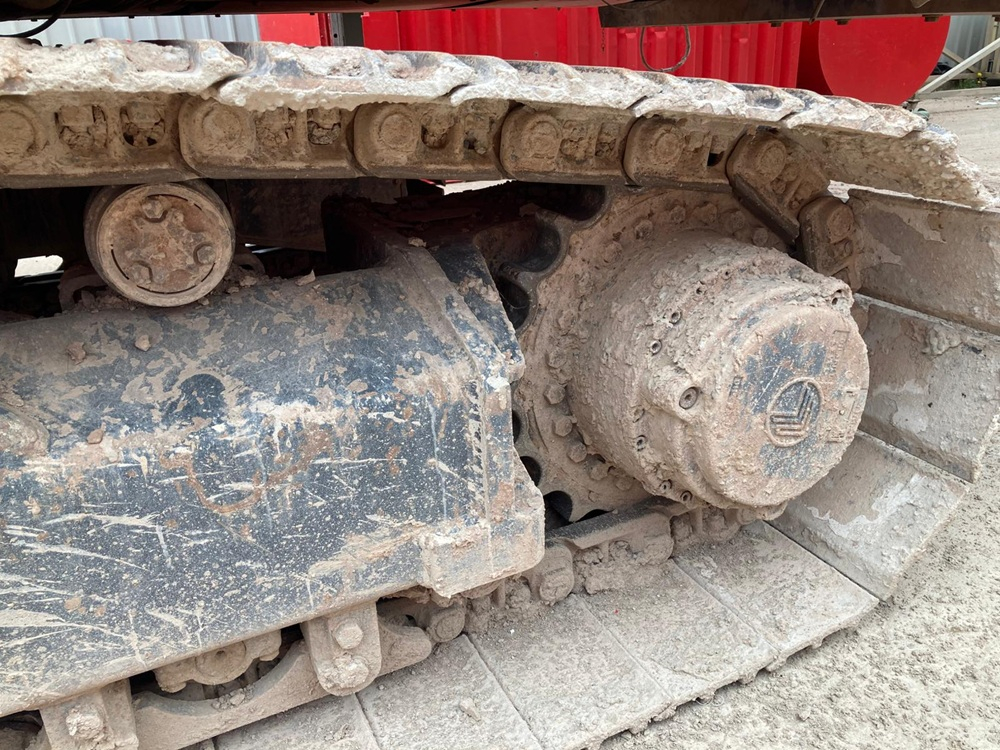

• Track shoe width: 750mm
• Weight: 36,500kg (w/o counterweight, rotary)

CE marked
