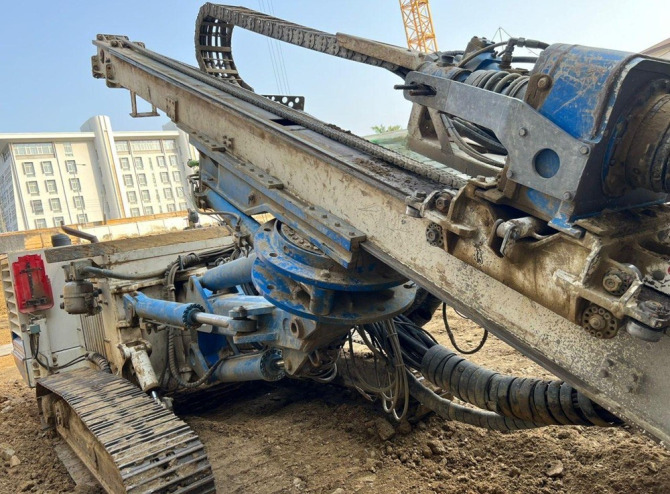

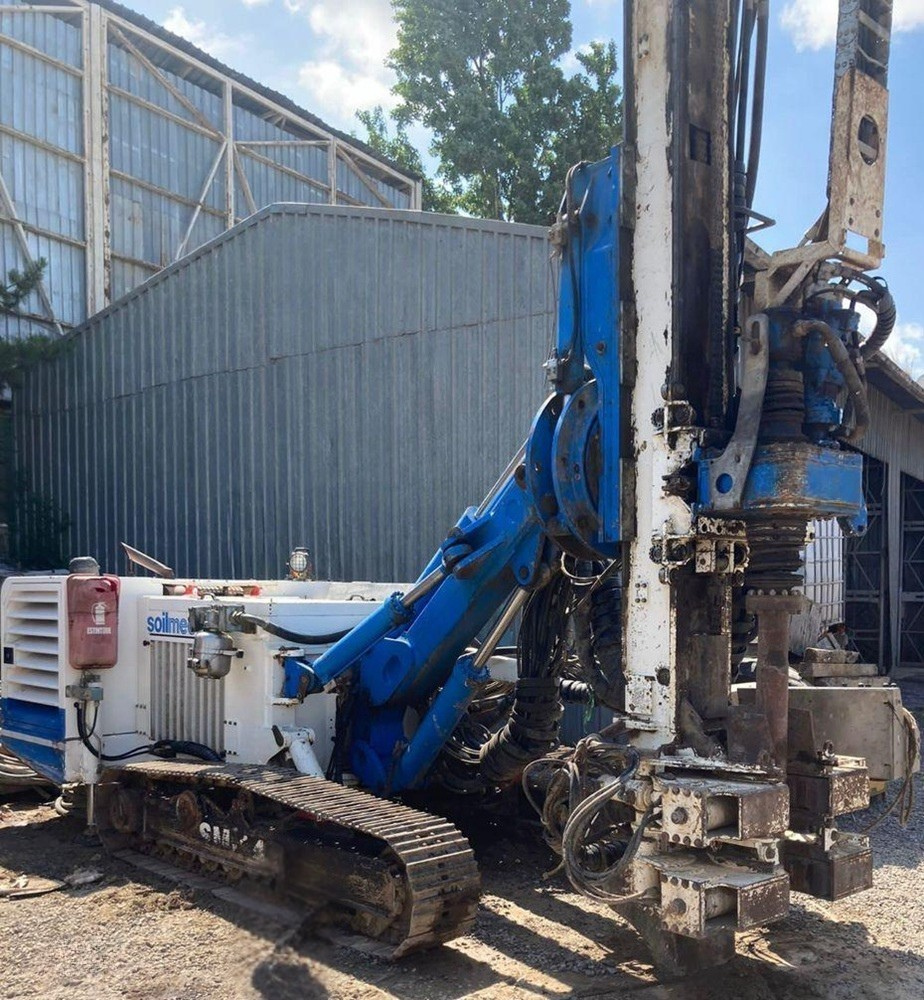

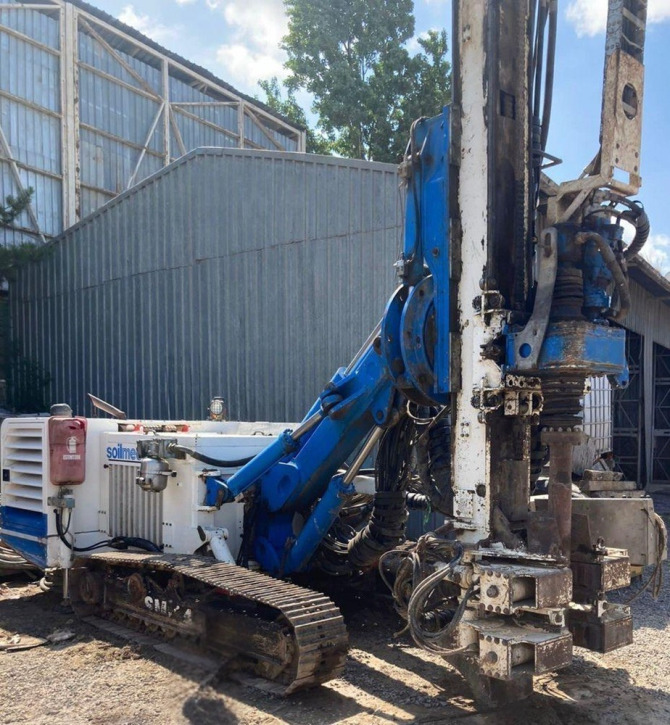

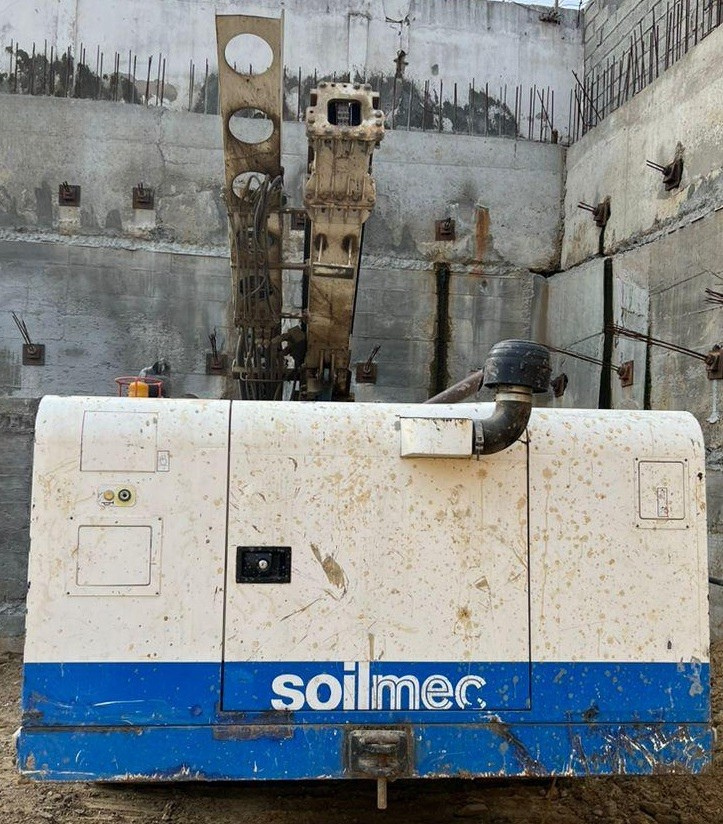

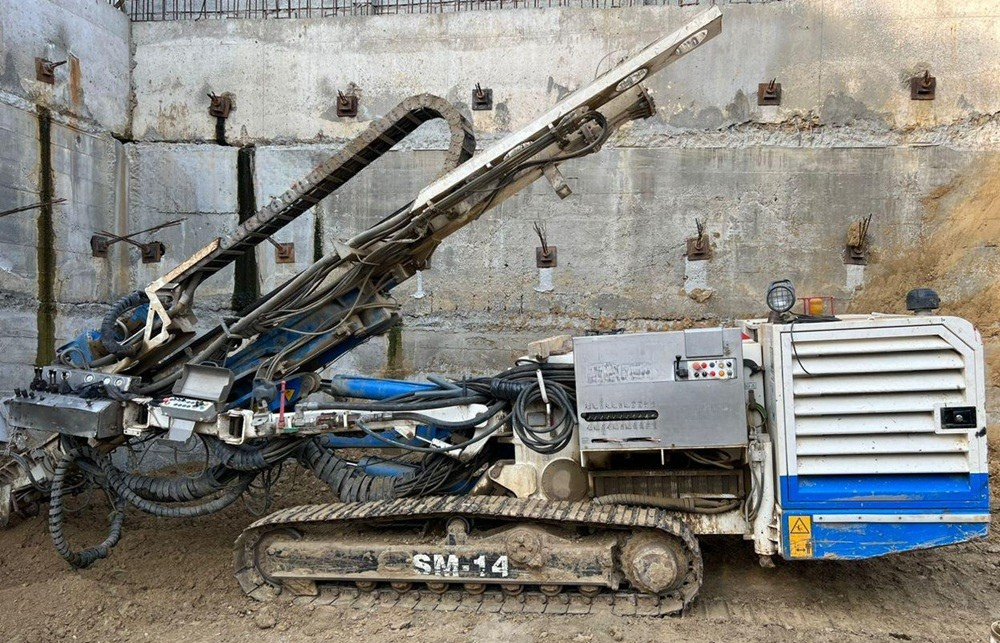

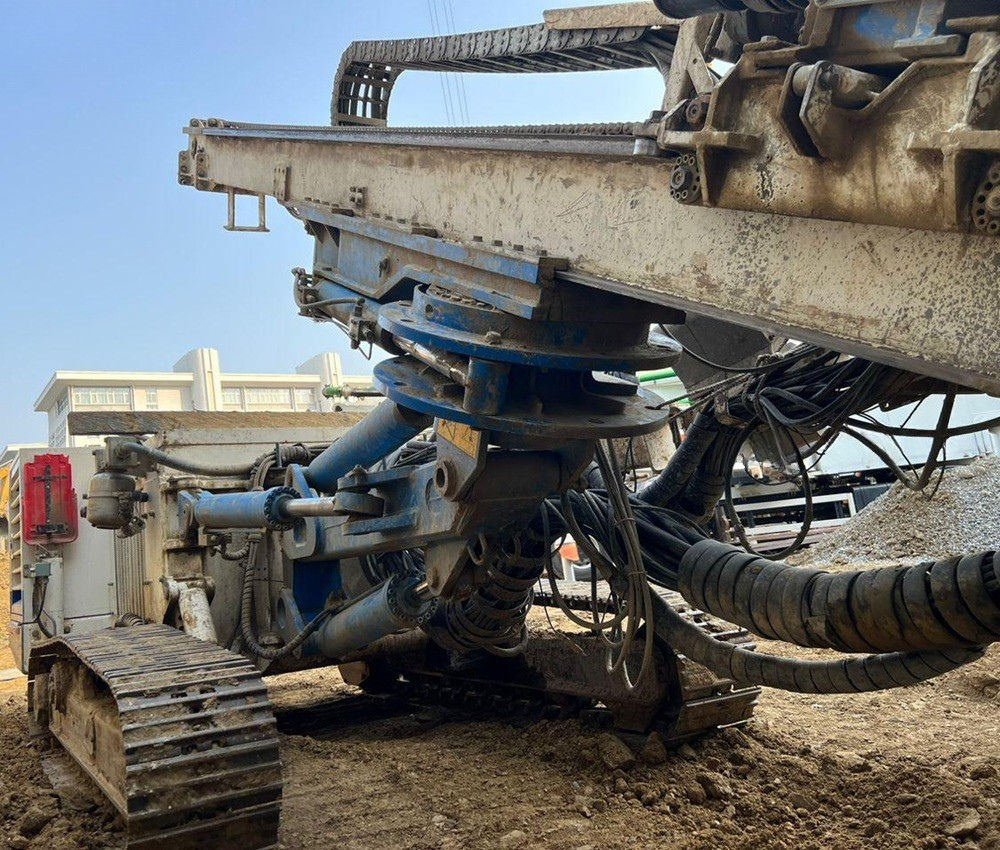

Overview
Machine location:
Europe
Stock number:
PF 40940
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Soilmec
Model:
SM14
Year of manufacture:
2014
Working hours:
4535
Key features

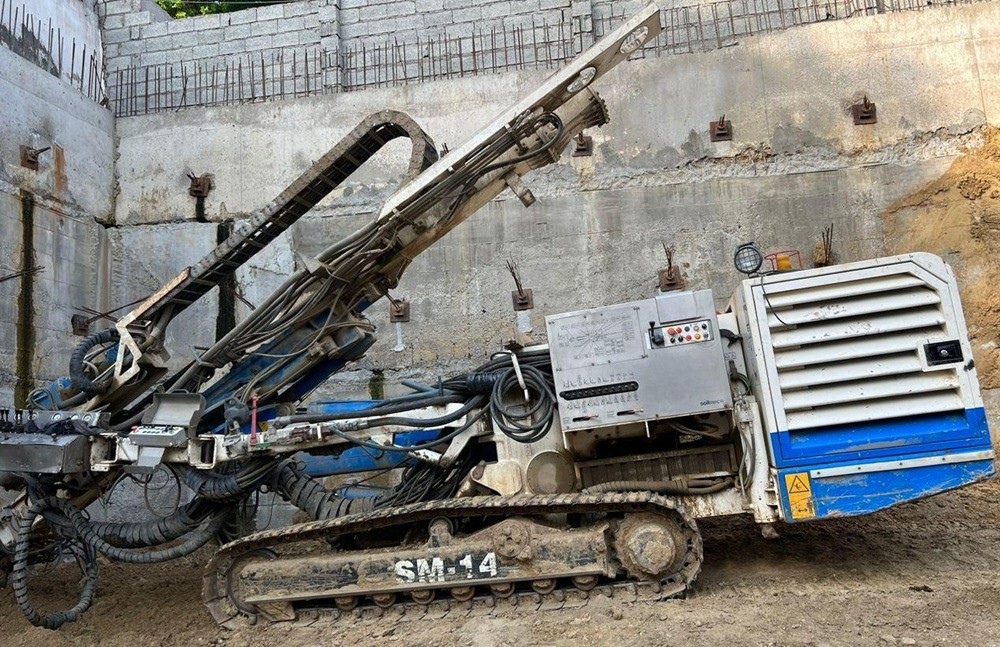

- Jet Grouting/Micropiling rig with 4535 working hours

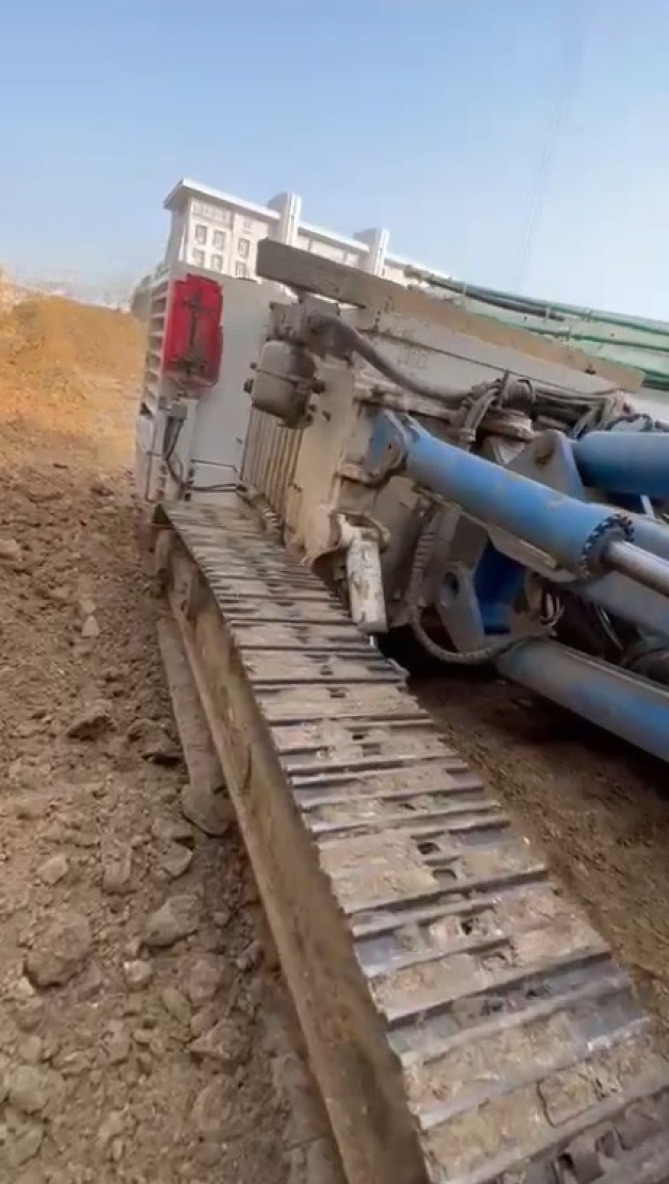

- Track mounted
- Max torque: 1210–1360 daNm
- Rotary options: up to 2500 daNm (with upgrades)
- Max rotation speed: 277 rpm
- Drill Capacity: 88.9mm Hutte to 300m, 101mm Hutte to 170m, 133mm Hutte to 130m, 114mm Symmetrix to 150m
- Clamp range: 50 – 415 mm
- Breakout capacity: up to ~280 mm
- Jet systems: Mono / Bi / Tri-fluid
- Rod sizes: 90 / 114 / 127 mm
- Max depth (single pass): 15–20 m
- Column diameter: 0.5 – 2.5 m (method dependent)
- Rotation speed: 277 rpm
- Torque: 1200–2500 daNm
- CE certified
