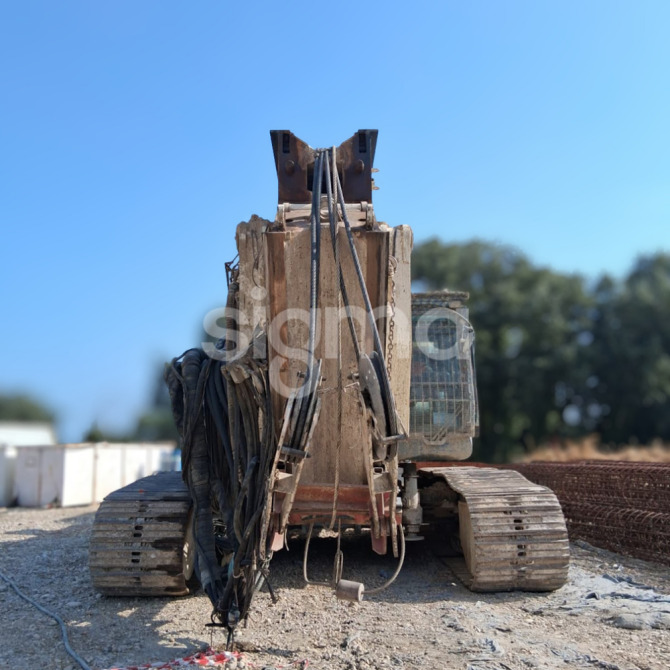

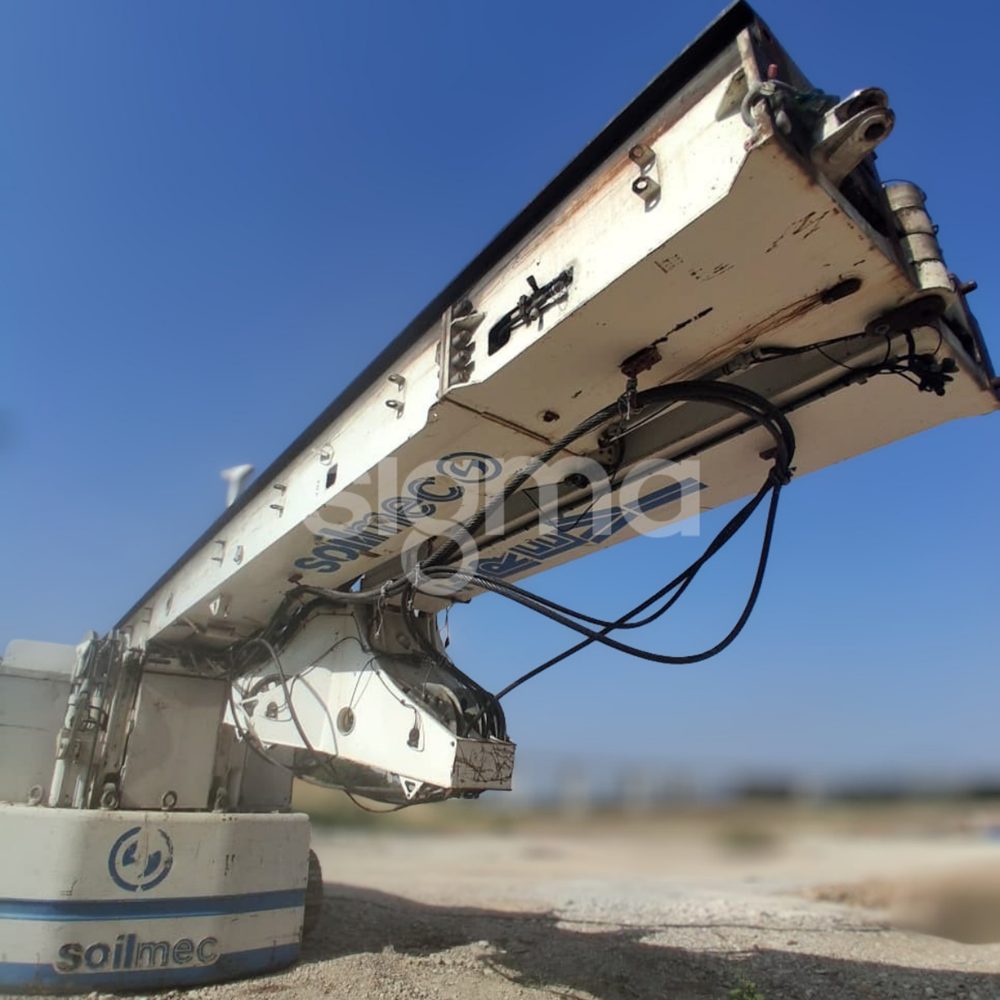

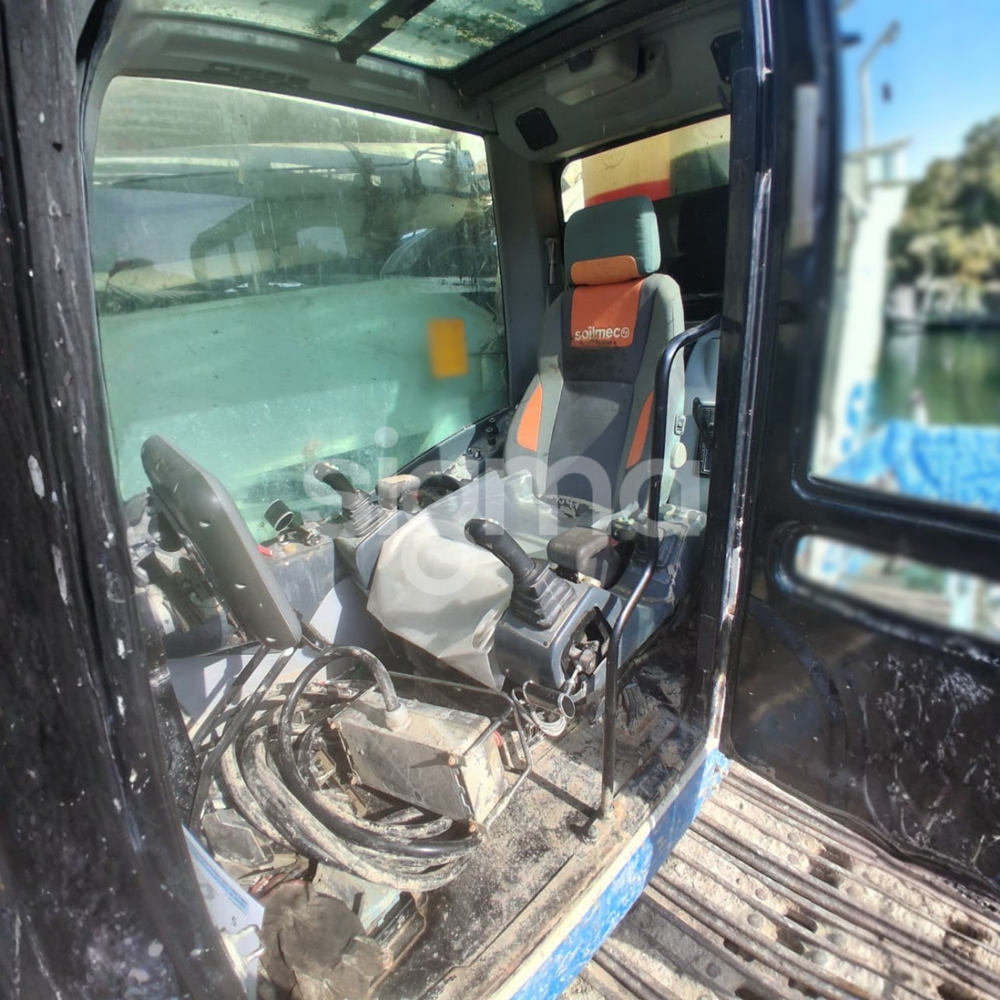

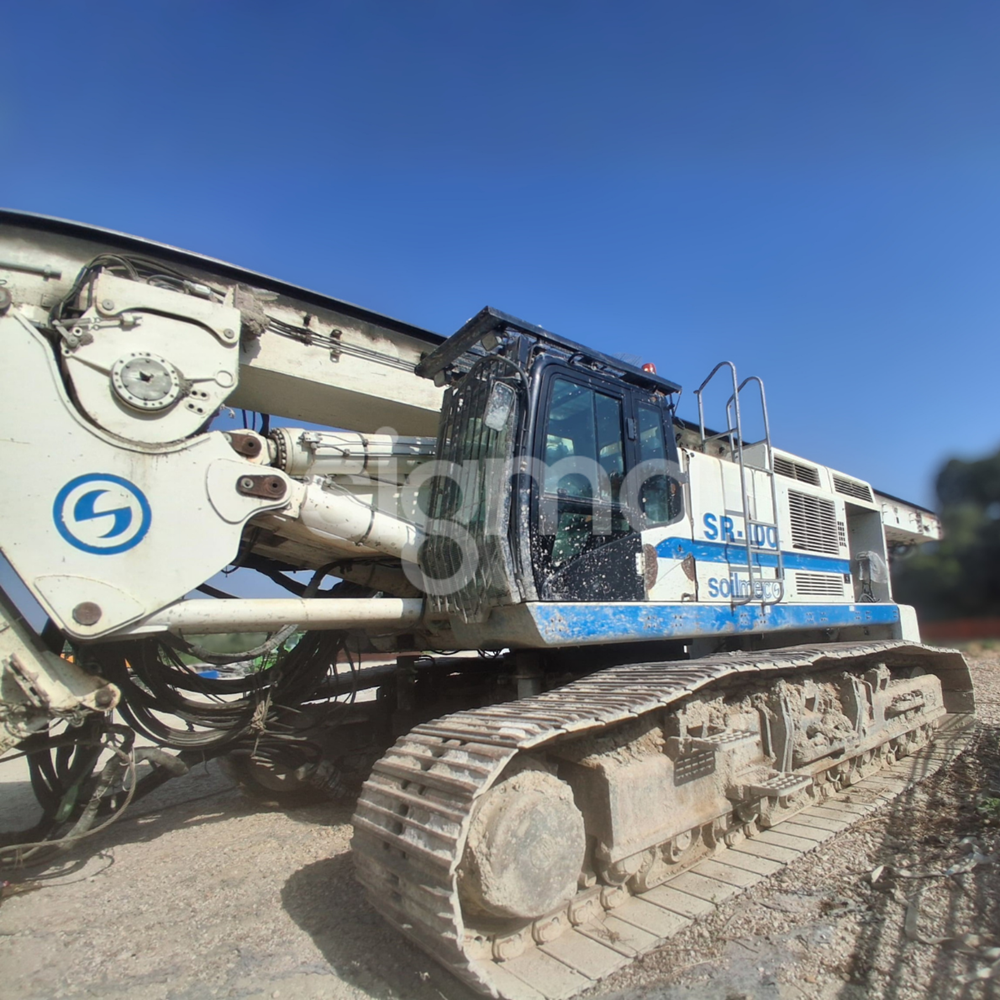

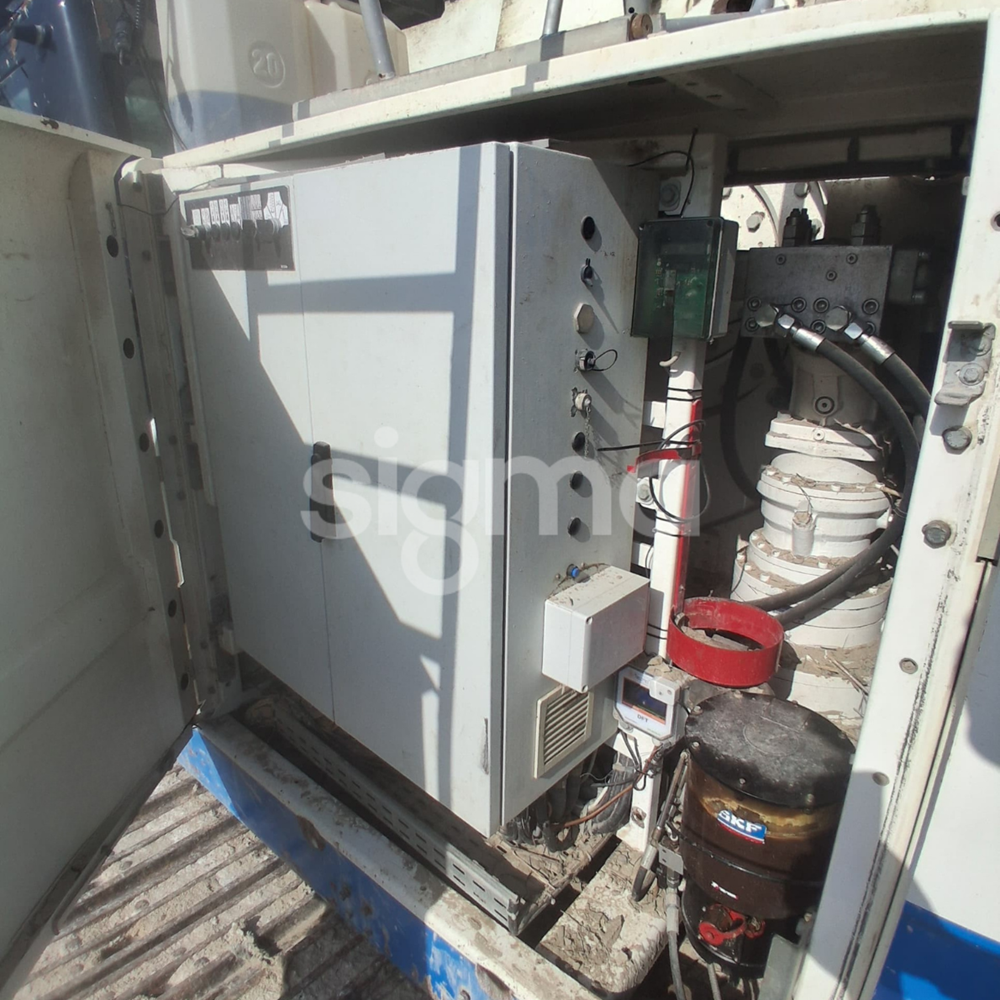

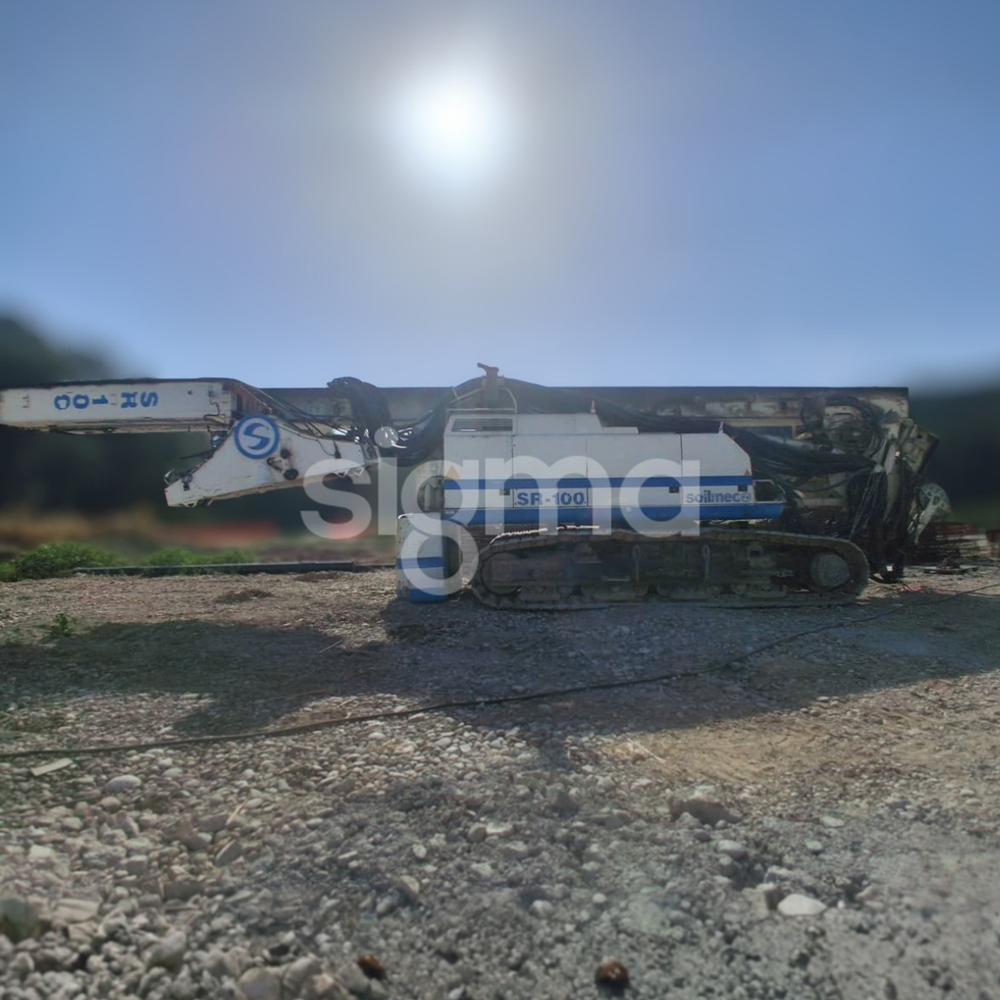

Soilmec SR-100

Working hours: 16,652

Piling Configuration

• Application: CAP/CSP cased secant piling
• Maximum drilling diameter: 1,200 mm
• Maximum drilling depth: 27 m
• Maximum torque: 270 kNm
• Maximum crowd force: 440 kN
• Maximum pull force: 1,480 kN

Rotary Head

• Maximum torque: 452 kNm
• Rotation type: Single rotary head and casing driver
• Maximum rotation speed: 17

Winches

• Main winch capacity: 370 kN
• Auxiliary winch capacity: 140 kN

Power Unit

• Engine: DEUTZ TCD 2015 V08
• Power: 500 kW / 670 hp
• Emissions standard: EU Stage IIIA

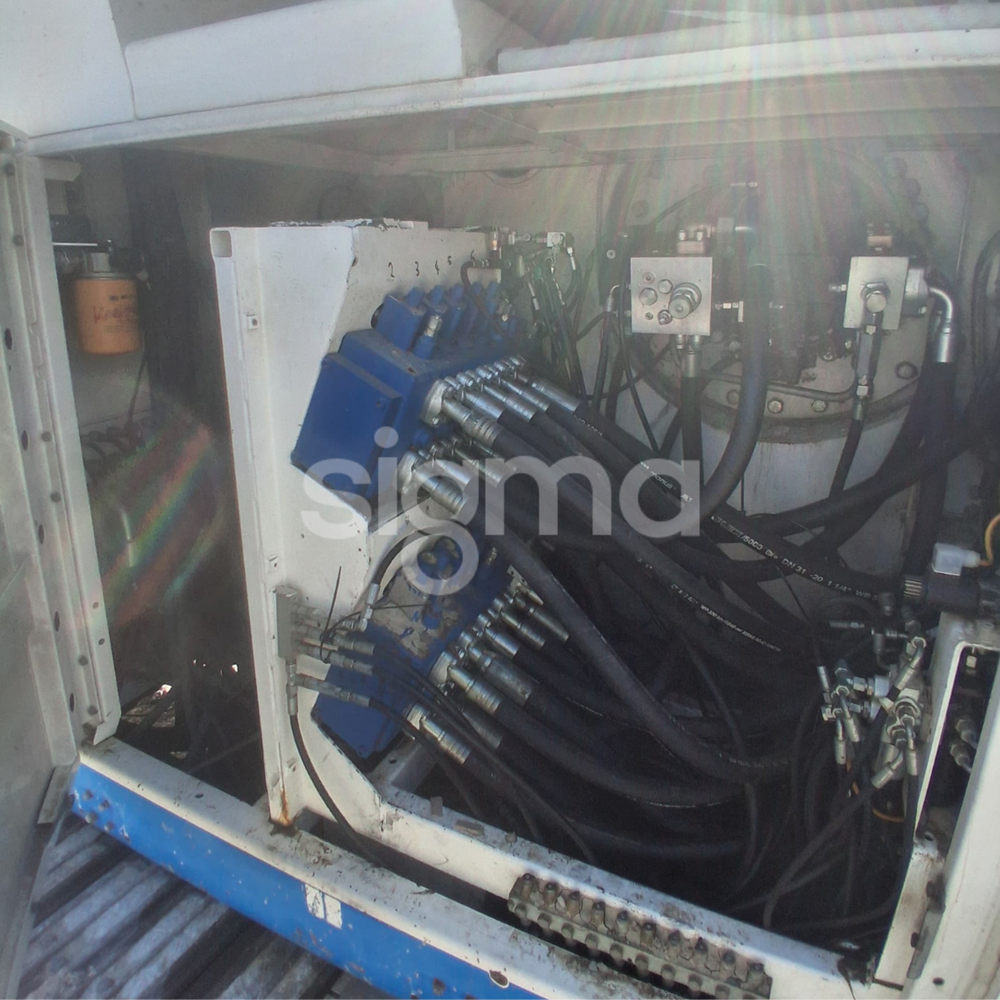

Hydraulic System

• Main pumps: 2 × 405 L/min
• Maximum operating pressure: 300 bar

Undercarriage

• Type: Hydraulically expandable crawler

Dimensions and Weight

• Transport dimensions (L × W × H): 18,800 × 3,500 × 4,100 mm
• Operating weight: 150,000 kg

Included Equipment

• Separate 1,200 mm casing driver
• 25HD5 short sleeve
• Short sleeve guide
• Reinforced 5-inch flanged swivel joint
• 5-inch concrete elbow, 1,500 mm radius
• Hydraulic double-roller auger cleaner, 1,200 mm
