Overview
Machine location:
United States
Stock number:
PF 41073
Categories:
Jet Grouting
Manufacturer:

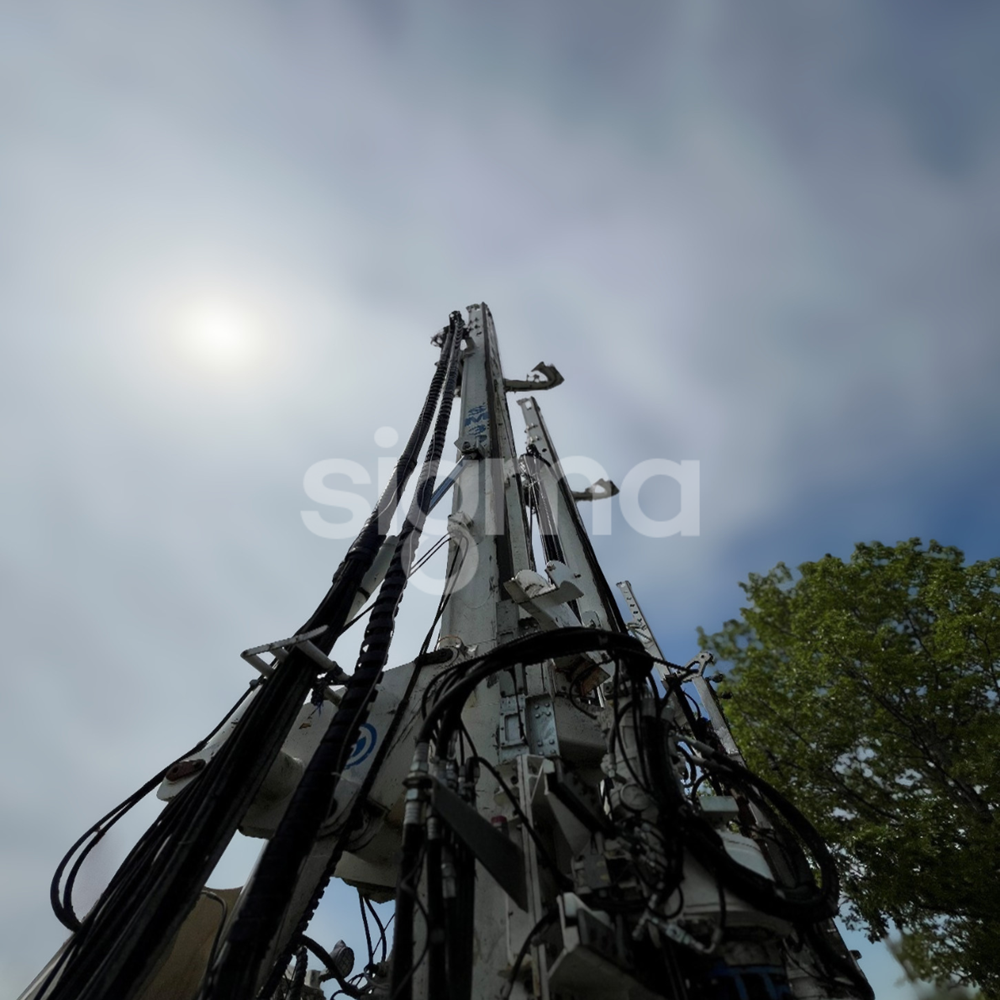

Soilmec
Model:
SR-30
Year of manufacture:
2008
Working hours:
9508
Key features
- Set up for jet grouting & DTH
- 9508 working hours
- Cummins QSB5.9-C Tier 2 engine

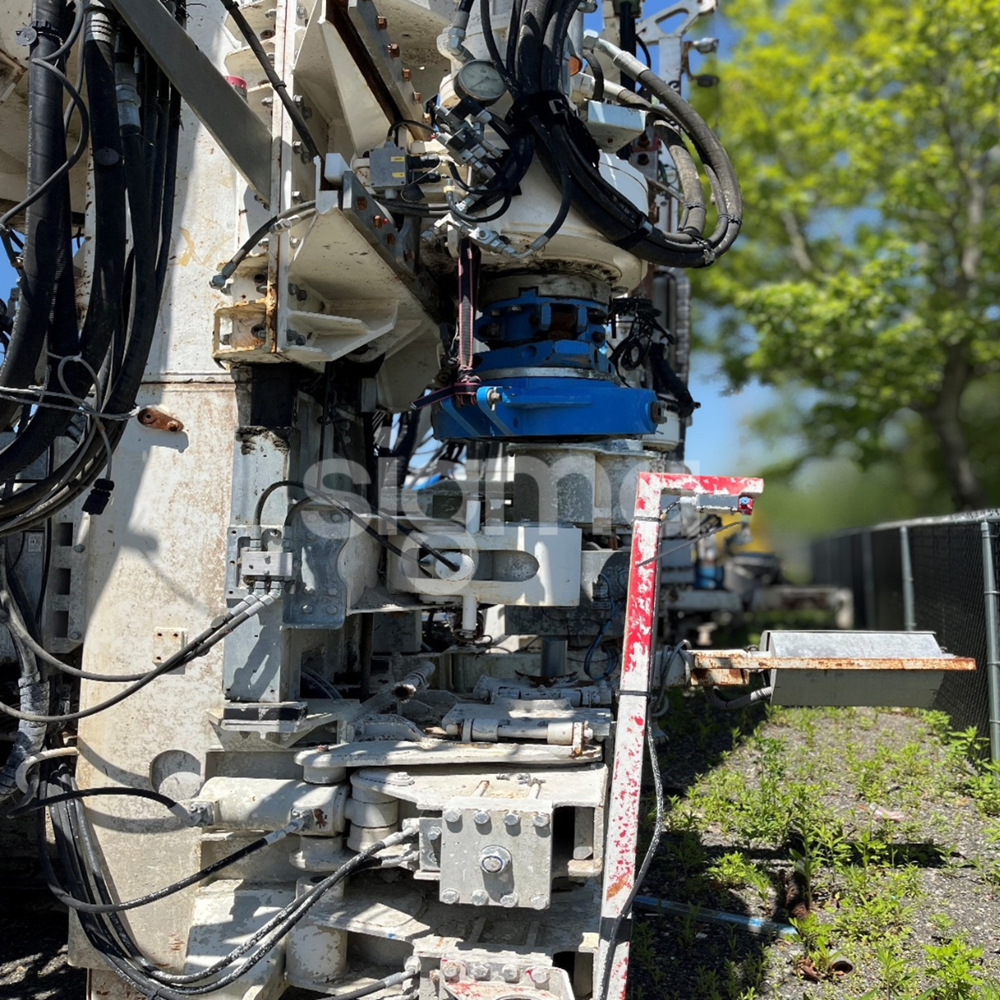

- HT3500 rotary head
- Max torque: 3659 daNm
- Max drilling speed: 83 rpm
- Hoist & feed system
- Rod length type: 12m
- Feed stroke: 14m
- Max hoist pull: 120kN,
- Max feed force: 120kN
- Clamp & hydraulic joint breaker
- Size: 60-415mm
- Max clamping force: 266kN,
- Max breaking torque: 7900daNm
- Service winch: max line pull 56kN
- Rod loader: number of rods 2, rod diameters 90-200mm, length 12m
- Max depth jet grouting: 55m (without manual operations)
- DTH size: 4inch , 5inch, 6inch & 8 inch
- CE marked
