Overview
Machine location:
United States
Stock number:
PF 41080
Manufacturer:
Soilmec
Model:
SR-30
Year of manufacture:
2011
Working hours:
11000
Key features

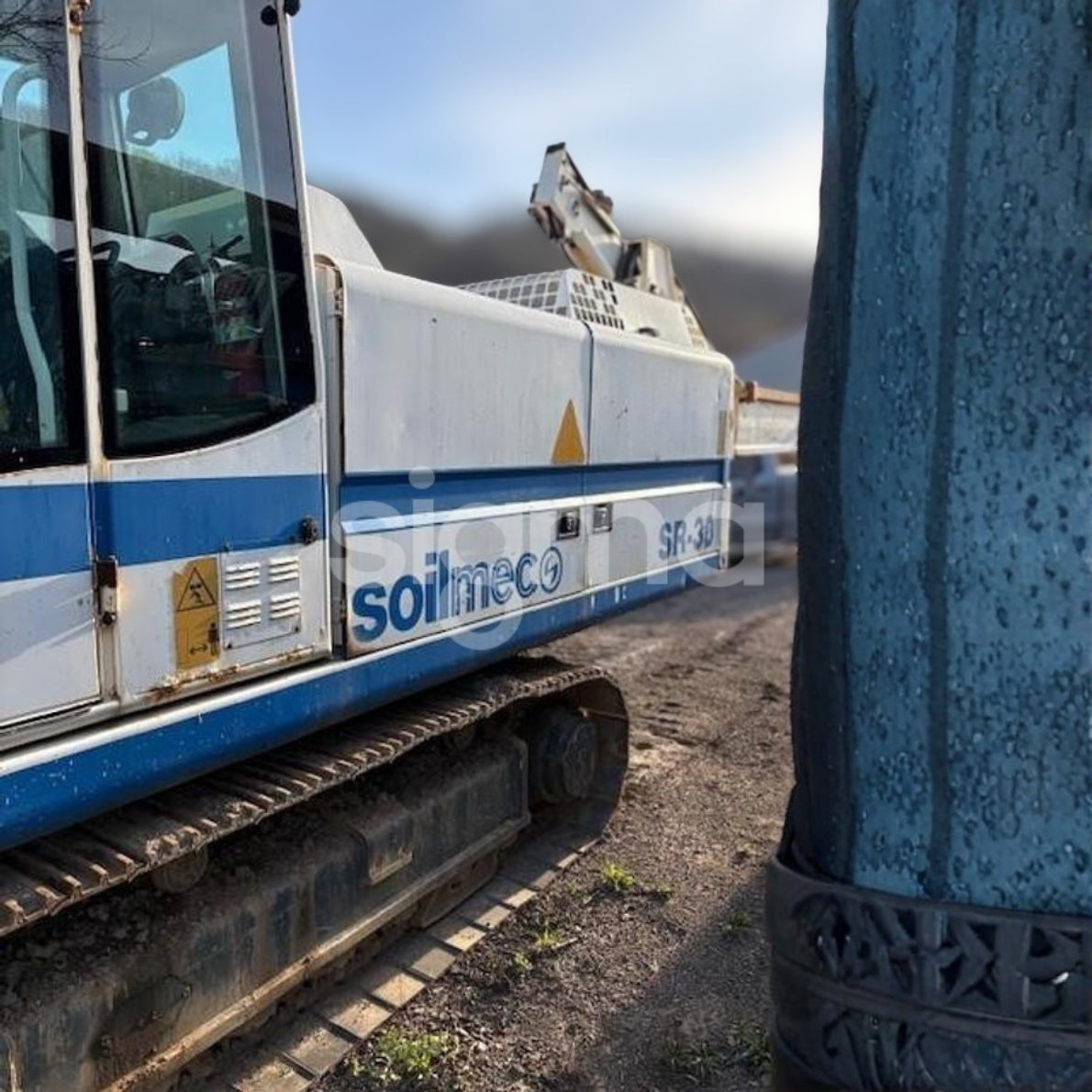

- Multipurpose drilling rig with 11,000 hours

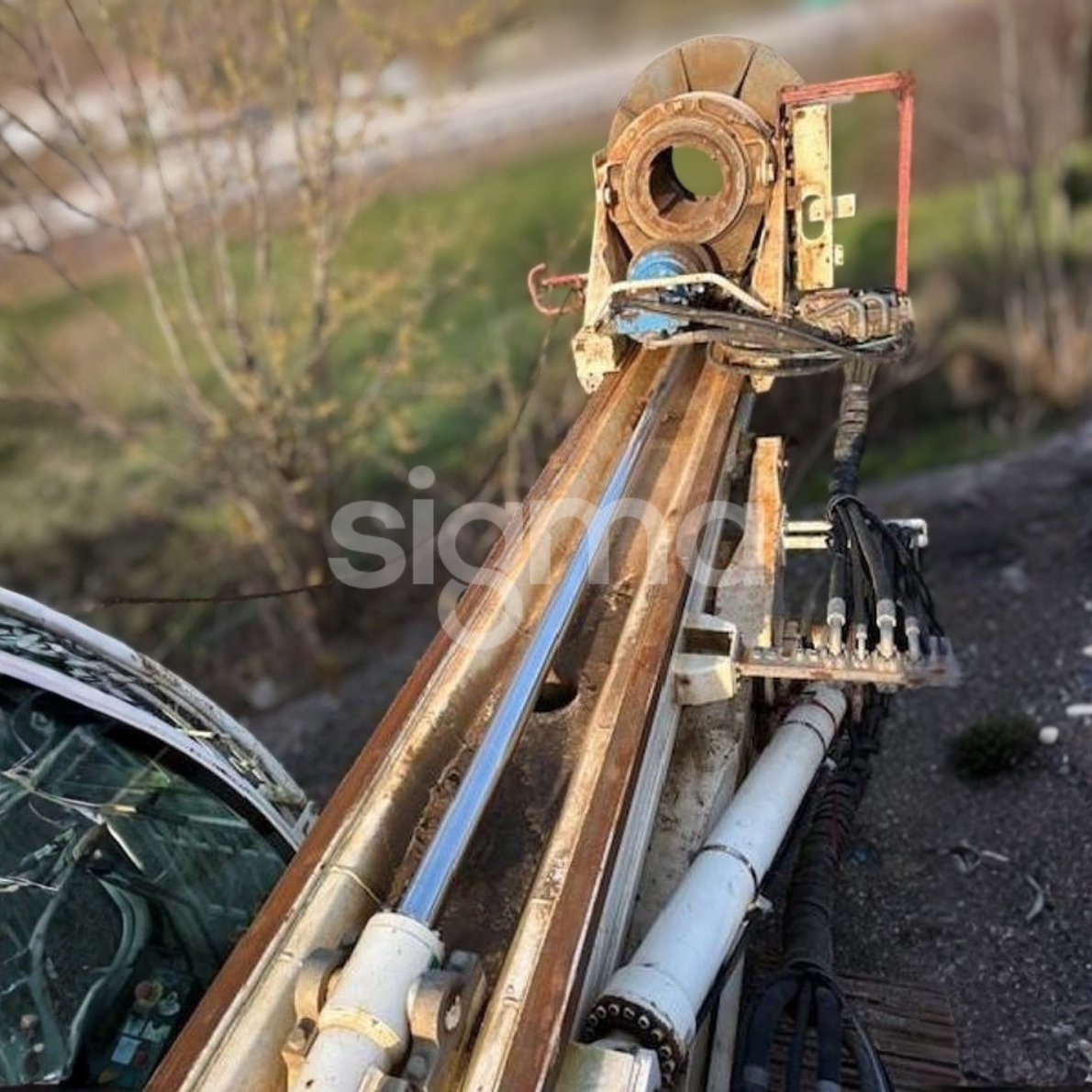

- Rotary head
- Max torque: 130 kNm
- Rated torque: 108 kNm
- Rotation speed: 40 rpm
- Max spin off speed: 14 rpm
- Drilling performance
- Max pile diameter: 1,500mm
- Max pile depth: 38.4
- Crowd force(Down/UP): 101/124 kN
- Engine
- Cummins B6.7
- 164 kW (220 HP) @ 2,200 rpm
- 350l fuel tank
- Stage IIIA
- Winches
- Main winch:
- Line pull: 135 kN
- Rope diameter: 22 mm
- Max speed: 78 m/min
- Auxiliary winch:
- Line pull: 65 kN
- Rope diameter: 18 mm
- Max speed: 58 m/min
- Main winch:
- Hydraulic system
- Pump capacity: 352 l/min
- Max pressure: 300 Bar
- Hydraulic oil tank capacity: 380 litres
- Transport Dimensions and weight
- Length: 15,116 mm
- Width: 2,550 mm
- Height: 3,400 mm
- Track shoe width: 600mm
- Weight: 44,300 kg
- CFA Kit
- Auger cleaner
- Rotary drive adaptor
- DMS system
- Swivel
- Cement hoses
