Overview
Machine location:
United States
Stock number:
PF 41070
Manufacturer:
Soilmec
Model:
SR-45
Year of manufacture:
2015

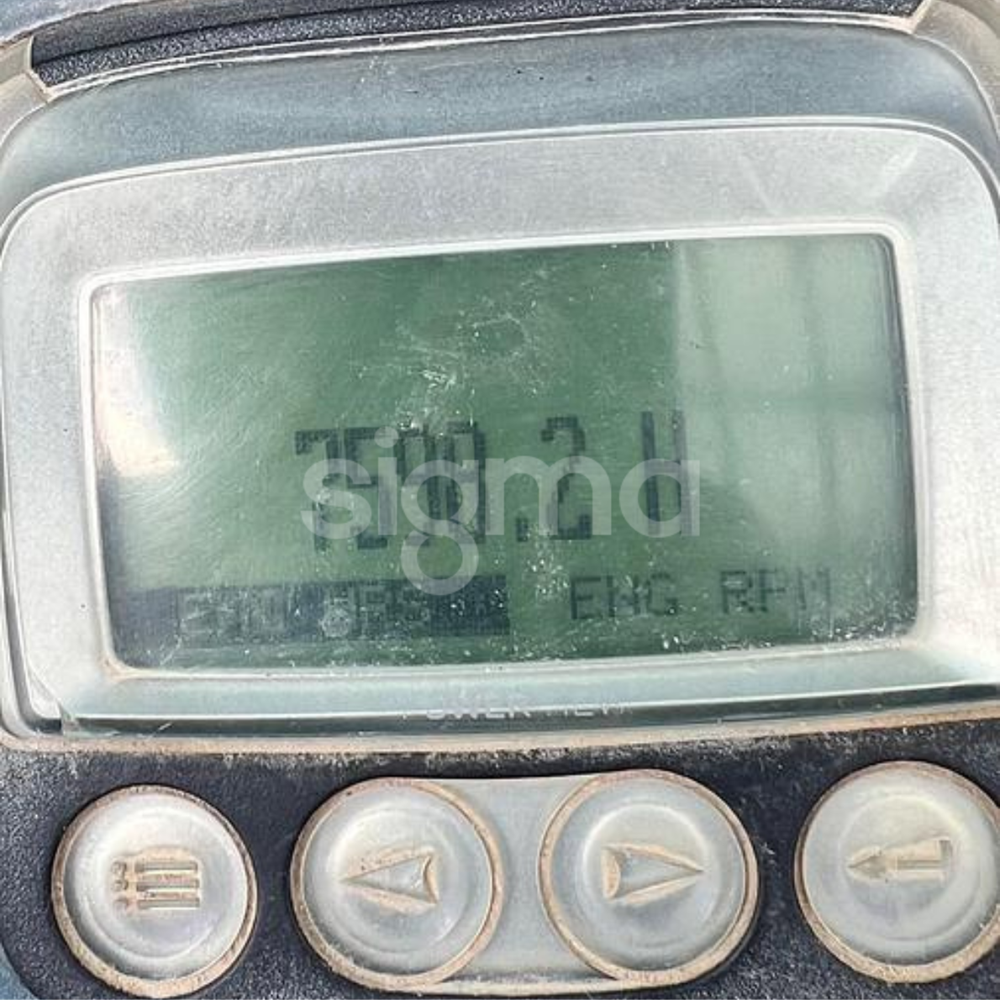

Working hours:
7598
Key features
- Multipurpose drilling rig with 7,598 hours
- Rotary head
- Max torque: 185 kNm
- Rated torque: 161 kNm
- Rotation speed: 47 rpm
- Max spin off speed: 146 rpm
- Drilling performance
- Max pile diameter: 1,500mm
- Max pile depth: 38.4
- Max extraction force: 140 kN
- 4 x 10.5 Kelly Bar Included
- Engine
- Cummins B6.7
- 209 kW (280 HP) @ 2,000 rpm
- 380l fuel tank
- Winches
- Main winch:
- Line pull: 165 kN
- Rope diameter: 24 mm
- Max speed: 78 m/min
- Auxiliary winch:
- Line pull: 65 kN
- Rope diameter: 18 mm
- Max speed: 81 m/min
- Crowd winch:
- Line pull: 240 kN
- Max speed: 22 m/min
- Main winch:
- Hydraulic system
- Pump capacity: 2 x 214 + 160 l/min
- Hydraulic oil tank capacity: 450 litres
- Transport Dimensions and weight
- Length: 15,116 mm
- Width: 2,550 mm
- Height: 3,400 mm
- Track shoe width: 600mm
- Weight: 44,300 kg
- CFA Kit
- Auger cleaner
- Rotary drive adaptor
- DMS system
- Auger cleaner
- Swivel
- Cement hoses
