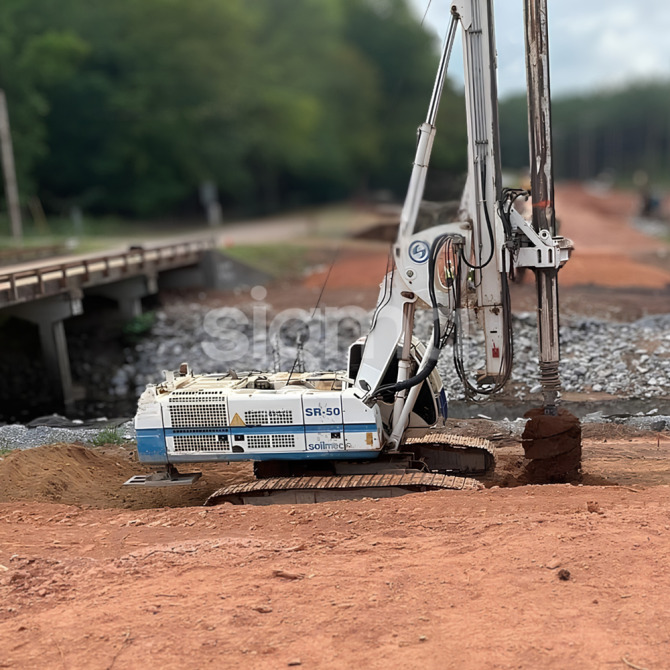

Overview
Machine location:
United States
Stock number:
PF 41097
Categories:
Rotary Bored Piling Rigs
Manufacturer:
Soilmec
Model:
SR 50
Year of manufacture:
2011
Working hours:
14000
Key features
- Rotary drilling rig with 14,000 hours.
- Rotary head
- Max torque: 162 kNm
- Rotation speed: 47 rpm
- Max spin off speed: 100 rpm
- Drilling performance
- Max pile diameter: 2,000mm
- Max pile depth: 61
- Max extraction force: 220 kN
- Engine
- CAT C7 (2,500 hours since rebuild)
- 224 kW (304 HP)
- Winches
- Main winch:
- Line pull: 185 kN
- Rope diameter: 24 mm
- Max speed: 61 m/min
- Auxiliary winch:
- Line pull: 75 kN
- Rope diameter: 18 mm
- Max speed: 62 m/min
- Main winch:
- Hydraulic system
- Pump capacity: 2 x 230 + 32 l/min
- Max oil pressure: 350 BAR
- Transport Dimensions and weight
- Length: 13,680 mm
- Width: 2,550 mm
- Height: 3,330 mm
- Track shoe width: 700mm
- Weight: 54 T
