Overview
Machine location:
United States
Stock number:
PF 41068
Categories:
Rotary Bored Piling Rigs
Manufacturer:
Soilmec
Model:
SR-95
Year of manufacture:
2019
Working hours:
4000
Key features

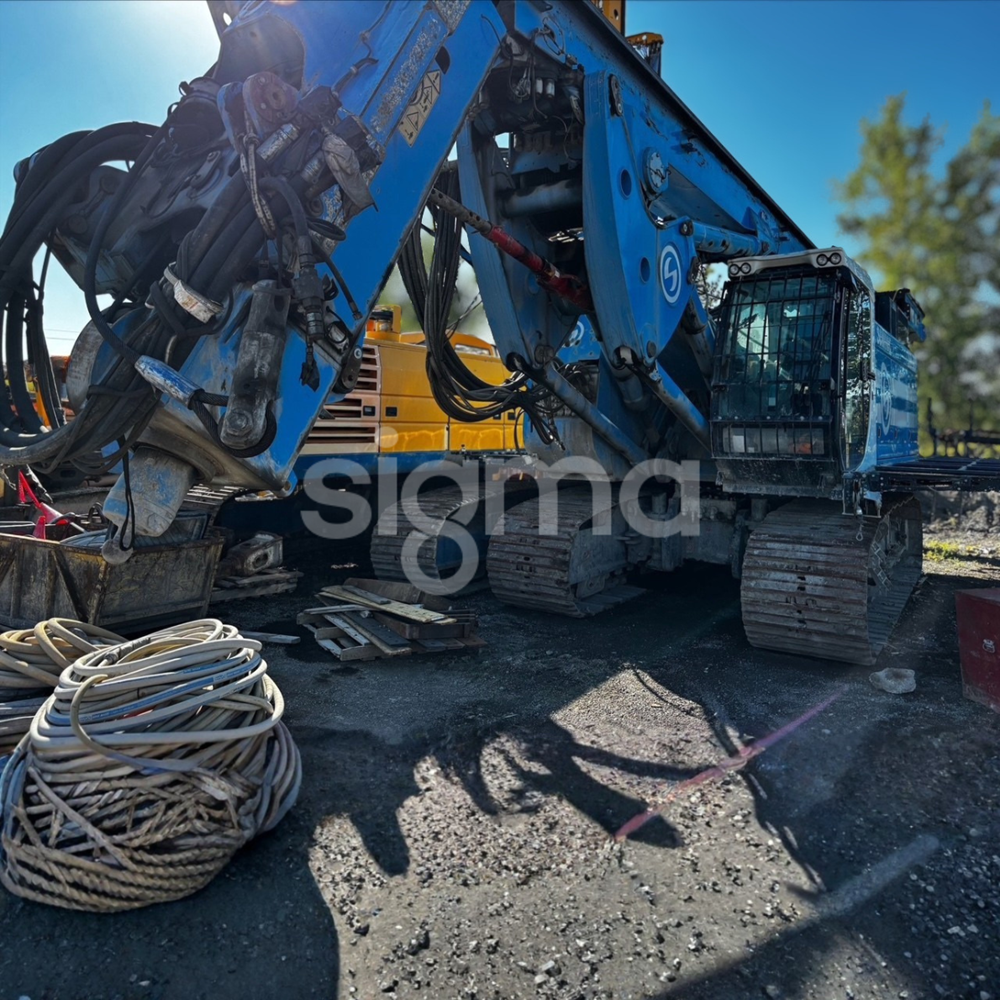

- Rotary bored pile rig with 4,000 hours

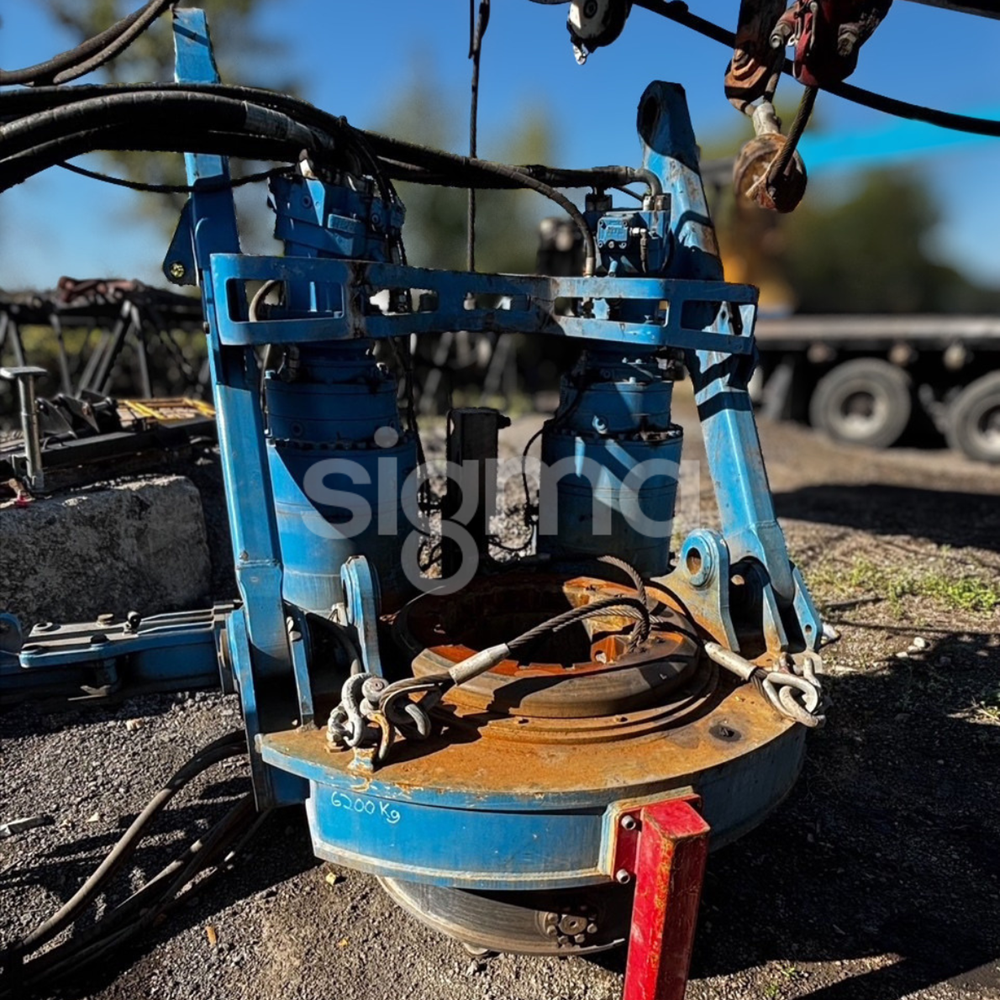

- Rotary head
- Max torque: 351 kNm
- Rated torque: 301 kNm
- Rotation speed: 25.4 rpm
- Max spin off speed: 120 rpm
- Drilling performance
- Max pile diameter: 1,900mm
- Max pile depth: 37.2
- Max extraction force: 484 kN
- Engine
- Cummins X15
- 450 kW (603 HP) @ 1,800 rpm
- 830l fuel tank
- EU Stage V
- Winches
- Main winch:
- Line pull: 320 kN
- Rope diameter: 32 mm
- Max speed: 81 m/min
- Auxiliary winch:
- Line pull: 132 kN
- Rope diameter:22 mm
- Max speed: 70 m/min
- Crowd winch:
- Max crowd force: 484 kN
- Max extraction force: 484 kN
- Main winch:
- Hydraulic system
- Pump capacity: 2x 444 l/min
- Hydraulic oil tank capacity: 1,050 liters
- Transport Dimensions and weight
- Length: 16,4910 mm
- Width: 3,200 mm
- Height: 3,700 mm
- Track shoe width: 900mm
- Weight: 75,600 – 52,800 kg
