Overview
Stock number:
PF 39498
Categories:
Rotary Bored Piling Rigs
Manufacturer:
Soilmec
Model:
SR30
Year of manufacture:
2014
Working hours:
5399
Key features
- Hours: approx. 5,399h
- 4/45m Kelly bar
CCS – Cylinder Crowd System
- Crowd force pull (down/up) 101 / 124 kN
- Stroke 3500 mm
- Speed up 7,4 m/min
WCS – Winch Crowd System
- Crowd force pull (down/up) 200 / 200 kN
- Stroke 13000 mm
- Speed up 2,8 m/min

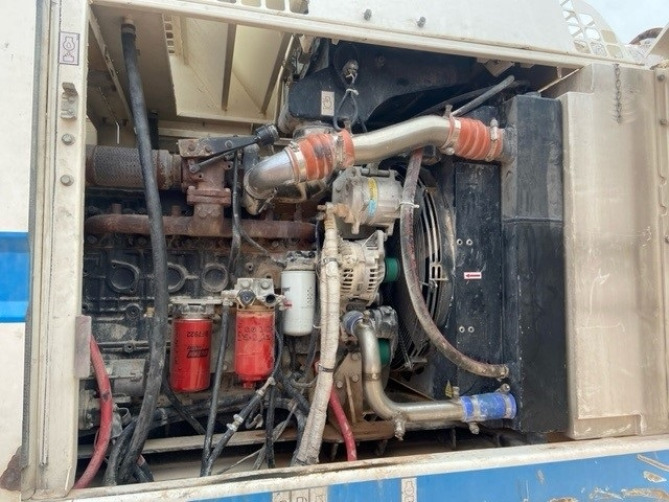

Engine Cummins QSB6.7
- Rated output ISO 3046-I
- Engine conforms to exhaust mission standard EU stage III A-US EPA Tier 3
- Diesel tank capacity 350 I
Main winch Controlled descend
- Line pull (1st layer) 135 kN
- Rope diameter 22 mm
- Line speed (max.) 78,5 m/min
