Overview
Machine location:
Europe
Stock number:
PF 41009
Manufacturer:

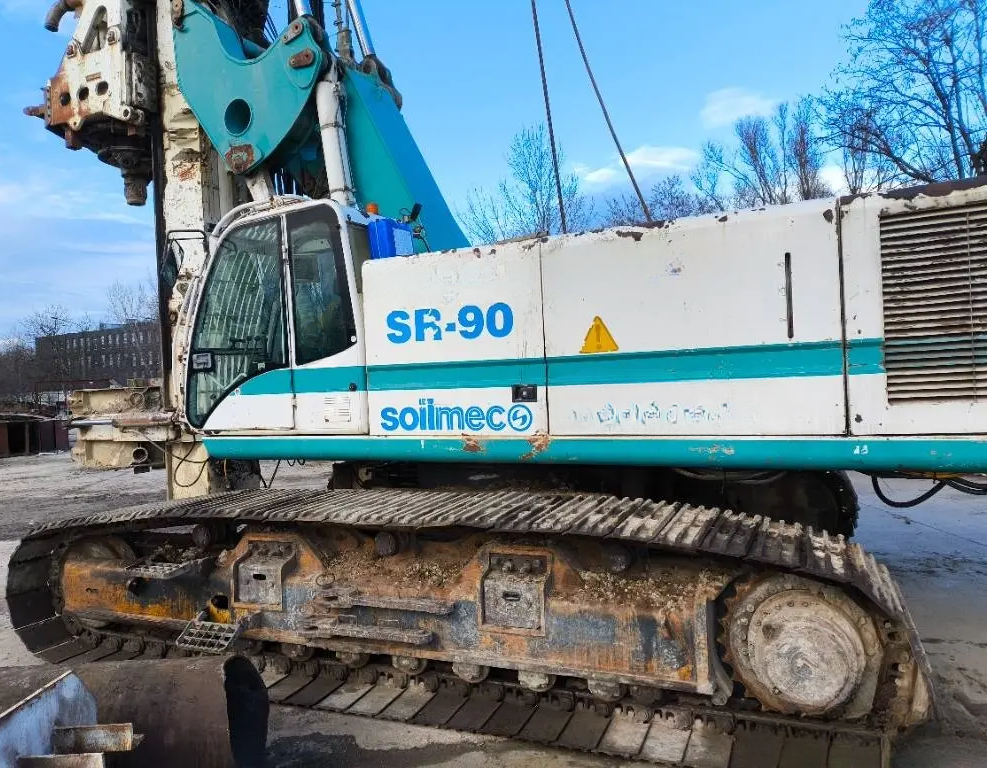

Soilmec
Model:
SR90
Year of manufacture:
2008
Working hours:
9016
Key features

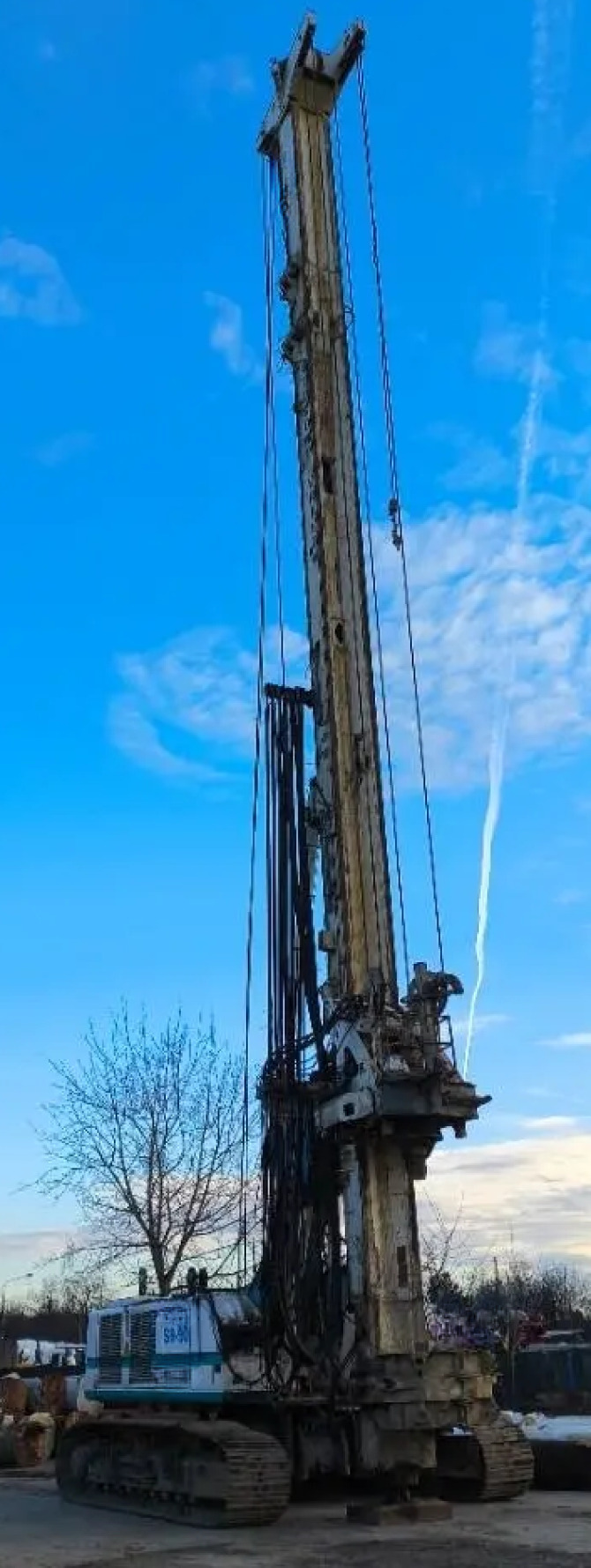

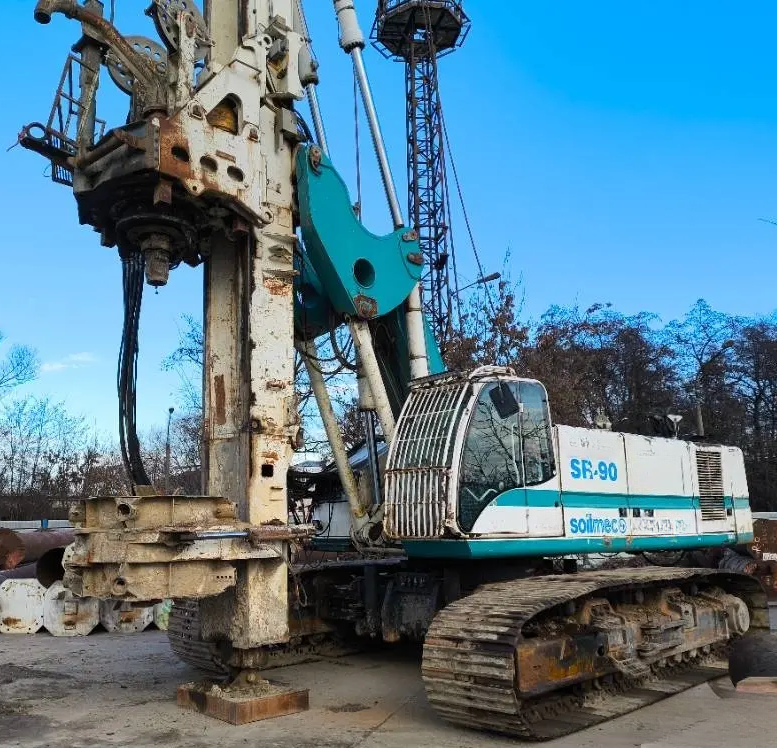

- Multipurpose drilling rig with 9,016 hours
- Rotary head
- Max torque: 333 kNm
- Spin off speed: 120 rpm
- Rotation speed: 26 rpm
- Drilling performance
- Max pile diameter: 1,200mm
- Max pile depth: 28.5m (w/o auger cleaner)
- Max extraction force: 1,280 kN

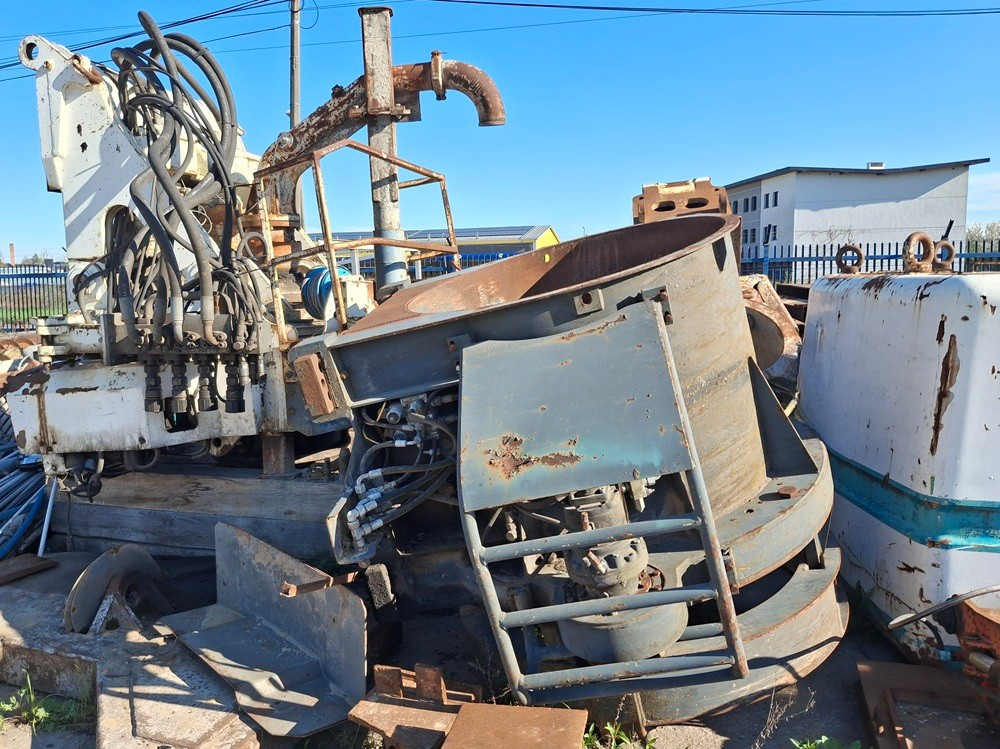

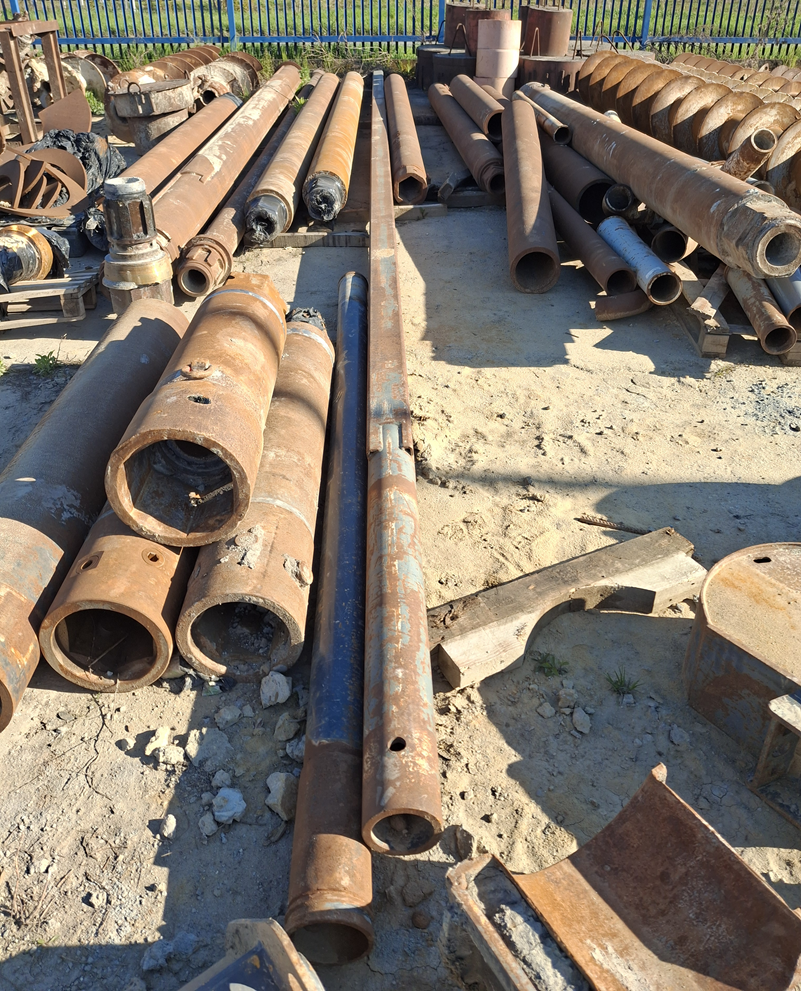

- CFA Kit
- CFA cathead
- 5" concrete pipe
- CFA cleaner, Ø1200 mm
- Openable auger guide, Ø1200 mm

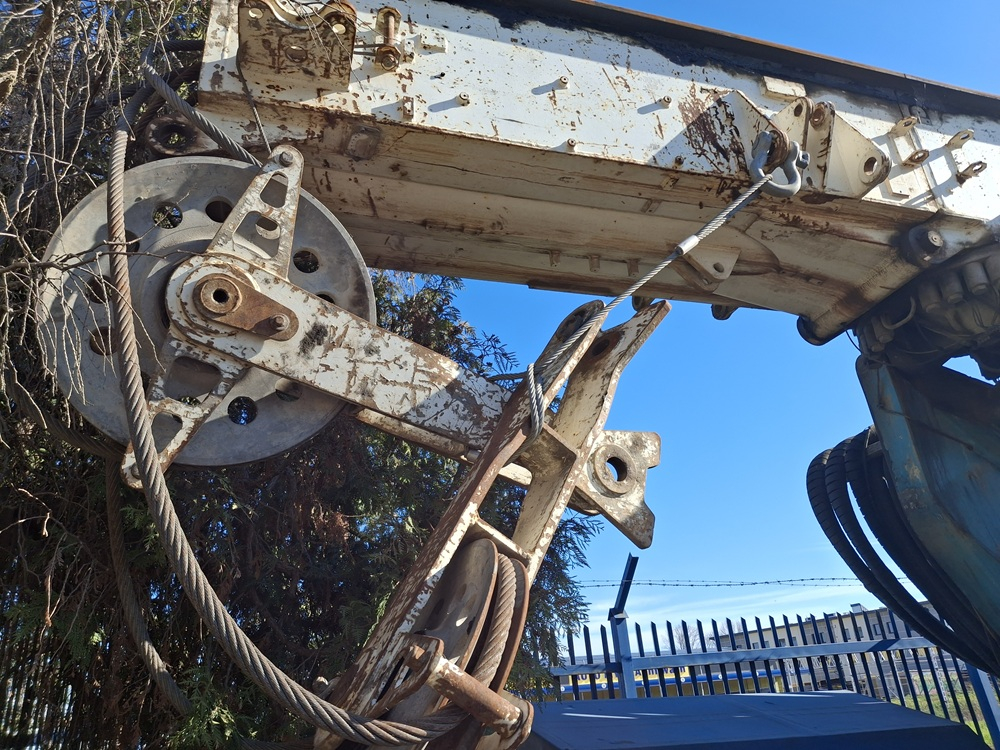

- Blocks, ropes and sheaves

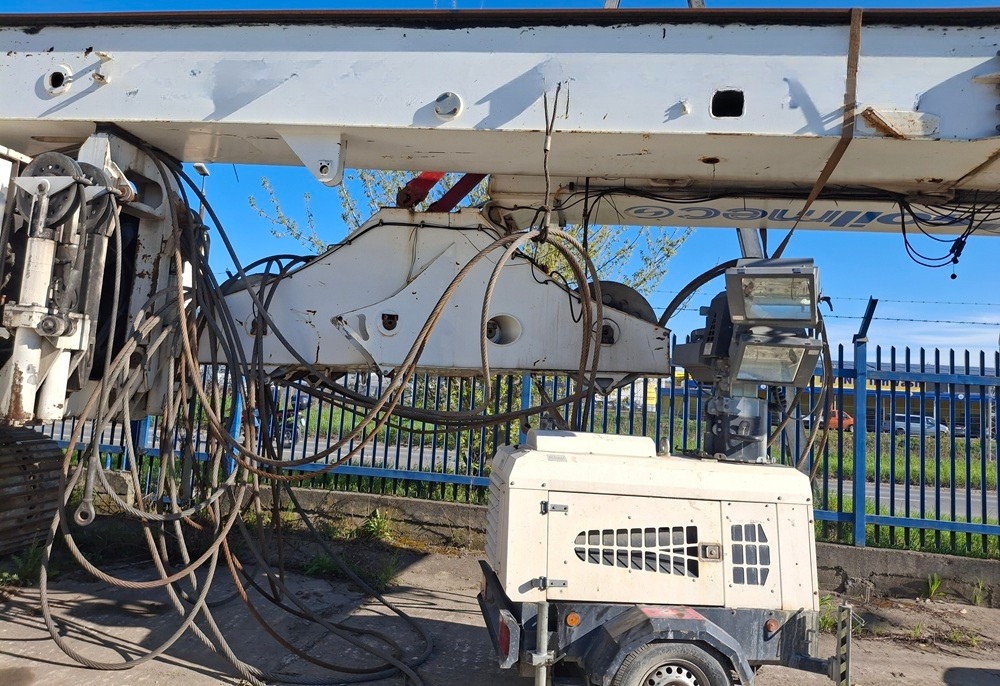

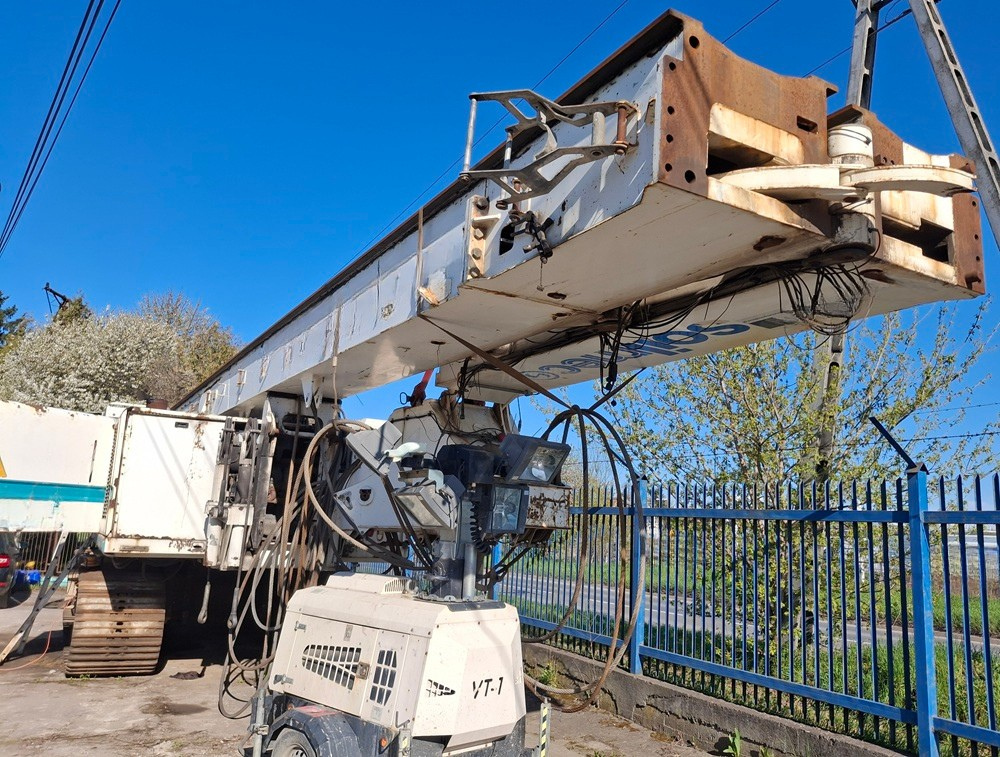

- Mast extension

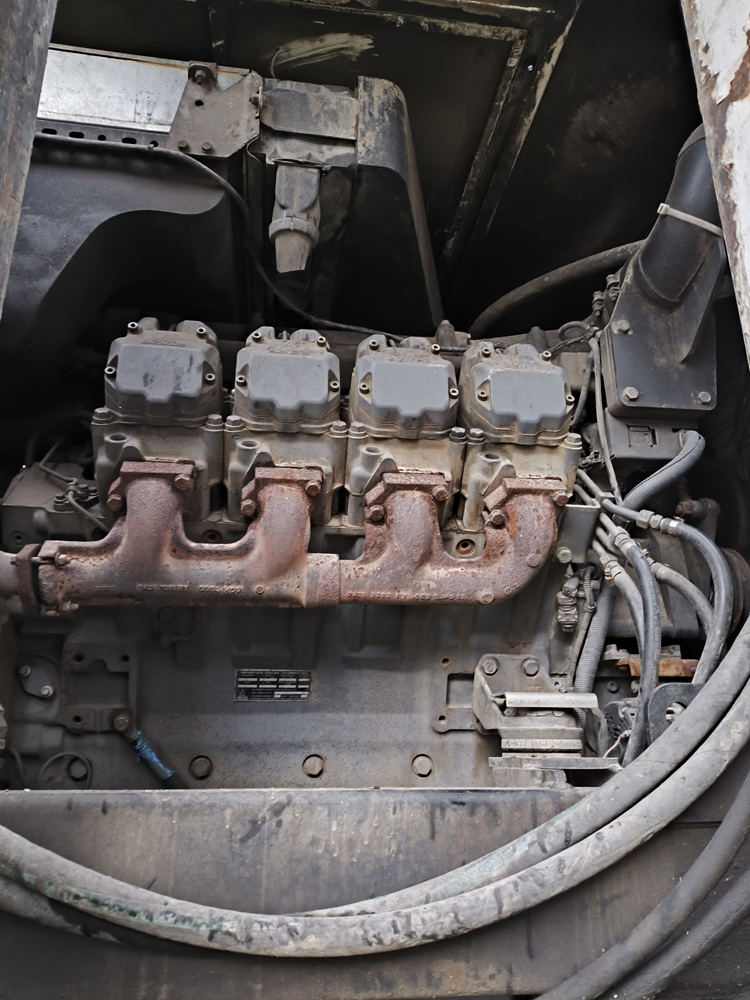

- Engine
- DEUTZ TCD 2015 V08
- 400 kW (536hp) @ 1,900 rpm
- EU Stage 3f
- Winches
- Main winch:
- Line pull: 320 kN
- Rope diameter: 32 mm
- Max speed: 78 m/min
- Auxiliary winch:
- Line pull: 147 kN
- Rope diameter: 26 mm
- Max speed: 61 m/min
- Crowd winch:
- Max crowd force(push/pull): 360/360 kN
- Max extraction force: 1,280 kN
- Main winch:
- Hydraulic system
- Pump capacity: 2 x 405 l/min
- Max pressure: 300 bar
- Transport Dimensions and weight
- Length: 17,419 mm
- Width: 3,461 mm
- Height: 3,885 mm
- Track shoe width: 900mm
- Weight: 78,000 kg
- CE marked
