Overview
Machine location:
Europe
Stock number:
PF 41019
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Tecniwell
Model:
Sub Anchor
Year of manufacture:
2009
Key features

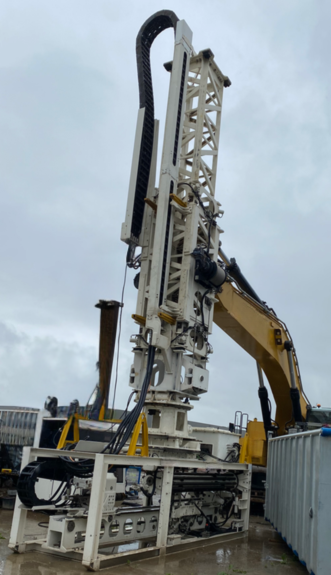

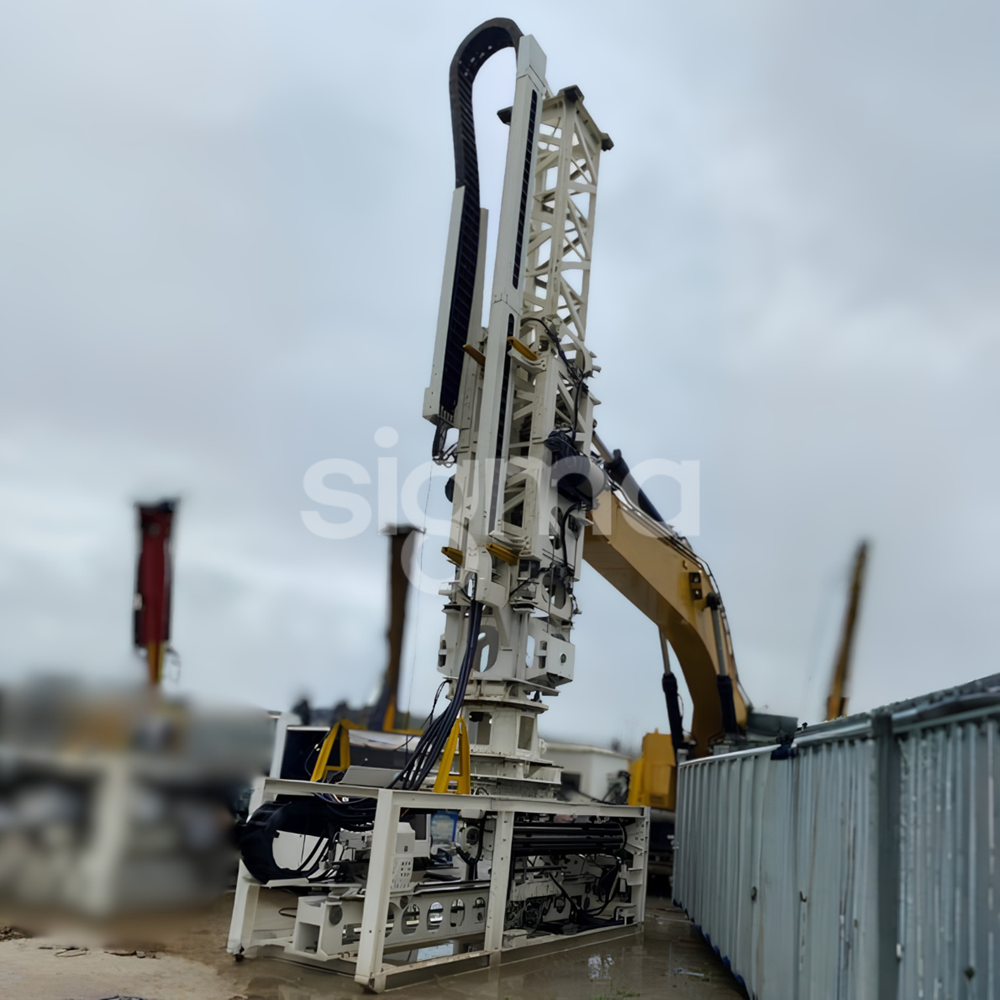

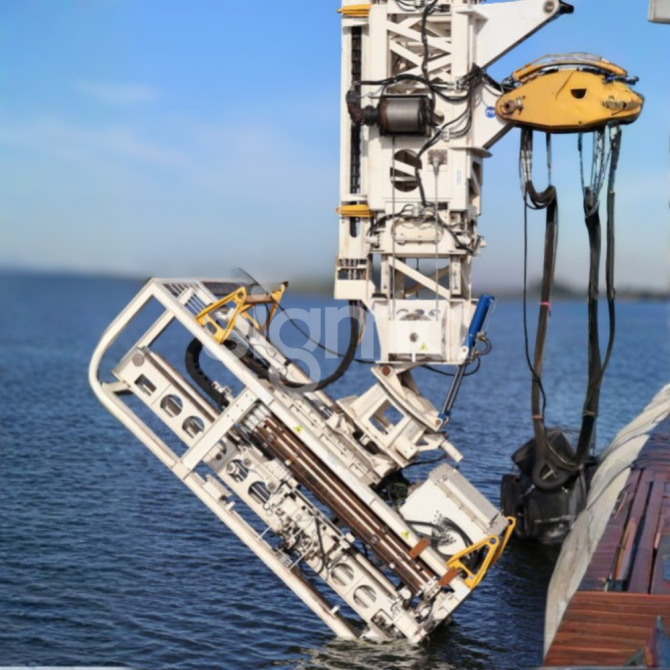

- Excavator mounted underwater drilling attachment
- For installation of up to 13m underwater anchors

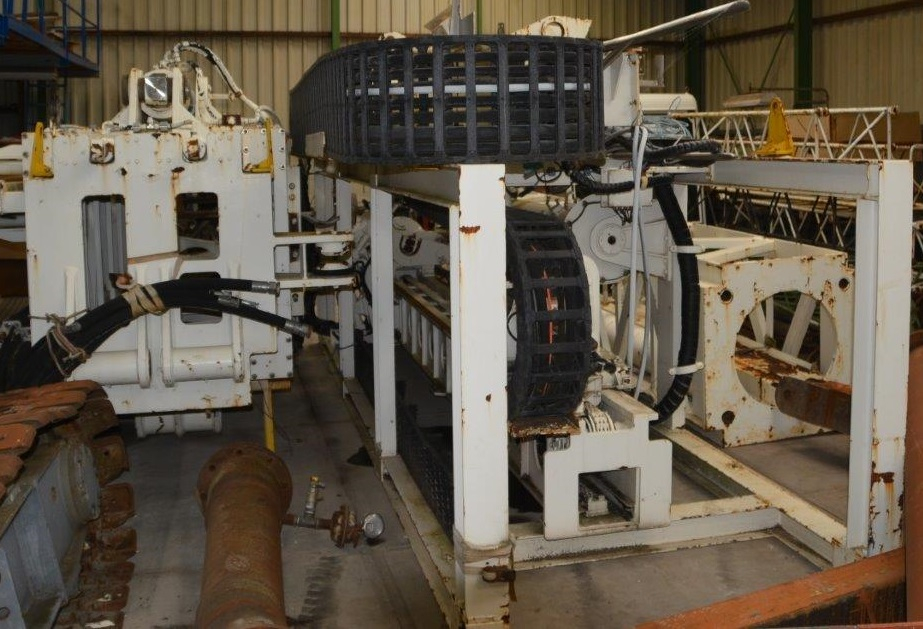

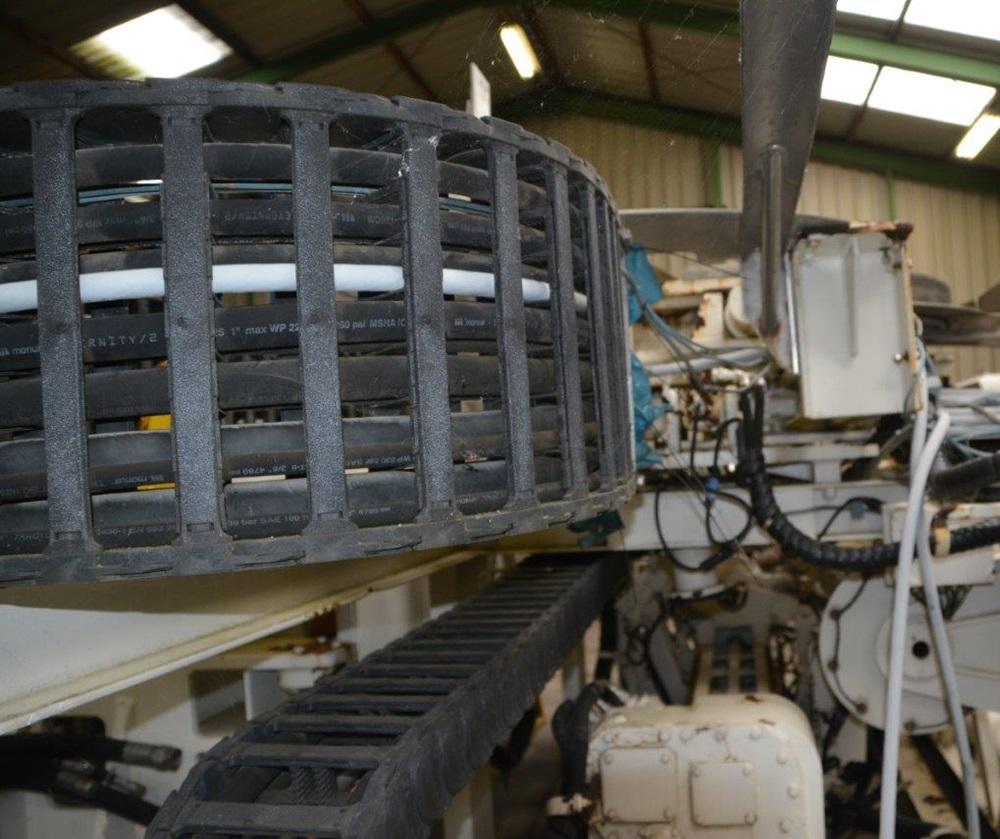

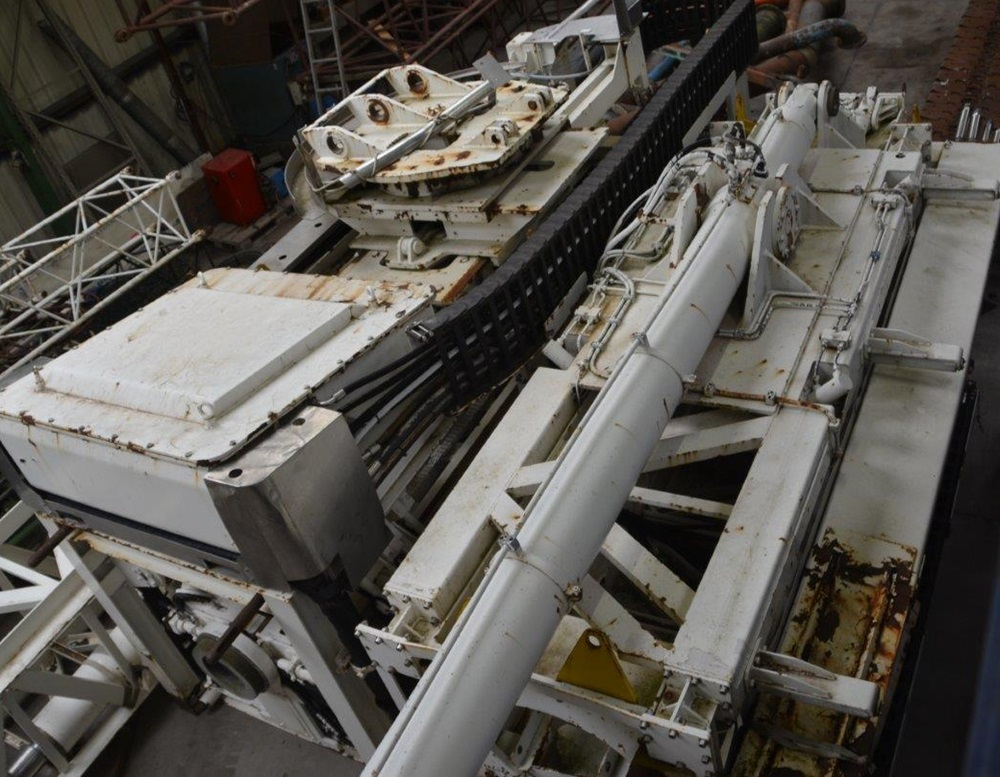

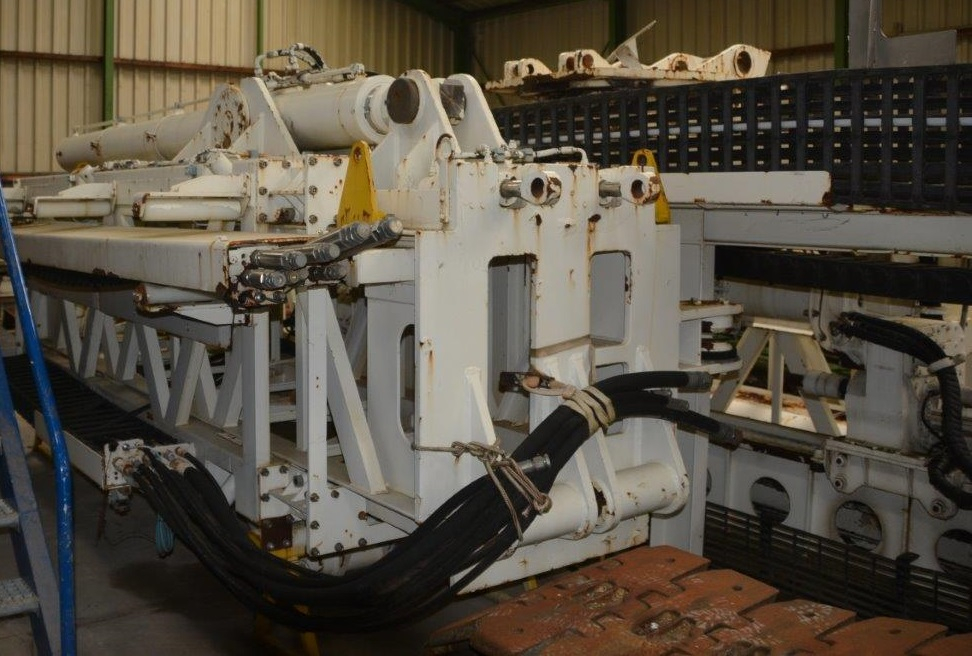

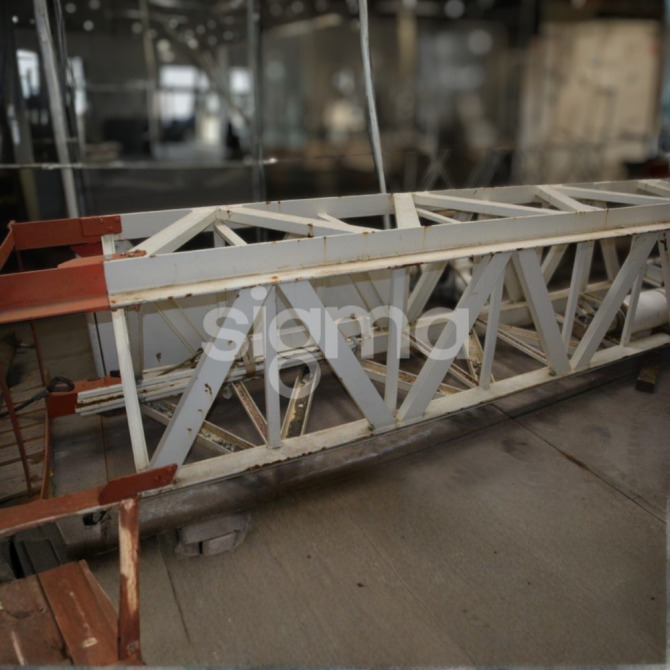

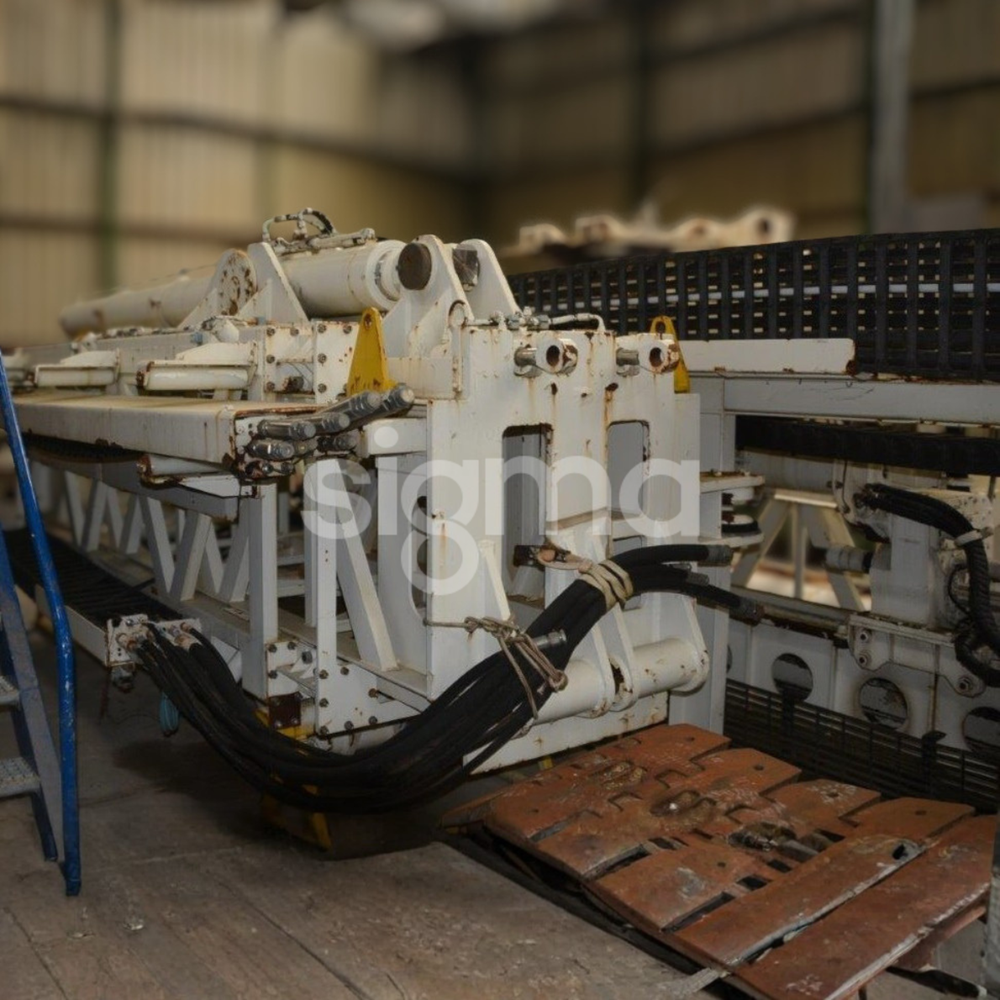

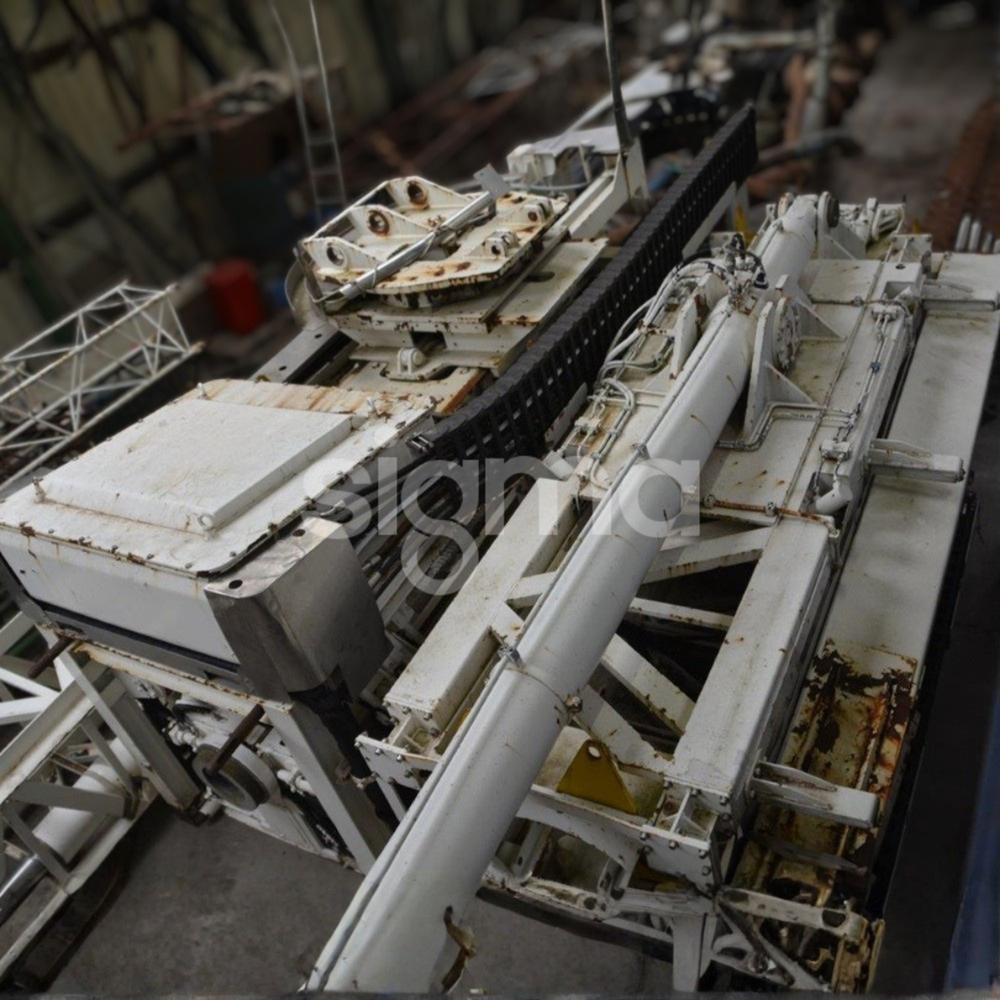

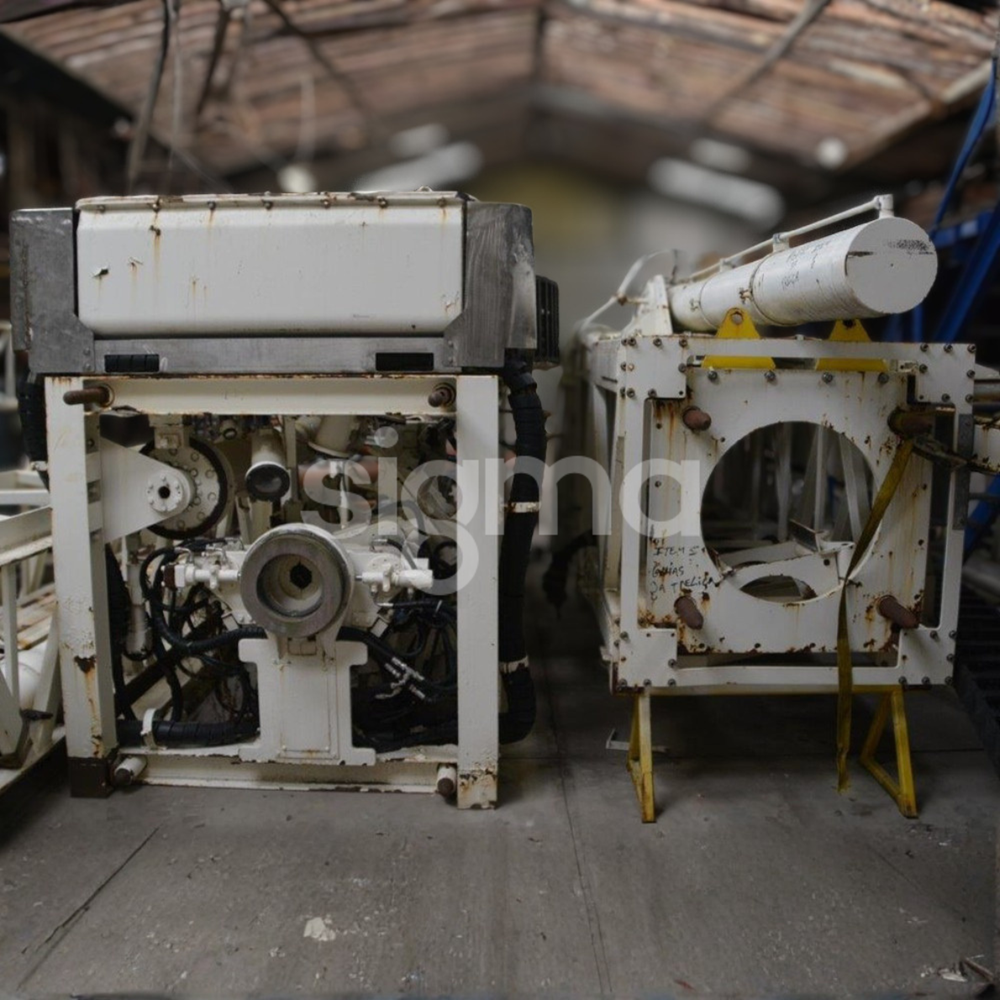

- Drilling unit & telescopic steel frame mast

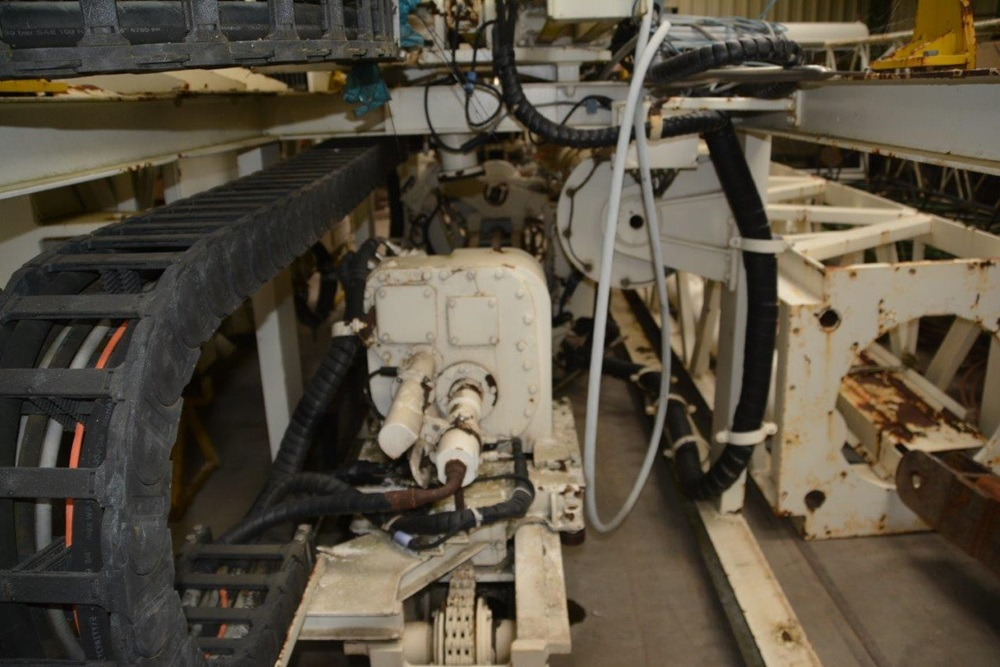

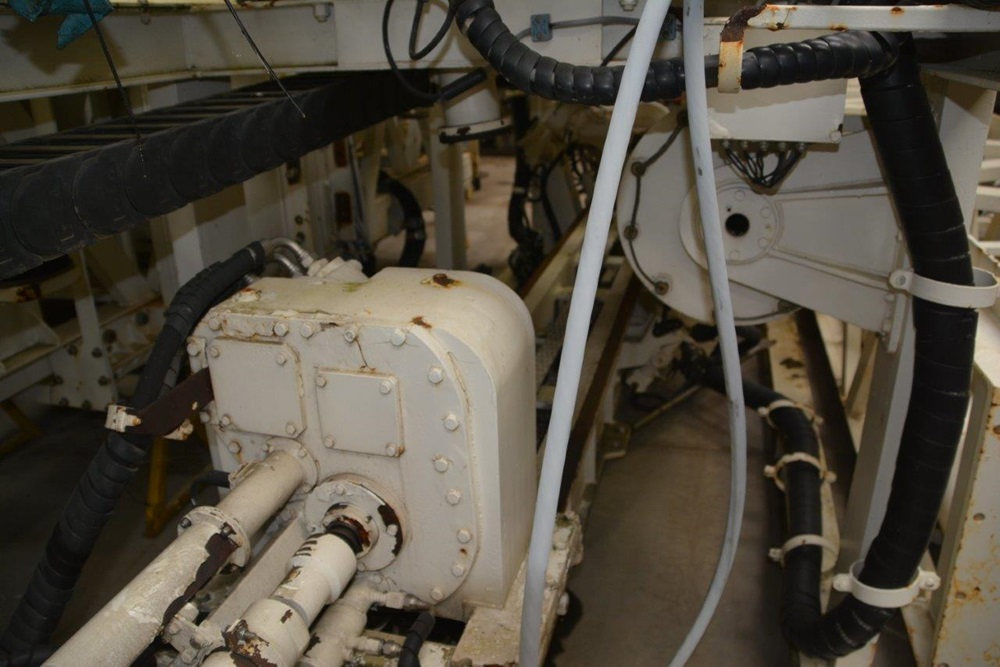

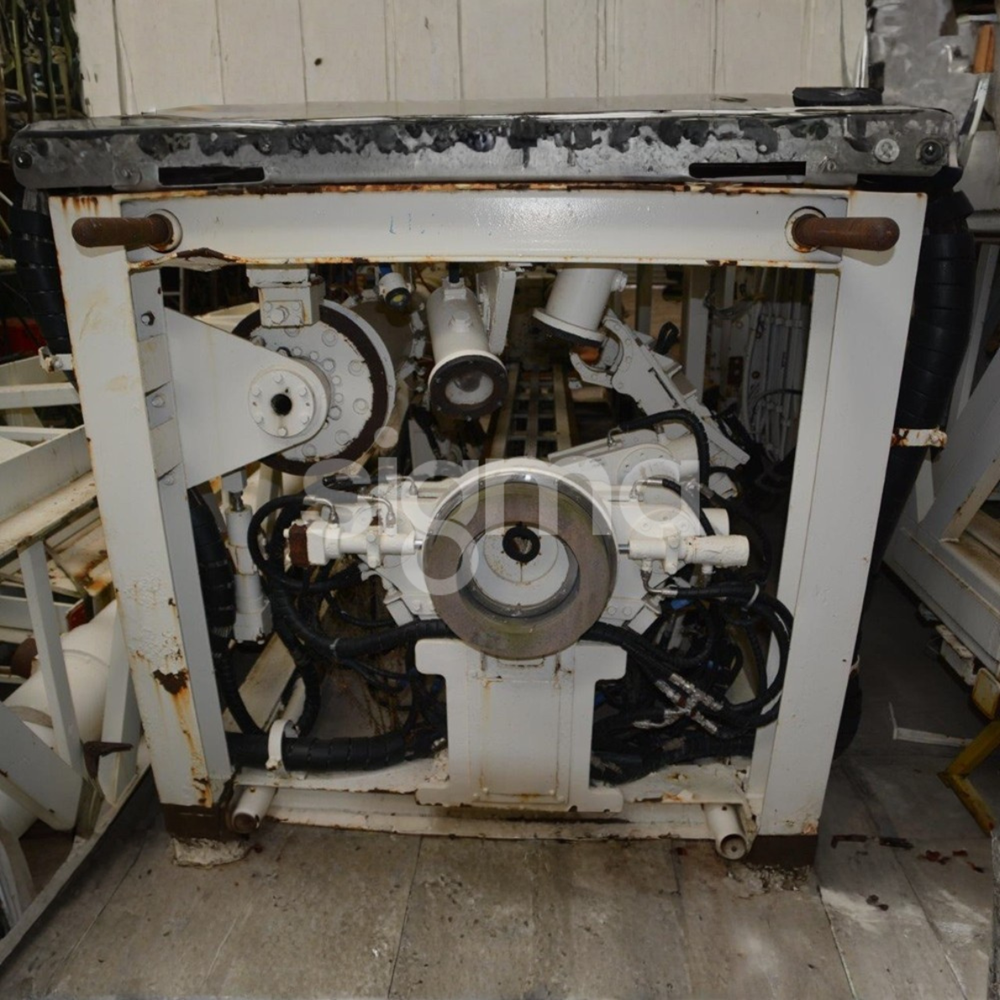

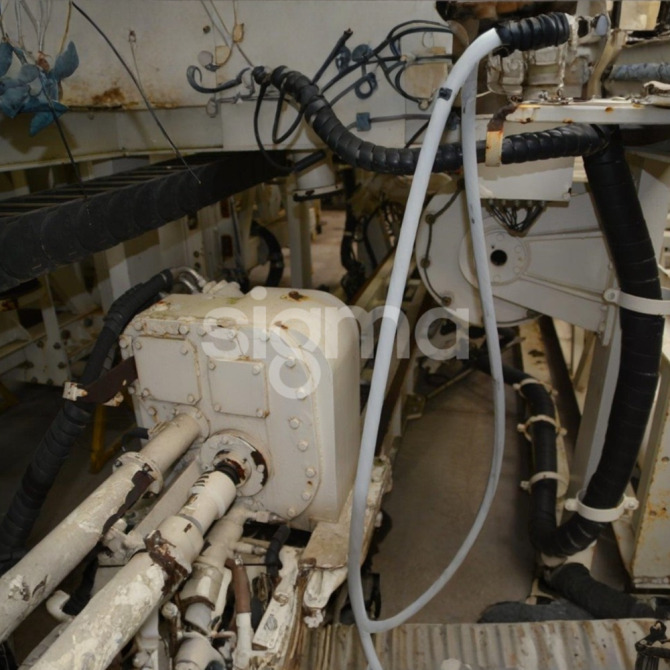

- Rotary head:
- Drilling phase max torque: 7700Nm
- Drilling phase max speed: 116rpm
- Coring max torque: 1670Nm
- Coring max speed: 536rpm

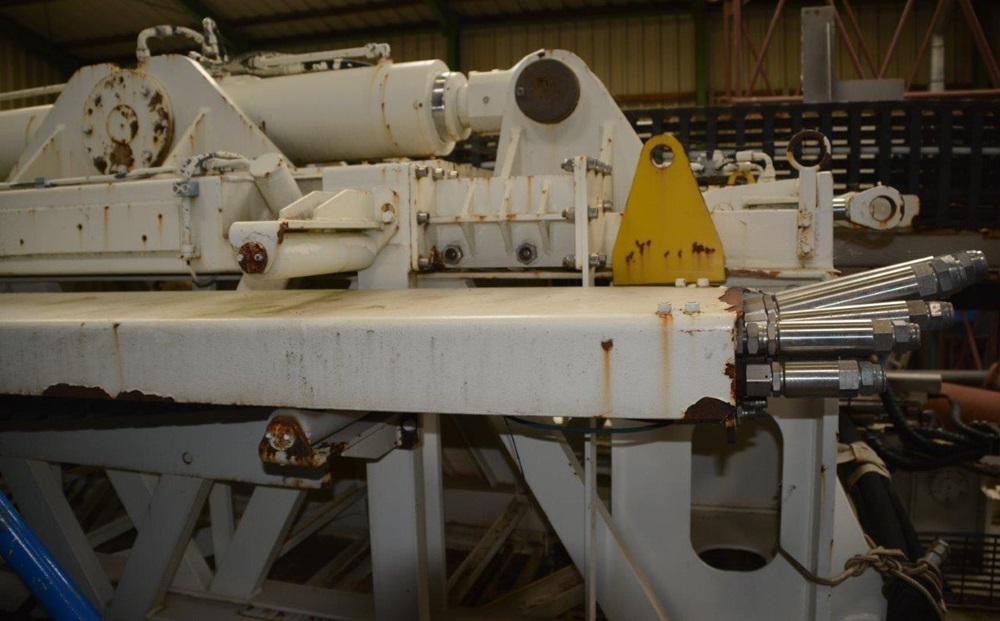

- Mast:
- Length: 5180mm
- Rotary head stroke: 3400mm
- Max push/pull force: 21,000/32,000N

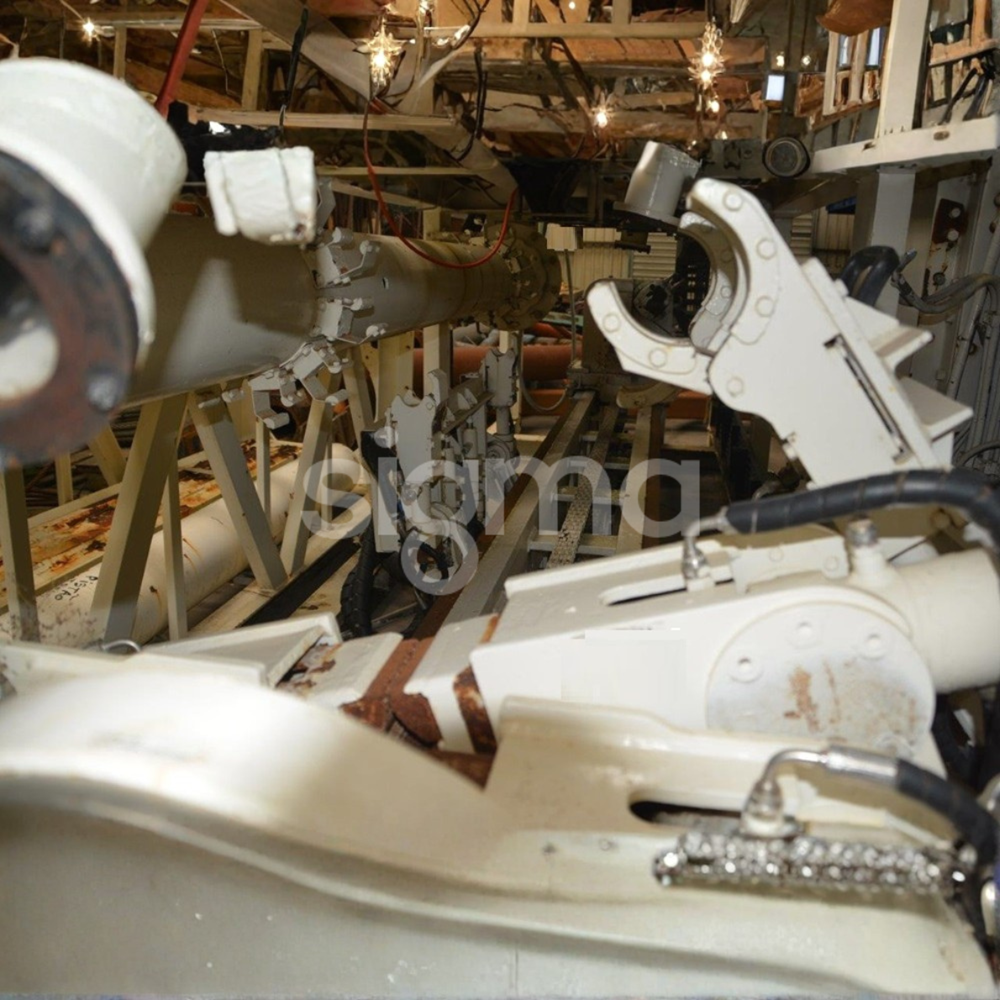

- Clamps:
- Max opening: 155mm
- Max clamping force: 196,000N
- Max breaking force: 27,000Nm
- Max rod length: 3m
- Dimensions:
- Length: 15m
- Width: 5m
- CE certified
