Overview
Machine location:
Europe
Stock number:
PF 40407
Categories:
Rotary Bored Piling Rigs
Manufacturer:
Tescar
Model:
CF2.5 PLUS
Year of manufacture:
2014

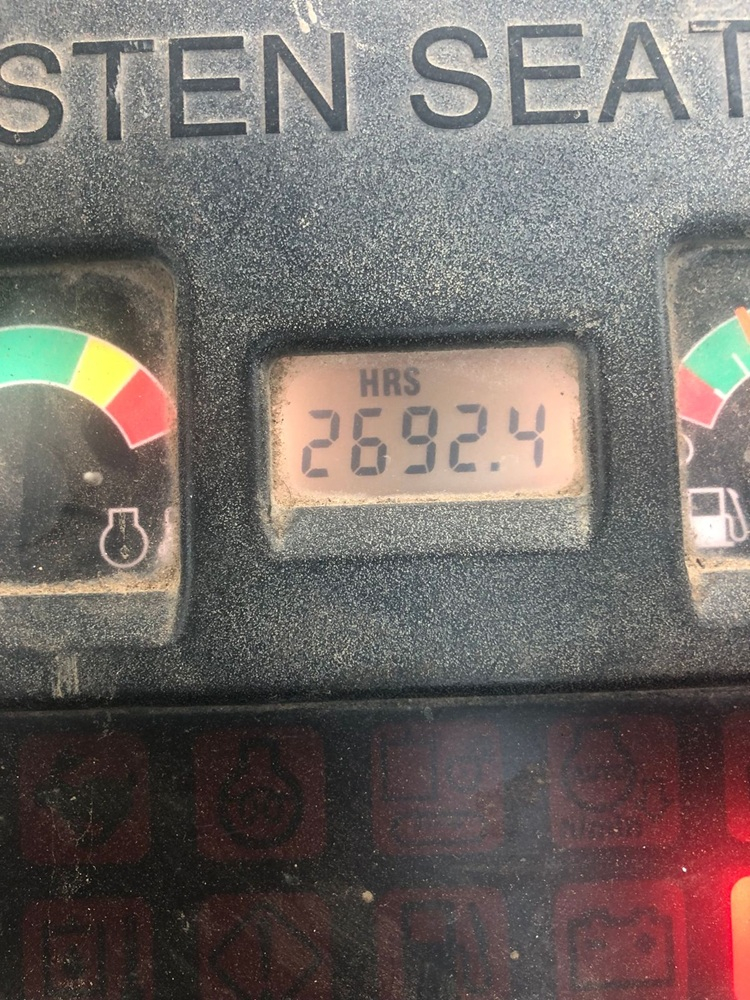

Working hours:
2690
Key features
- 2690 hours
- Mounted on Bobcat E50
- With mast counterslide 3 sections mast
- Rotary with inner passage 419mm suitable for 11 elements
- Special kelly bars to work in low headroom
- Equipped with 2 kelly bars and a rotary reduction sleave 419-229mm
- 11 Element kelly with outer bar 419mm
- 6 Element kelly with outer bar 229mm to drill minimum 300mm diameter
- Max drilling diameter 800mm
- Max depth 18 meters
- Kubota V2403 Diesel Engine
- Max Travel speed 4.2km/h
- Main winch line pull 2700daN
- Service winch line pull 900 daN
- Torque 2500daNm
- Rotation speed 7-15 rpm
- Spin off speed 70 rpm
- Rotary head stroke 700mm
- Max extraction force 6400 daN
- Max Crowd force 9500 daN
- Counterslide lower mast stroke 1000mm
- CE Marked
