Overview
Machine location:
United Kingdom
Stock number:
PF 40903
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Techno Drill
Model:
TD308
Year of manufacture:
1999
Working hours:
0
Key Features:
Key features
- Crawler mounted drilling rig
- Working hours: 0 after full refurb
- Suitable for soil nailing, micro piling, anchoring, ground investigation
- Fully refurbished with all mechanical and electrical systems inspected and tested
- Tracked chassis with hydraulic track width adjustment
- Operating weight: 2.5 tonnes
- Transport height: 2.2 m
- Drilling height: 3.8 m
- Max drilling depth: up to 15 m
- Max torque: up to 8,000 Nm
- Pull up / down force: up to 5,000 kg
- Forward mast tilt: up to +45

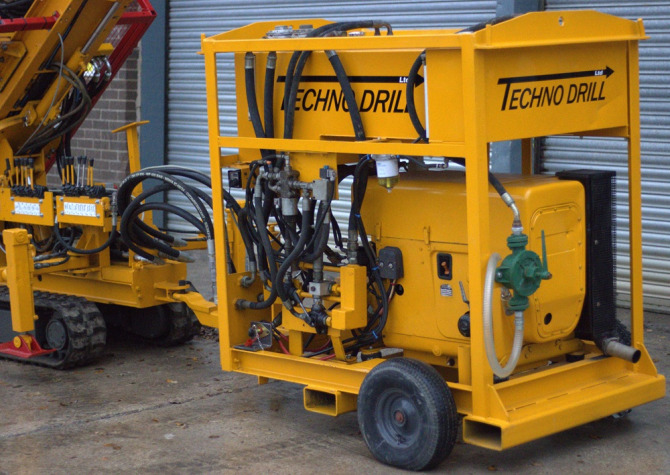

- Engine: Integrated diesel-driven hydraulic power pack with Hatz 4L41C engine
- Displacement: 3.432 litres
- Cylinders: 4-cylinder inline
- Power: 45.9 kW @ 2500 rpm
- Can be supplied with 2nd set of piling clamps for piling operations up to 300mm diameter
